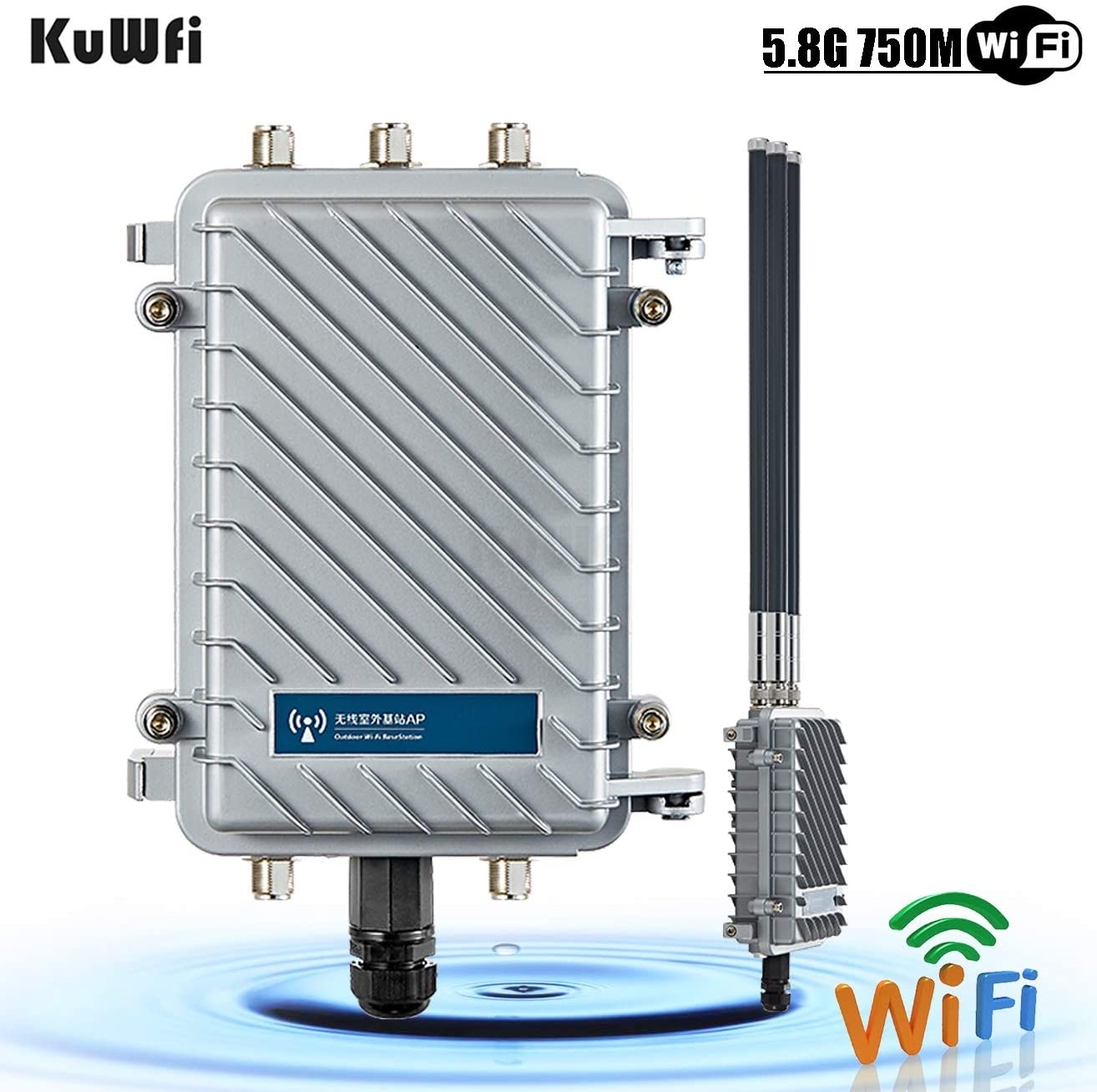

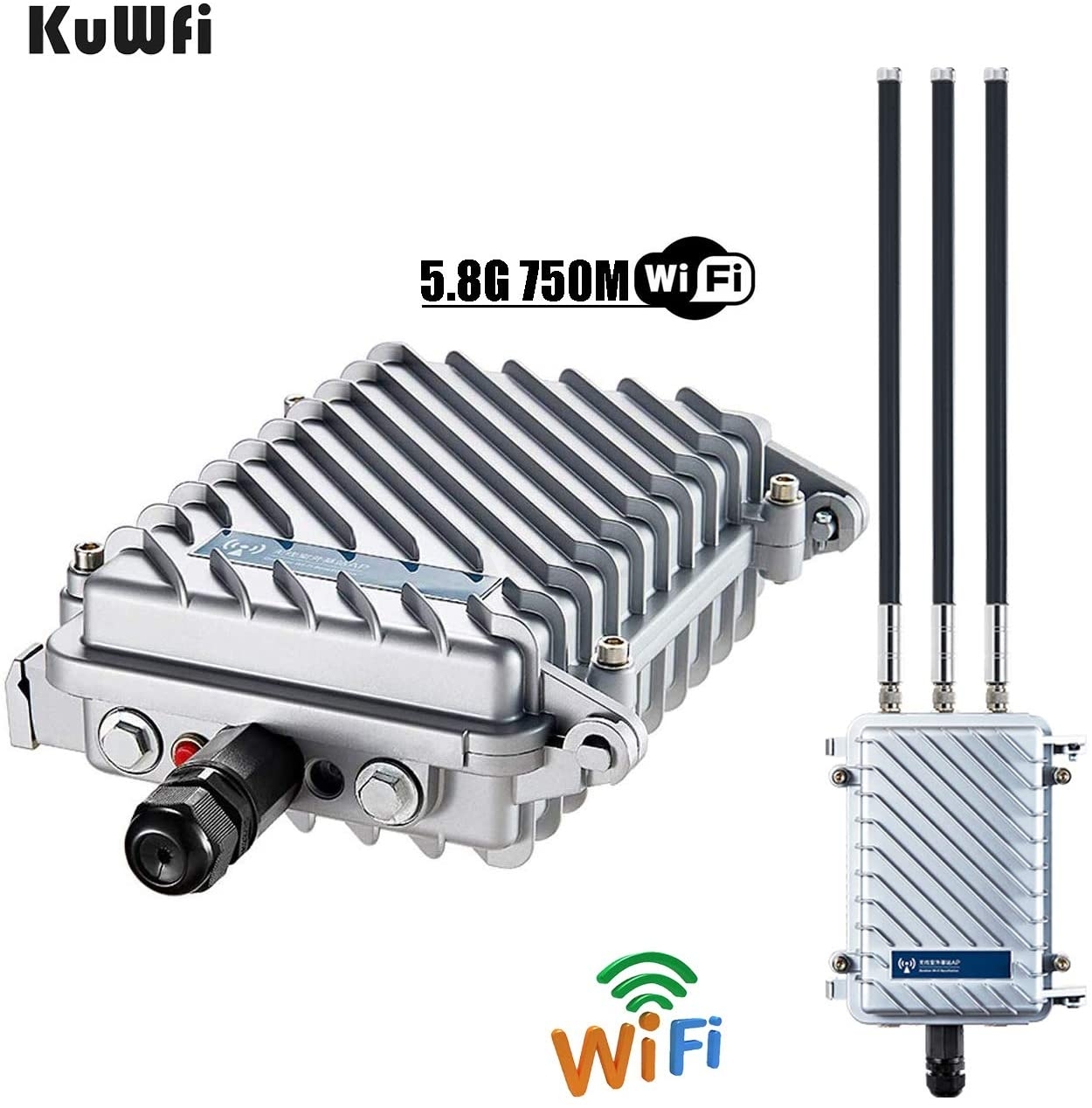

KuWFi High Power Outdoor Wireless WiFi Access Point 11AC 750Mbps Dual-Band Waterproof Access Point

Item No.: AP610H
Description
  • KuWFi-AP610H is an 11ac dual band Outdoor wireless access point with 750Mbps data rate, It comply with IEEE 802.11ac/b/g/n standard, Qualcomm Chipset , 2.4G 300Mbps and 5G 450Mbps high rate, 500mW high power design, with N type antenna connector, for wider outdoor wifi range and more users

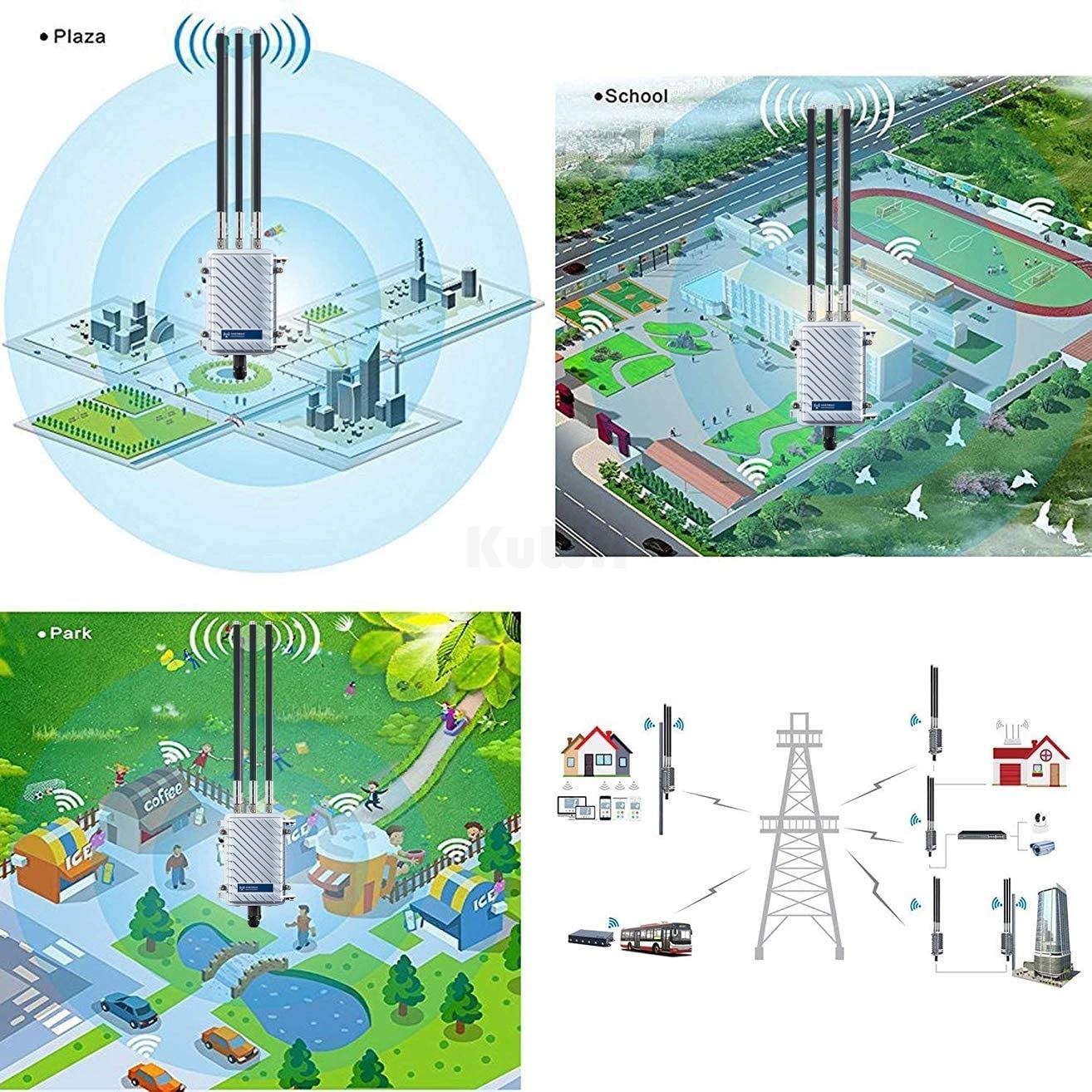

  • Outdoor PoE Access Point support wireless AP,  WiFi Repeater, Bridge, WISP, WDS operation mode, then with N type connector for detachable omni/panel antenna, user can flexibly choose a suitable wireless mode to build or extend the wireless networking based on exist networking structure

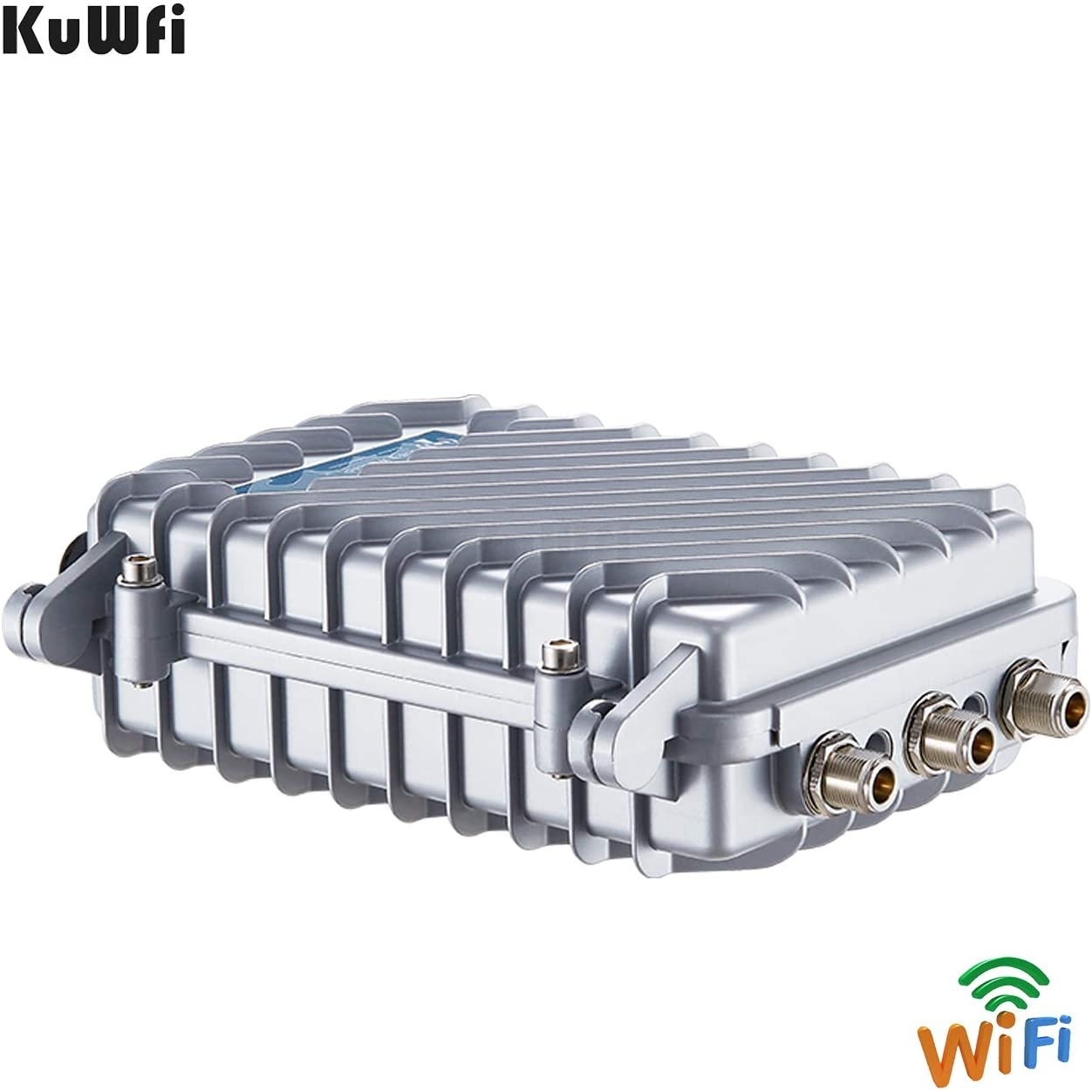

  • Outdoor WiFi Range Extender with metal waterproof, dustproof and sunscreen shell, temperature adaptive, to work in harsh outdoor environment, meanwhile, the auxiliary cooling function make HW-AP610 work normal at -20℃ to 55℃
  • Support full frequency and more than 200 channels if need, to avoid the Wi-Fi Interference, guarantee the stable wireless connection. Meantime, it support Power over Ethernet, support IEEE 802.3af PoE, 48V, easy in setup even no power socket nearby
  • Last and important, KuWFi-AP610H work with Yuncore’s AC controller for central management under wireless AP operation mode, then can work with cloud server for captive portal authentication or advertisement when AC controller or KuWFi-AP610H ;
-------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product description

Delivery Note
KuWFi Outdoor AP supports Fast Delivery. Fast delivery via DHL/UPS International Express from China, transit time only 3-5 days. No need to pay duty, want to get the outdoor wifi extender you want ASAP? This will be your best choice

Hardware
Chipset: Qualcomm QCA9531+QCA9887
Wireless: 802.11ac, 1T1R 600Mbps
Memory: 128MB DDR2 RAM
Flash: 16MB
Interface:
- 1* 10/100 Mbps RJ45 Port, support 48V active PoE
- 1 * Reset Button
Antenna: N Connector, can connect with panel antenna/omni antenna
LED Light: WAN, LAN
Size: 230mm * 150 mm * 80 mm
Power: POE 48V (24V PoE is optional);110V/220V
Max Users: 128

Firmware
Operation Mode: AP/WiFi Repeater/WISP
Protocol/Standard:
- IEEE 802.3(Ethernet)
- IEEE 802.3u(Fast Ethernet)
- IEEE 802.11ac/b/g/n
Wireless:
- Auto-Channel selection
- Distance Control (802.1x Ack timeout)
- Multiple SSID (8 SSID)
- BSSID
System Setting: Web-based configuration (HTTP/Telnet)
Firmware upgrade: Upgrade firmware via web browser or TFTP
Administration: Admin Password can be configured
System monitoring: Status in hand , useful statistic and Event log
Log: Supports local logs, logs host, logs file export
Reset: Reset or factory defaults
Backup: Restore settings & configuration of the device to local file

RF Date
Frequency:
2.4G:802.11b/g/n , 5.8GHz: 802.11a/n/ac MIMO
-2.4GHz: standard: 2.4GHz~2.484GHz; Special: 2.312GHz to 2.4835GHz
-5GHz: standard: 5150~5825MHz, Special: 5020 - 6100MHz
Modulation:
- OFDM = BPSK,QPSK, 16-QAM, 64-QAM
- DSSS = DBPSK, DQPSK, CCK
Data Rate: 2.4G: 300Mbps & 5.8G: 450Mbps

Packages
1 * KuWFi-AP610H unit
1 * User Manual
1 * LAN Cable
