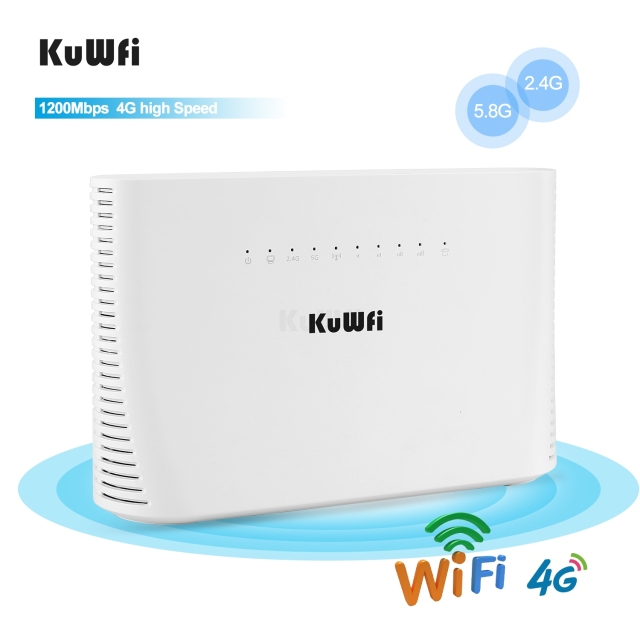

KuWFi 4G WIFI Router 1200Mbps 2.4G&5G Unlocked FDD/TDD With RJ45/RJ11 Port Up to 64 Wifi Users

Item No.: CPE1200K
Description

Product Description


KuWFi 1200Mbps Gigabit 4G LTE Router with VOIP funtion high- speed Wifi router working with Home Office and IoT


4G SIM WIFI Router frequency:

CPE1200K-1

4G FDD:B1/B3/B5(2100/1800/850Mhz)

3G WCDMA:B1/(2100Mhz)

2G GSM:B3(1800Mhz)


CPE1200K-2

4G FDD:B1/B3/B5/B8(2100/1800/850/900)

4G TDD:B38/B40/B41(2600/2300/2500Mhz)

3G WCDMA:B1/B8(2100/900Mhz)

2G GSM:B3/B8(1800/900Mhz)


CPE1200K-3
4G FDD:B1/B3/B5/B7/B8/B20(2100/1800/850/2600/900/800Mhz)

4G TDD:B38/B40/B41(2600/2300/2500Mhz)

3G WCDMA:B1/B8(2100/900Mhz)

2G GSM:B3/B8(1800/900Mhz)


 1.CPE1200K is a 4G LTE WiFi Internet Router with powerful signal with antenna, Internet access to internet via HSPA/LTE Data SIM Card. or Internet access/PPPoE work mode, if you don't have 4G sim card , you can use it for connect to modem work


2.4G SIM Router is Easy to connect and easy to carry in hand Sharing customer to 64 WiFi users,All you need to do is inserting the SIM card,

then you will enjoy the WiFi with your friends with this portable 4G LTE router.


3.4G CPE Router work with 4G to WiFi ,4G to LAN  provider 1*10/100/1000Mbps RJ45 WAN

2*10/100/1000Mbps RJ45 LAN and one Rj11 port support VOIP Vice

Get internet and home phone service all in one device with the 4G LTE Broadband Router with Voice.


4.Tips on product using: insert SIM card then power on the router, Even if your SIM card is compatible with the product, it is not necessarily plug and play,you may need to disable the PIN code of the SIM card and modify the APN ,Enter the router IP address: 192.168.100.1—Click Network—APN—Enable. Modify APN. Make sure the SIM card is activate,


5.Not support roaming service and Virtual SIM Card and IoT SIM Card,In rural area did not cover good signal some time disconnect .that is normal


Product Detail


MTK7621+7603+7612E CPU,


Memory:256MB DDR2 Flash:32MB ,


Support 4*10/100/1000Mbps RJ45,


Power supply:DC 12V 1.5A,


Support external LED indicator,


Button:Reset,WPS , WiFi,


Support antenna:4*WIFI+2*LTE(Connector Connector for indoor antenna,5dBi gain.)


FDD-LTE 150Mbps/50Mbps Throughput:LTE CAT4


Support Multiple Internet Connect:4G router,PPPOE mode and AP mode


Support VOIP,SMS


Radio rate up to 1200Mbps,support wireless security functions


Suooport IPSec,PPTP,L2TP VPN


Support Firewall:IP,MAC,Port Filtering


Support SIM/USIM/cell lock card and traffic


Support IPV4,IPV6 Protocol and DMZ statistics


5.8G: Up to 900Mbps


 2.4G: Up to 300Mbps


Support: IPV4/IPV6


Wireless Security :WPA-PSK/WPA2-PSK、WPA/WPA2


Designed for small office/home /IoT/Security deployments.


Operating Environment

Operating Temperature:Normal:0°C to +45°C;

Operating Humidity:-20° C to +70° C

Operating Humidity:5%~ 95%

Storage Humidity:5%~ 95%
