Five points:
- [High Power for more range and stable signal]Designed in two line Power Amplifier on PCB board, the power can be 1000mW high power, 5dBi MIMO high gain antenna, together with Ceiling mount, greatly increase the wireless range and supply the stable Wi-Fi signal for users.
- [Wave 2 Technology]With Wave 2 Technology, it adopt 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), 4 Spatial Steams, greatly to improved the communication efficiency.
- [Power over Ethernet]XD4200 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
- [Access Controller System & Cloud Management System]With Access Control System, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore.
- Wireless ap router equipped Gigabit WAN & LAN port, fast Ethernet data rate make more than 100 end users can access into XD4200 with faster Ethernet, make them to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall...
------------------------------------------------------------------------------------------------------------------------------------------------------------
Product description
Product Detail
XD4200 is an 11ac Wi-Fi standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support Wave2 , combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps)
Working mode:
Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
Interface:

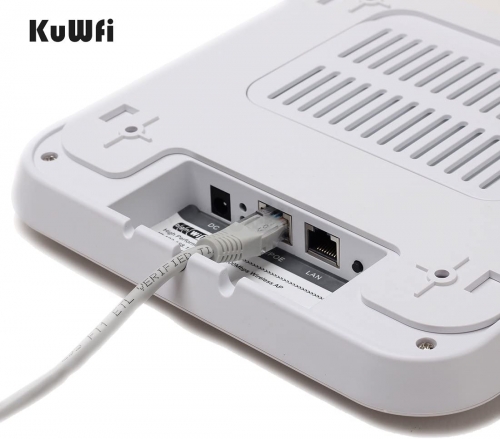

1 * 10/100 /1000Mbps RJ45 WAN Port
1 * 10/100 / 1000Mbps RJ45 LAN Port
1 * Reset button
Antenna:
Build in 5dBi MIMO Antenna
Power consumption:
48V PoE<30W
Frequency:
2.4G:802.11b/g/n: 2.4GHz – 2.484GHz，
5GHz:802.11a/n/ac: 5.150GHz～5.850GHz
Environment
Operating Temperature: -30~55 ℃
Storage Temperature: -40~70 ℃
Humidity: 5%~95% non-condensing
