Product Description
1.10-ports Gigabit Managed POE Switch is a Green Energy-Saving POE Switch independently developed by HRUI. It adopts High-Quality and High-Speed Network IC and the most stable POE Chip. 2. POE port meets the IEEE802.3af or IEEE802.3at standard. This model can provide seamless connection for 10/100/1000M Ethernet, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The Non-POE devices are forcibly powered and only transmit data. 3.Full Gigabit SNMP LACP 8 Port WEB Managed POE Switch with 2 Gigabit Uplink 1 Console Port 8 ports POE Switch Managed POE Swith 8 port web managed poe switch 4. 8 x 10/100/1000Mbps auto-sensing POE Ports, 2 x 1000Mbps SFP Ports, 1 x Console Port,Can transfer data for network surveillance cameras; 5. Support IEEE802.3/IEEE802.3i/IEEE802.3uIEEE802.3ab/IEEE802.3z, IEEE802.3af/at, store-and-forward;
|
Product Name |

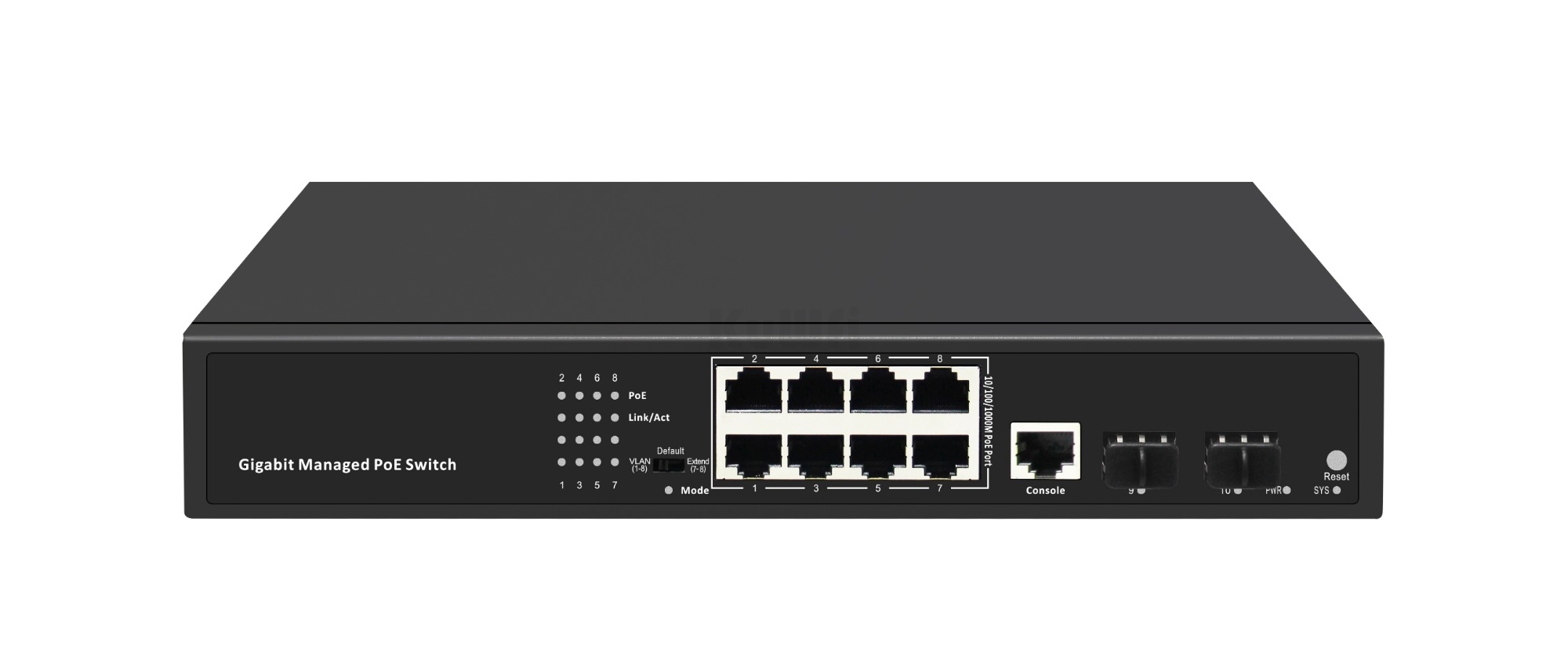

10 Port Gigabit Managed POE Switch |
||||||||||||
|
Product Model |
HR-AFGM-82NS |
||||||||||||
|
Interface |

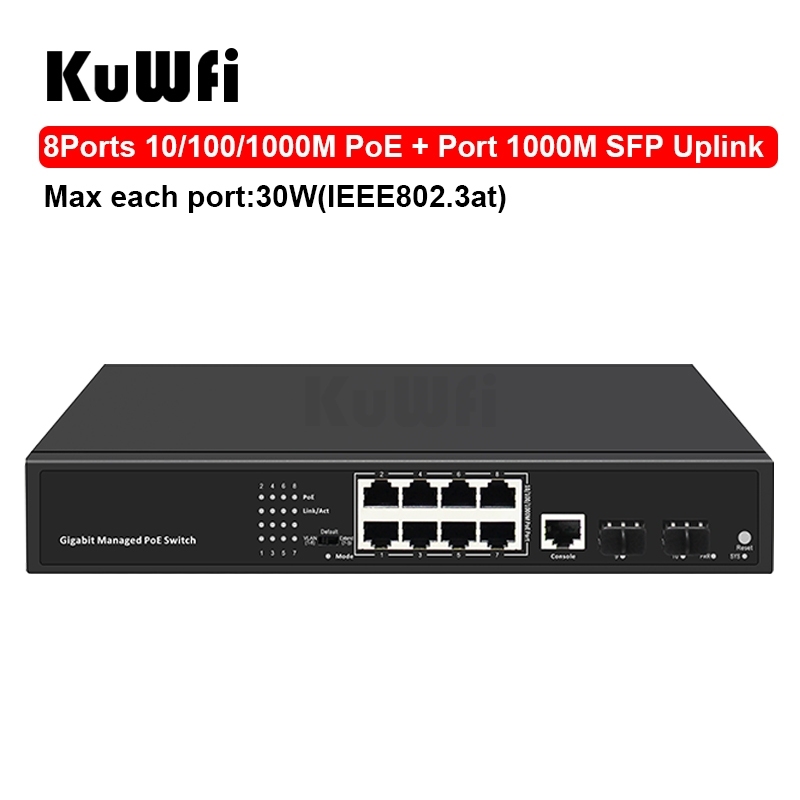

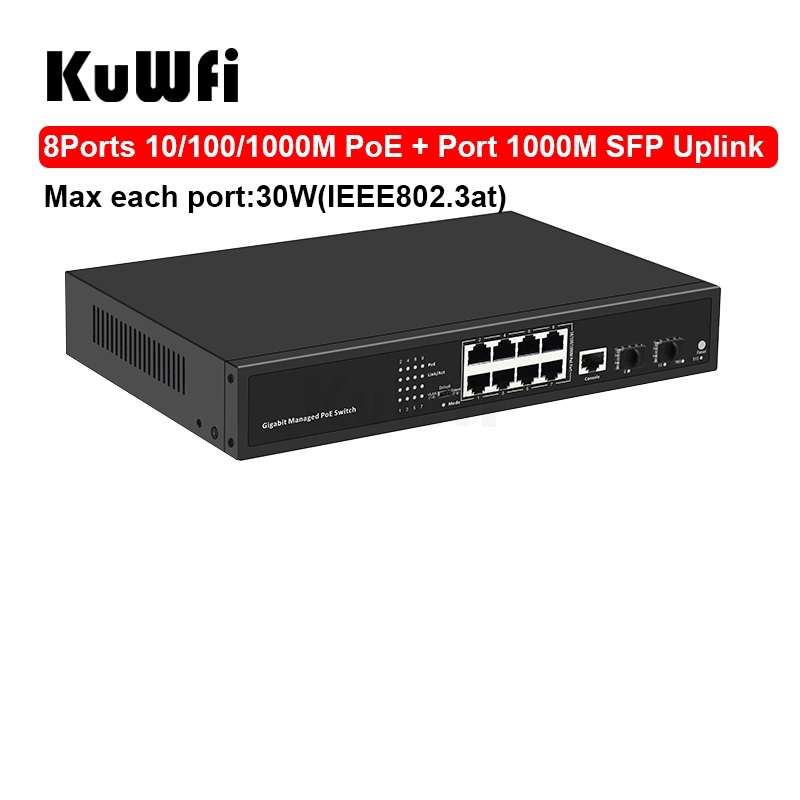

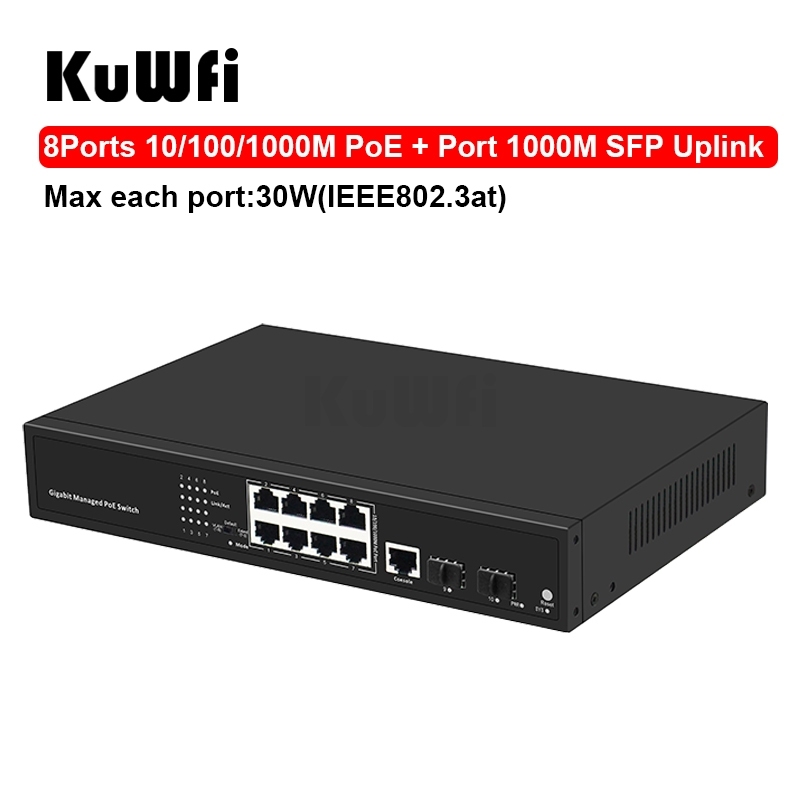

8*10/100/1000M POE Ports + 2*Gigabit SFP Ports + 1*Console Port |
||||||||||||
|
Network Protocols |
IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3z |
||||||||||||
|
PoE Parameters |
PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) |
||||||||||||
|
PoE compatibility: IEEE 802.3af/at adaptive |
|||||||||||||
|
POE port output: DC48-55V |
|||||||||||||
|
Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-) |
|||||||||||||
|
Port Lightning Protection |
General Mode 6KV, Differential Mode 4KV, ESD 15KV. |
||||||||||||
|
Network Transmission Medium |
10BASE-T: Cat3, 4, 5 UTP (≤ 100 m) 100BASE-TX: UTP (≤100 m) above Cat5 1000BASE-TX: UTP (≤100 m) above Cat5 |
||||||||||||
|
Optical |
MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
||||||||||||
|
DIP Definition |
VLAN: 1-8 ports are isolated from each other, and only connect Uplink with 9,10 Port; Default: 1-10 port is standard, all ports can communication; Extend: 7-8 port supports 250m link extension at a rate of 10M. |
||||||||||||
|
Power Supply |

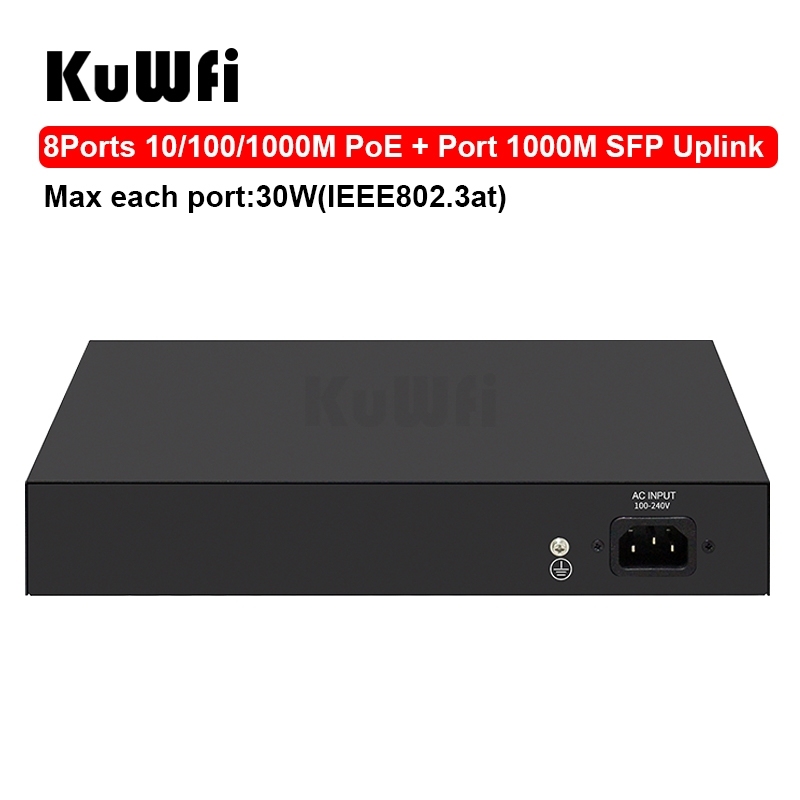

Input Voltage: AC100~-240V; Output: DC 52V2.3A Total power: 120W |
||||||||||||
|
LED indicator |
|
||||||||||||
|
Physical Dimension |
Product size (L×W×H): 270mm× 180mm× 45mm Package size (L × W × H): 312mm × 260mm × 84mm |
||||||||||||
|
Working Environment |
Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 85℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
||||||||||||
|
Package Contents |
1. Switch: 1 set 2. Instruction manual: 1 3. Certificate of conformity: 1 4. Warranty card: 1 5. Power Supply 1 6. A pair of hanging ears |
||||||||||||
|
Certification |
CE, FCC, RoHs, 3C |
||||||||||||
|
MTBF: |
100,000 hours |
||||||||||||
|
Warranty |
2 years warranty |
||||||||||||
|
Technical Indicators |
|||||||||||||
|
Bandwidth |
20Gbps |
||||||||||||
|
Packet Forwarding rate |
14.88Mpps |
||||||||||||
|
Packet Buffer Memory |
4M |
||||||||||||
|
Memory Capacity |
128MB |
||||||||||||
|
Flash Capacity |
16MB |
||||||||||||
|
Jumbo frame |
9.6Kbytes |
||||||||||||
|
VLANs |
4096 |
||||||||||||
|
MAC |
8K |
||||||||||||
|
Forwarding Mode |
Store-And-Forward |
||||||||||||
|
Layer 2 Software Function |
|||||||||||||
|
Port Management |
Enable/Disable Port |
||||||||||||
|
Speed,Duplex,MTU Setting |
|||||||||||||
|
Flow-control |
|||||||||||||
|
Port Information Check |
|||||||||||||
|
Port Mirroring |
Supports both side-way port mirroring |
||||||||||||
|
Port Speed Limit |
Supports port speed limit, speed limit granularity 32Kbps |
||||||||||||
|
Port Isolation |
Support the downlink port isolation, and can communicate with the uplink port |
||||||||||||
|
Storm Suppression |
Supports unknown unicast, multicast, unknown multicast, broadcast type storm suppression Storm suppression based on bandwidth regulation and storm filtering |
||||||||||||
|
Link Aggregation |
Support static manual aggregation Support LACP dynamic aggregation |
||||||||||||
|
VLAN |
Access |
||||||||||||
|
Trunk |
|||||||||||||
|
Hybrid |
|||||||||||||
|
Support port, protocol, MAC-based VLAN partitioning |
|||||||||||||
|
Support GVRP dynamic VLAN registration |
|||||||||||||
|
Voice VLAN |
|||||||||||||
|
MAC |
Support static addition, deletion |
||||||||||||
|
MAC address learning limit |
|||||||||||||
|
Support dynamic aging time setting |
|||||||||||||
|
Spanning tree |
Support STP spanning tree protocol Supports RSTP Rapid Spanning Tree Protocol Supports MSTP Rapid Spanning Tree Protocol |
||||||||||||
|
Multicast |
Support static addition, deletion IGMP-snooping |
||||||||||||
|
Support MLD-Snooping |
|||||||||||||
|
Support v1/2/3 dynamic multicast monitor |
|||||||||||||
|
DDM |
Support SFP/SFP+DDM |
||||||||||||
|
Extended Function |
|||||||||||||
|
ACL |
Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port |
||||||||||||
|
Qos |
Based on 802.1p (COS) classification |
||||||||||||
|
Based on DSCP classification |
|||||||||||||
|
Classification based on source IP, destination IP, and port number |
|||||||||||||
|
Support SP, WRR scheduling strategy |
|||||||||||||
|
Support flow rate limit CAR |
|||||||||||||
|
LLDP |
Support LLDP link discovery protocol |
||||||||||||
|
User settings |
Add / delete users |
||||||||||||
|
Log |
User login, operation, status, events |
||||||||||||
|
Anti-attack |
DOS defense |
||||||||||||
|
Support CPU protection and limits the rate of sending cpu packets |
|||||||||||||
|
ARP binding (IP, MAC, PORT binding) |
|||||||||||||
|
Certification |
Support 802.1x port authentication |
||||||||||||
|
Support AAA certification |
|||||||||||||
|
Network diagnosis |
Support ping,telnet,trace |
||||||||||||
|
System Management |
Device reset, configuration save/restore, upgrade management, time setting, etc. |
||||||||||||
|
Management function |
|||||||||||||
|
CLI |
Support serial port command line management |
||||||||||||
|
SSH |
Support SSHv1/2 remote management |
||||||||||||
|
TELNET |
Support telnet remote management |
||||||||||||
|
WEB |
Support Layer 2 settings, Layer 2 and Layer 3 monitor |
||||||||||||
|
SNMP |
SNMP V1/V2/V3 |
||||||||||||
|
Support trap:ColdStart,WarmStart,LinkDown,LinkUp |
|||||||||||||
|
RMON |
Support RMON v1 |
||||||||||||
|
Other functions |
Support POE configuration, POE scheduling management, etc |
||||||||||||
|
Support DHCP Snooping,Option82 |
|||||||||||||
|
Support Ring-Network Protection |
|||||||||||||
|
Support dynamic ARP detection |
|||||||||||||
|
Support TACACS+ certification |
|||||||||||||
|
Support DNS certification |
|||||||||||||
|
Support port security settings |
|||||||||||||
|
Support MVR protocol |
|||||||||||||
|
Support cable detection VCT function |
|||||||||||||
|
Support UDLD protocol |
|||||||||||||
