Product Name |

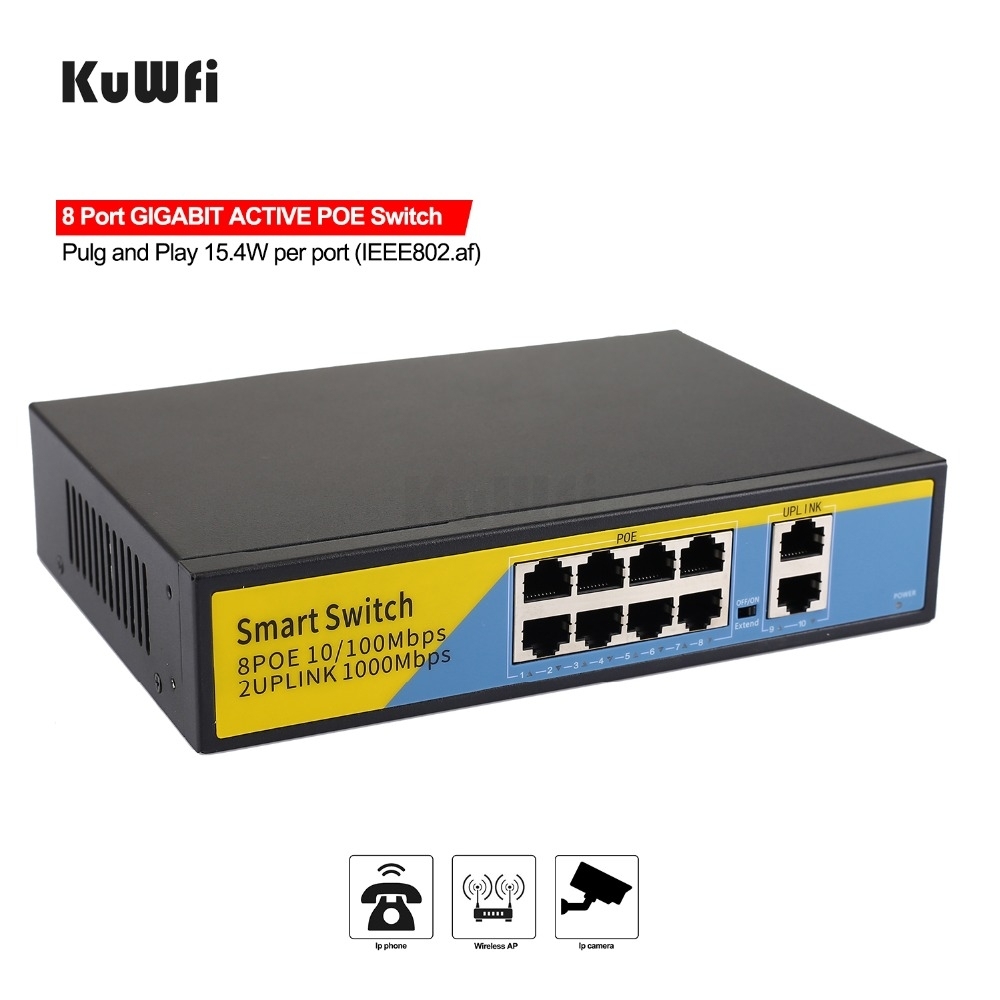

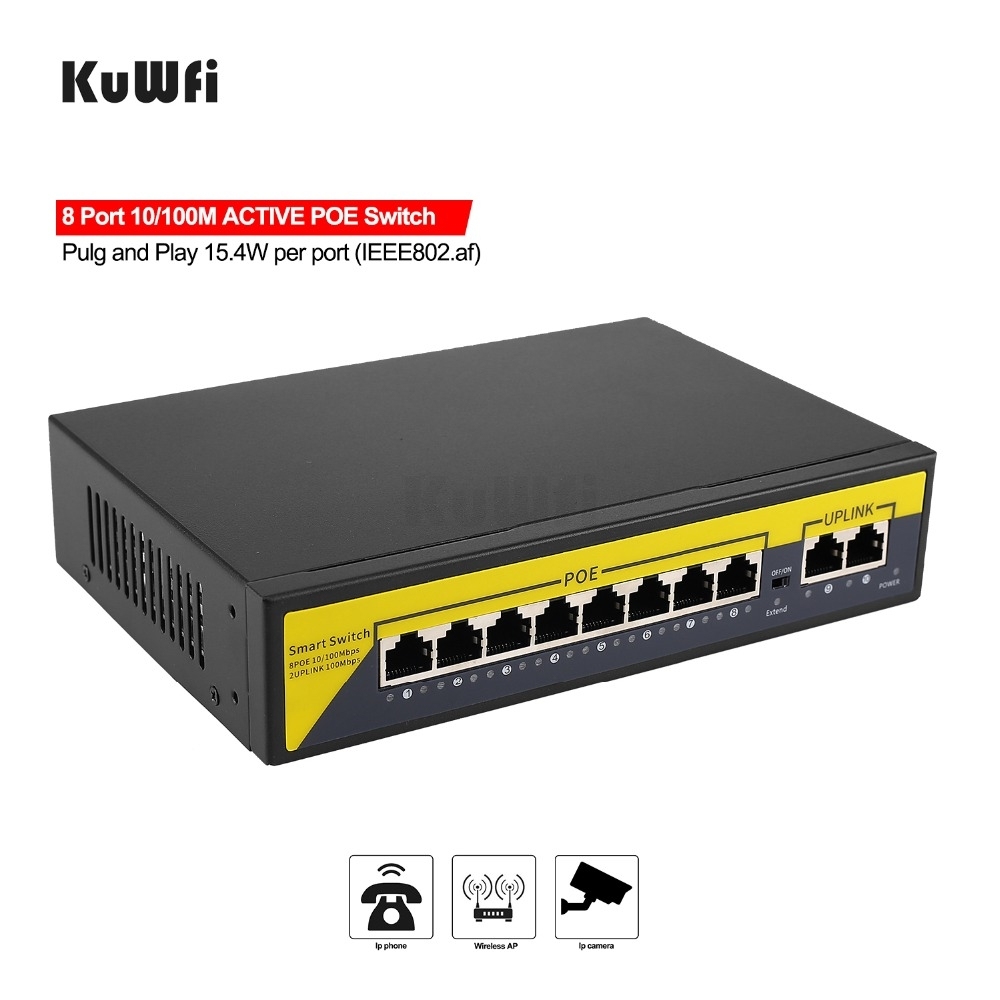

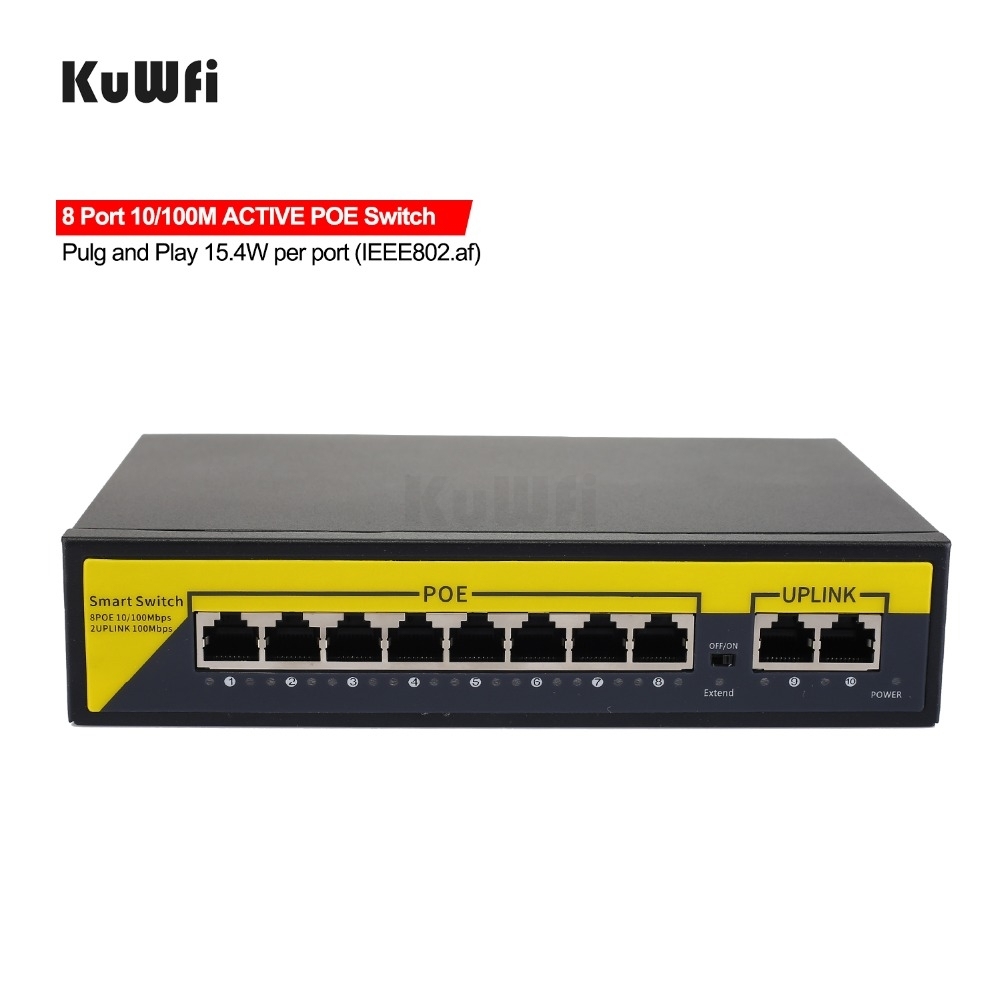

10 Port 10/100M/1000 POE Switch(8+2) |
|
Product Model |
1010B/1010GB |
|
Power Supply Type |
External, Both 1/2+,3/6- and 4/5+7/8- |
|
PoE Output Power |
15.4W/30W |
|
Connector |
8*10/100mbps POE port,2*10/100/1000mbps UP-Link port |
|
Network Medium |
Cat5 (UTP) or more |
|
Technology |
|
|
Network Standards |
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet |
|
PoE power |
15.4W per port(IEEE802.3af). Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-) |
|
Processing types |
Store-and-forward Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
|
Address database Table Size |
8000MAC address |
|
Buffer memory |
48Kb embedded memory per unit |
|
Backboard Bandwidth |
2G |
|
Network Latency |
Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission |
|
Power |
|
|
Input |
52V DC input |
|
PoE power consumption |
15.4W per port(IEEE802.af) |
|
Overload current protection |
Present |
|
Mechanical |
|
|
Casing |
Metal |
|
Installation |
Rack mounting |
|
Interface |
|
|
LED Indicators |
System: Power, PoE Maximum power Per port: Link, Activity, Speed, PoE active, PoE error |
|
Environment specification |
|
|
Operating temperature |
-10-55℃(32-104℉) |
|
Storage temperature |
-40-70℃(14-158℉) |
|
Operating humidity |
90% maximum relative humidity, non-condensing |
|
Storage humidity |
95% maximum relative humidity, non-condensing |
|
Regulatory Approval |
|
|
ISO |
Manufactured in ISO9001 facility |
|
Safety |
CE/CCC/FCC |
|
Warranty |
2 years |
|
Dimensions |
202*140*45mm(L*W*H) |
|
Weight |
0.9kg |
