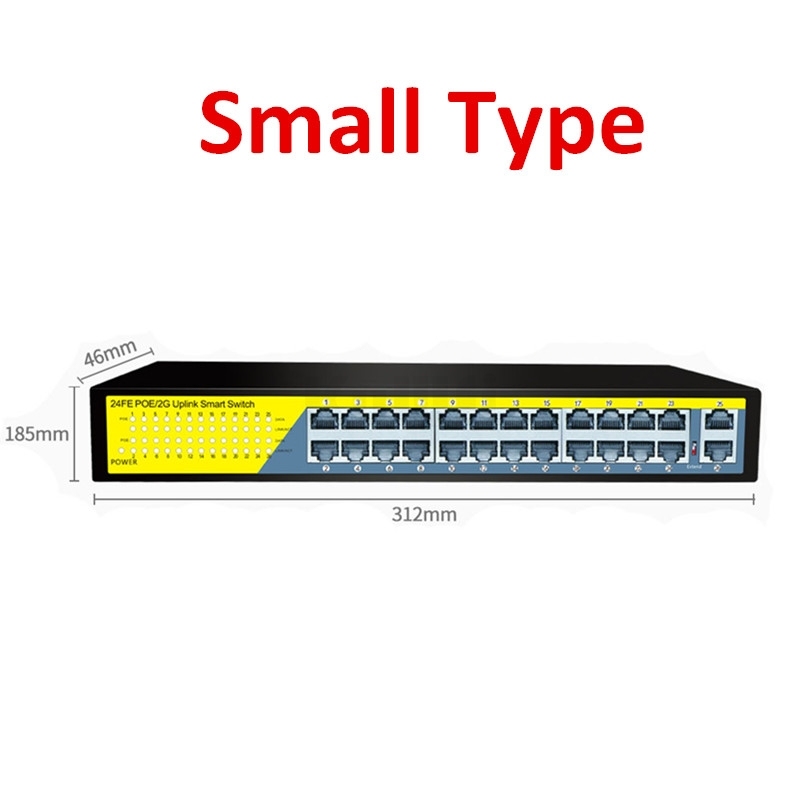

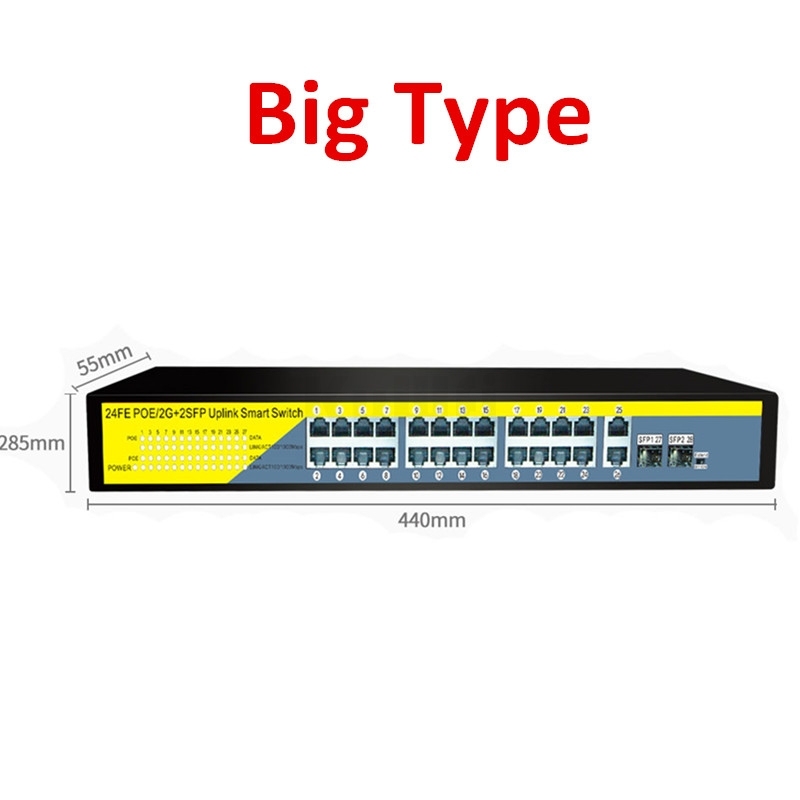

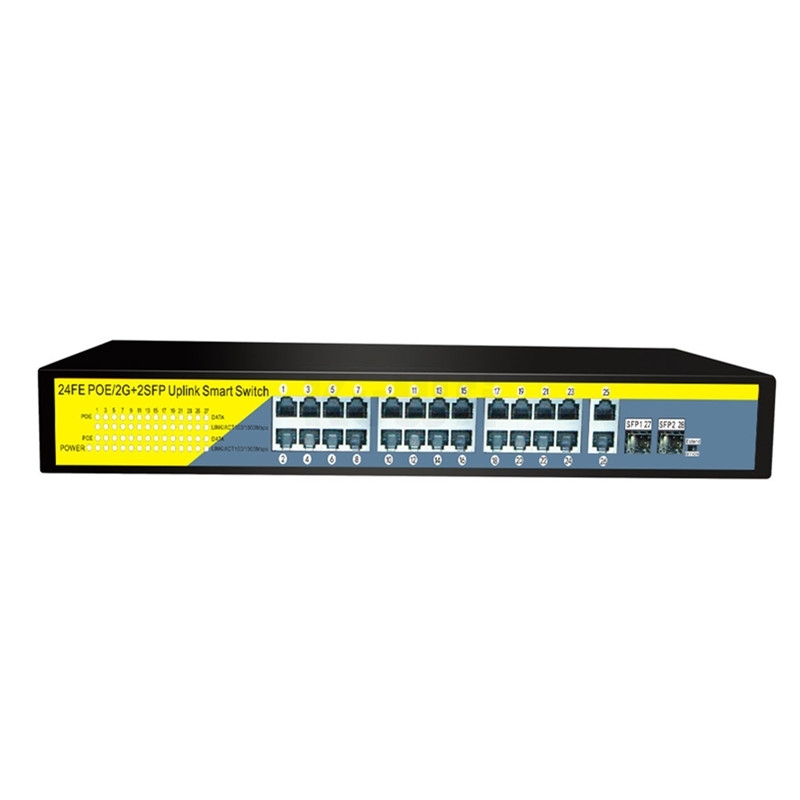

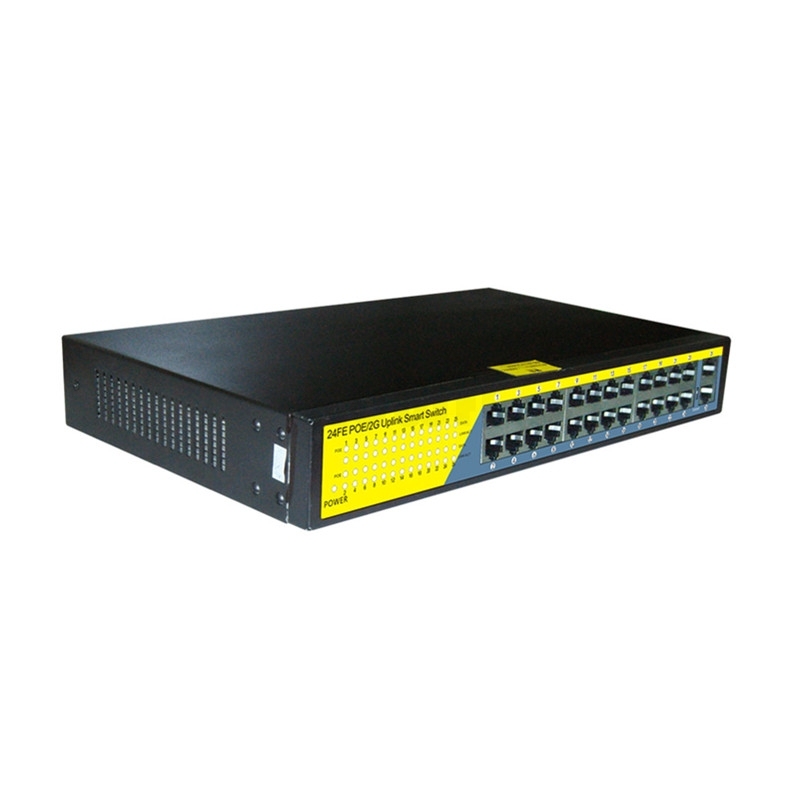

24Ports Gigabit Switch 1000Mbps POE Switch , Smart Desktop Network Power Over Ethernet InjectorExtend 250M ,2 Port Uplink 1 SFP

Item No.: 2420GB PoE switch


1.2420GB PoE switch Gigabit provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable
2.KuWFi PoE Injector Gigabit with 24*10/100mbps POE port, 2*10/1000mbps UP-Link port, 1*SFP; Each port max. power supply reached 30W. Low heat design, safe and reliable, high stability
3.It can be used for any 10/1000Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm givespower to 802.3af end devices,In addition,the PoE switch automaticallydetermines PoE requirements, speed, duplex, and cable type usingAutoUplink. Easy to operate and reliable
4.The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments
5.KuWFi Power Over Ethernet Gigabit Ethernet Injector. Quality is guaranteed. Lifelong technical support. If you have any questions, please feel free to contact us by email
24*10/100mbps POE port,2*10/100/1000mbps UP-Link port,1*SFP
◆100-250m Transmission Distance,250m after use extend function
◆Compatible with IEEE802.3AF/AT
◆Whole Power:120W(52V 2.8A)
◆All port supported by MDI/MDIX auto flip and self negotiation
◆Supply 24pcs 10/100Mpbs adaptive high speed forwarding data packetnon-lost port
◆Each port max. power supply reached 30W
◆Low heat design, safe and reliable, high stability
◆Application: + Wireless Access Point + IP Camera + IP Phone + Computer Networks
POE RJ45 Port: 24*10/100Mbps
Uplink Port: 2*10/100/1000Mbps
SFP: 1pc
DC: 52V/2.8A
Bandwidth: 7.6G
Power: Per≤30W &Whole≤120W
Data signal port: 1236
Power supply port: 1236(+12 -36)
Distance: 250M
Extend: Yes
Agreement: IEEE802.3AT/AF
Network Medium: Cat5 (UTP) or more
Network Standards:
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet
Environment specification
Operating temperature: -10-55℃(32-104℉)
Storage temperature: -40-70℃(14-158℉)
Operating humidity: 90% maximum relative humidity, non-condensing
Storage humidity: 95% maximum relative humidity, non-condensing
Package List
11 Port 10/1000M POE Switch*1
User Guide*1
Warranty Card*1
Power cable*1
