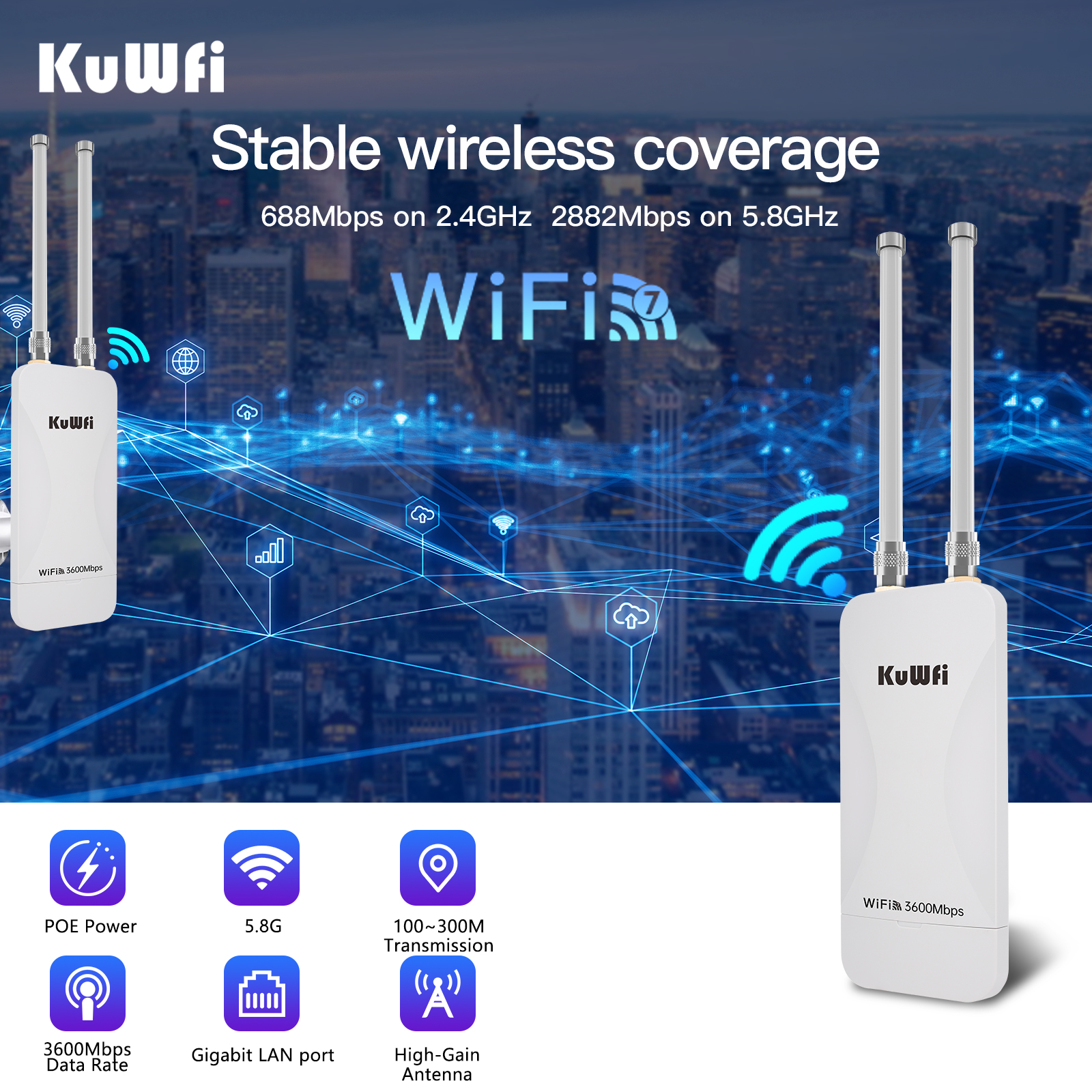

What Problem Does It Solve?
1. Outdoor WiFi Coverage & WiFi Hotspot Monetization:
Provides stable, high-speed internet in outdoor areas and supports guest network isolation and user management, enabling businesses to offer paid or free WiFi hotspots.

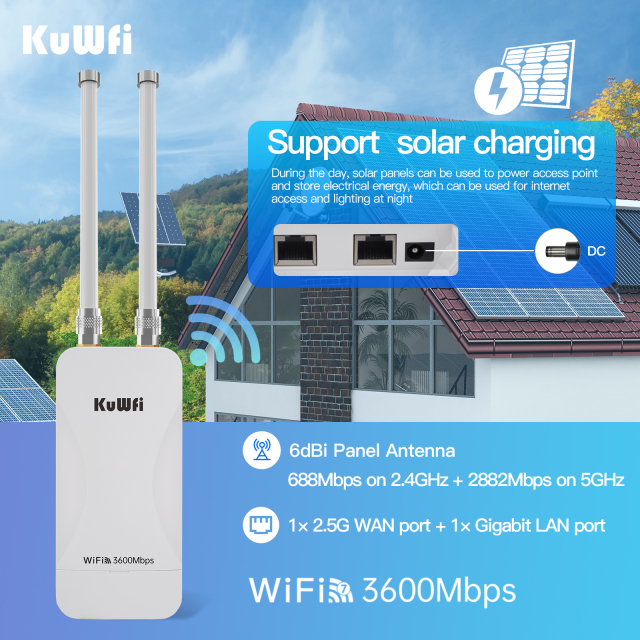

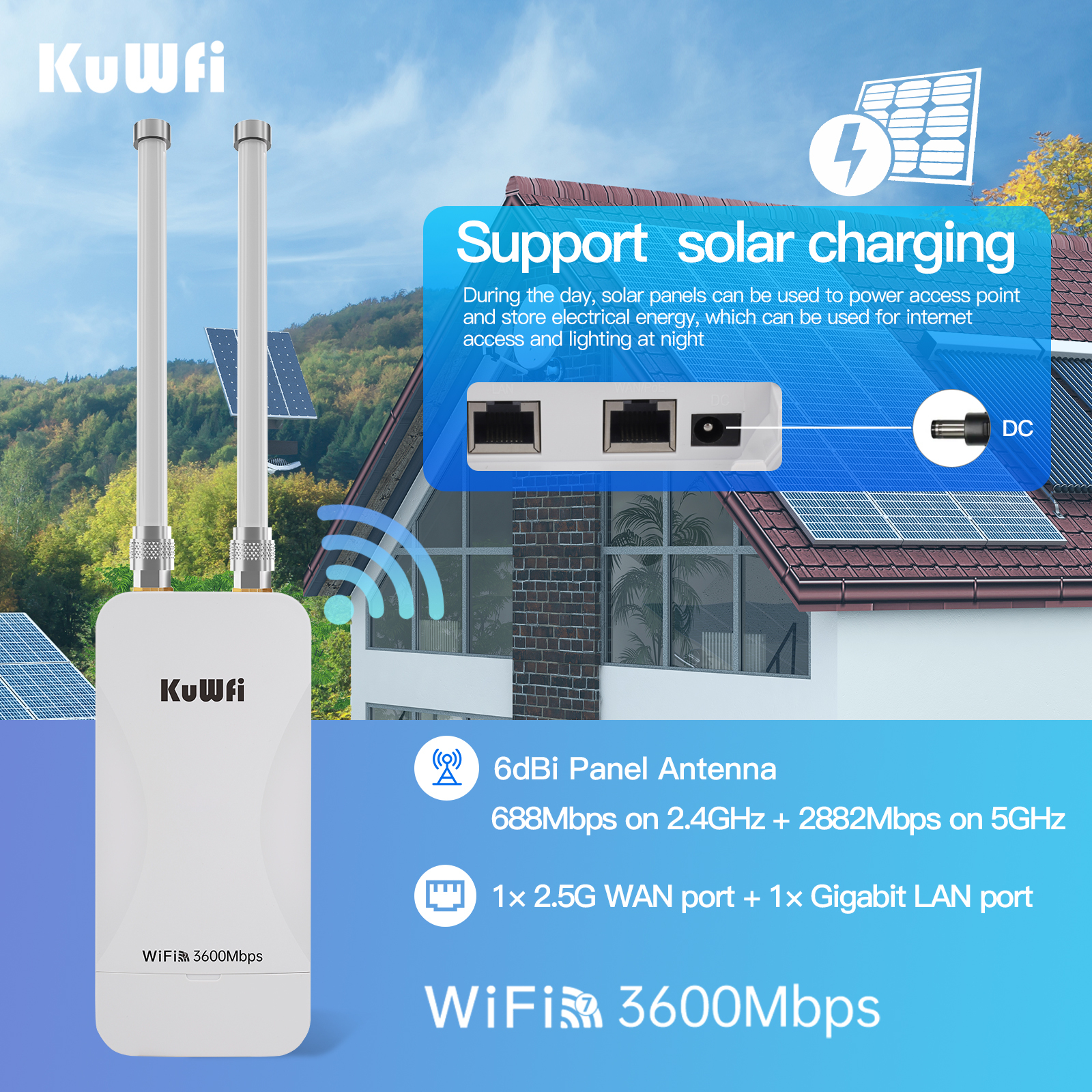

2. Uninterrupted Service with Solar & DC Backup:
Solves the problem of WiFi outages during power failures. The dedicated DC power port explicitly supports solar panel input, ensuring continuous 24/7 operation even in areas with unstable or no grid power, which is critical for reliable public access and hotspot services.
3.Provide Limited Multi-Device Support:
Supports up to 64 users per band, making it suitable for crowded environments like cafes, events, or family gatherings.

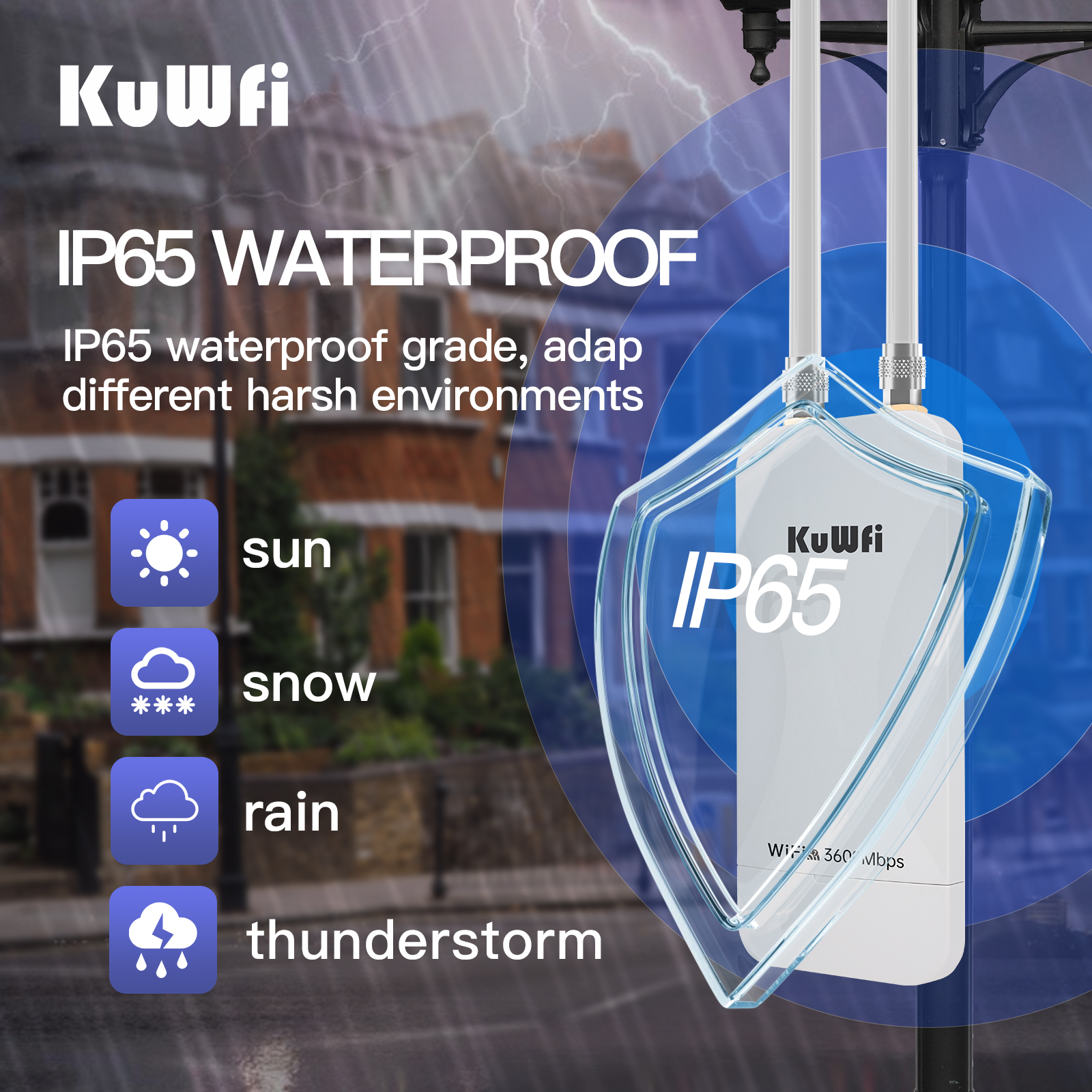

4.Meet Harsh Environmental Operation:
Built to withstand rain, dust, and temperature extremes (–10°C to 55°C), ensuring reliable performance in challenging outdoor conditions.
5.Solve Weak Signal in Open or Large Areas:

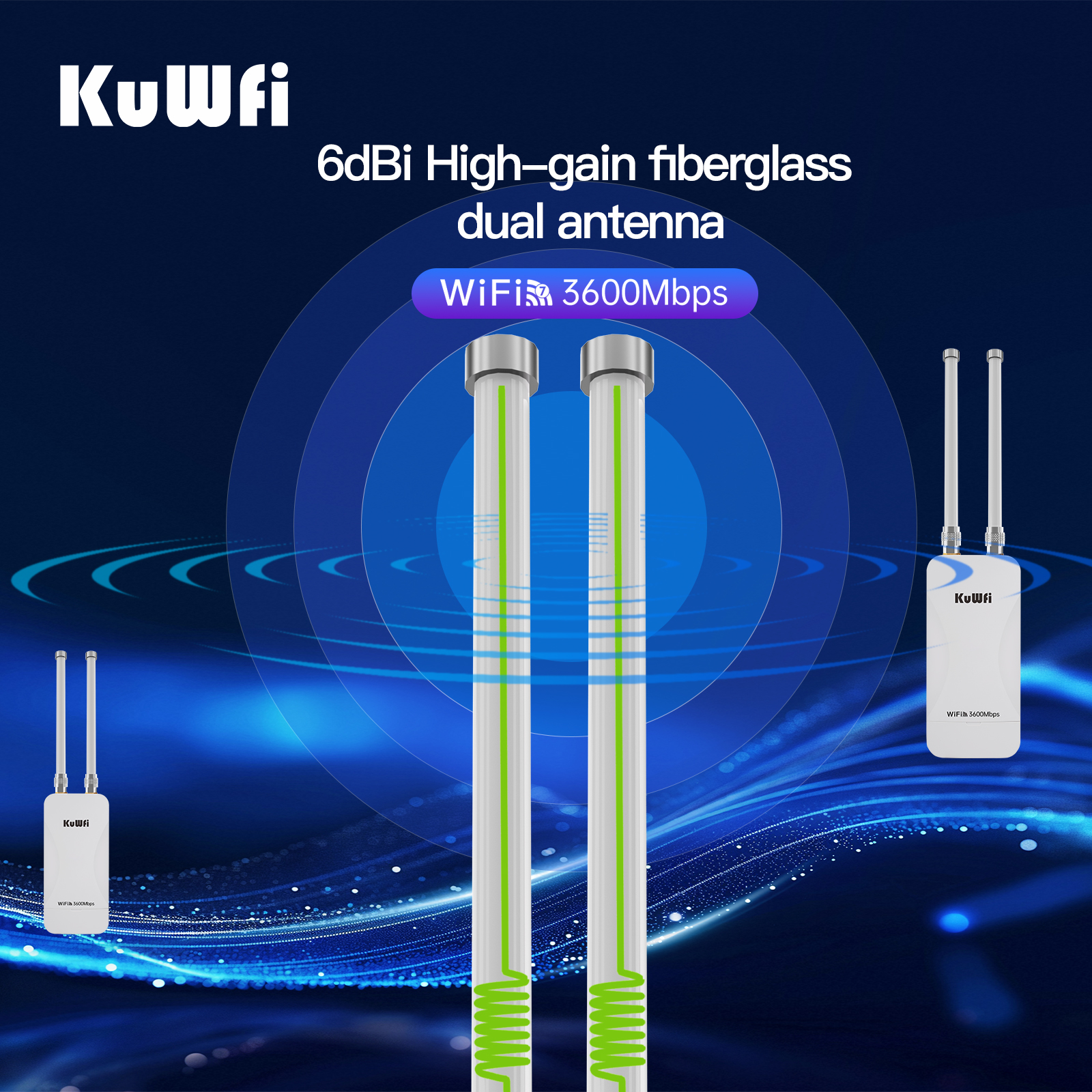

Equipped with two 6 dBi dual-band antennas for wide and stable coverage across yards, worksites, and open venues.
Feature:

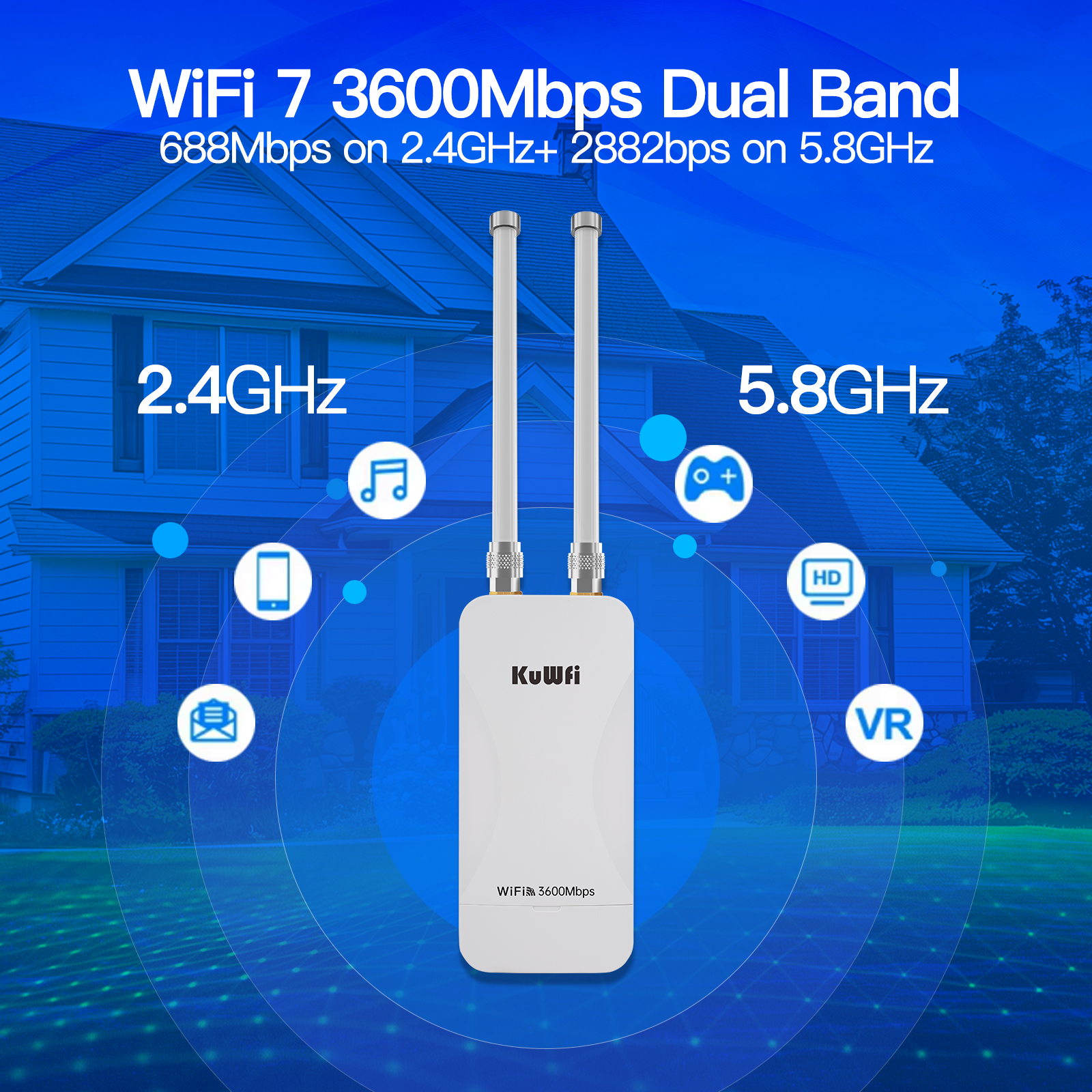

1. WiFi 7 Technology:
Based on the 802.11be standard, it delivers faster speeds, lower latency, and improved performance for bandwidth-intensive applications like 4K/8K streaming and gaming.
2. Advanced Security Features:
Includes WPA3 encryption, SSID hiding, MAC filtering, guest network isolation, and timed WiFi scheduling for enhanced security and control.
3. High-Performance Chipset:
Powered by the MT7987 + MT7990 + MT7976CN chipset with 512MB DDR4 RAM and 128MB SPI NAND storage for efficient and reliable operation..

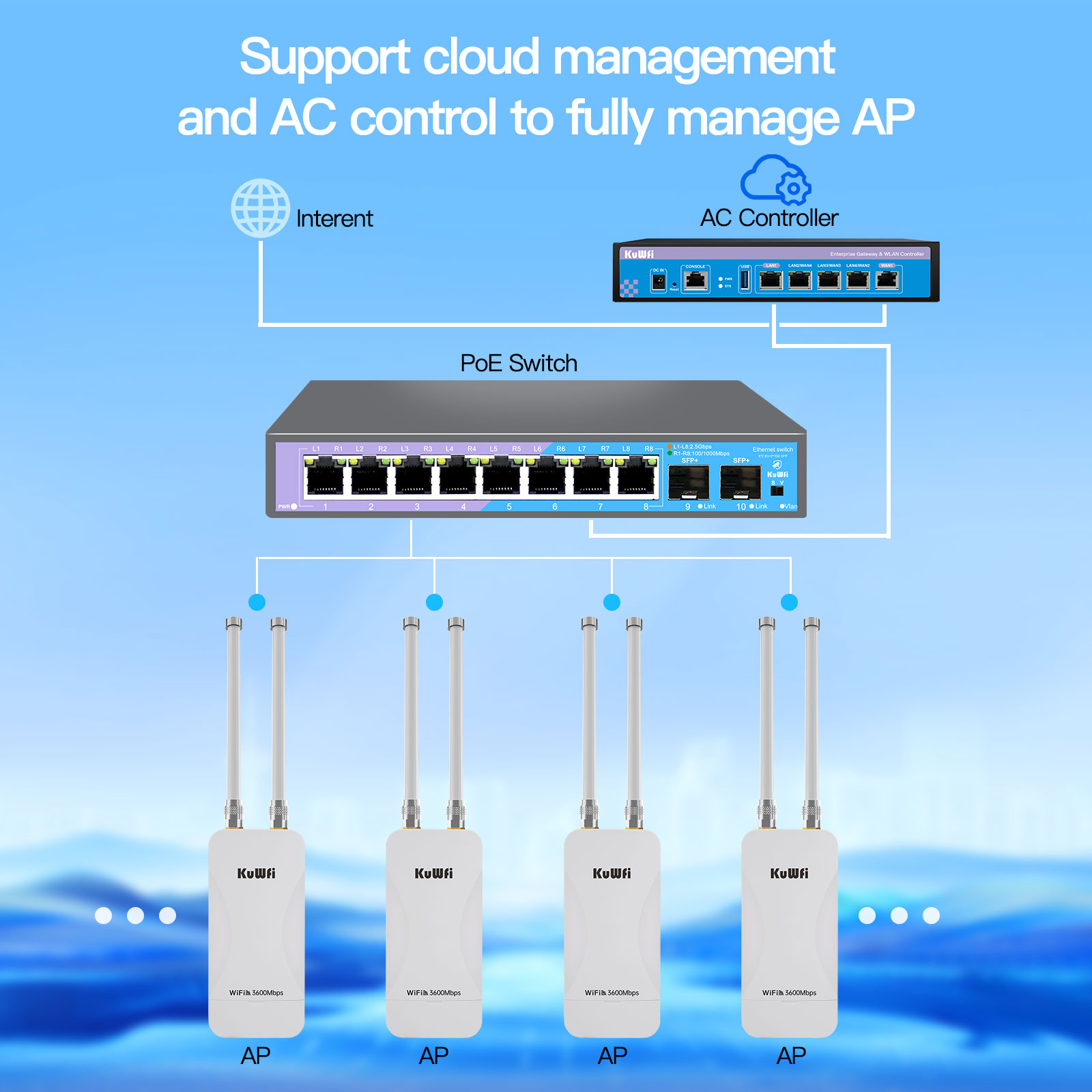

4. Multi-Management Options:
Supports remote management via web GUI, mobile app, cloud platform, or AC controller, making it easy to monitor and configure without onsite IT support.
5. Smart Management
Supports AC + cloud platform for centralized, easy maintenance.

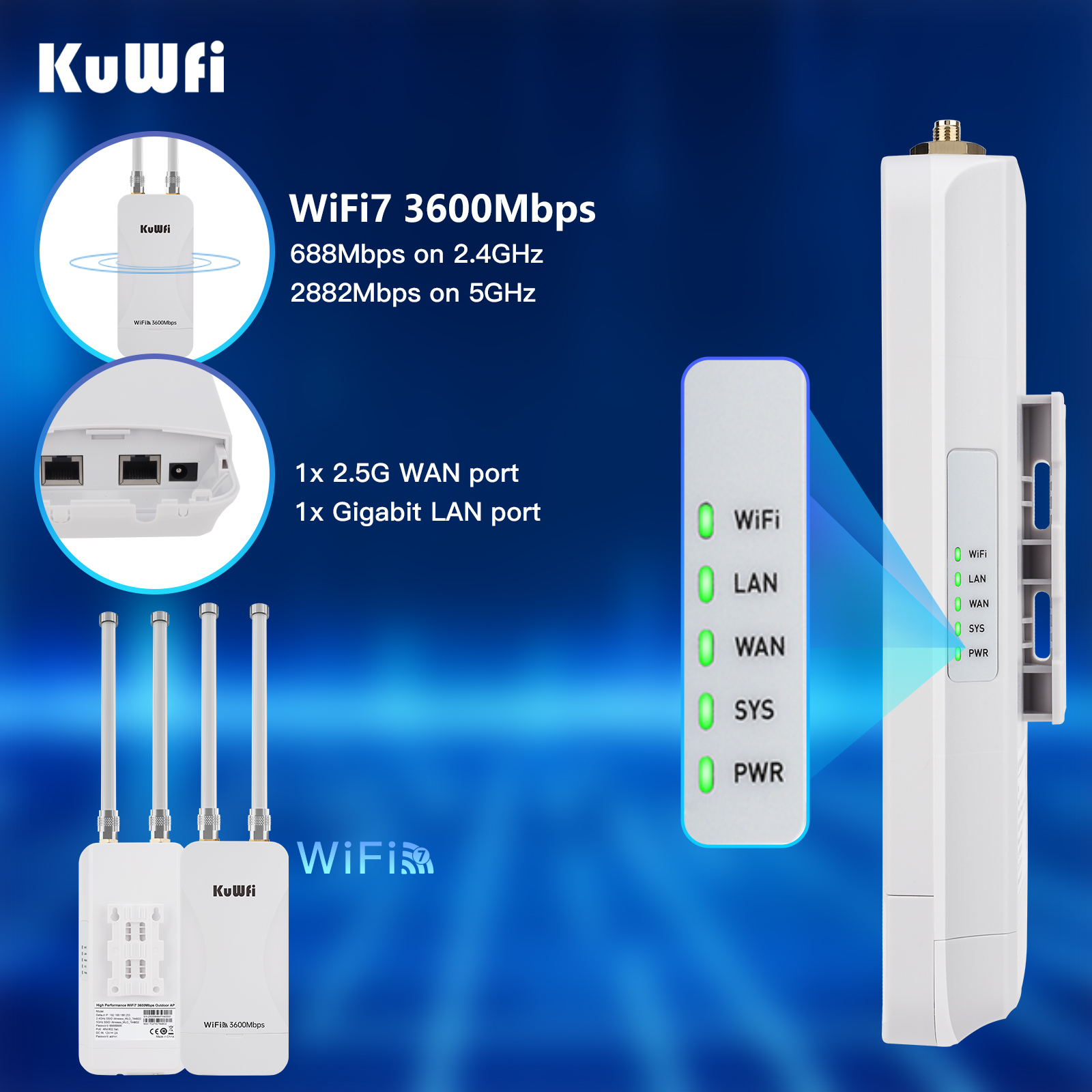

Features one 2.5G WAN port and one Gigabit LAN port, supporting high-bandwidth applications and flexible network setups.
|
product Name
|

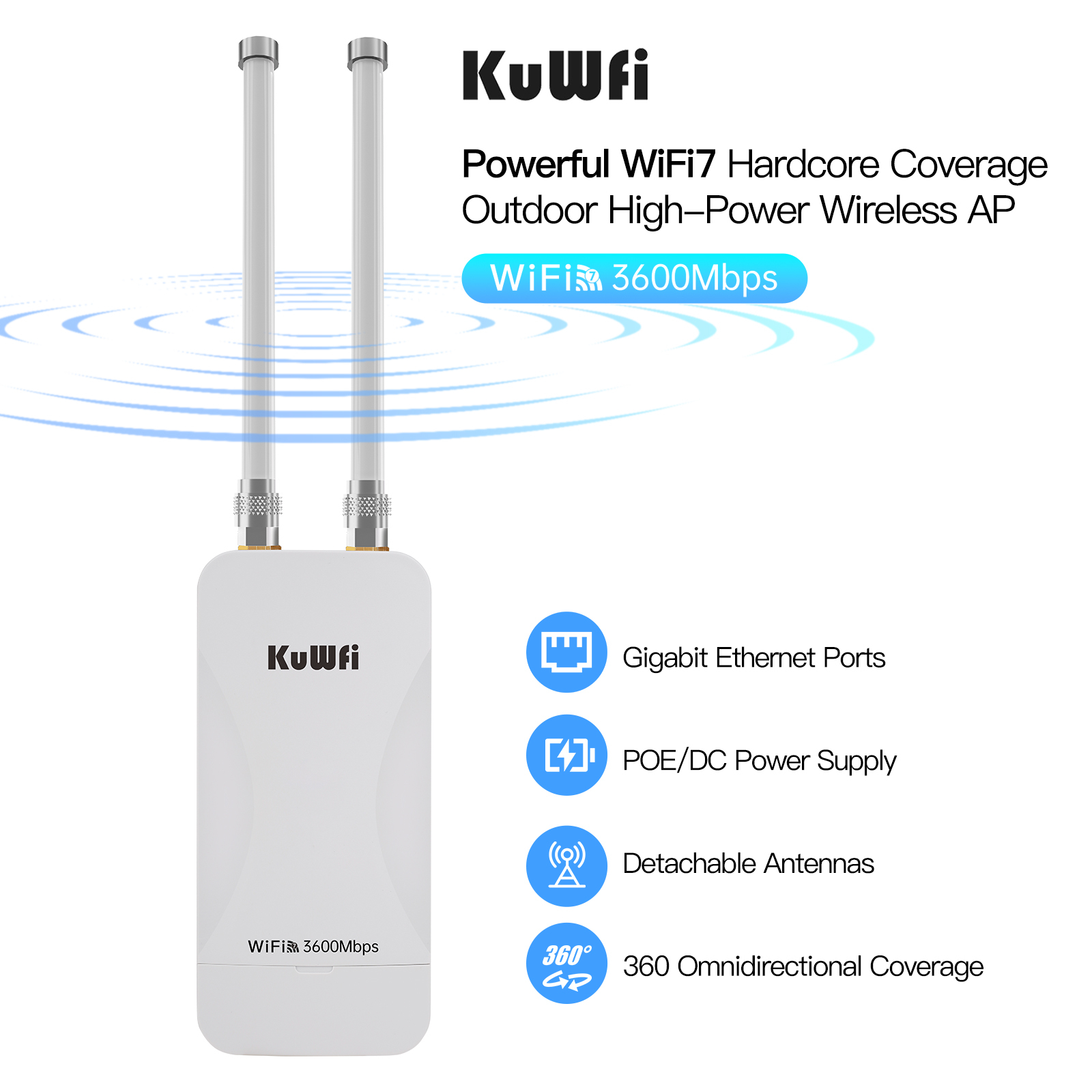

Outdoor WiFi7 wireless ap for wifi coverage
|
||||
|
CPU
|
MT7987+MT7990+MT7976CN
|
||||
|
Flash
|
SPI NAND 128MB
|
||||
|
DDR4
|
512MB
|
||||
|
Antenna
|
2 × external dual-band (2.4GHz/5GHz) waterproof antennas: 6dBi
|
||||
|
2.4GHz tx power
|
802.11b
|
11M
|
24±2dBm
|
1M
|
24±2dBm
|
|
802.11g
|
54M
|
22±2dBm
|
6M
|
24±2dBm
|
|
|
802.11n HT20
|
MCS7
|
22±2dBm
|
MCS0
|
24±2dBm
|
|
|
802.11n HT40
|
MCS7
|
22±2dBm
|
MCS0
|
24±2dBm
|
|
|
802.11ax HE20
|
MCS11
|
20±2dBm
|
MCS0
|
24±2dBm
|
|
|
802.11ax HE40
|
MCS11
|
20±2dBm
|
MCS0
|
24±2dBm
|
|
|
802.11be EHT20
|
MCS13
|
20±2dBm
|
MCS0
|
24±2dBm
|
|
|
802.11be EHT40
|
MCS13
|
20±2dBm
|
MCS0
|
24±2dBm
|
|
|
5GHz tx power
|
802.11a
|
54M
|
21±2dBm
|
6M
|
23±2dBm
|
|
802.11n HT20
|
MCS7
|
20±2dBm
|
MCS0
|
23±2dBm
|
|
|
802.11n HT40
|
MCS7
|
20±2dBm
|
MCS0
|
23±2dBm
|
|
|
802.11ac VHT20
|
MCS7
|
19±2dBm
|
MCS0
|
23±2dBm
|
|
|
802.11ac VHT40
|
MCS7
|
19±2dBm
|
MCS0
|
23±2dBm
|
|
|
802.11ac VHT80
|
MCS9
|
19±2dBm
|
MCS0
|
23±2dBm
|
|
|
802.11ax HE20
|
MCS11
|
18±2dBm
|
MCS0
|
23±2dBm
|
|
|
802.11ax HE40
|
MCS11
|
18±2dBm
|
MCS0
|
23±2dBm
|
|
|
802.11ax HE80
|
MCS11
|
18±2dBm
|
MCS0
|
23±2dBm
|
|
|
802.11ax HE160
|
MCS11
|
18±2dBm
|
MCS0
|
23±2dBm
|
|
|
802.11be EHT20
|
MCS13
|
18±2dBm
|
MCS0
|
23±2dBm
|
|
|
802.11be EHT40
|
MCS13
|
18±2dBm
|
MCS0
|
23±2dBm
|
|
|
802.11be EHT80
|
MCS13
|
18±2dBm
|
MCS0
|
23±2dBm
|
|
|
802.11be EHT160
|
MCS13
|
18±2dBm
|
MCS0
|
23±2dBm
|
|
|
2.4GHz Receiving sensitivity
|
802.11b
|
11M
|
-89dBm
|
1M
|
-95dBm
|
|
802.11g
|
54M
|
-75dBm
|
6M
|
-92dBm
|
|
|
802.11n HT20
|
MCS7
|
-72dBm
|
MCS0
|
-88dBm
|
|
|
802.11n HT40
|
MCS7
|
-70dBm
|
MCS0
|
-86dBm
|
|
|
802.11ax HE20
|
MCS11
|
-62dBm
|
MCS0
|
-88dBm
|
|
|
802.11ax HE40
|
MCS11
|
-60dBm
|
MCS0
|
-86dBm
|
|
|
802.11be EHT20
|
MCS13
|
-60dBm
|
MCS0
|
-86dBm
|
|
|
802.11be EHT40
|
MCS13
|
-60dBm
|
MCS0
|
-86dBm
|
|
|
5GHz Receiving sensitivity
|
802.11a
|
54M
|
-75dBm
|
6M
|
-92dBm
|
|
802.11n HT20
|
MCS7
|
-72dBm
|
MCS0
|
-88dBm
|
|
|
802.11n HT40
|
MCS7
|
-70dBm
|
MCS0
|
-86dBm
|
|
|
802.11ac VHT20
|
MCS7
|
-65dBm
|
MCS0
|
-88dBm
|
|
|
802.11ac VHT40
|
MCS7
|
-62dBm
|
MCS0
|
-86dBm
|
|
|
802.11ac VHT80
|
MCS9
|
-60dBm
|
MCS0
|
-84dBm
|
|
|
802.11ax HE20
|
MCS11
|
-60dBm
|
MCS0
|
-90dBm
|
|
|
802.11ax HE40
|
MCS11
|
-58dBm
|
MCS0
|
-88dBm
|
|
|
802.11ax HE80
|
MCS11
|
-54dBm
|
MCS0
|
-84dBm
|
|
|
802.11ax HE160
|
MCS11
|
-54dBm
|
MCS0
|
-82dBm
|
|
|
802.11be EHT20
|
MCS13
|
-54dBm
|
MCS0
|
-86dBm
|
|
|
802.11be EHT40
|
MCS13
|
-52dBm
|
MCS0
|
-84dBm
|
|
|
802.11be EHT80
|
MCS13
|
-50dBm
|
MCS0
|
-82dBm
|
|
|
802.11be EHT160
|
MCS13
|
-48dBm
|
MCS0
|
-80dBm
|
|
|
802.11b: ≤-10 dB；802.11g: ≤-25 dB；802.11n: ≤-28dB；802.11ax: ≤-35 dB;
802.11be: ≤-38 dB |
|||||
|
ppm
|
±20ppm
|
||||
|
WAN
|
1*10/100/1000/2500Mbps WAN, support 802.3at
|
||||
|
LAN
|
1*10/100/1000Mbps LAN
|
||||
|

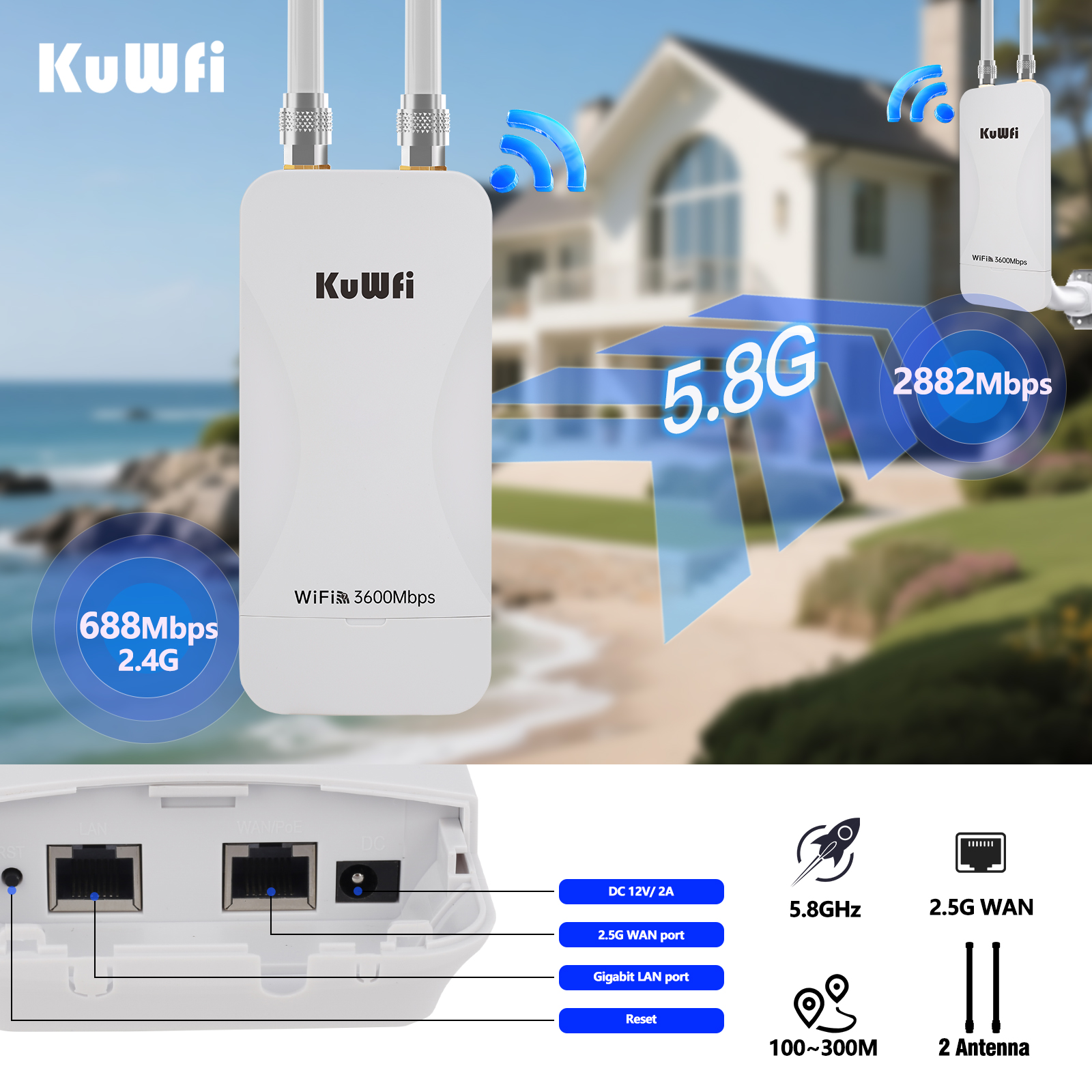

Power supply
|
PoE 802.3at，DC2.0 12V/2A
|
||||
