| Model | CPF905 | |||||

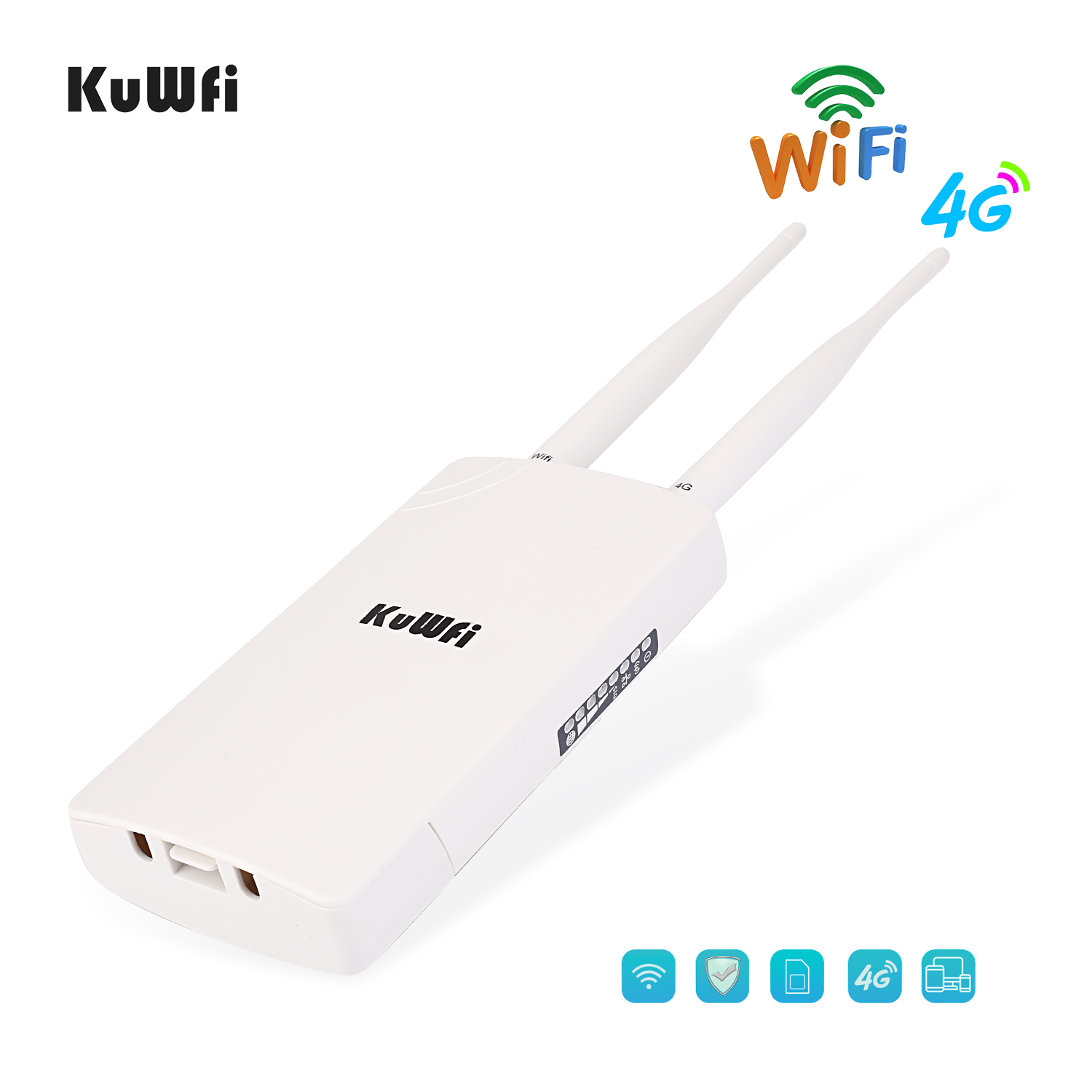

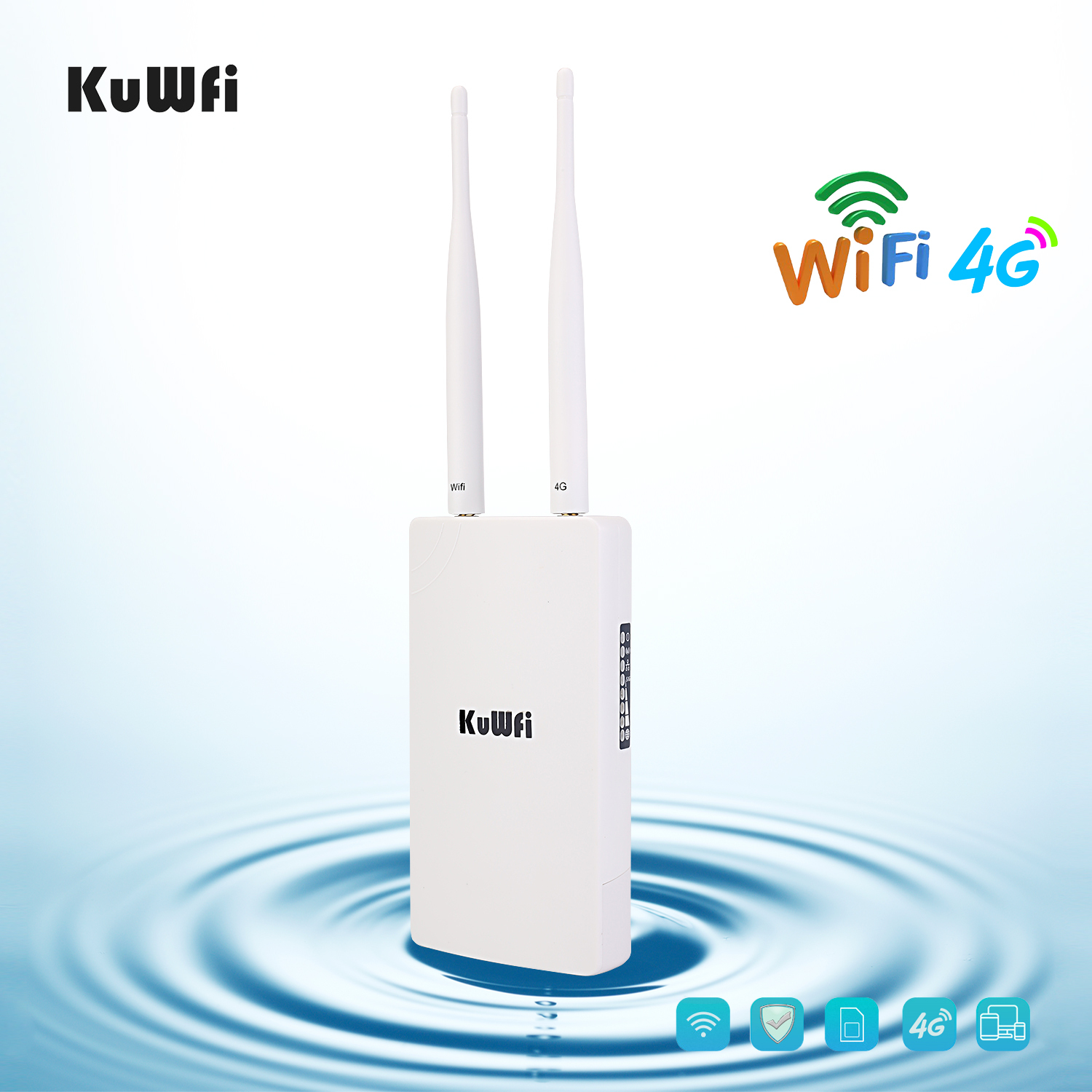

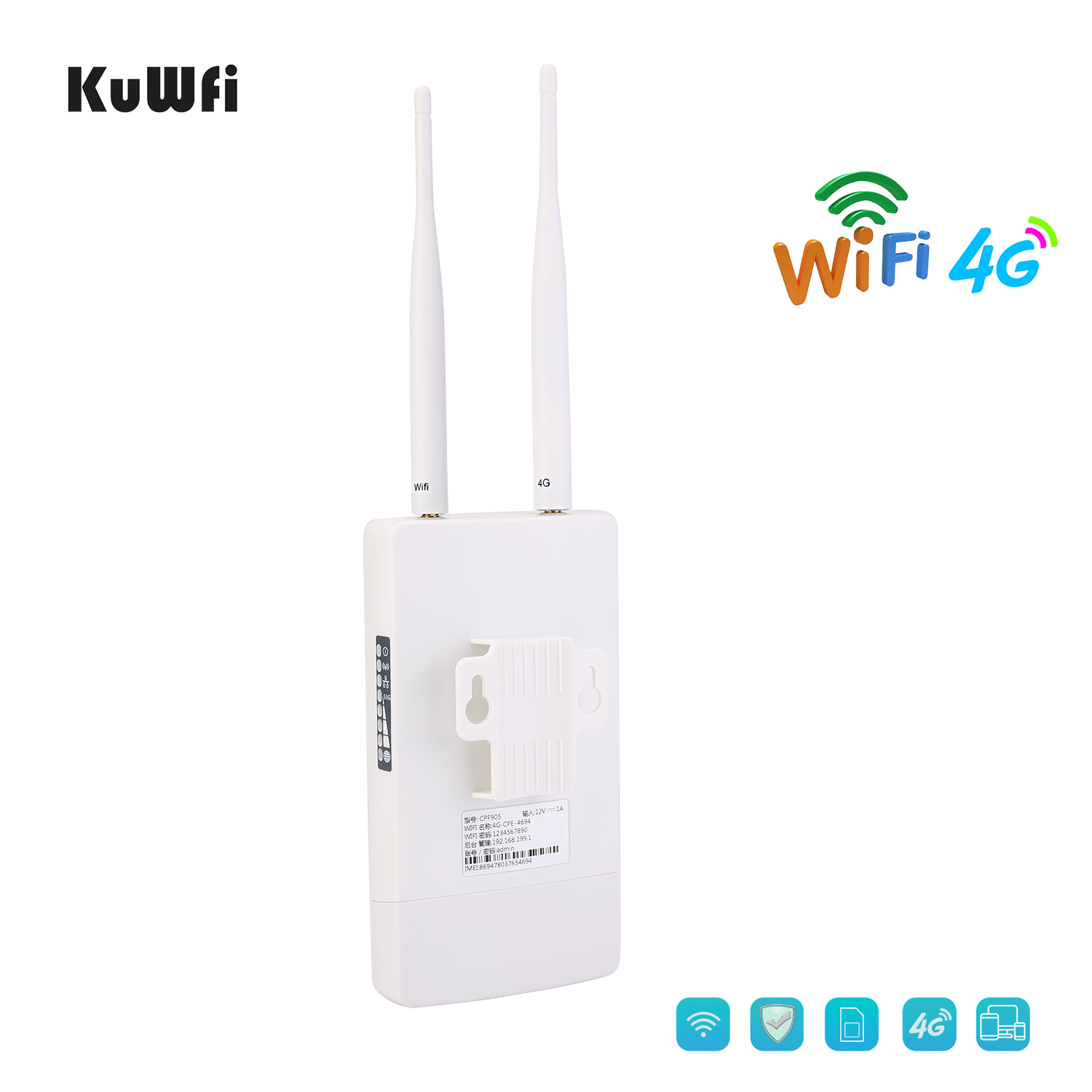

| Item name | Outdoor 4G LTE CPE | |||||
| Appearance | Dimension (L × W × H) |
155*85*28mm | ||||
| Weight | 180g | |||||
| Hardware Platform | HW_VER | CPF905－V1.0 | ||||
| MTK Chipset | MT6735WM | |||||
| RAM/ROM | 4GByte EMMC+512MByte DDR2 | |||||
| Band | FDD operating band B1,B3,B5,B7,B8,B20 | TDD operating band B38,B39,B40,B41 | WCDMA:B1,B5 ,B8 | EVDO BC0 | GSM:900/1800MhZ | |
| Diversity Band | FDD operating band B1,B3,B5,B7,B8,B20 | TDD operating band B38,B39,B40,B41 | WCDMA:B1,B5 ,B8 | EVDO BC0 | B20 Optional | |
| 3GPP | 3GPP R9 Cat.4 | 3GPP R9 Cat.4 | 3GPP R7&R8 HSDPA Cat.24(64QAM) HSUPA Cat.7(16QAM) | 3GPP2 | NA | |
| Transfer rate | up to 150Mbps DL up to 50Mbps UL | up to 150Mbps DL up to 50Mbps UL | HSDPA up to 42.2Mbps DL HSUPA up to 11.5Mbps UL | 3.1Mbps DL | NA | |
| Wi-Fi Chipset | MT6625L | |||||
| Wi-Fi | IEEE 802.11b/g/n | |||||
| Wi-Fi Transfer rate | UP to 150Mbps | |||||
| Encryption | Wi-Fi Protected Access™ (WPA/WPA2)2 | |||||

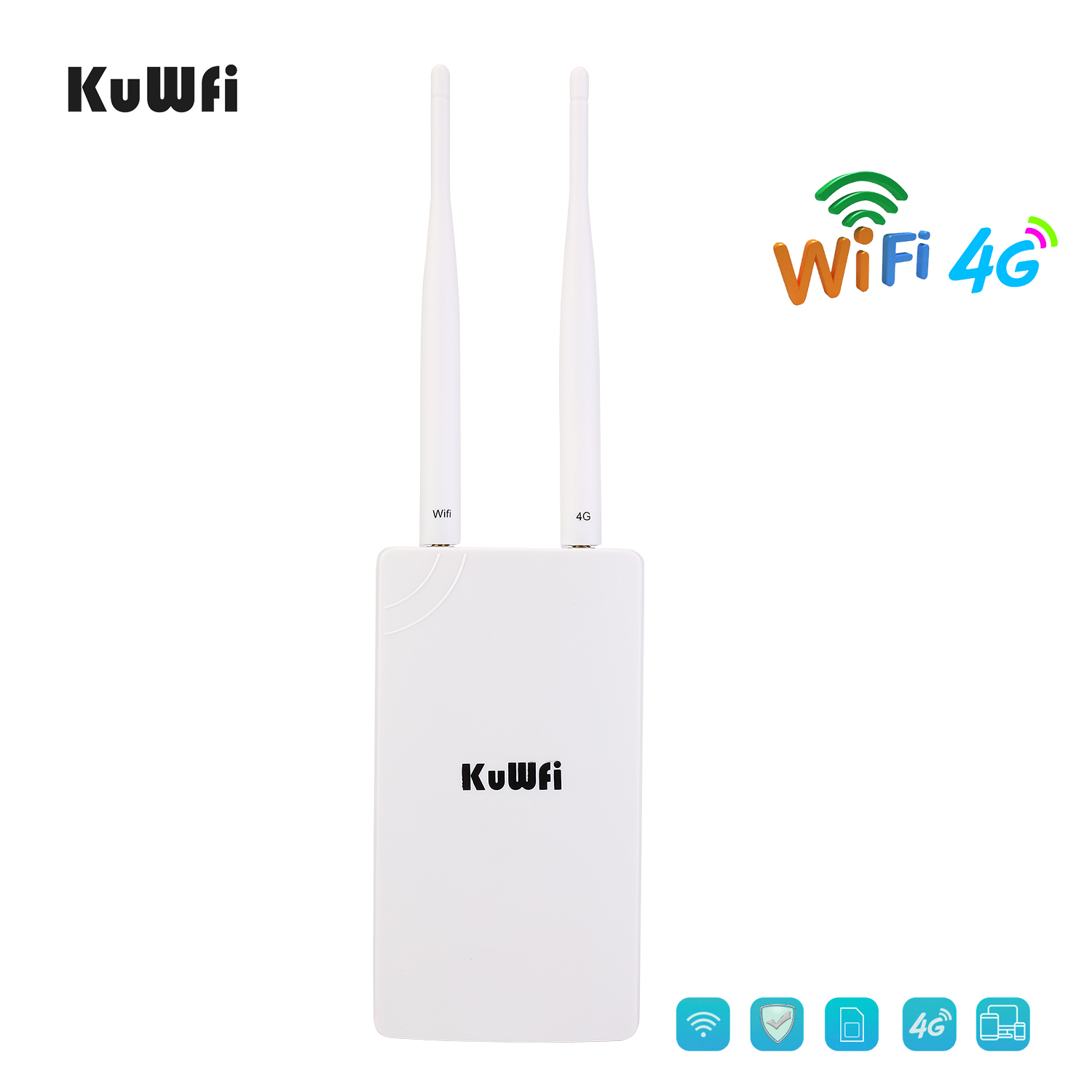

| Antenna | External antenna *2(one for wifi, one for LTE main antenna), Internal LTE diversity antenna | |||||
| Soft SIM | esim or softsim | |||||
| Customization | Smart system,high-level customization possibility | |||||
| LED | LED indicator | |||||

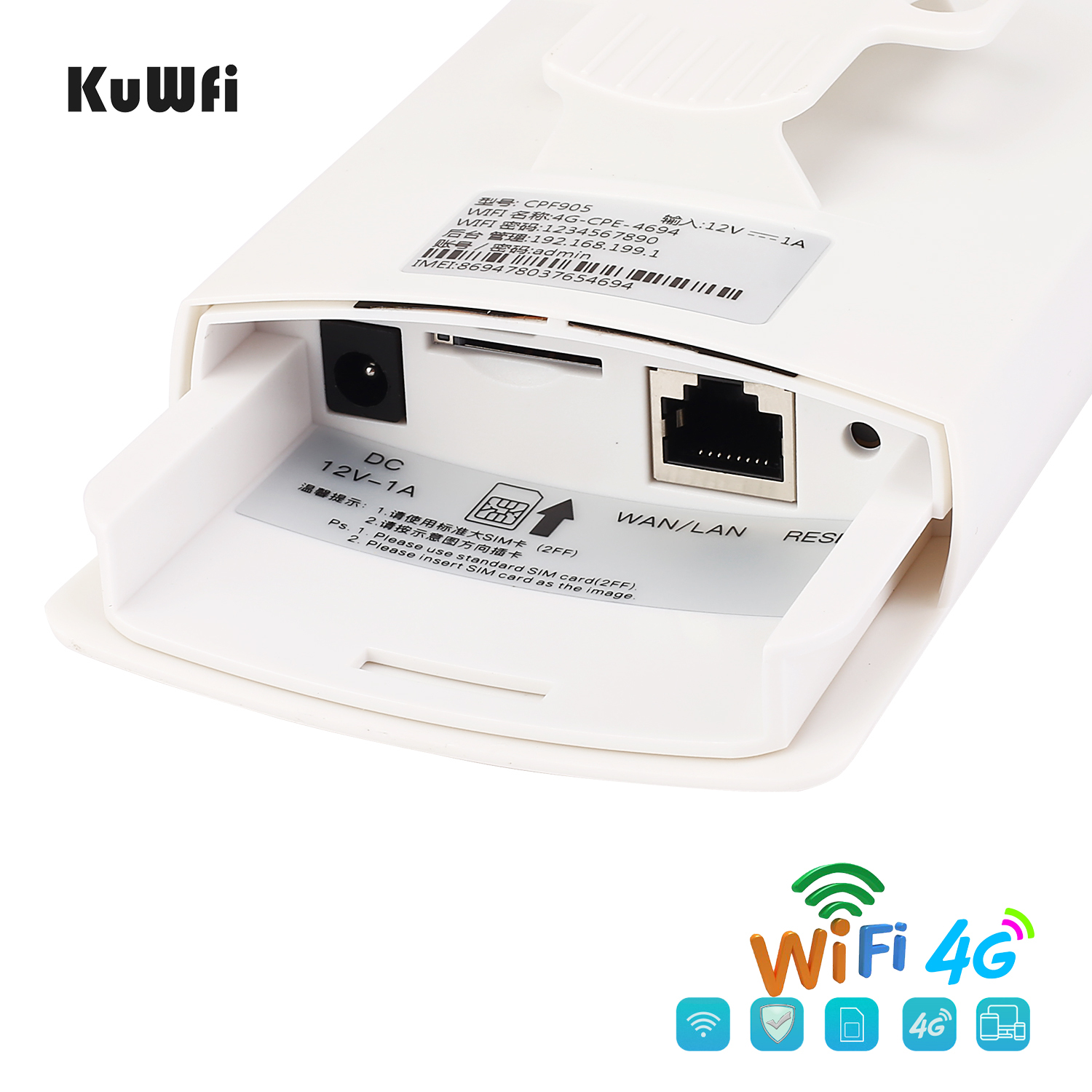

| Port | SIM | 2FF SIM | ||||
| USB | USB TYPE A (5V 1A IN) | |||||
| DC | 12V 1A IN | |||||
| RJ45 | 1* WAN/LAN | |||||
| Internet | Wi-Fi | Wi-Fi AP Max 10 users | ||||
| SSID | 4G-CPE-XXXX（last 4 digits of IMEI） | |||||
| WIF password by default | 1234567890 | |||||
| Operating Environment | Working temperature | -20° 至 75°C | ||||
| Working height | Current tested max height 3000m (10,000 inches) | |||||
| Operation system | PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8 | MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later | IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later | Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later | ||
| Operation Browser | Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari and above | |||||
| Software Platform | System | Android 6.0 | ||||
| WEB | Gateway | http://192.168.199.1 | ||||
| Log in | Password：admin ( passord modification reqested to done at first loging as default setting Language(Chinese/English) |
|||||
| Status | Connection; APN;IP; Signal Strength; Battery Capacity; Conneting time; Users | |||||
| Networks | APN confirguration: International roaming switch, APN, User name, Password, Authorization type modification, New APN, Restore defaulf APN parameters. Traffic statistics: Traffic Limitation: Afering reaching the set value, limit the speed as set. |
|||||
| Wifi | WLAN configuration: SSID modifiation, encryption methods, encryption password, Maximum user number setting, support PBC-WPS WiFi connection list: check the list that connect to this device, check MAC address, IP address, hostname, forbid and recover access to internet. |
|||||
| Ethernet mode | dynamic/PPOE/LAN | |||||
| System Manage | Login password management: User name, password modification System operation: Restart, Shutdown, Restore factory setting System Information: Check software version, WLAN MAC address, IMEI NO. Phonebook setting: New, modify, look up, delete contact |
|||||
| SMS Management | SMS create, delete, send | |||||
| OTHER | SIM lock | SIM card lock/unlock | ||||
| SIM card compatibility | China Unicom, China Telecom, China Mobile and other 4G SIM cards | |||||
