KuWFi POE Switch Ethernet Switches With 4 Port For IP Camera/Wireless AP/Wifi Router 10/100/100M Smart Switch

Item No.: X1006
The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power to 8
Description

Product Description

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power to 802.3af end devices.

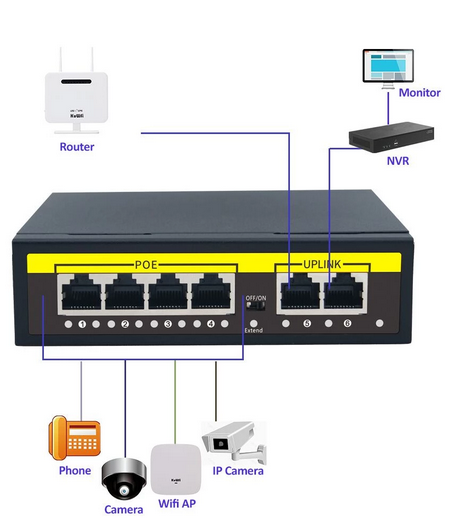

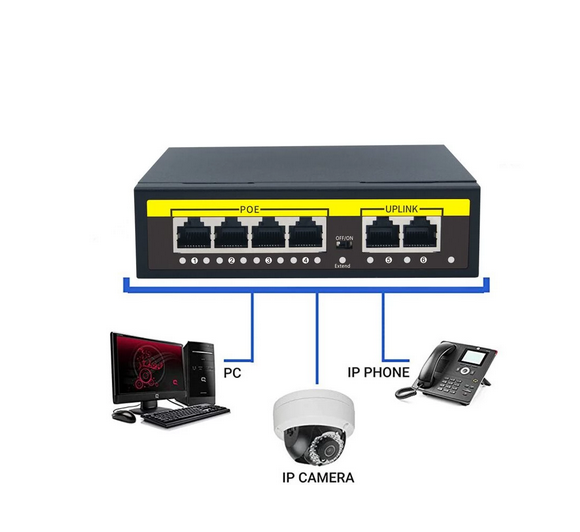

The ethernet switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments



Product Detail

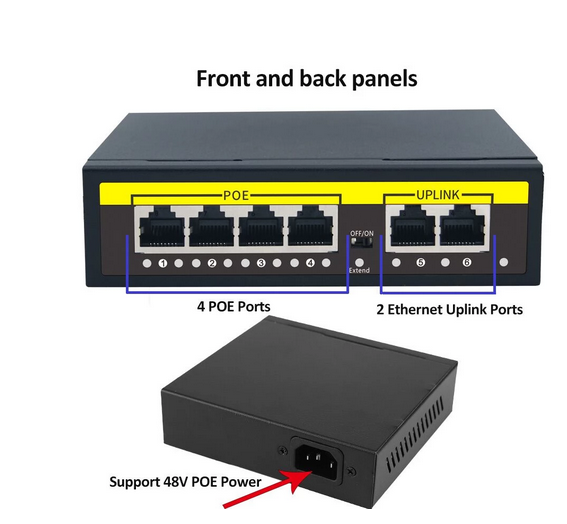

◆ 4*10/100mbps POE port,2*10/100mbps UP-Link port

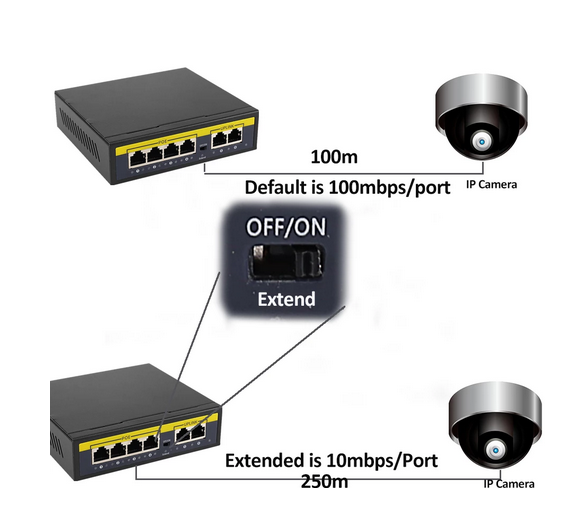

◆ 100m Transmission Distance,250m after use extend function

◆ Compatible with IEEE802.3AF/AT

◆ Whole Power:60W(52V 1.15A)

◆  All port supported by MDI/MDIX auto flip and self negotiation

◆ Supply 4pcs 10/100Mpbs adaptive high speed forwarding data packet non-lost port.

◆ Add high level lightning protection device, up to 6000V.

◆  Each port max. power supply reached 30W.

◆ Low heat design, safe and reliable, high stability

Application: Wireless Access Point IP Camera



Power

Input:52V DC input

PoE power consumption:15.4W per port(IEEE802.af)

LED Indicators System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error



Environment specification

Operating temperature -10-55℃(32-104℉)
Storage temperature -40-70℃(14-158℉)
Operating humidity 90% maximum relative humidity, non-condensing
