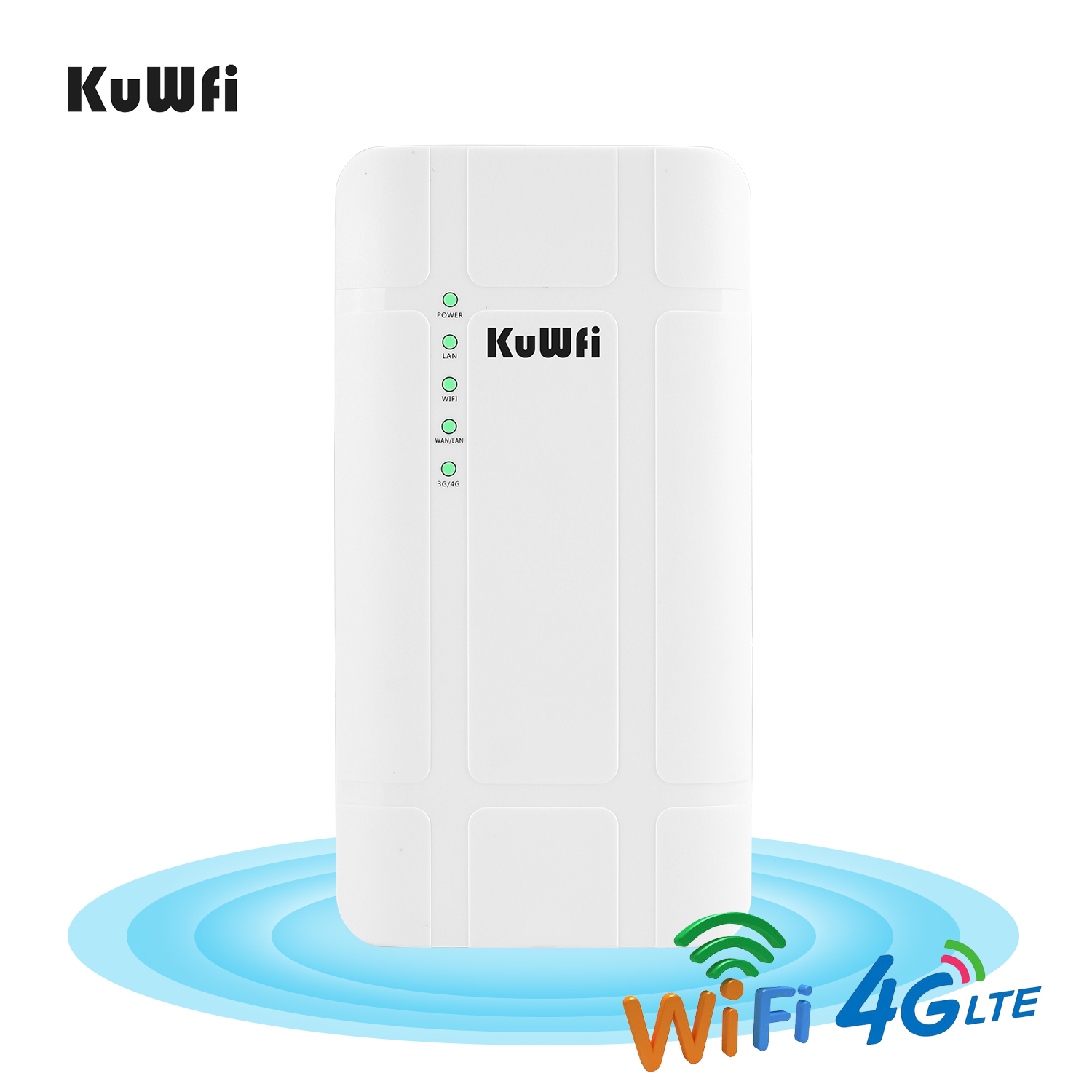

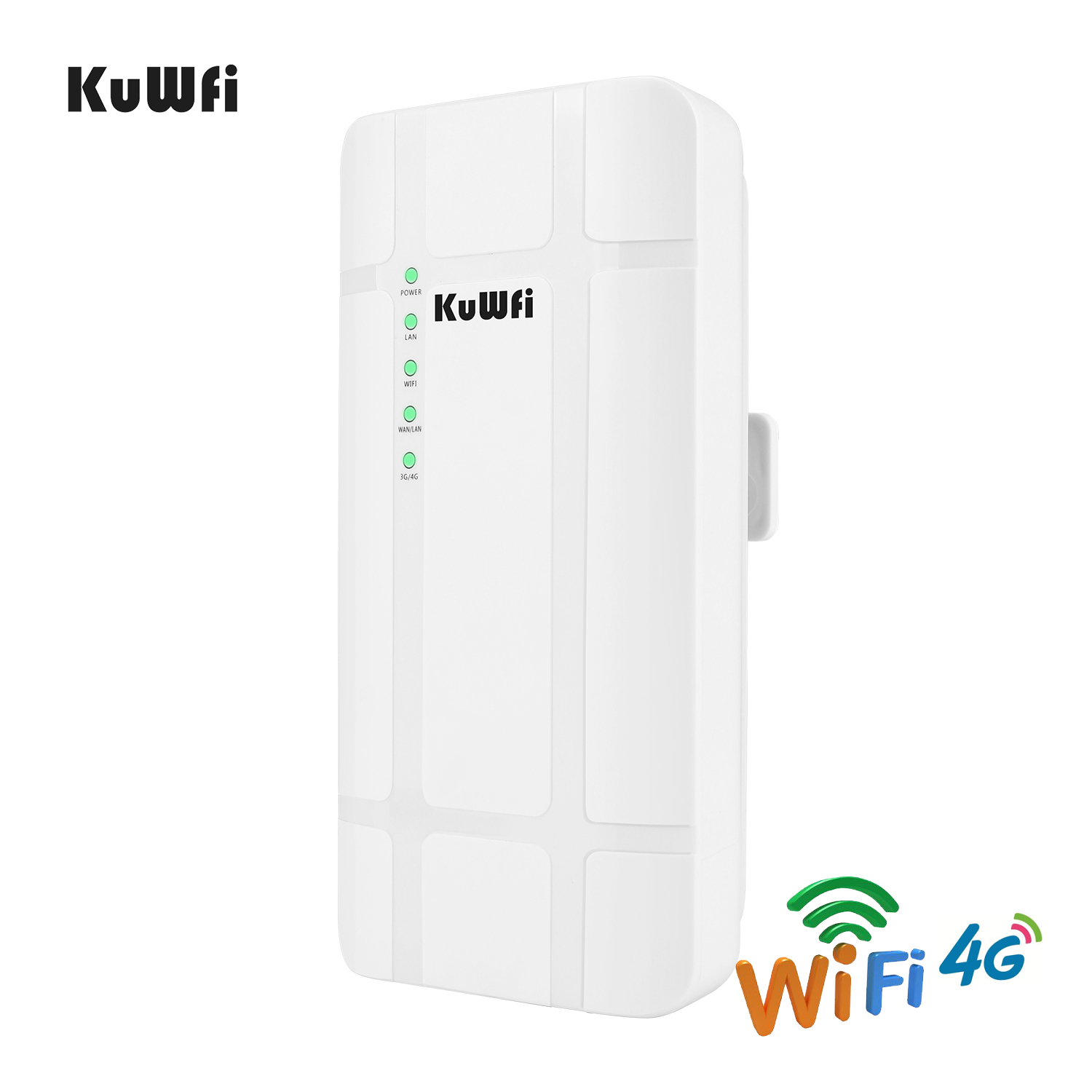

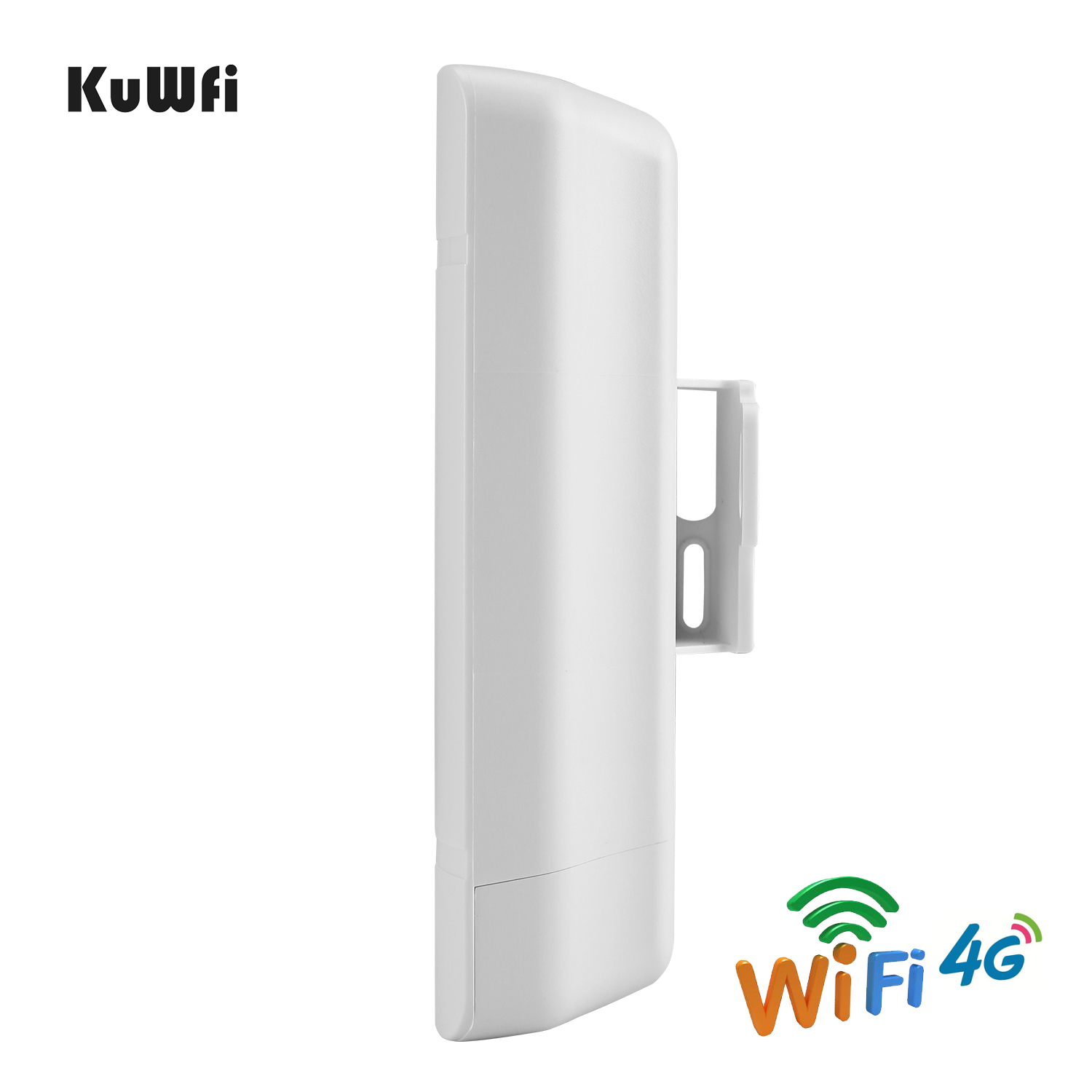

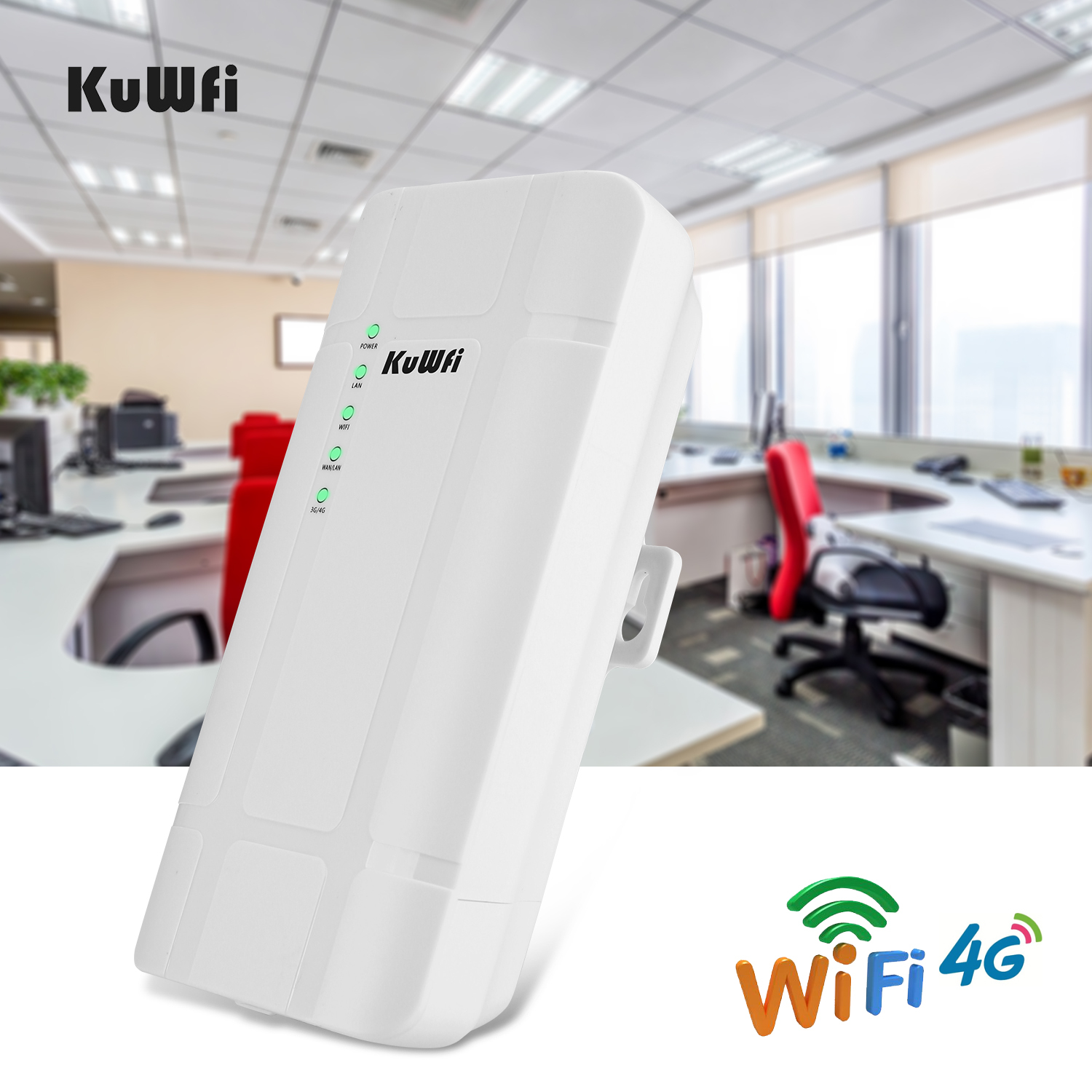

KuWFi Outdoor 4G LTE Router 300Mbps CAT4 With 24V POE Adapter For IP Camera

Item No.: QC300K
--It is outdoor 4G LTE router with 24VPOE adapter , enables easy-to-install wireless connectivity in small business or remote office locations.
--It provides wired Ethernet, and 3G/4G wireless WAN connectivity
--4G outdoor router is MTK7628KN
Description

Version-1
4G LTE FDD:B1/B3/B5/B8(2100/1800/850/900Mhz)
WCDMA: B1/B8(2100/9002500Mhz)
GSM: 900MHz/1800MHz.

Version-2
4G LTE FDD:B1/B3/B5/B8(2100/1800/850/900Mhz)
LTE-TDD: B38/B40/B41(2600/2300/2500Mhz)
WCDMA: B1/B8(2100/9002500Mhz)
GSM: 900MHz/1800MHz.

Version-3
LTE-FDD: B1/B3/B5/B7/ B8/B20(2100/1800/850/2600/900/8002500Mhz)
LTE-TDD: B38/B40/B41(2600/2300/2500Mhz)
WCDMA: B1/B8(2100/9002500Mhz)
GSM: 900MHz/1800MHz.

1.【About this Item】 It provides wired Ethernet, and 3G/4G wireless WAN connectivity to keep you and your business up and running. Get internet and home phone service all in one device with the 4G LTE Broadband Router with Voice. Whether you need high-speed internet and/or phone connectivity at home or away,

2. this router securely connects multiple devices wherever there is a 4G LTE signal. The coverage of the signal is 20-100M, which mainly depends on the strength of the signal.download speed is up to 150mbps, upload speed is up to 50mbps

3.【 Main feature Performance 】4G outdoor router is MTK7628KN, and 5dBi high Gain antenna, Equipped with 1 * LAN and 1* Wan port 1 * SIM card slot interface, support 24V 0.5A POE power supply

4.It is Easy to connect and easy to carry in hand Sharing customer to 32 WiFi users,All you need to do is inserting the SIM card,then you will enjoy the WiFi with your friends with this portable 4G LTE router.

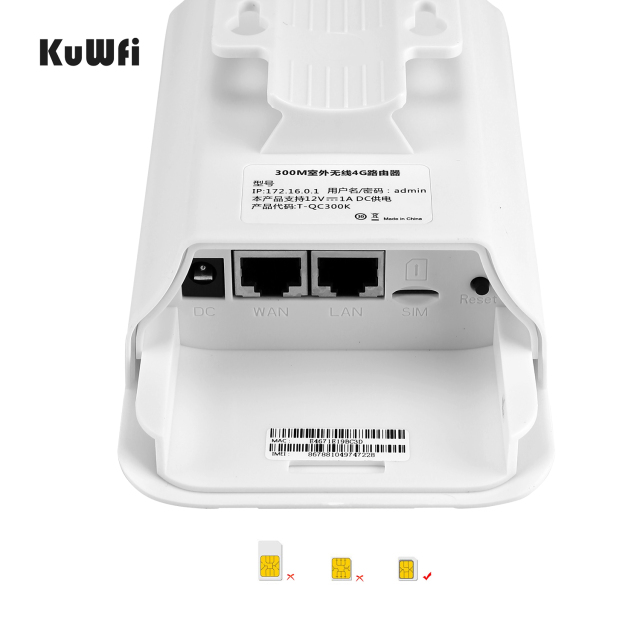

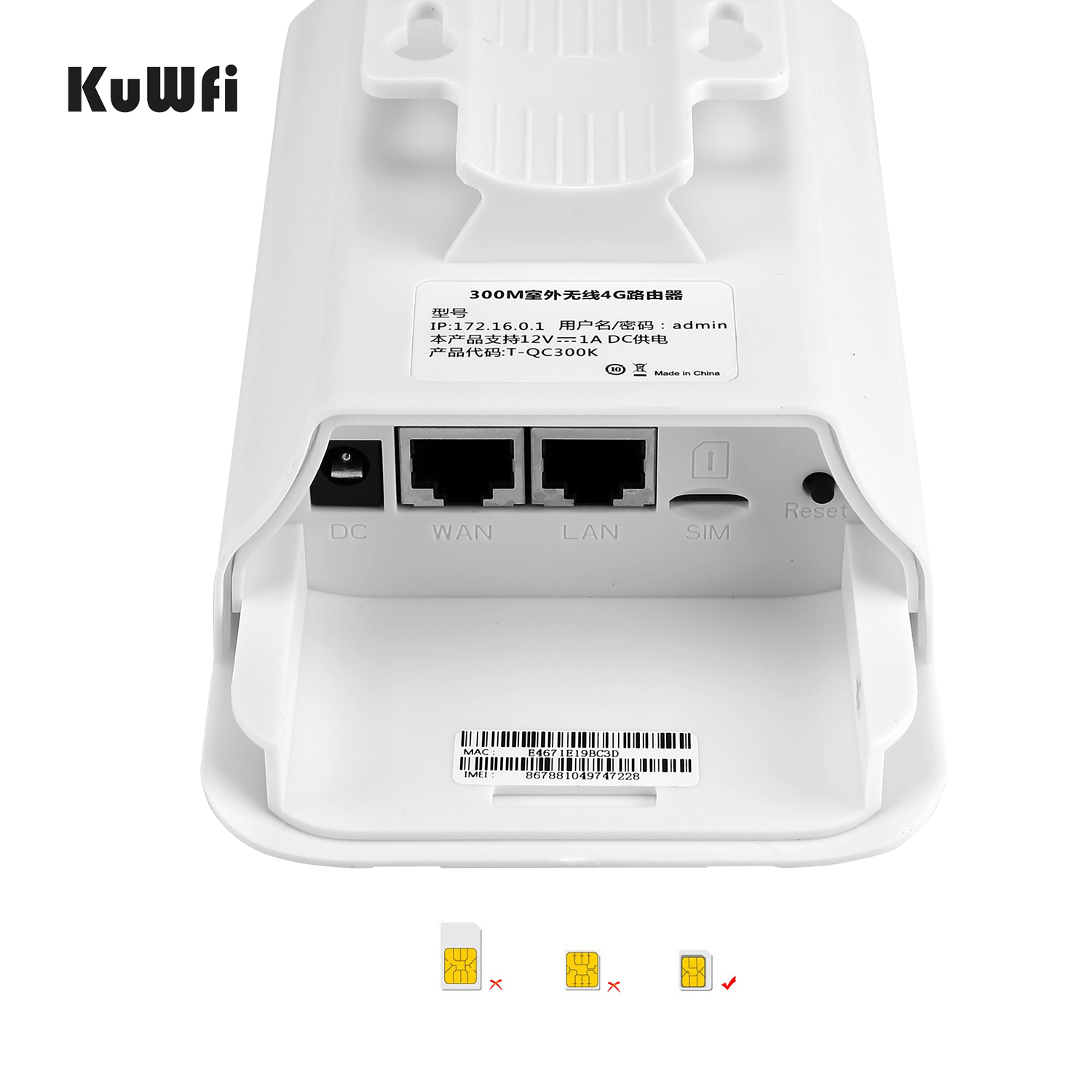

Interface type:
Wan: 1*10/100Mbps RJ45
Lan: 1*10/100Mbps RJ45

Flash:2MB //Memory:8MB
Support external antenna:2*WIFI+2*LTE, 5dBi gain.

Power: DC 12V 1A & 24V 0.5A PoE
Button:Power,Reset,WPS

Speed(CAT4)
FDD - LTE Downlink: 150Mbps, Uplink: 50Mbps
TDD-LTE: Downlink: 150Mbps, Uplink: 50Mbps

Operating Environment:
Operating Temperature:Normal:0°C to +45°C;
Operating Humidity:-20° C to +70° C
Operating Humidity:5%~ 95%
Storage Humidity:5%~ 95%

packing list:
1*4G WIFI Router;
1*24V  POE Adapter;
1*English Manual;
1*RJ4 lan Cable;
1*Fixing Ring;
