Product Name
|
5G SIM WiFi6 AX3000 Router With RJ11 Port
|
|
Network Type
|
5G NSA SA 4G:LTE-TDD/FDD
|
|
Port
|
1* 10/100M/2500 WAN
1 * 10/100M/2500 WAN 1*RJ11
|
|
4G/5G transmission Rate
|
5G SA Sub-6 : DL 4.67Gbps; UL 1.25Gbps
5G NSA Sub-6: DL4.67Gbps; UL 836Mbps LTE: DL 1.6Gbps; UL 211Mbps |
|
Standard
|
802.11b/g/n /ac/ax 2T2R MIMO
|
|
Frequency
|
2.4GHz+5GHz
|
|
Wireless data rate
|
2.4GHz :600Mbps 5GHz :2400Mbps
|
|

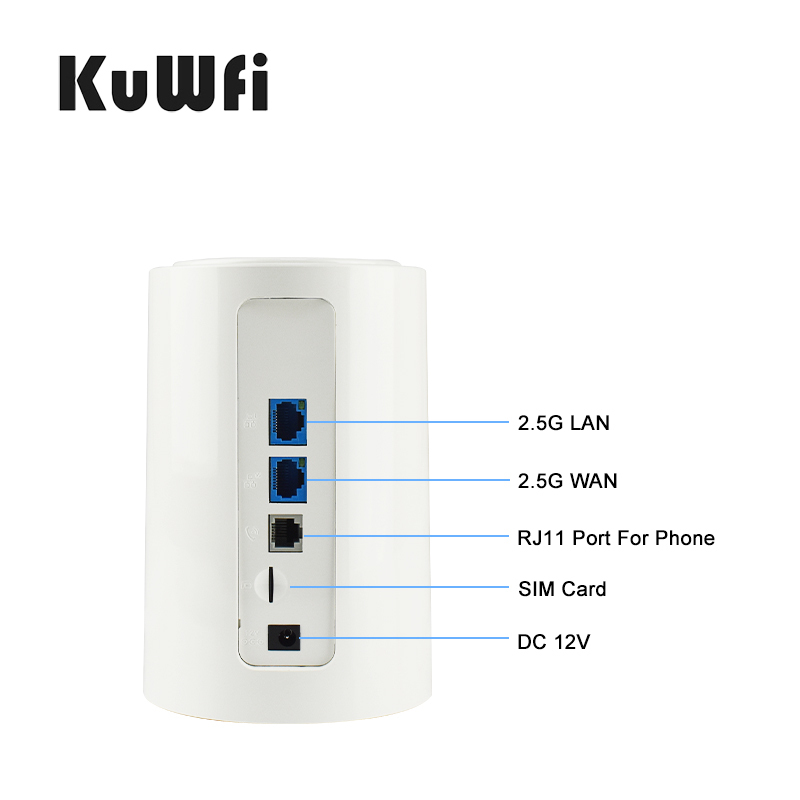

Interface
|
SIM Card Slot * 1
DC:12V 2A DC Supply USB3.0 * 1 RJ11 port * 1 Switch buttons * 1 |
|
PoE Power
|
Not Support
|
|
Basic Feature
|
1.VPN Passthrough and
VPN Client (L2TP PPTP) 2. Max 128 Users 3. TR069/Traffic_monitoring/ Wi-Fi Exterder/DHCP/DNS/ DDNS/Port Forwarding 4. gigabit WAN/LAN ports 5. 5G to LAN 6. PPPoE work mode |
|
Transfer Rate
|
Full: up to 3Gbps 2.4G+5G
|
|
|
Output Power
|
802.11ax:18+/-1.5dBm
802.11ac:19+/-1.5dBm 802.11n HT40:19+/-1.5dBm 802.11n HT20:19+/-1.5dBm 802.11g:20+/-1.5dBm 802.11b:23+/-1.5dBm |
|
|
Sensitivity
|
802.11ax: -46dBm @ HE160,MCS11
802.11ax: -49dBm @ HE80,MCS11 802.11ac: -51dBm @ HT80, MCS9 802.11ac: -53dBm @ HT40, MCS9 802.11ac: -56dBm @ HT20, MCS8 802.11n:-61dBm @ HT40, MCS7 802.11n: -64dBm @ HT20, MCS7 802.11g:-65dBm @54M 802.11b:-76dBm @11M |
|
|
5G /LTE Features
|
||
|
5G/ LTE Standards
|
Release 15, Cat.19
5G NR |
|
|
5G/ LTE Frequency Support
|
• 5G NR SA: n1/n3/n7/n8/n20/n28/n38/n40/n41/ n77/n78
• 5G NR NSA: n1/n3/n7/n8/n20/n28/n38/n40/n41/ n77/n78 • LTE FDD: B1/B3/B7/B8/B20/B28 • LTE TDD: B38/B40/B41/B42/B43 • WCDMA: B1/B5/B8 |
|
|
5G/LTE Throughput
|
5G SA Sub-6 : DL 4.67Gbps; UL 1.25Gbps
5G NSA Sub-6: DL4.67Gbps; UL 836Mbps LTE: DL 1.6Gbps; UL 211Mbps |
|
|
MIMO
|
DL: 4 × 4 UL: 2 × 2(only support 5G SA)
|
|
|
Output Power
|
5G NR bands: Class 3 (23 dBm ±2 dB)
5G NR HPUE 2 bands (n41/n77/n78): Class 2 (26 dBm +2/-3 dB) 5G NR HPUE 2 bands (n41/n77/n78): Class 1.5 (29 dBm +2/-3 dB) LTE bands: Class 3 (23 dBm ±2 dB) LTE HPUE 2 band (B41): Class 2 (26 dBm +2/-3 dB) WCDMA bands: Class 3 (23 dBm ±2 dB) |
|
