About KuWFi C130 Outdoor 5G CPE Router:

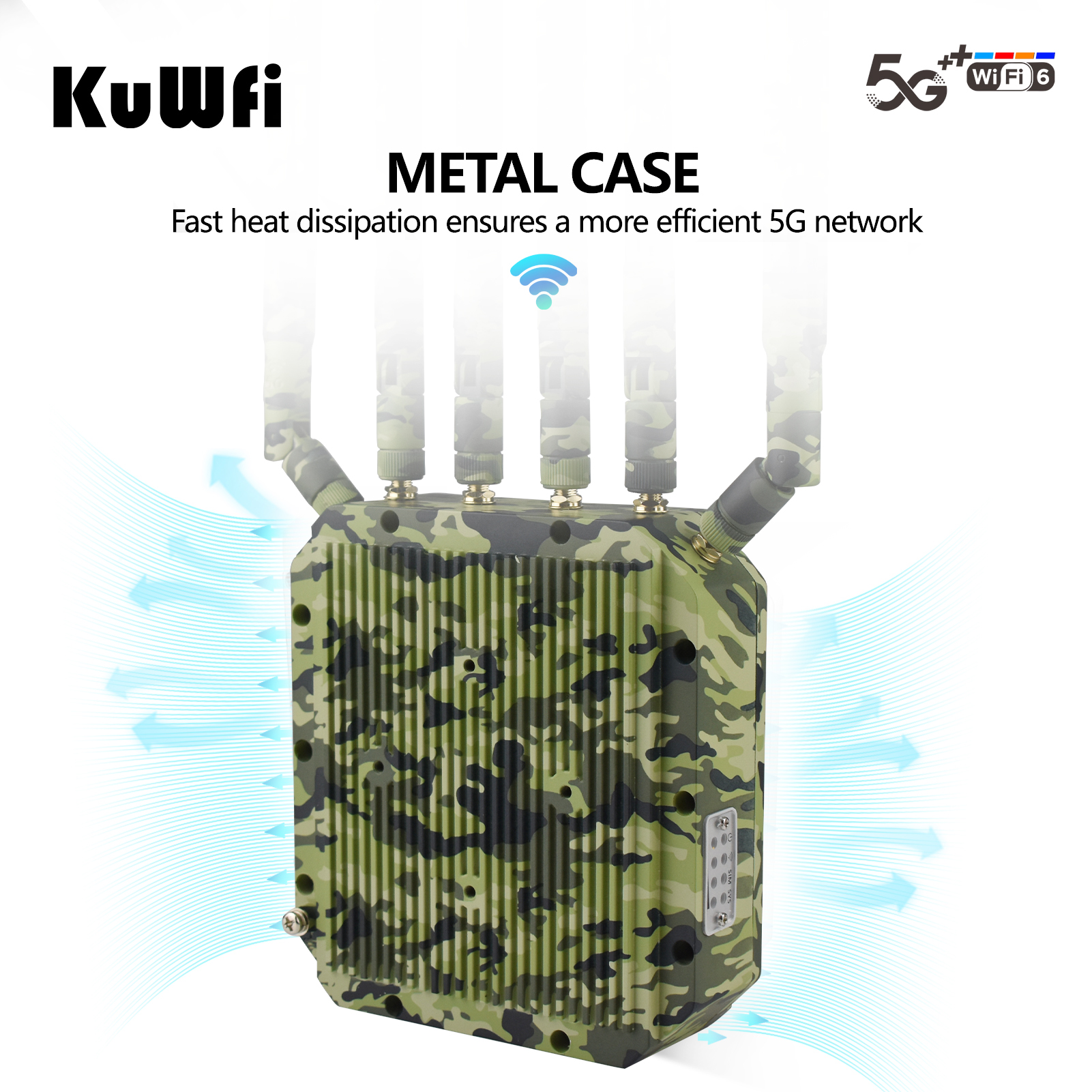

The C130 Outdoor 5G CPE Router delivers high-speed 5G/4G internet in outdoor areas, even with weak signals. It bridges cellular networks to local devices via 5G NSA/SA, WiFi 6, and LAN, featuring a rugged IP67 waterproof design for wall/pole mounting.
|
product Name
|
Outdoor 5G NR SA NSA WiFi 6 CPE Router with 2*SIM Card Slot
|
|
CPU
|
SDX62(SDX75 Optional)
|
|
WiFi Frequency
|
2.4G
|
|
WiFi Standard
|
2.4G:802.11b/g/n/AX ,5.8G:802.11b/g/n//AC/AX
|
|
WiFi
|
2.4GHz :600Mbps ,5.8G:2400Mbps
|
|
5G NR
|
3GPP Release 16 NSA/SA operation,Sub-6GHz
|
|
5G Network Mode
|
NSA/SA
|
|
5G/4G Data Rate
|
5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs) LTE : Down 1.0 Gbps；UP 200 Mbps5G NR NSA |
|
5G Frequency Bands
|
5G NR NSA
n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/78/ 79 5G NR SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/78/ 79 MIMO Downlink：4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 |
|
4G&3G Frequency
Bands |
Downlink Cat 19/ Uplink Cat 18
LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 MIMO DL:4x4 MIMO on B2/B4/B5/B12/B13/B14/B17/B25/B26/ B29/B30/B66 /B41/B42/B43/B48/B71 WCDMA B1/ 2/ 4/ 5/ 8/ 19 |
|
Antennas
|
The 5G antenna is 4*4DBI
The WiFi antenna is 2*5DBI |
|
Interface
|

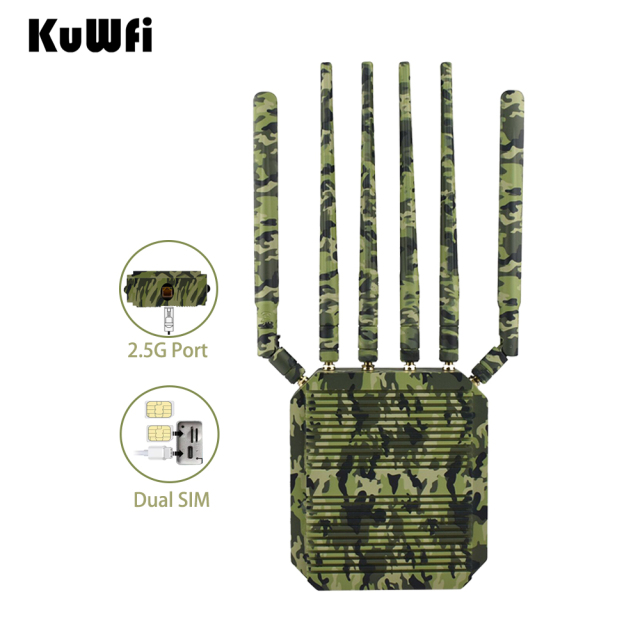

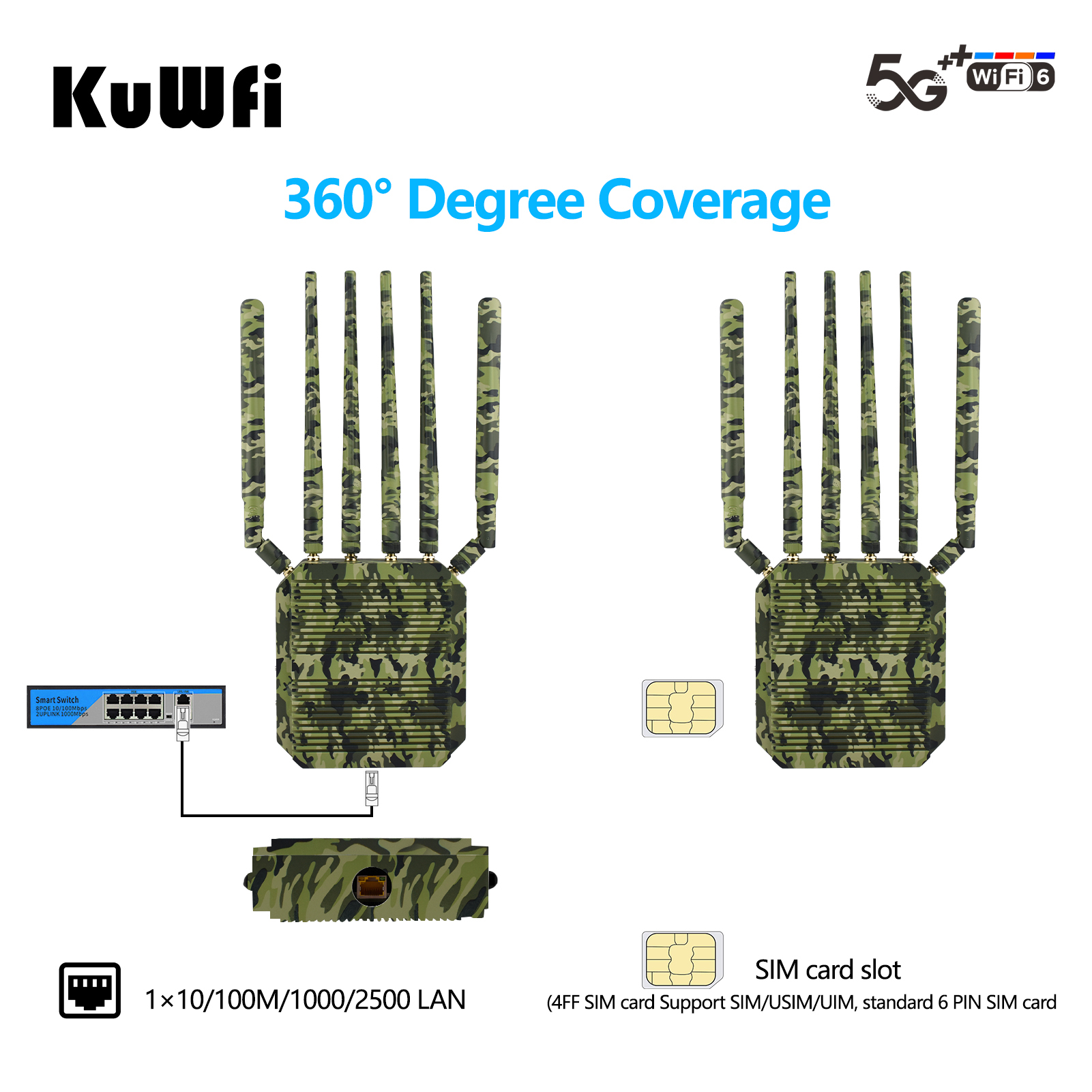

1*10/100M/1000/2500 LAN

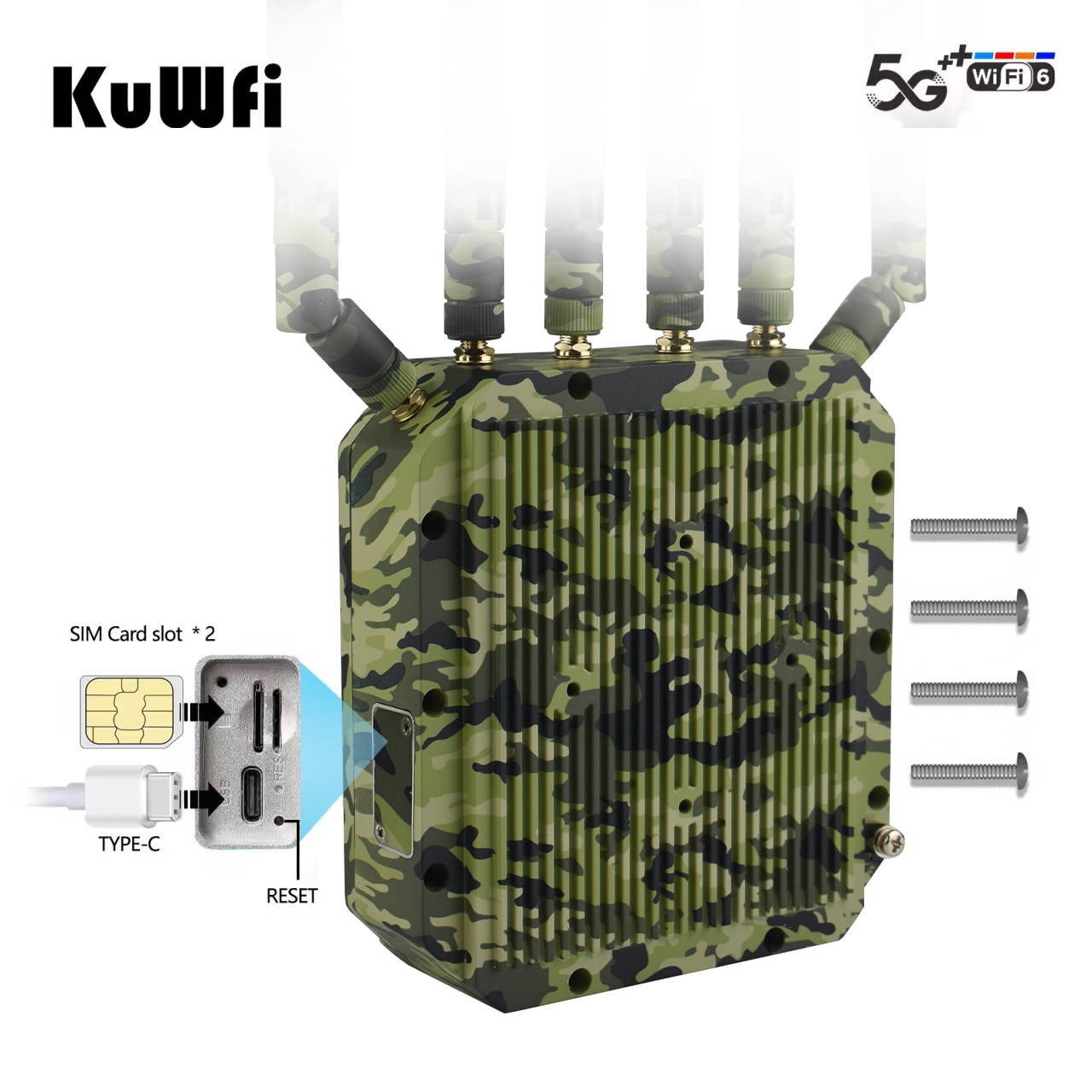

1 Reset Button 2*SIM card slot(4FF SIM card Support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card: internal) |
|
LED Indicator
|
battery power,RF Signal, SIM Signal,SYS Signal
|
|
Power Consumption
|

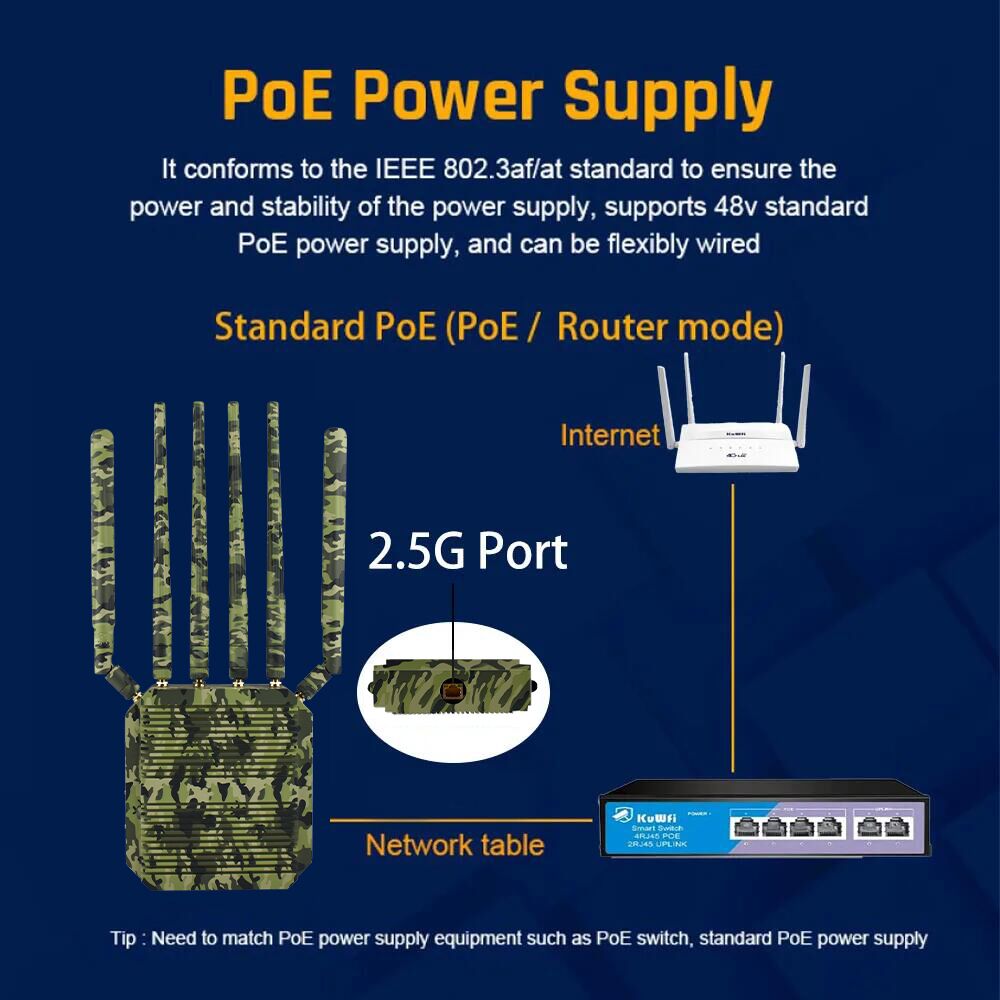

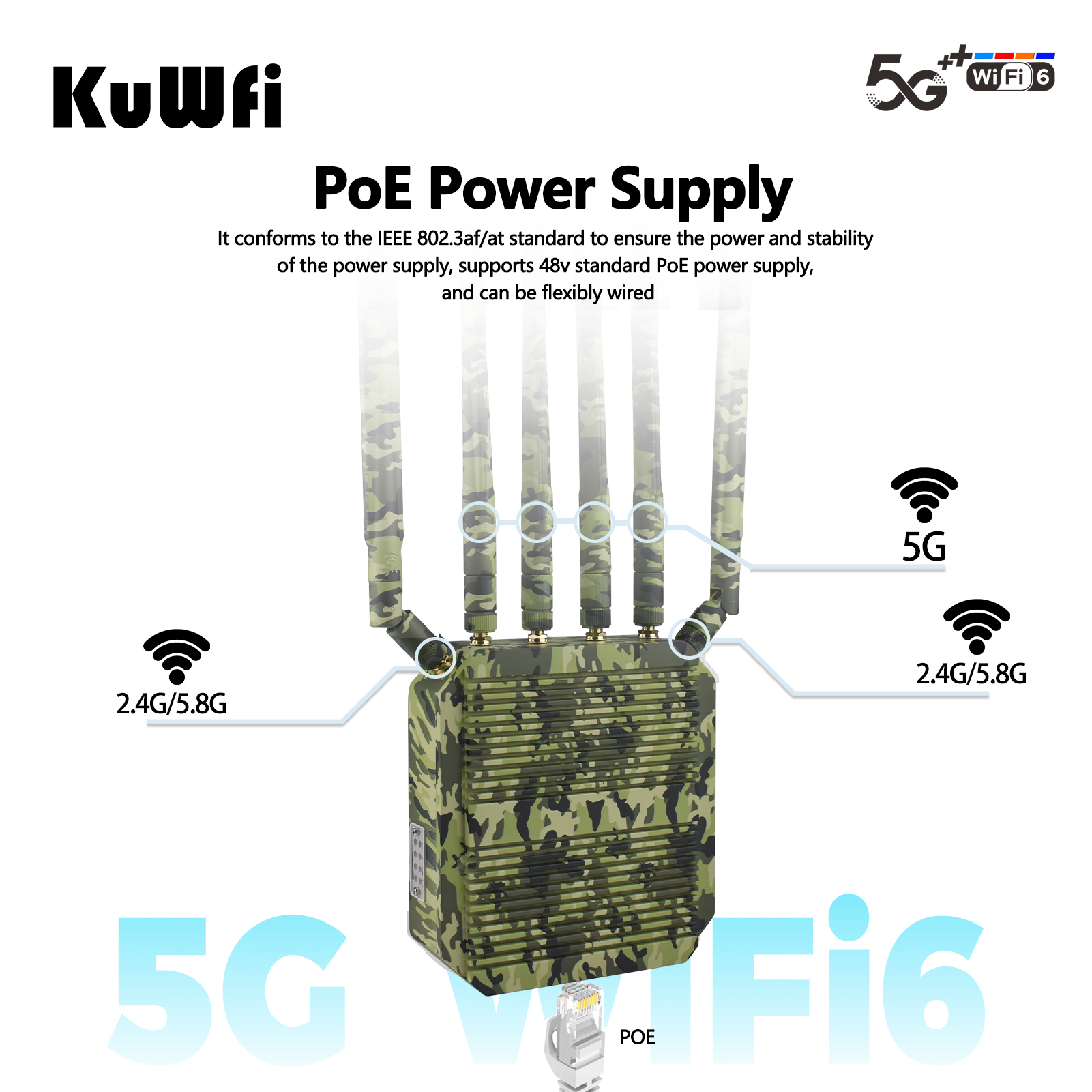

＜24W（POE 48V/1A）
|
|
Environment
|
Operating Temperature：-20℃～+50℃
Storage Temperature:-40℃～+70℃Humidity：5％～95％（Non condensation） |
