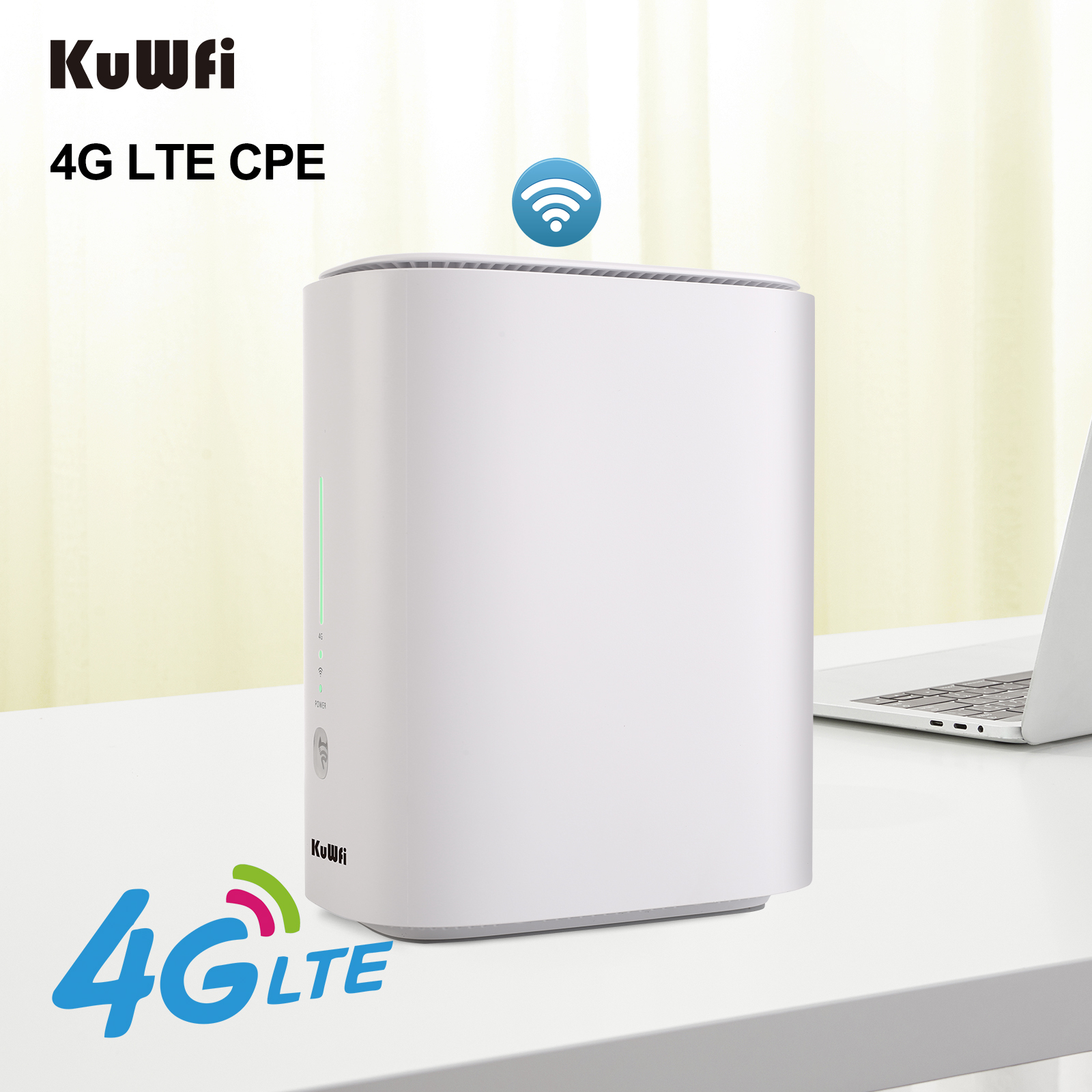

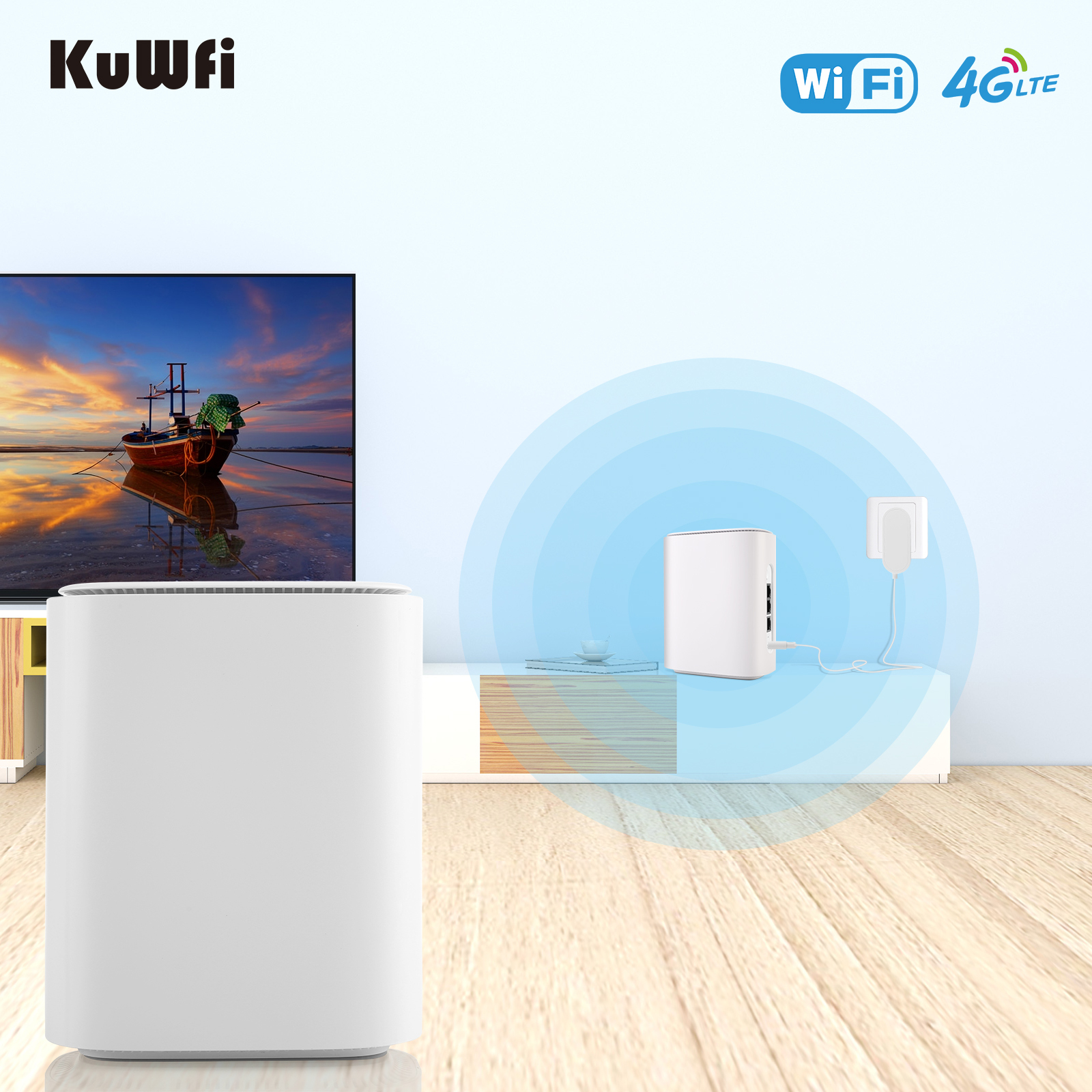

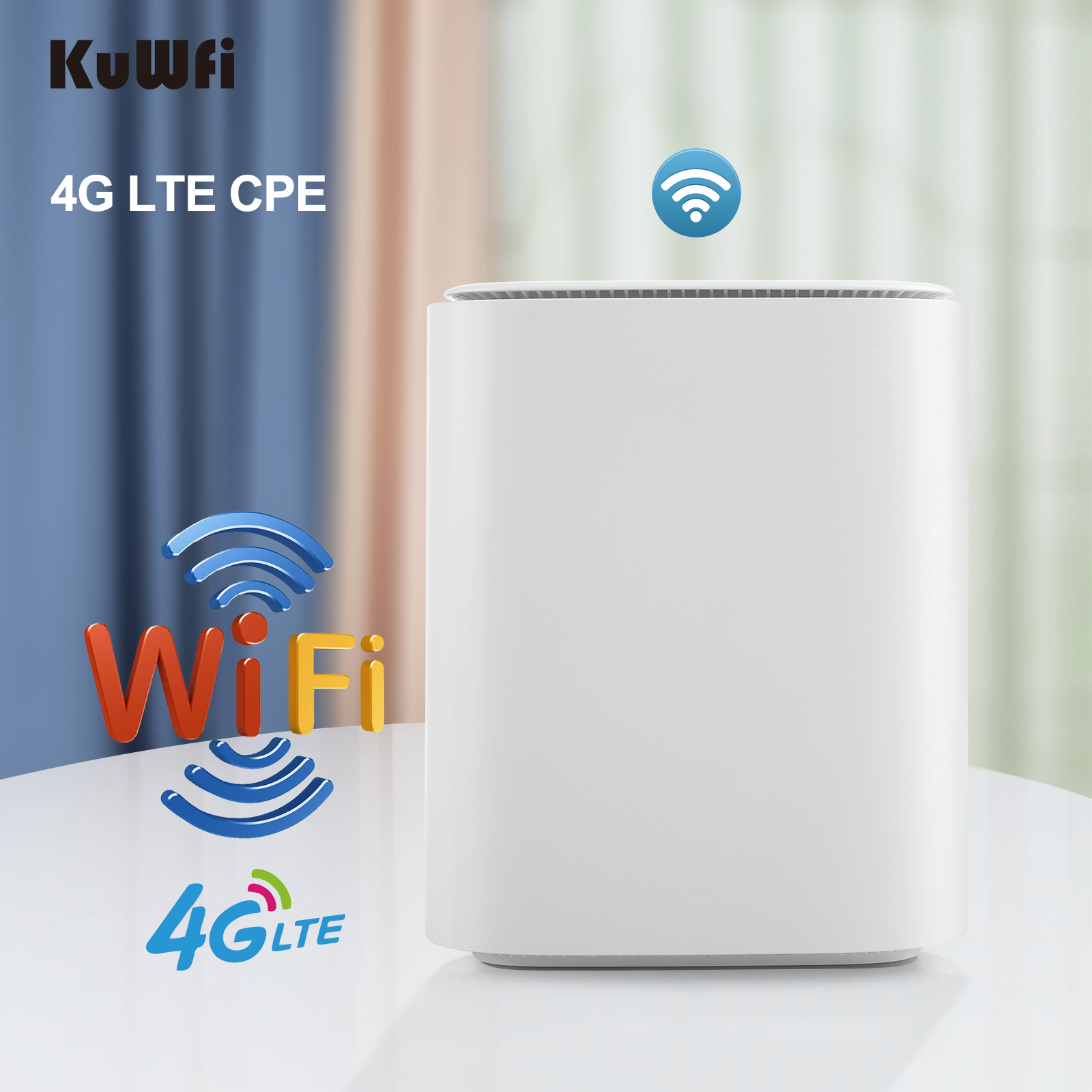

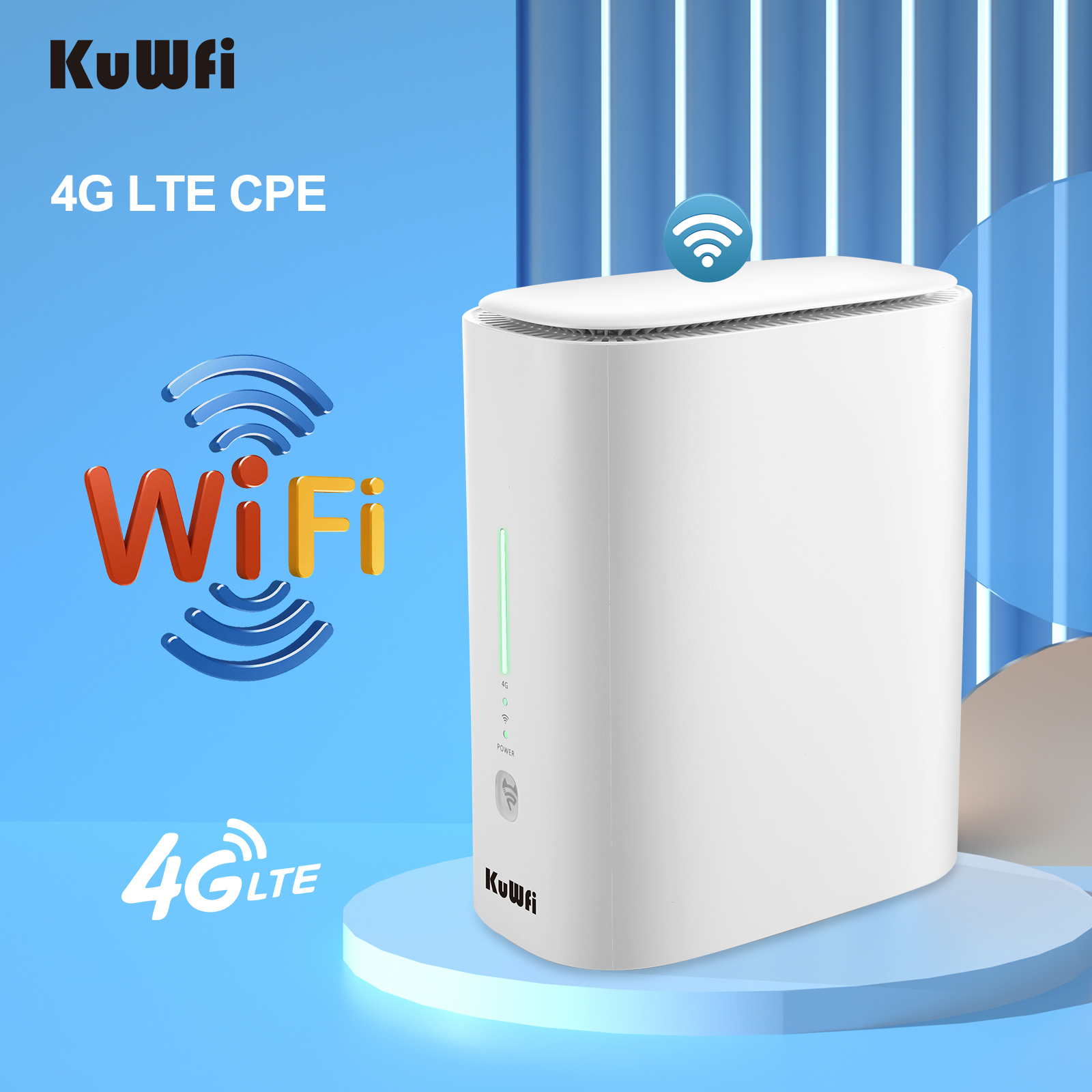

KuWFi Indoor 4G WIFI Router CAT4 150Mbps Mobile WiFi Hotspot Sim Card 32 Users RJ45

Item No.: CP09
--4G Router with WAN/LAN port and SIM card slot, after plug 4g sim card ,can enjoy the 4g WiFi with friends and family.
-- high speed internet and more stable wifi ,4g cat4 150mbps ,DL/UL 150Mbps/50 Mbps ,2*2dBi built-in antennas
Description

Frequency band:
Version-1
4G LTE FDD:B1/B3/(2100/1800MHZ)
3G WCDMA:B1(2100MHZ)
2G GSM:B3/B8(1800/900MHZ)
Applicable to some countries in Asia, such as Thailand, Singapore, Indonesia, Cambodia, Myanmar, Philippines, etc.

Version-2
4G LTE FDD:B1/B3/B8(2100/1800/900MHZ)
4G LTE TDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
Applicable to most countries in Asia, such as Israel, South Korea, India, Kazakhstan, Sri Lanka, Thailand, Japan, Singapore, Indonesia, etc.


Version-3
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE TDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.

if you are not sure what frequency bands available in your area , pls consult us before order .



Description:

1.Wireless 4G Router with powerful signal with WAN/LAN port and SIM card slot , after you plug 4g sim card ,you will enjoy the 4g WiFi with your friends and family.

2.4G lte router equipped with 2 LAN interface,when the 4G router transmits the WiFi ,you can also connect with other devices by lan cable simultaneously.

3. 4g wifi router offer high speed internet and more stable wifi ,4g cat4 150mbps ,DL/UL 150Mbps/50 Mbps ,2*2dBi built-in antennas

4.Wi-fi router 4g is Easy to connect and easy to carry in hand Sharing customer to 32 WiFi users

5.Wi-fi router with sim card slot supports 2.4GHz WiFi, WiFi speed up to 300Mbps, effectively reduces the same frequency interference, improves the wireless transmission range, eliminates dead zones


Working Mode
【4G wireless mode】
Choose 3G/4G Wireless modem mode as default, pulg in to Micro SIM Card, router 4g lte will identify 3G/4G automatically.for some SIM Card should be update APN.
【4G To LAN】
After Insert 3G/4G SIM card to the Router , Connect PC with router by lan cable ,your pc will have internet
【Repeater Mode】
Extended wireless coverage,WiFi repeater equipped with 4 high gain external antenna, which improve the reach of your existing Wi-Fi coverage, extend wireless signal to about 3-10 meters!
【Wired Mode】
Standard wireless modem mode:Static online mode/Dynamic Internet access/PPPoE online mode



Features:

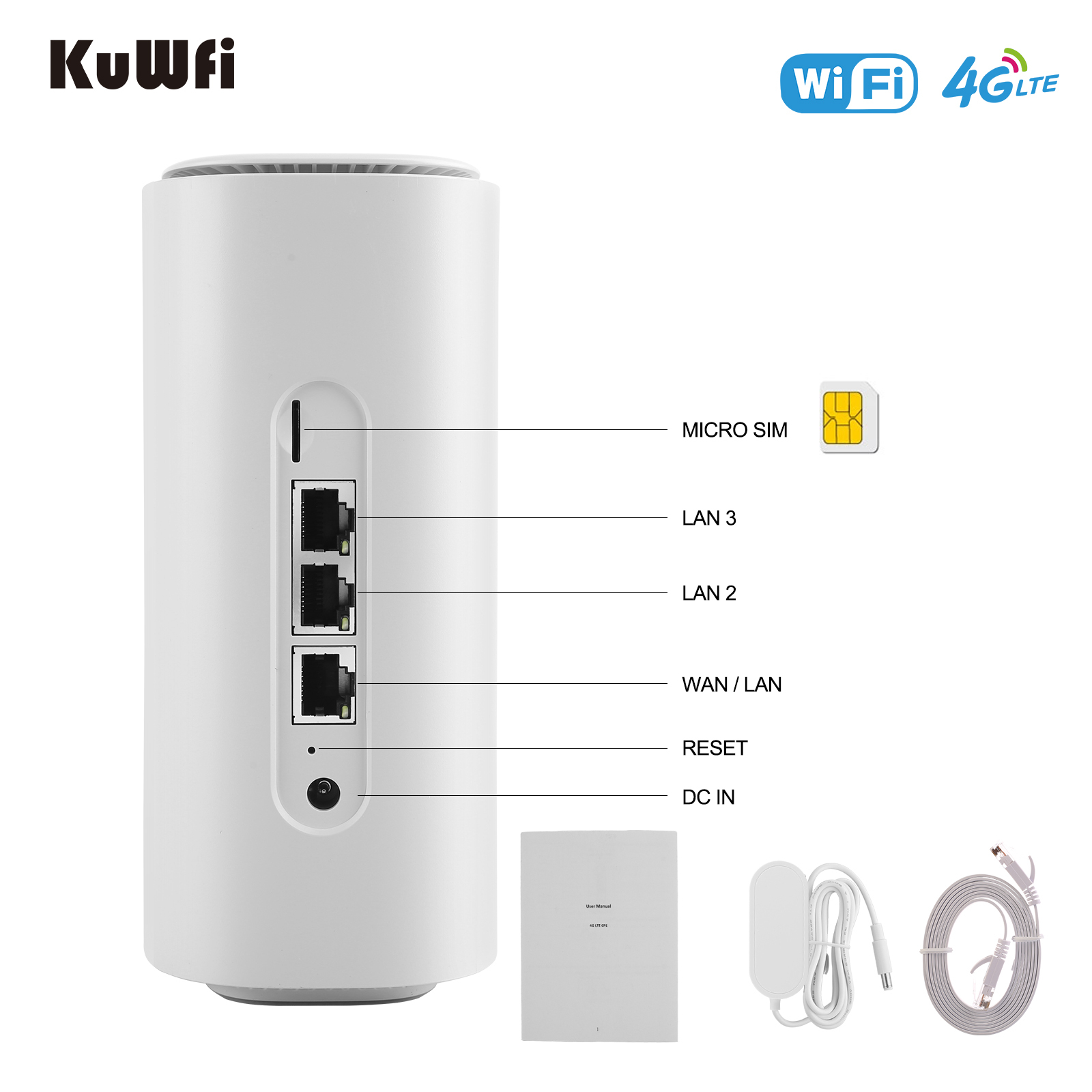

Interface:
1x WAN RJ45 Port
2x LAN RJ45 Port
1x Reset Button
1x SIM Card Slot

Chipsets: Wi-Fi: MTK MT7628(7628NN 7628AN 7628DAN)/4G Marvell 1802
Wi-Fi: 802.11b/g/n MIMO 2*2

Up to 300Mbps,2.4GHZ
4G LTE: CTA4 DL150Mbps/UL50Mbps

Users:Max.32 Users
Transmission Range: 3-10M
OS: Windows Vista SP1/SP2、Windows 7、Windows 8、Windows 8.1、Mac OS X0.7/10.8/10.9/10.10

Working Temp: -20~55℃
Storage Temp: -40~70℃

Power Supply: DC 12V 1A Power Supply
Size:145*115*60mm



Packing list:

1x 4G WIFI Router
1x 12V 1A DC Power
1x English Manual
1x RJ45 LAN Cable
