KuWFi Indoor 4G WiFi Router 300Mbps Wide Coverage with 4 External Antennas Up to 32 User

Item No.: C910-white
1. 4G LTE Router with WAN/LAN port and with SIM card slot , plug 4g sim card To Use

2.The Router with 2 LAN interface,when the 4G router transmits the WiFi ,you can connect to other devices by lan cable simultaneously.
Description
frequency band:
Version-1
4G LTE FDD:B1/B3/(2100/1800MHZ)
3G WCDMA:B1(2100MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in most of Asia

Version-2
4G LTE FDD:B1/B3/B5/B8(2100/1800/850/900MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
Working in most of in EU,Asia,Africa

Version-3
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
Working in all off EU ,Asia ,Africa,Oceania



Description:
1.Support 4G Cat4 150Mbps ,4*5dBi external antennas ,offer high Speed and more stable wifi ,DL/UL 150/50 Mbps.

2.Support 32users at the same time and  VPN  L2TP DMZ and  Port forwarding  support makre more Wider usage scenarios. It provides high-quality data communication and optimized WiFi data transmission.


3.Supports 2.4GHz WiFi, WiFi speed up to 300Mbps, effectively reduces the same frequency interference, improves the wireless transmission range, eliminates dead zones

4.Working Mode

【4G wireless mode】
Choose 3G/4G Wireless modem mode as default, pulg in to standard SIM Card, KuWFi CPE will identify 3G/4G automatically.for some SIM Card should be update APN.

【4G To LAN】4G To LAN
After Insert 3G/4G SIM card to the Router , Connect PC with router by lan cable ,your pc will have internet

【Repeater Mode】
Extended wireless coverage,WiFi repeater equipped with 4 high gain external antenna, which improve the reach of your existing Wi-Fi coverage, extend wireless signal to about 3-10 meters!

【Wired Mode】
Standard wireless modem mode:Static online mode/Dynamic Internet access/PPPoE online modem



Detail:

Chipset :Qualcomm 9531
ROM+RAM64Mb+1Gb
Transmission Range :3-15M

Working Temp : -20~+55C ,for storage: -40℃ ~70℃ for working
Power Supply :12V 1A DC Supply

Size:117*115*20mm

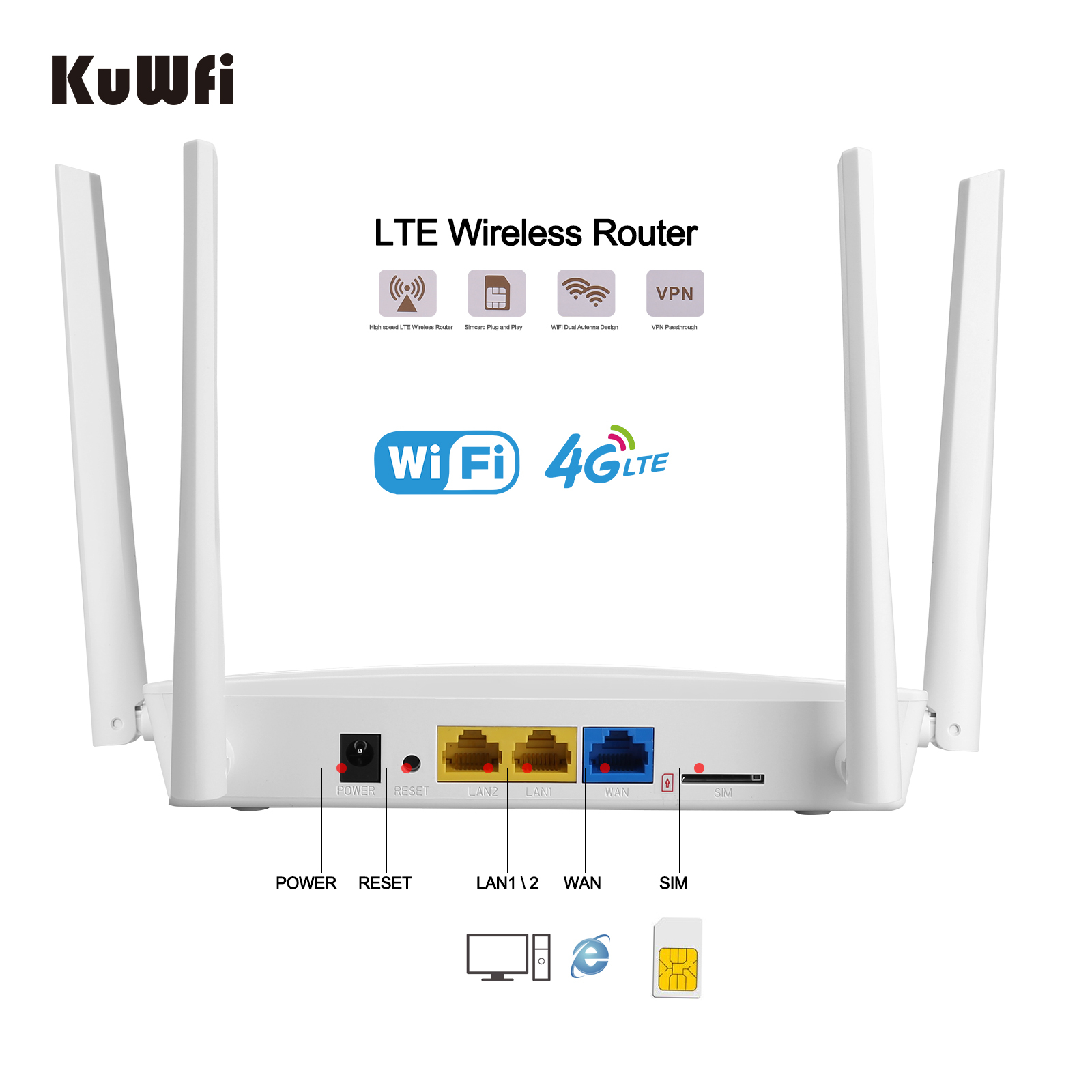

LAN:RJ45*2

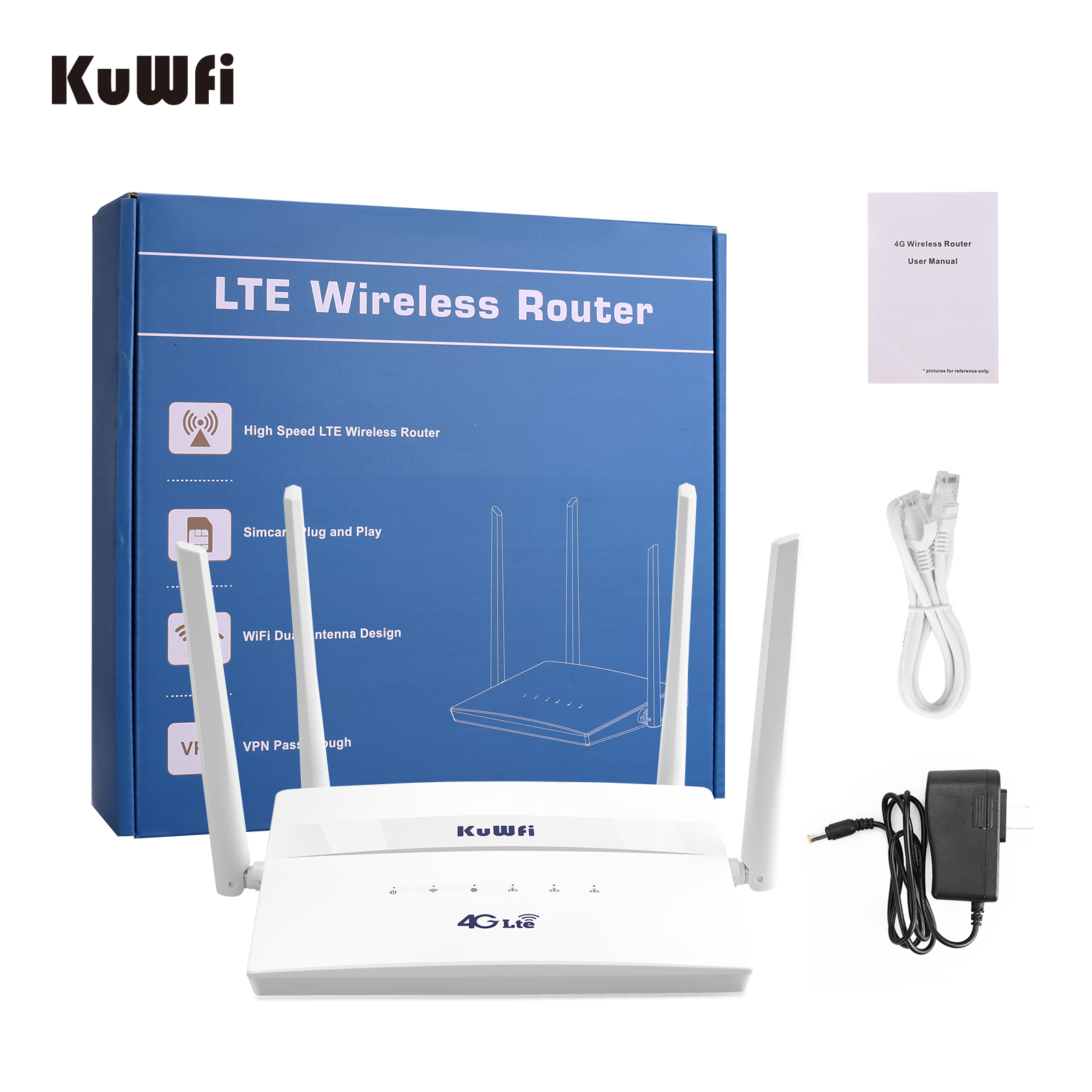

Package Included:

1*4G WIFI Router
1*12V DC Power Adapter

1*English Manual
1*RJ45 LAN Cable
