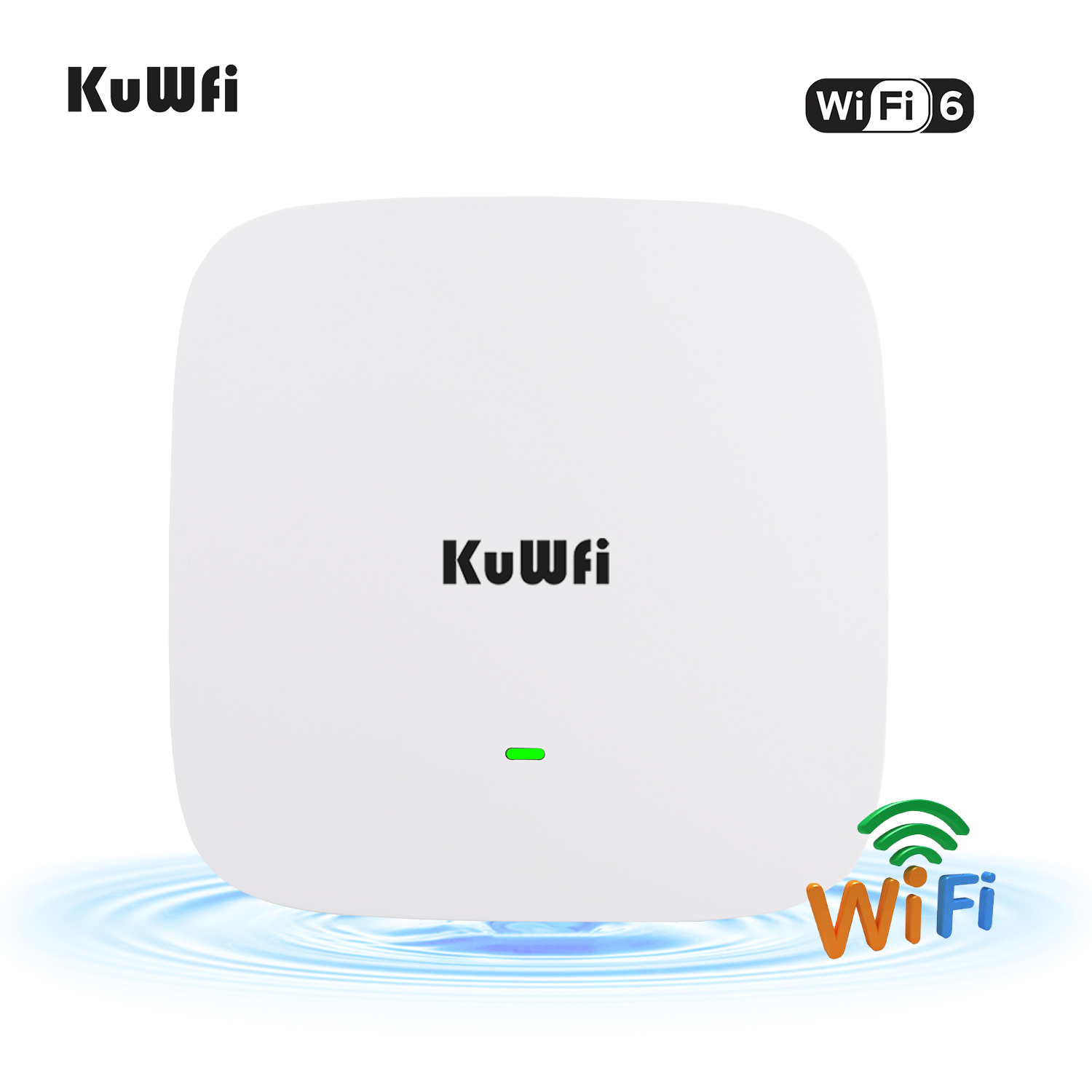

AX820 is an 11ax Wi-Fi standard MTK Chipset high power industrial Ceiling Wireless Access Point support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming.
Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz (1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.
|
Model |
AX820 |
|
CPU |
MT7621A+MT7905N+MT7975DN |
|
Flash |
SPI NOR 16MB |
|
DDR3 |
256M |
|
2.4G Frequency |
2.4GHz ~ 2.484GHz |
|
5G Frequency |
5.150GHz～5.850GHz |
|
2.4G Protocol |
802.11 b/g n/ax |
|
2.4G Antenna |
Build in 4+dBi Antenna |
|
5G Antenna |
Build in 4+dBi Antenna |
|
5G Protocol |
802.11 a / n / ac /ax |
|
Data Rate |
2.4G 574Mbps MIMO 2*2，5G 2402Mbps MIMO 2*2 |
|
ppm |
±20ppm |
|

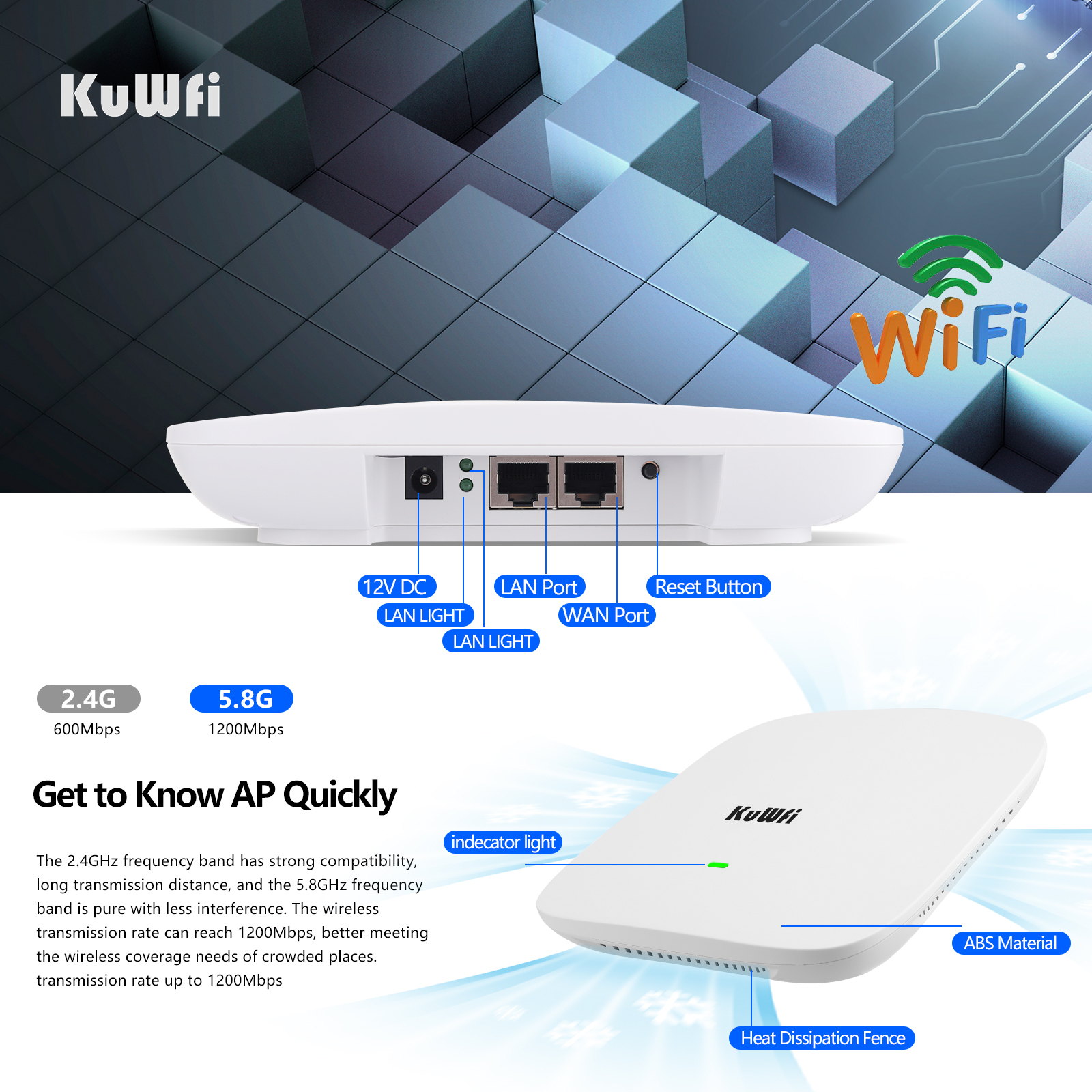

WAN |
1*10/100/1000M RJ45, support 48V PoE |
|
LAN |
1*10/100/1000/1000M RJ45 |
|
Reset |
Reset to factory settings by pressing 6-10 seconds |
|
Indicators |
WAN, LAN, tricolor LED(sys-red, 2.4G-green, 5.8G-blue) |
|
Power |
DC2.0 12V 2A，PoE 802.3at |
|
Max Power Consumption |
< 15W |
|

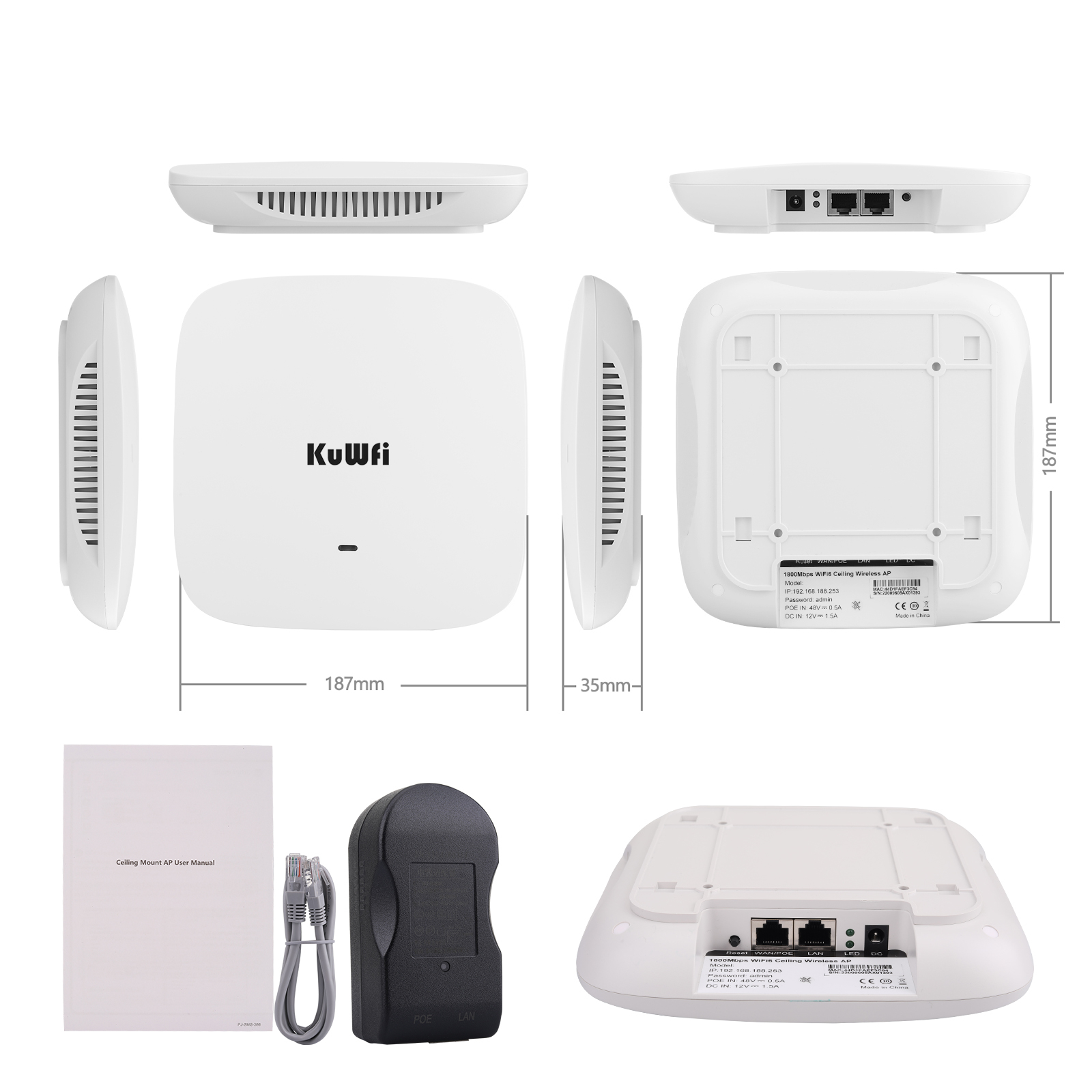

Dimension |
186mm × 186mm ×36mm |
|
Weight |
0.4kg |
|
Temperature |
Working: -20°C to 45°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing) |
|
ESD |
Air:±8K, Touch:±4K |
|
Electrical Surge |
Common Mode: 2K, Differential Mode: 1K |
