About Product:

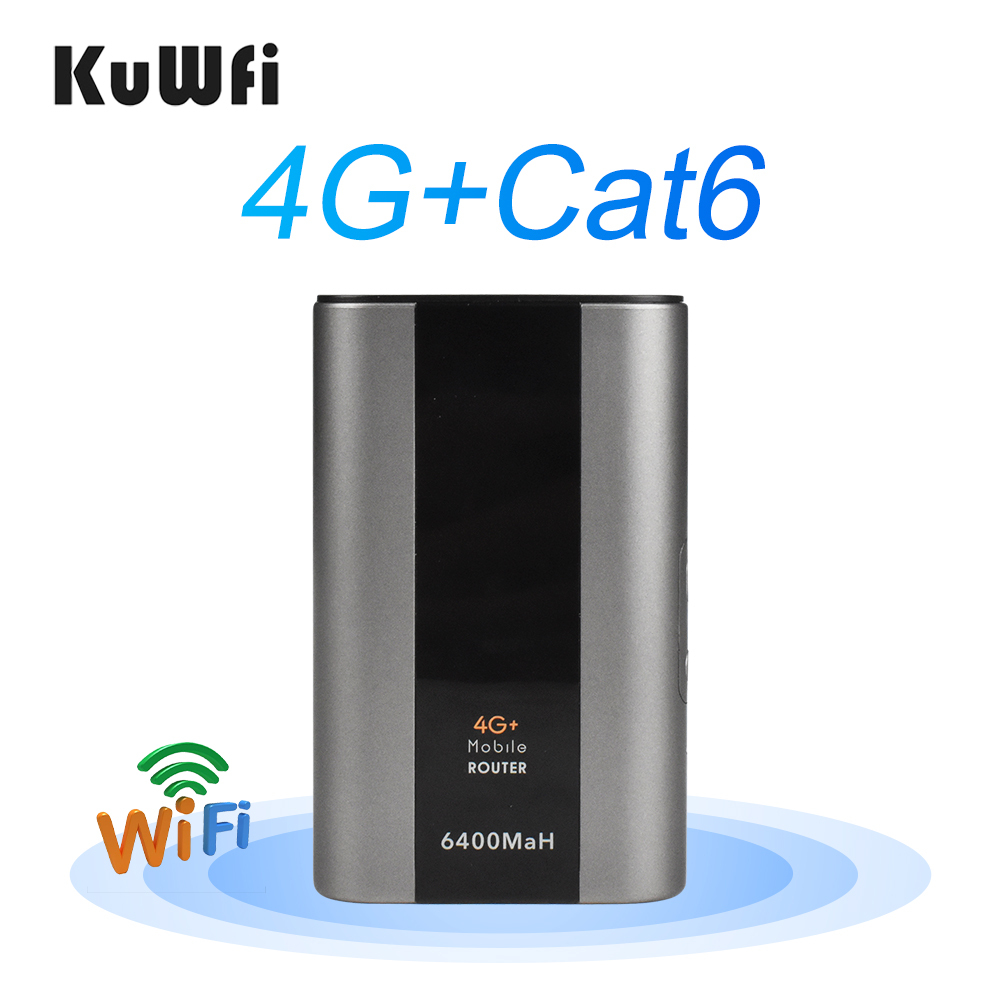

M53 is a compact and lightweight device designed to provide high-speed 4G internet connectivity on the go. It allows users to create a portable Wi-Fi hotspot by converting cellular signals into a stable wireless network, making it ideal for travel, remote work, or areas with limited wired internet infrastructure.—Dual antennas (built-in + external ports) for strong signal in weak areas (basements, rural zones, travel).
2. High-Speed Multi-Device Sharing—Wi-Fi 6 supports 32 devices at 600Mbps (ideal for homes/small offices).
3. Seamless Network Switching—--Auto-switches between 4G/Wi-Fi for uninterrupted connectivity (ideal for video calls/streaming)
4. Global Band Compatibility—Supports EU/Latam LTE bands for plug-and-play use (cross-border travel).
5. Plug-and-Play Setup
—Auto APN detection + web UI remote management (user-friendly).
6. Emergency Lighting NeedsBuilt-in LED torch provides instant light during power outages/night emergencies
Feature:
1. 4G+ Cat6 High-Speed (300Mbps DL/50Mbps UL)：
Carrier aggregation for HD streaming/large file transfers.
2. Dual-Band Wi-Fi 6 (2.4GHz/5GHz)：Low-latency optimization for gaming/video calls.
3. Multi-Port Connectivity (LAN + USB-C):100M Ethernet &USB tethering for hybrid wired/wireless access.
4. WPA3 Encryption + MAC Filtering:Advanced security against unauthorized access.
5. Ultra-Portable Design :Lightweight with 6400mAh battery for all-day mobility.
|
Product Name
|
4G+ cat6 1200Mbps Mobile Router With LAN Port
|
|
Frequency
|
Access to LTE wireless networks
|
|
High-speed data access
|
LTE FDD: DL 300Mbps, UL 50Mbps
|
|
LTE TDD: DL 220Mbps, UL 10Mbps
|
|
|
DC-HSPA+: DL 42.2Mbps, UL 5.76Mbps
|
|
|
HSPA+: DL 21.1Mbps, UL 5.76Mbps
|
|
|
WCDMA PS: 384Kbps
|
|
|
Wi-Fi
|
Complies with wireless 802.11a/b/g/n/ac/ax standards with data rates up to 600Mbps
|
|
Wi-Fi Security: WEP, WPA2, WPA3, AES or TKIP, WPA2/WPA
|
|
|
Max 32 Wi-Fi connections
|
|
|
WPS supported by web UI
|
|
|
MAC Whitelist, Blacklist
|
|
|
Cellular Network Management
|
Traffic statistics
|
|
APN Profile setting
|
|
|
Profile Management
|
|
|
Router
|
DHCP server
|
|
DNS
|
|
|
Security
|
IP/Port/URL filter, Port forward, DMZ, UPnP, DDNS
|
|
Messaging
|
SMS
|
|
Phone book
|
|
|
LAN
|

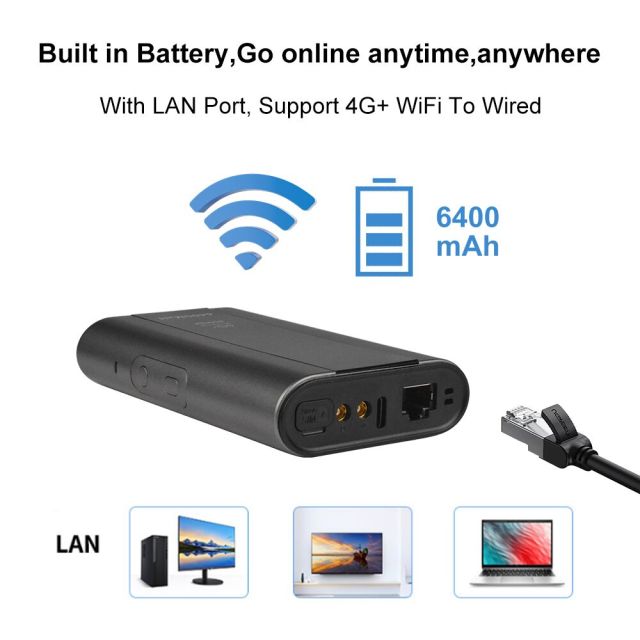

100Mbps RJ45 LAN port*1
|
|
USB
|
USB tethering by RNDIS/ECM
|
|
FW Update
|
FOTA/Local update
|
|
Battery
|
Non-removable 6400mAh Li-on battery
|
|
SIM
|
Removable Nano(4FF) SIM, eSIM optional
|
|
External Antenna Port
|
2 MCX connectors for LTE external antennas
|
|
Band
|
EU Version:
LTE: B1/3/5/7/8/20/28/40/38_41(120MHz) WCDMA: B1/3/5/8 Latam Version: LTE: B2/4/5/7/12/26/28/66/71/38_41(120MHz) WCDMA: B2/4/5 |
