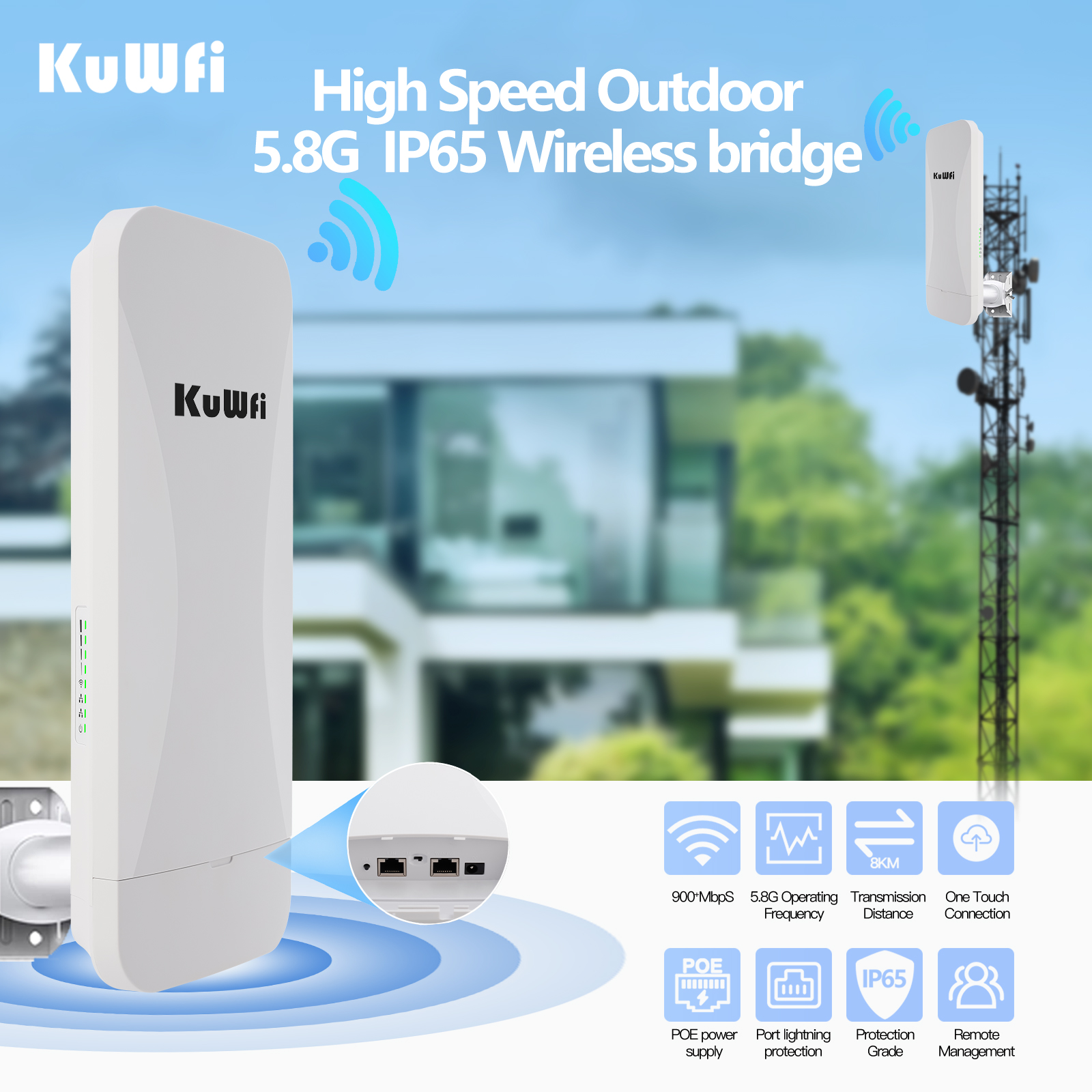

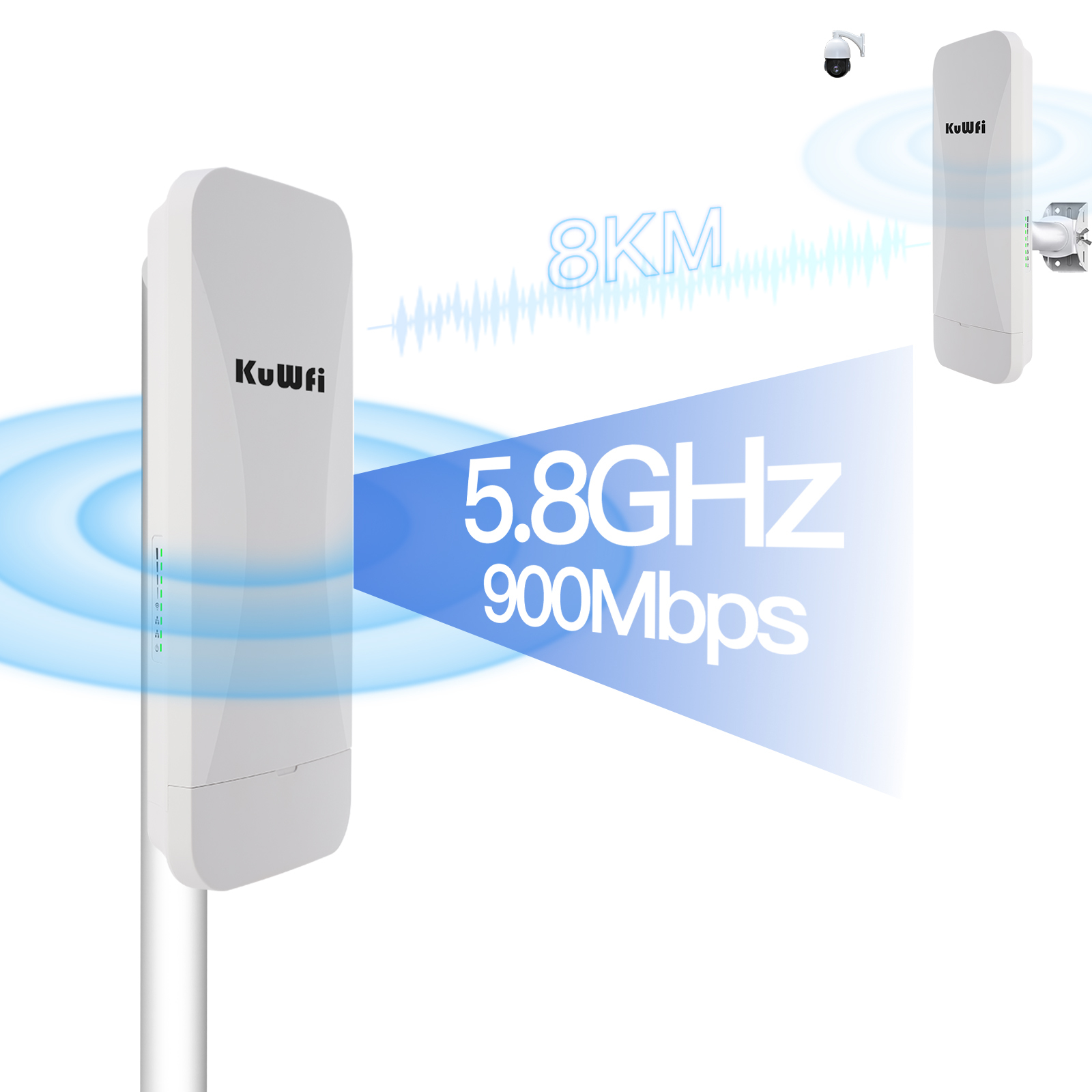

WB5G08 is a high-performance, high-speed outdoor long-distance wireless bridge. It has the characteristics of long transmission distance, strong penetration ability, and strong anti-interference ability.
Main Features:
|
Model |
WB5G08 |
||||
|
CPU |
QCA9563+QCA9886+QCA8334 |
||||
|
Flash |
16M |
||||
|
DDR2 |
64M |
||||
|
2.4G frequency |
5.150GHz～5.850GHz |
||||
|
2.4G WIFI protocol |
802.11 a / n /ac |
||||
|
Antenna |
5.8G directional panel antenna, gain：15dBi |
||||
|
Max Rate |
867Mbps |
||||
|
5G TX Power |
802.11a |
54M |
22±2dBm |
6M |
25±2dBm |
|
802.11n HT20 |
MCS7 |
22±2dBm |
MCS0 |
25±2dBm |
|
|
802.11n HT40 |
MCS7 |
22±2dBm |
MCS0 |
25±2dBm |
|
|
802.11ac VHT20 |
MCS9 |
20±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ac VHT40 |
MCS9 |
20±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ac VHT80 |
MCS9 |
19±2dBm |
MCS0 |
22±2dBm |
|
|
5G Receiving Sensitivity |
802.11a |
54M |
-73dBm |
6M |
-90dBm |
|
802.11n HT20 |
MCS7 |
-72dBm |
MCS0 |
-90dBm |
|
|
802.11n HT40 |
MCS7 |
-69dBm |
MCS0 |
-87dBm |
|
|
802.11ac VHT20 |
MCS9 |
-67dBm |
MCS0 |
-90dBm |
|
|
802.11ac VHT40 |
MCS9 |
-62dBm |
MCS0 |
-87dBm |
|
|
802.11ac VHT80 |
MCS9 |
-59dBm |
MCS0 |
-84dBm |
|
|
5G EVM |
802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；802.11AC_MCS9:≤-32dB |
||||
|
ppm |
±20ppm |
||||
|

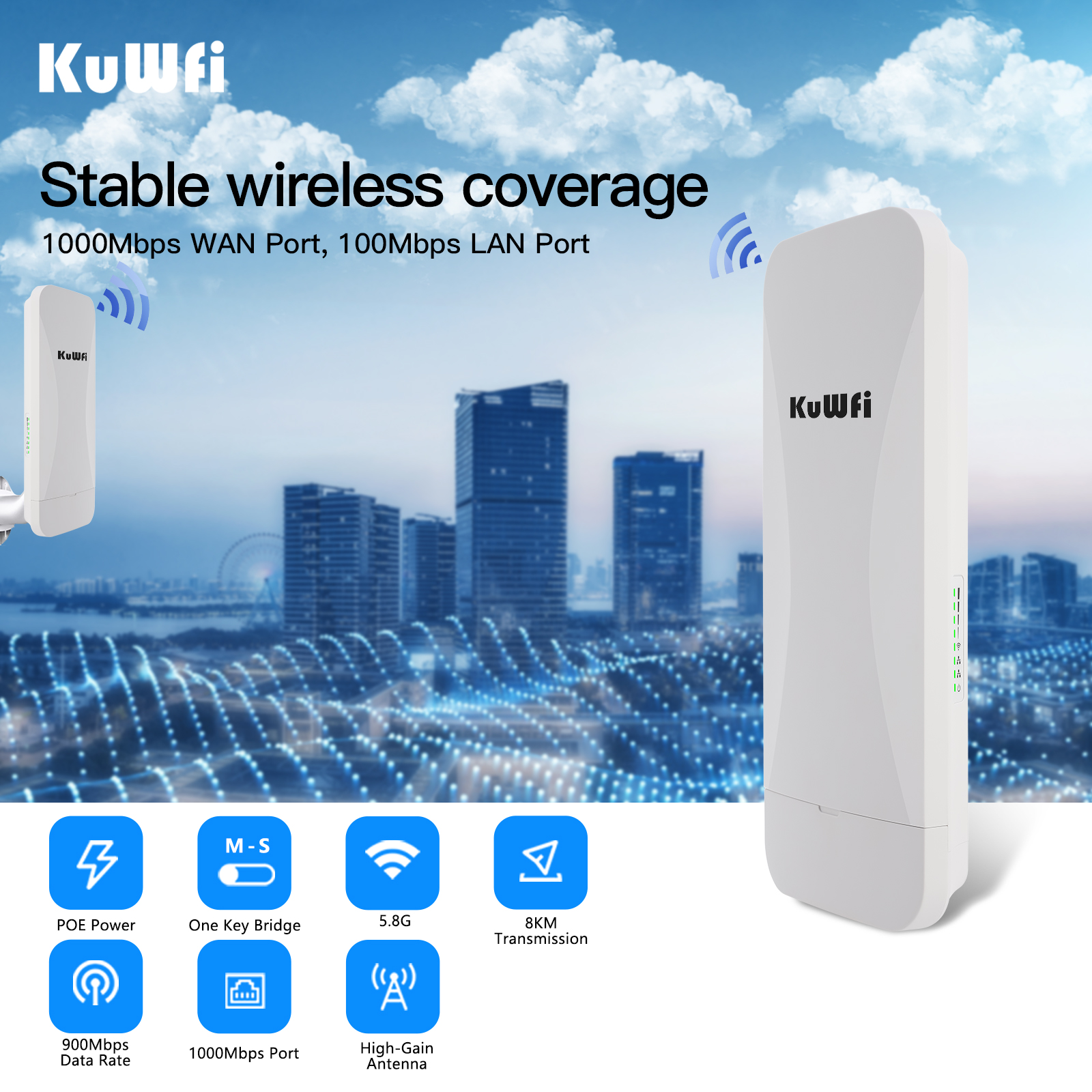

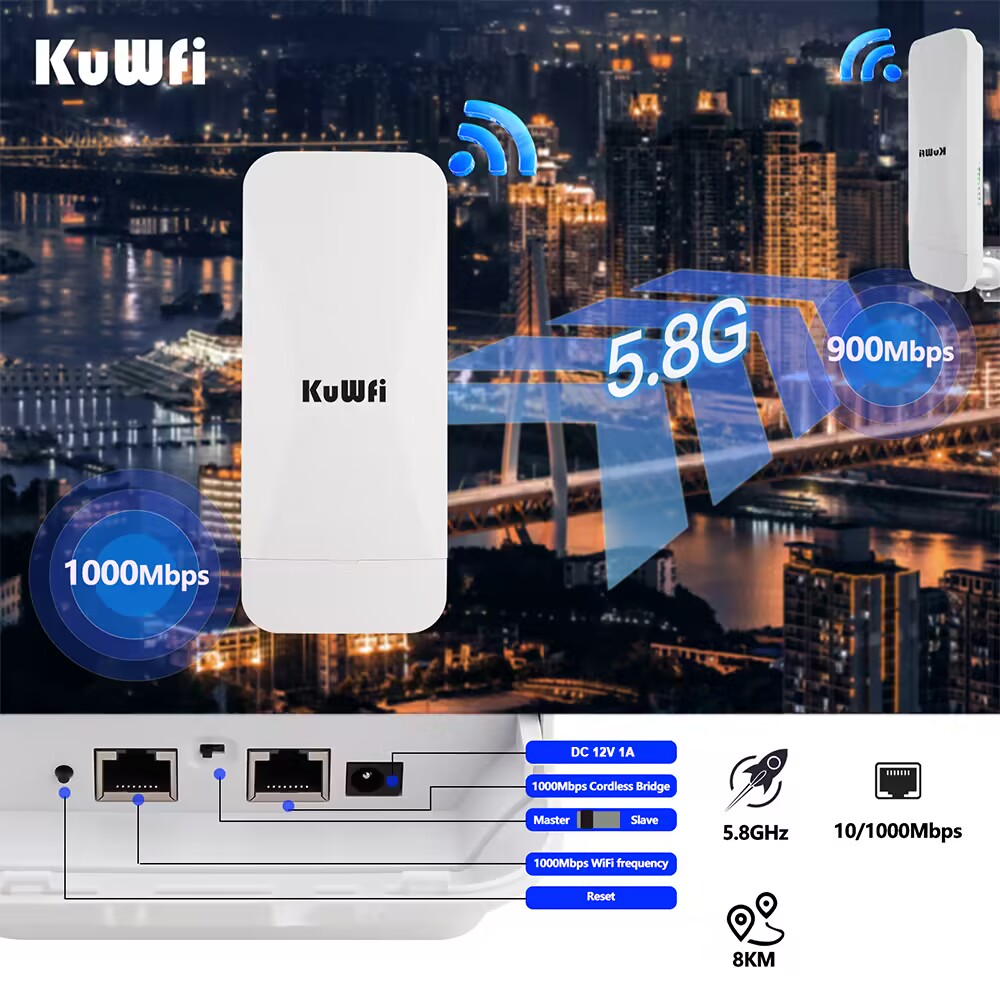

WAN |
1*10/1000M WAN, support 24V passive POE |
||||
|
LAN |
1*10/1000M LAN |
||||
|

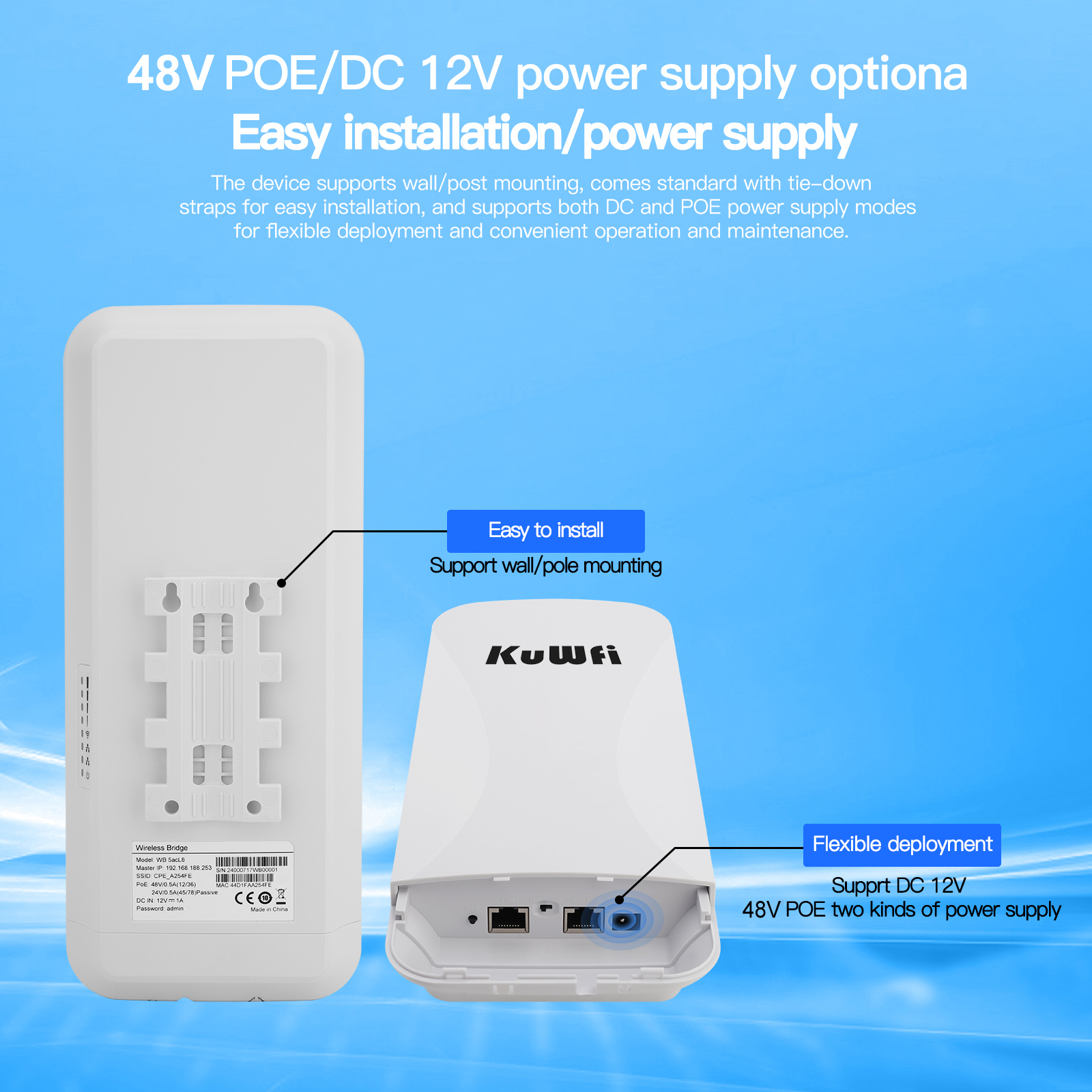

Power |
PoE 24V or 48V ，DC 12V 1A |
||||
|
Max Power Consumption |
< 10W |
||||
|
Reset |
Long press for 10 seconds to restore the factory default configuration, and short press for 1 second to initiate pairing |
||||
|

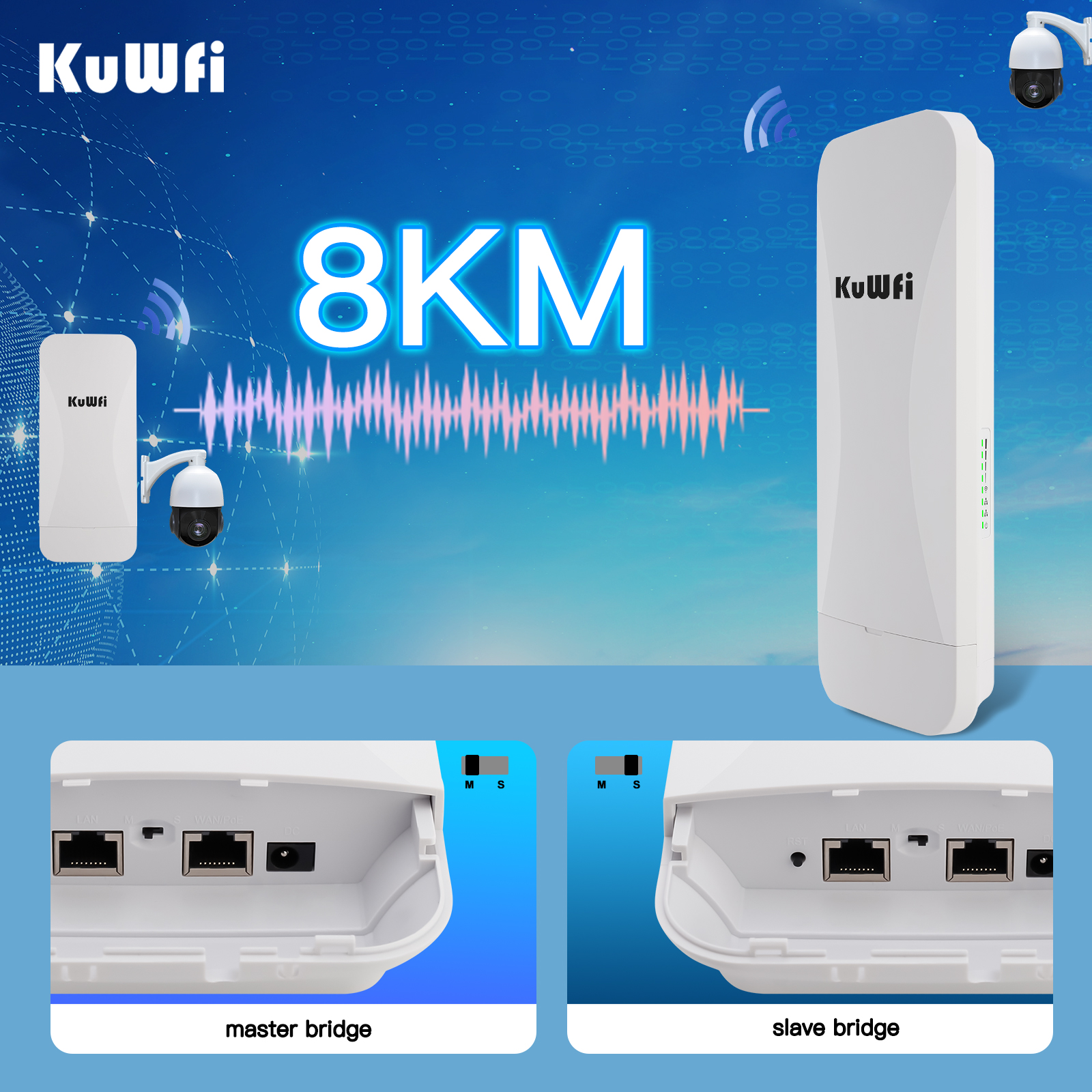

Switch button |
Choose AP/ Repeater working mode |
||||
|
Indicators |
SYS, WAN, LAN, 5G WIFI, signal*4 |
||||
|
Dimension |
168mm*86mm*42.5mm |
||||
|
Weight |
0.5kg |
||||
|
Temperature |
Working: -20°C to 55°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing) |
||||
|

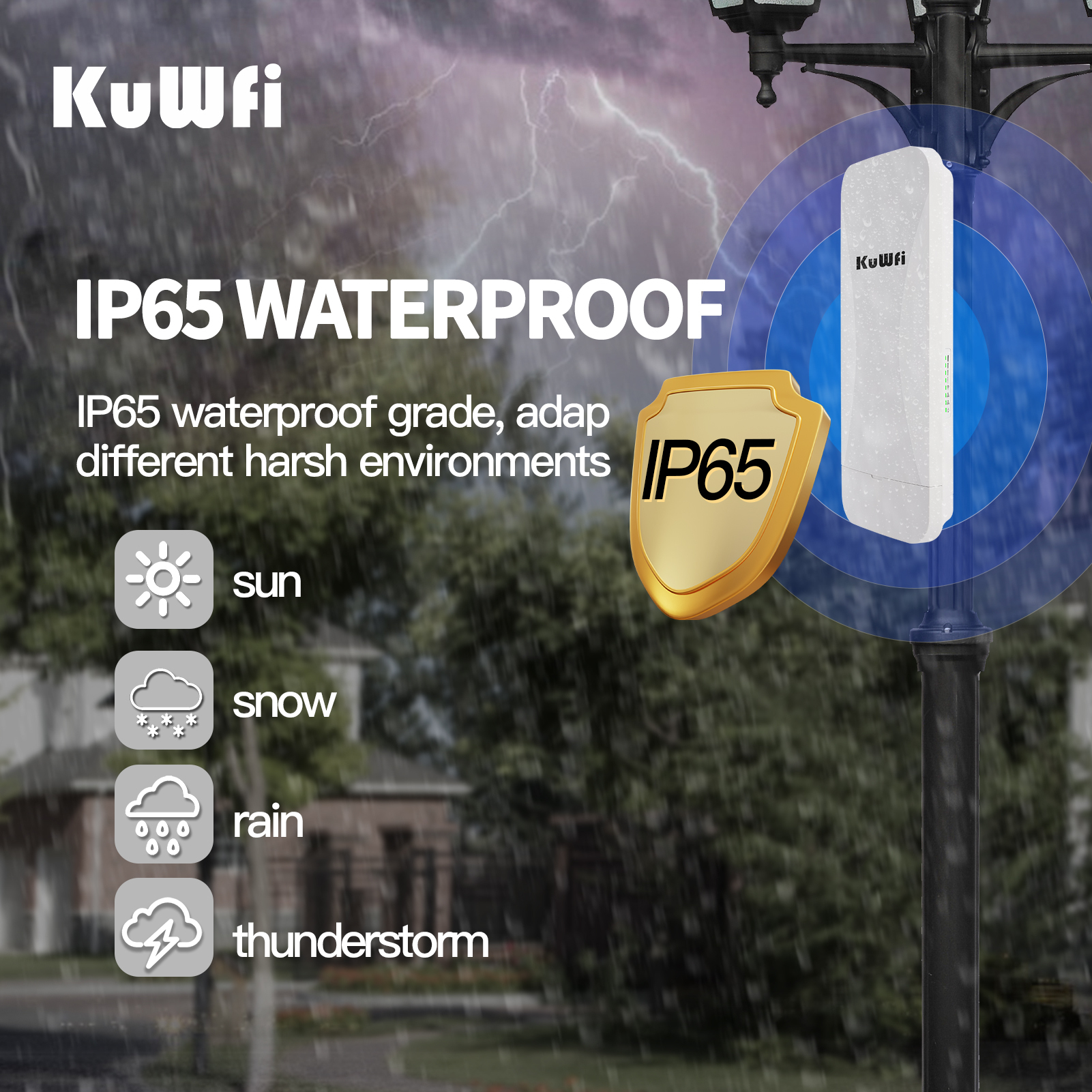

IP Grade |
IP65 |
||||
|
ESD |
Air:±8K, Touch:±6K |
||||
|
Electrical Surge |
Common Mode: 2K, Differential Mode: 1K |
||||
