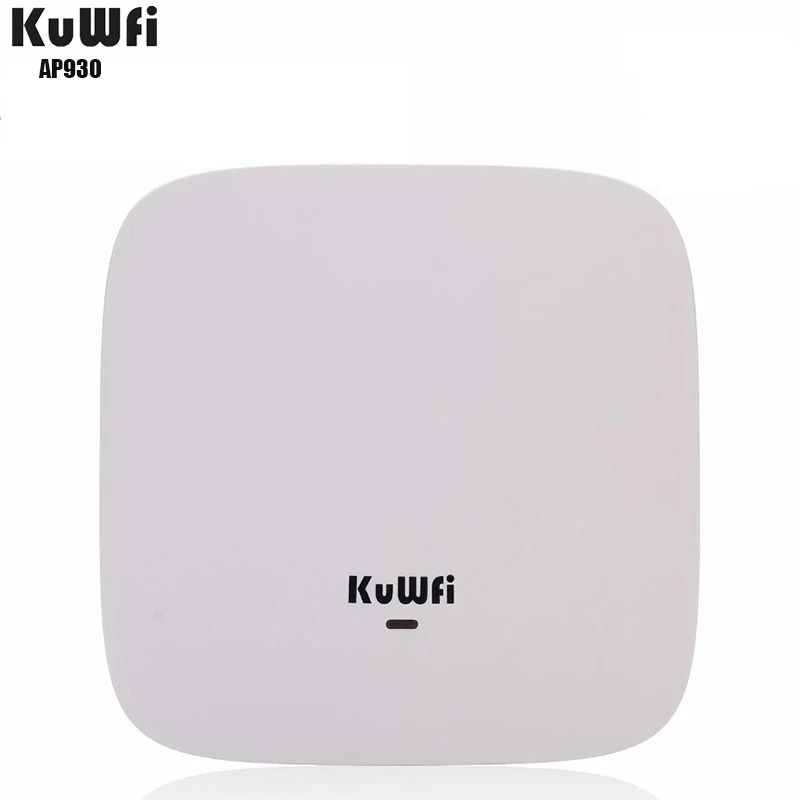

KuWFi Ceiling Mount Ap 2.4g 48v Poe Access Point 300mbps for Indoor WiFi Covering
Item No.: AP930

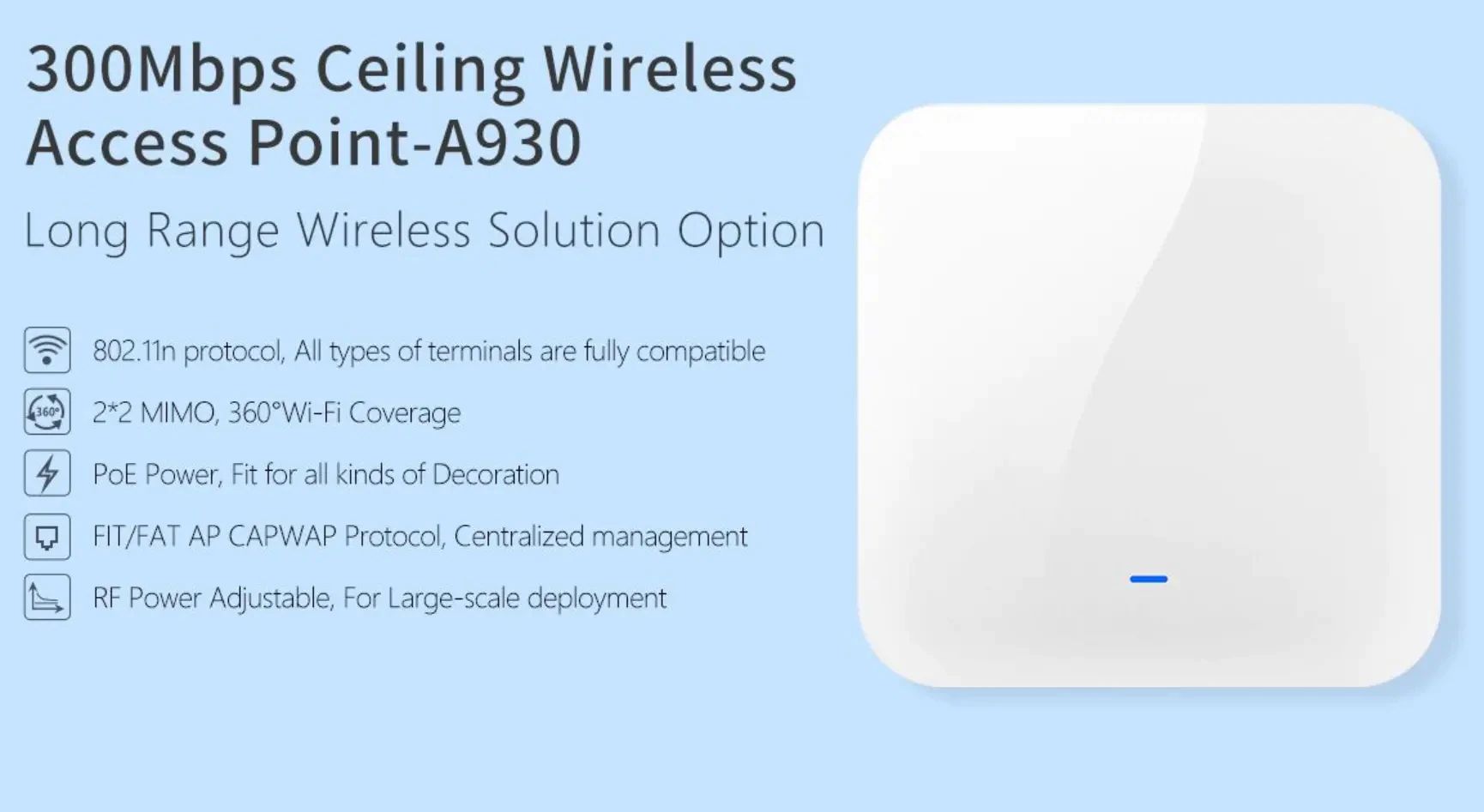

A930 is a 300Mbps high power Ceiling Wireless Access Point with Qualcomm QCA9531 Chipset. Comply with IEEE 802.11b/g/n standard, 300Mbps data rate, with MIMO omni antenna inside, 500mW high RF power together with IEEE 802.3af PoE, easy to set up in differ
--First Option for Small-Medium Environment Wireless Networking.
--Qualcomm Enterprise Wireless Solution.
--High performance, Core components are all from Famous Manufacturers.
--More Wi-Fi Coverage. PCB board adopt Skyworks POWER Amplifier and Low Noise Amplifier design, improved the wireless coverage and reduced the noise interference.
--Adjustable RF Power, Improve Wireless Quality. The transmission RF power is adjustable based on environment, Cut down RF power in place with high density of people or wireless AP to reduce Wi-Fi interference; Increase RF power in large area to improve the signal strength.

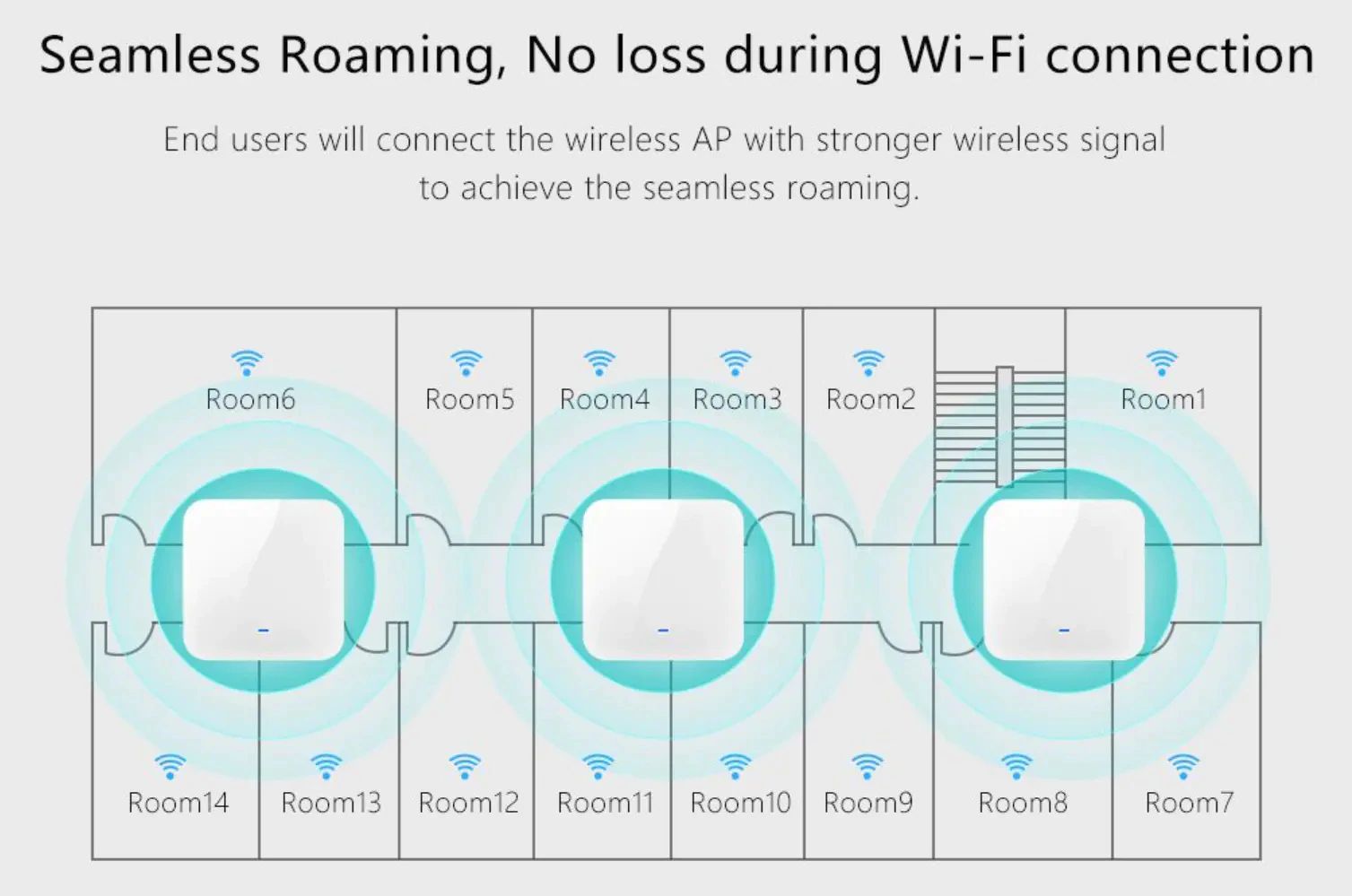

--Seamless Roaming, no loss in Wi-Fi connection. End users will connect the wireless AP with stronger wireless signal to achieve the seamless roaming.
--Higher Performance. 300Mbps data rate, 50 end users max, 40+ simultaneous end users tested.
Hardware Specification
Chipset: QCA9531
Standard: 802.11b/g/n, MIMO technology
Flash: 16MB
DDR3L: 128MB
2.4G Frequency: 2.4GHz - 2.484GHz
2.4G Wi-Fi standard: 802.11b/g/n

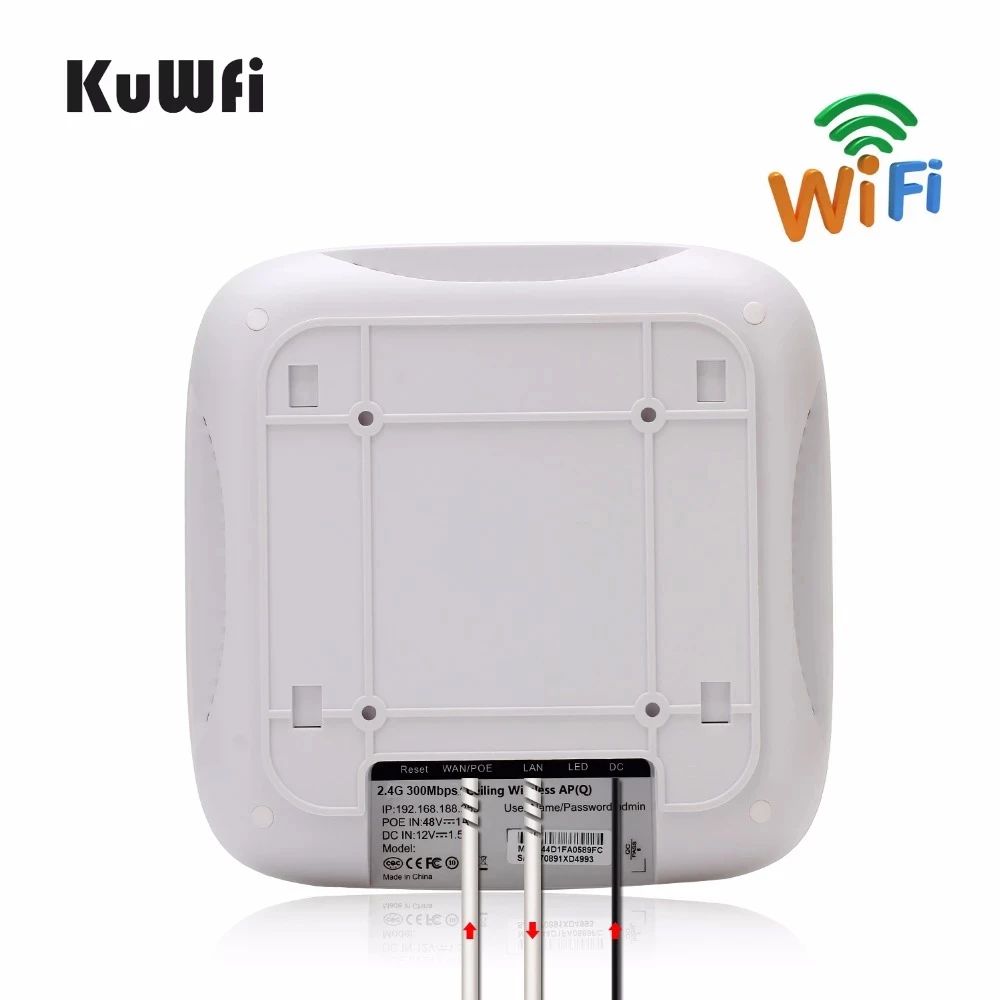

Interface
1 * 10/100 RJ45 WAN Port
1 * 10/100 RJ45 LAN Port
1 * Reset button, press 10 seconds to revert to default setting
Antenna
Build in 2*4dBi 2.4G MIMO Antenna
Data Rate: 300Mbps
End Users: 50+
2.4G RF Power≤ 27dBm
PPM±20ppm
PoE 48V (IEEE 802.3af)
