Description:

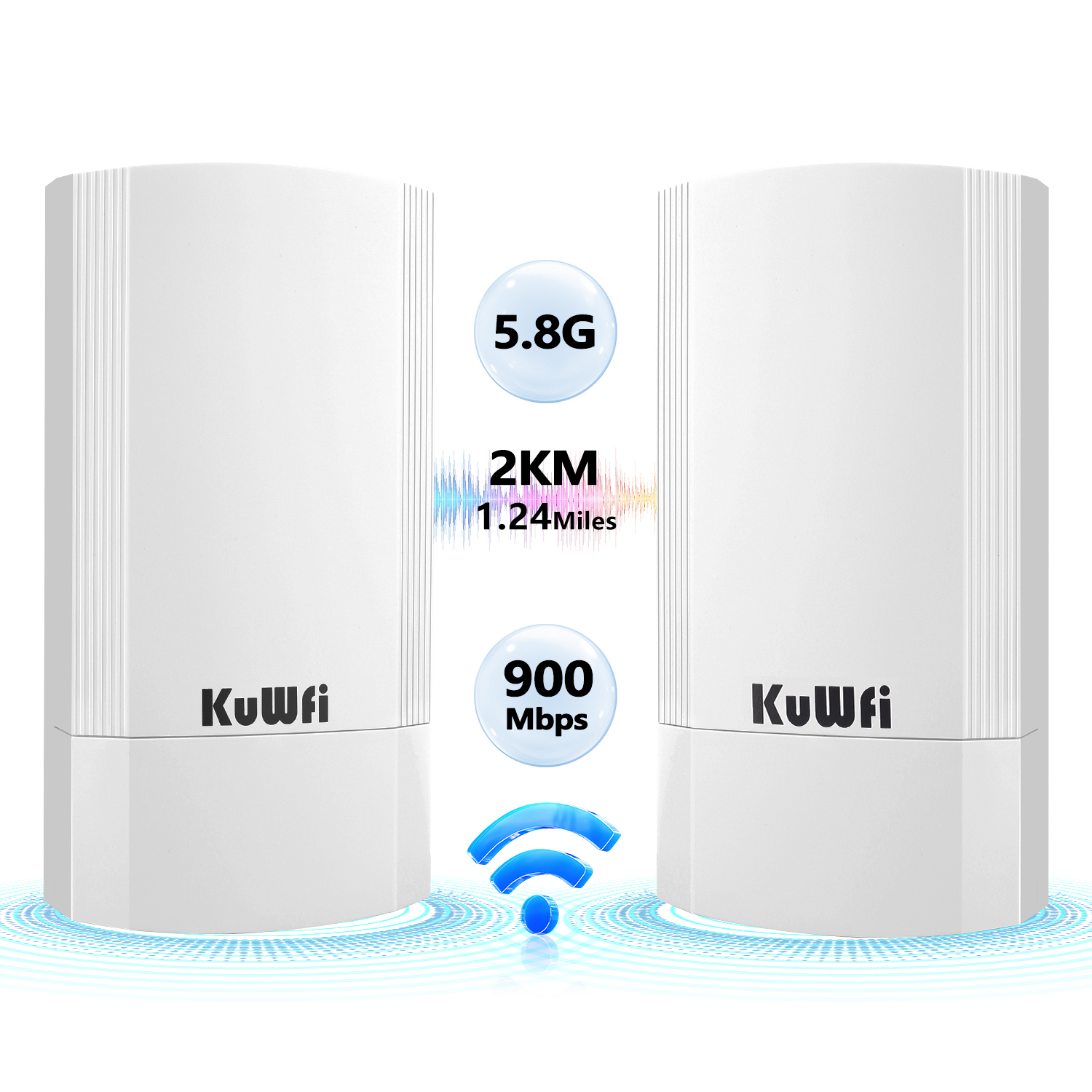

CPE200 is an economic 11ac outdoor CPE with 900Mbps data rate. Comply with IEEE 802.11b/g/n/ac standard, with 12dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 2000 meters.

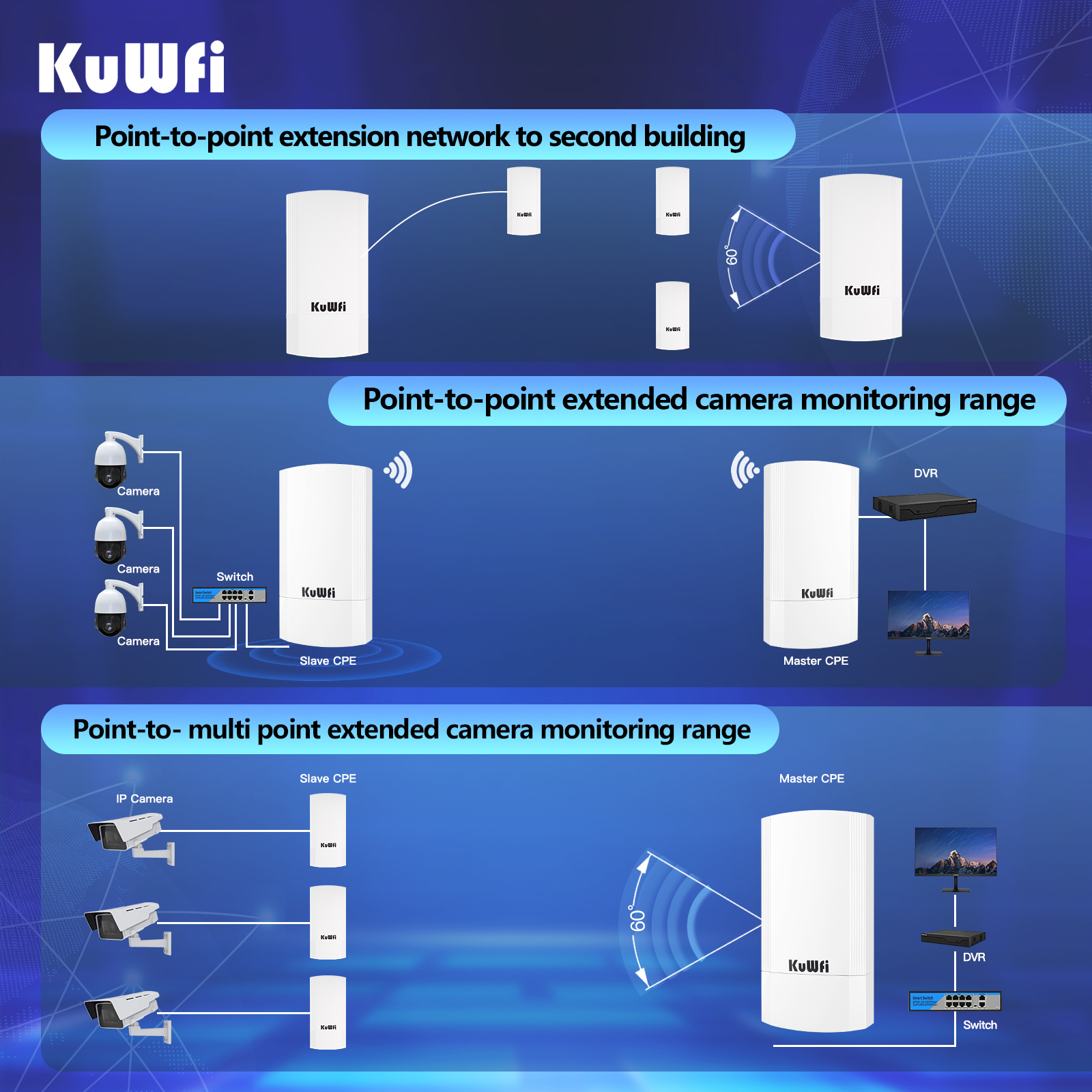

It support Wireless AP, Wireless Bridge operation mode for PTP/PTMP connections, with operation switch on device, easy to setup CPE200M’s operation mode, no need to access into GUI, avoid the complex setup program, then simple to view the connection status and signal strength by LED signal lights, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.
CPE200 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it support 24V passive PoE, ESD protection and surge protection, ideal for outdoor use;

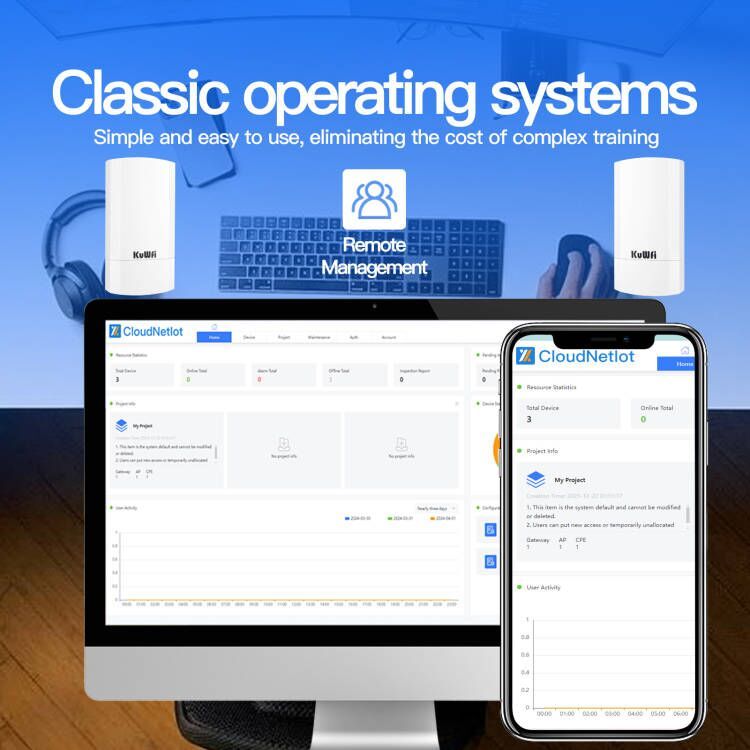

Most Important, CPE200 support watchdog self-detection function, reboot and recover device automatically if some network attack. Besides that, it support cloud remote management and software AC controller, administrator can monitor the working status, upgrade firmware, reboot, timed reboot device through cloud server, recover and maintain device at any time and any location, operator level outdoor PTP/PTMP connection equipment.
|
Specification: |
|||||
|
Hardware: |
|||||
|
Chipset |
Media Tek: MT7628DAN+MT7613AE |
||||
|
Wireless |
IEEE 802.11 a / n /ac, 2T2R 900M MIMO Technology |
||||
|
Memory |
64MB RAM |
||||
|
Flash |
8MB |
||||
|
Interface |
1 * 10/100Mbps RJ45 WAN Port |
||||
|
1 * 10/100Mbps RJ45 LAN Port |
|||||
|
1 * Switch to operate the operation mode (Right is AP mode, Left is Repeater mode) |
|||||
|
1 * DC Injector |
|||||
|
1 * Reset button, press 15 seconds to revert to default setting, press 1 second to finish LED display configuration |
|||||
|
Antenna |
12dBi Panel Antenna |
||||
|
LED Light |
Sys(System), WAN, LAN, Wi-Fi |
||||
|
Size |
168mm*88mm*47.6mm |
||||
|
Power |
POE 24V/0.5A |
||||
|
Waterproof Level |
IP65 |
||||
|
ESD Protection Standard |
Contact Discharge: ±6KV; Air Discharge: ±8KV |
||||
|
Surge Protection Standard |
Common mode:±2KV; Differential mode:±1KV (Optional: Common mode:±4KV; Differential mode:±2KV) |
||||
|
RF Data |
|||||
|
RF Data |
802.11b/g/n/ac |
||||
|
5.150GHz～5.850GHz |
|||||
|
Data Rate |
900Mbps |
||||
|
RF Power |
802.11a |
54M |
17±2dBm |
6M |
19±2dBm |
|
802.11n HT20 |
MCS7 |
16±2dBm |
MCS0 |
18±2dBm |
|
|
802.11n HT40 |
MCS7 |
15±2dBm |
MCS0 |
17±2dBm |
|
|
802.11AC |
MCS9 |
14±2dBm |
MCS0 |
16±2dBm |
|
|
Receive Sensitivity |
802.11a |
54M |
-68dBm |
6M |
-86dBm |
|
802.11n HT20 |
MCS7 |
-68dBm |
MCS0 |
-86dBm |
|
|
802.11n HT40 |
MCS7 |
-65dBm |
MCS0 |
-83dBm |
|
|
802.11AC |
MCS9 |
-55dBm |
MCS0 |
-73dBm |
|
|
EVM |
802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；802.11AC_MCS9:≤-32dB |
||||
|
PPM |
±20ppm |
||||
