Frequency Band:
5G Cellular
5G Network Modes: SA (standalone), NSA (non-standalone)
5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 5G Standards:3GPP Release 15
5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)
4G Cellular
LTE Category：Down Cat 16/ UP Cat 18
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
LTE Down 4 × 4 MIMO:B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66
WCDMA:B1/B2/B3/B4/B5/B8/B19
LTE : Down 1.0 Gbps；UP 200 Mbps
Features:
5G Cellular has the best 5G mobile network performance and works with integrated world-wide 5G to 2G multi-mode.
Wi-Fi 6 (802.11ax) The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line，more client connection, lower latency, best network efficiency.
Higher Wireless Capacity Dual-band 4 spatial streams, the CPE outputs 1800Mbps wireless bandwidth (600 + 1200), makes you peace of mine while enjoy UHD videos, online games at the home rush hours. It’s the future-proof investment absolutely.
MESH+ Networking The CPE inherits the mesh technology and supports “wired / wireless” networking. It’s so convenient to cover all corners and dead-zones by adding one more MESH+ node (another series of router). it improves the deployments of wireless network and optimized the seamless feature.
Hardware Specification:
Flash+RAM: 16MB+2Gb
WiFi Frequency: 2.4G&5G
WiFi Standard: 2.4G:802.11b/g/n /ax 2T2R MIMO, 5.8GHz：802.11a/n/ac/ax 2T2R MIMO
WiFi 2.4GHz :600Mbps ,5GHz :1200Mbps
5G Standard 3GPP Release 15 NSA/SA operation, Sub-6 GHz
5G Network Mode: NSA/SA
5G/4G Data Rate 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)
LTE : Down 1.0 Gbps；UP 200 Mbps
Dimension 108X108X216MM

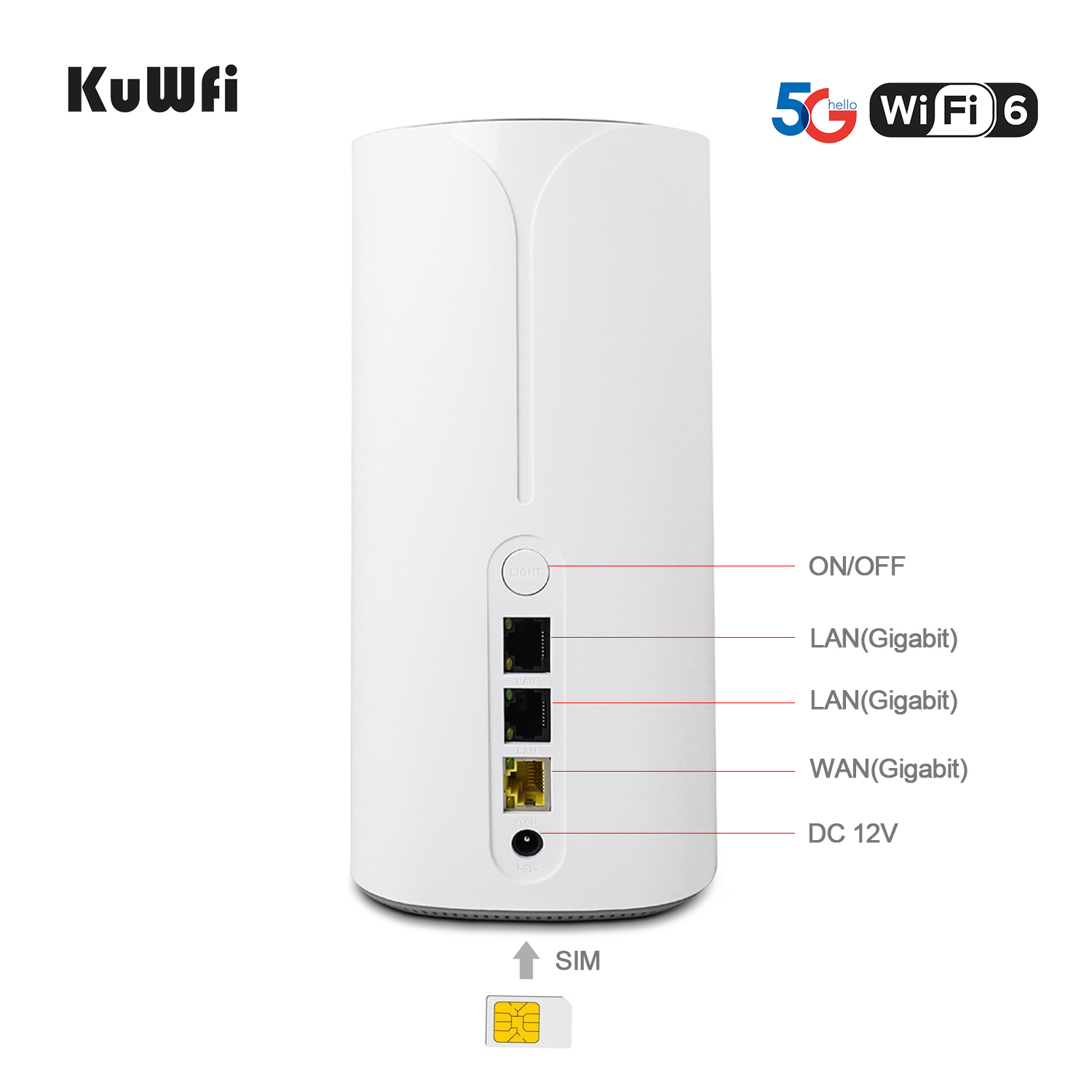

Interface
2*10/100M/1000 LAN
1*10/100M/1000 WAN
1*12V 2A DC Power Input
1 Reset Button
1 Breathing Light Button
1 SIM card slot
1 MESH Networking Button
Network Extension MESH
Reset Reset（Long press 10 seconds to restore the factory settings） MESH Networking: short press (blue networking light flashes)
LED Indicator Power, Breathing Light, 4G Signal, 5G Signal, WiFi Signal
Power Consumption ＜24W
Environment
Operating Temperature：-20℃～+50℃
Storage Temperature:-40℃～+70℃
Humidity：5％～95％（Non condensation）
Weight 1.35KG（Includes color box accessories）

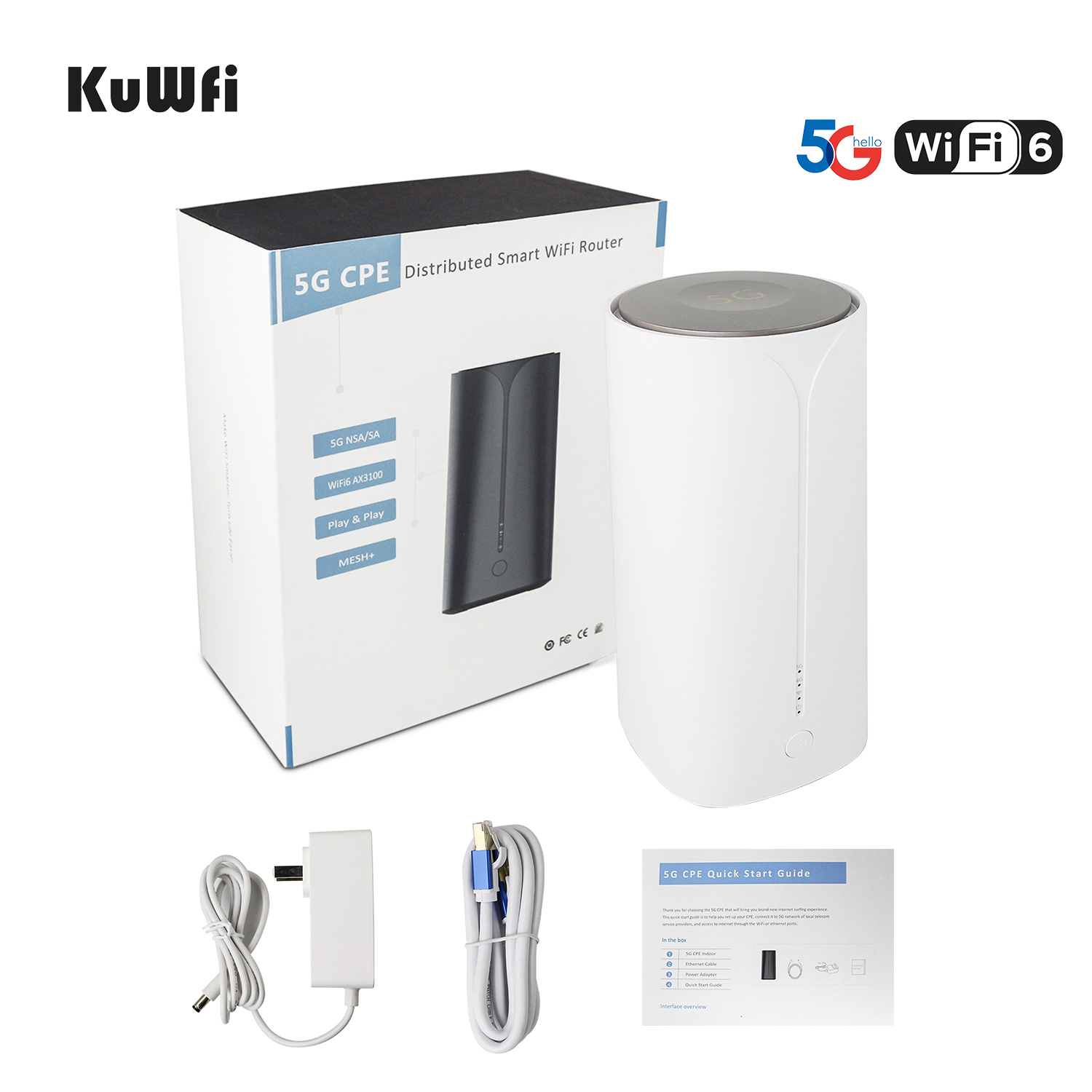

Packing List:
1*5G CPE Router
1* Cat5e Ethernet Cable
1*Power Adapter
1*Quick Start Quide
