Introduction

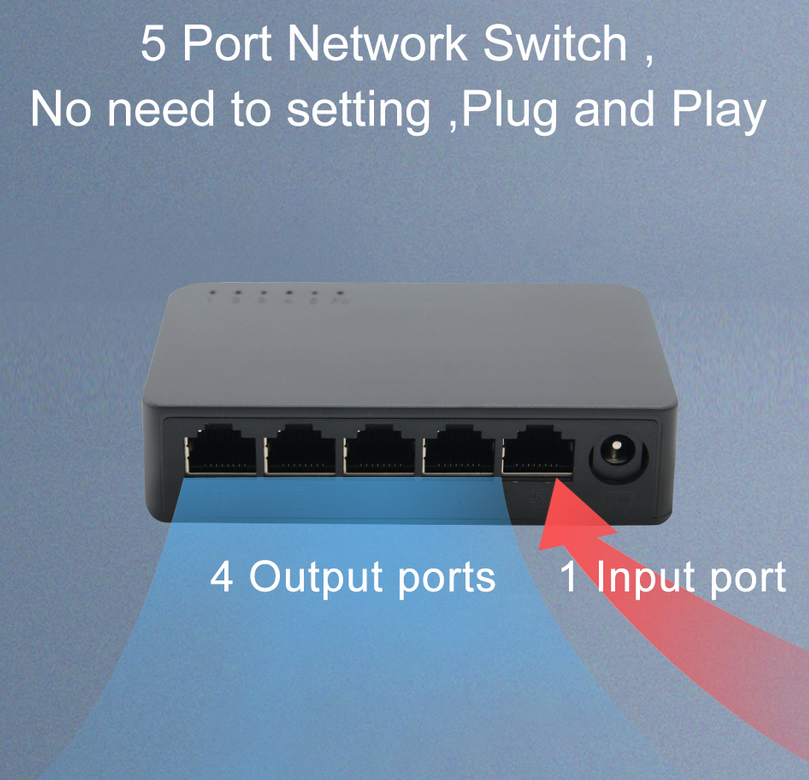

This is a fast Ethernet switch specially designed for high forwarding network environments such as schools, homes, small and medium-sized enterprises, and small monitoring. It has 5 *1000Mbps auto-sensing Ethernet ports. All ports support wire-speed forwarding with data rates up to 1000Mbps. There is 4K lightning protection to ensure smooth and stable operation. Auto MDI/MDIX can also be used. No configuration is required; it runs as soon as you start it. It should be noted that the appearance of 100M and 1000M switches is the same.
Features
--5*1000M Ethernet port with auto-negotiation function
--Support 1000M speed rate,MDI/MDIX
--Support IEEE802.3x Flow control and back pressure control
--Each port has the complete LED Indicator light
--Each port supports wire-speed switching ,64~1518 frame length can reach the wire speed
--Support multicast to avoid network congestion
--Support 5-16V voltage input
--Support 4K lightning protection of whole device.
--Require no configuration and will instantly operate as soon as you power it up
--Use low-power consumption chips,only 2.5W in full load conditions
Standards：IEEE802.3 10Base-T、IEEE802.3u 100Base-TX/FX、IEEE802.3x Flow control
Distance: 100m
Buffer Space: 448K
Back bandwidth: 1G
Time Delay: ＜150μs
Storage Temperature: -40～70℃
Operating Temperature: -10～55℃
Relative Humidity: 5-90% ( no condensation)
Packages
1 X Switch
1 X Power Adapter
