Version-1
4G LTE FDD:B1/B3(2100/1800MHZ)
3G WCDMA:B1(2100MHZ)
2G GSM:B1(2100MHZ)
Working in most of Asia
Version-2
4G LTE FDD:B1/B3/B5/B8(2100MHZ/1800MHZ/900MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in most of in EU,Asia,Africa
Version-3
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in all off EU ,Asia ,Africa,Oceania
US Version
4G LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
3G WCDMA: B2/B5（1900/850MHZ）
Working in USA/CA/Mexico
Product Description
1.The Router is a new 4G LTE CPE with LTE technology. The router is mainly aimed at the office, home It provides high-speed and reliable data transmission capabilities
2.1*10/100Mbps WAN Port, 3 *10/100Mbps LAN Port with RAM DDR2 8MB SPI FLASH 2MB.
3.high power 4g router with 6pcs external antenna, 2pcs 4G antenna longest WiFi coverage in the market.
4.Provide high-speed for 32users simultaneously, make you have a greater wireless enjoy, no need to connect the broardband.
5.no need to connect the broardband ,make you have a greater wireless enjoyme.
Product Detail
Chipset:MTK7628KN CPU,
Flash/Memory：2MB//8MB ,
Support 4*10/100/100Mbps RJ45,
External reset button,
Power supply:DC 12V 1A，
1*10/100Mbps RJ45 WAN
3*10/100Mbps RJ45 LAN

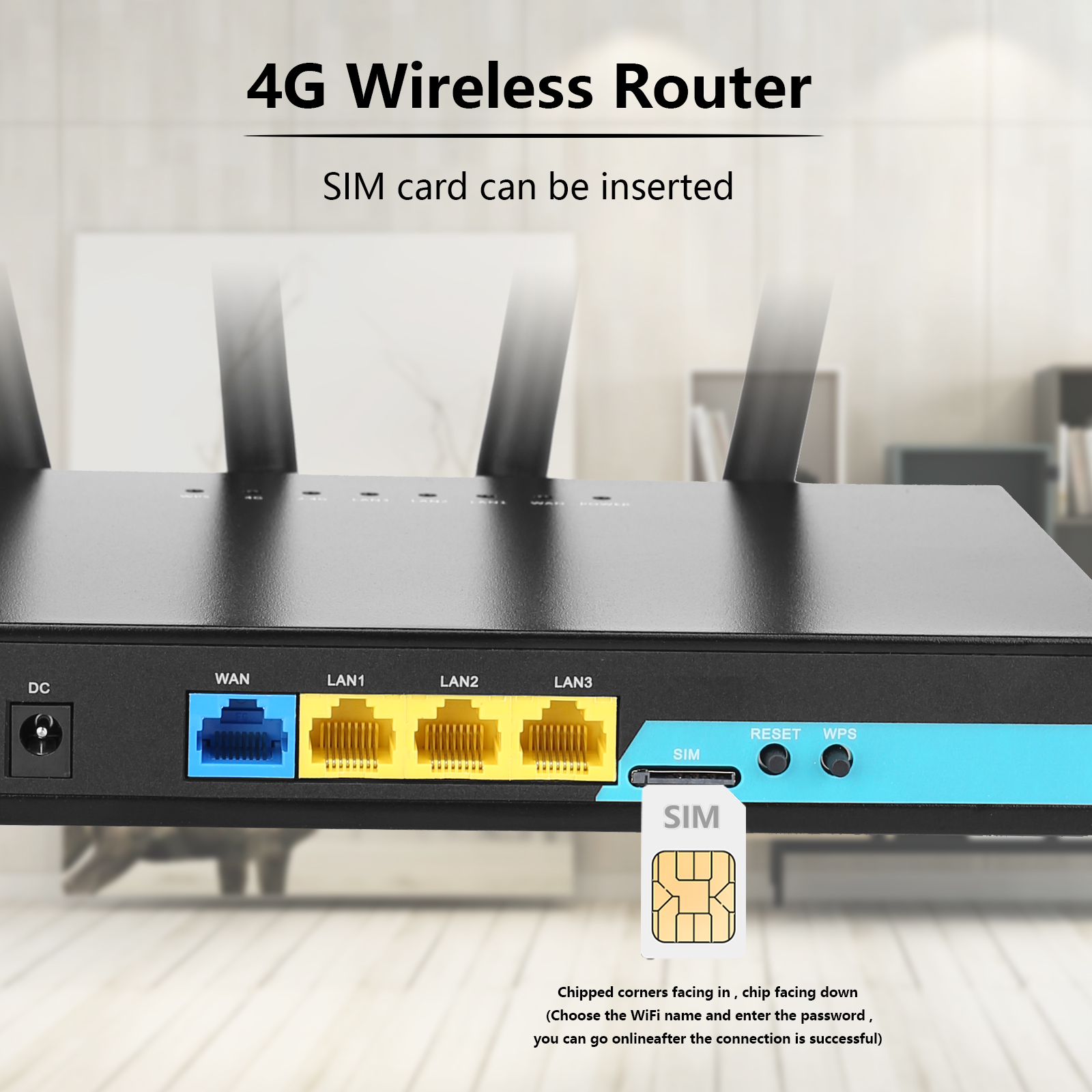

1*SIM Card
Speed(CAT4)
FDD - LTE Downlink：150Mbps， Uplink：50Mbps
TDD-LTE: Downlink：150Mbps， Uplink：50Mbps
HSPA+: 21Mbps(download speed) 5.76Mbps(upload speed)
HSUPA: 5.767.2bps (upload speed)/ HSDPA: 7.2Mbps(download speed)
Support external antenna：2*WIFI+2*LTE， 5dBi gain.

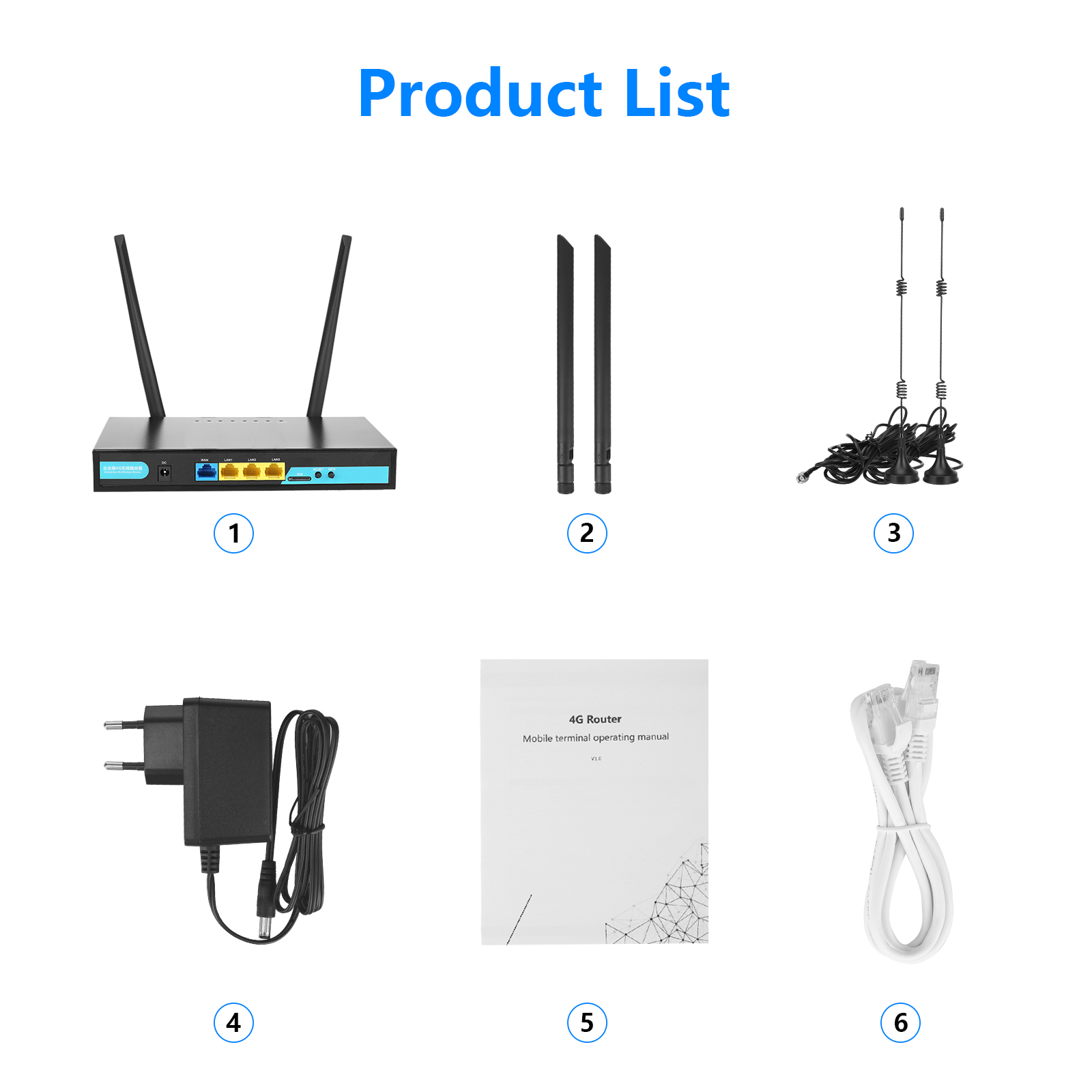

packing list:
1*4g cpe router
4*external antennas
1*12v dc power
1*RJ45 lan cable
1*English Manual
