4G Frequency Band
Version-1
4G LTE FDD:B1/B3/(2100/1800MHZ)
3G WCDMA:B1(2100MHZ)
2G GSM:B3/B8(1800/900MHZ)
Applicable to some countries in Asia, such as Thailand, Singapore, Indonesia, Cambodia, Myanmar, Philippines, etc.
Version-2
4G LTE FDD:B1/B3/B5/B8(2100/1800/850/900MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
Applicable to most countries in Asia, such as Israel, South Korea, India, Kazakhstan, Sri Lanka, Thailand, Japan, Singapore, Indonesia, etc.
Version-3
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.
Product Description
4G wifi router: more functions than other routers, more applicable.
Support SIM card insertion to use the network: easy to carry, suitable for use at home, travel, etc.
4*2dBi high-gain antenna: enhance the WiFi signal strength, so that the devices in the Internet can get a full signal boost.
Wide range of frequency bands: 3 different versions of frequency bands, support users in all regions of the world.
Support multiple users to access the Internet at the same time: the maximum number of network users can reach 32.
WiFi repeater function: can extend WiFi signal to 3-10 meters.
Supports multiple operating mode configurations: 3G/4G, Repeater Mode, Wired Mode, 4G To LAN.
Support setting VPN: meet individual needs, only support public network creation.
Product Detail
ROM+RAM64Mb+1Gb
Transmission Range :3-15M
Working Temp : -20~+55C ,for storage: -40℃ ~70℃ for working
Power Supply :12V 1A DC Supply
Size:117*115*20mm
LAN:RJ45*2
Package Listing
1*4G WIFI Router
1*12V DC Power
1*English Manual
1*RJ45 Lan cable

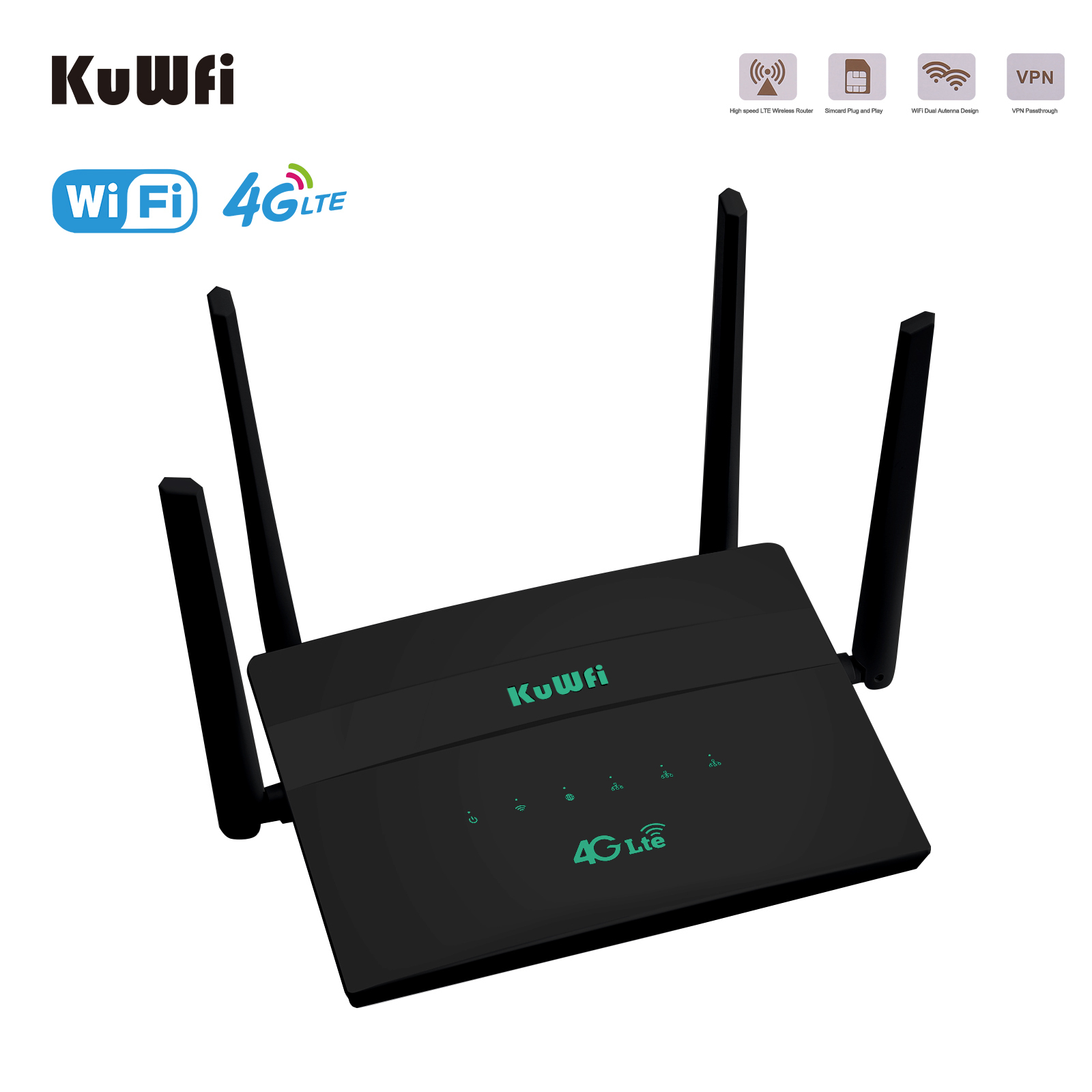

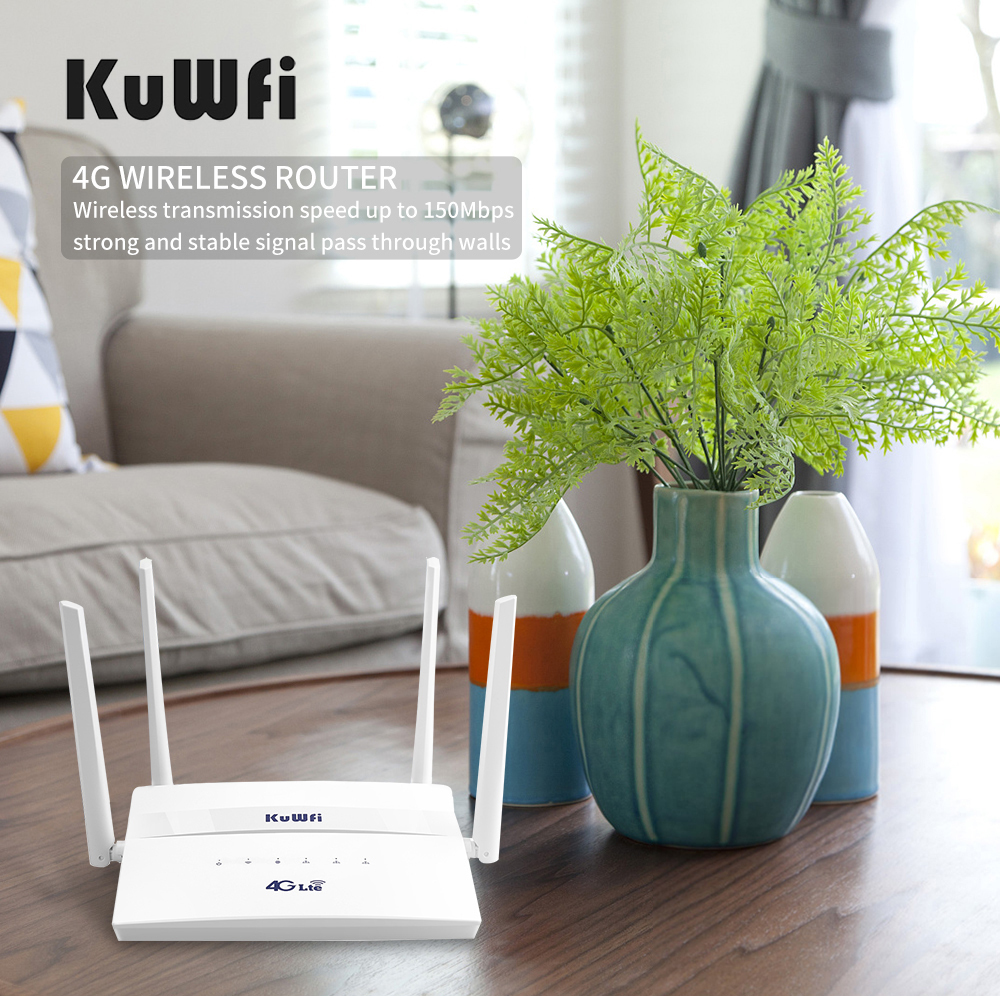

4G WIREL ESS ROUTER
Wireless transmission speed up to 150Mbps
strong and stable signal pass through walls
4G LTE Routerwith powerful signal with WAN/L AN port and with SIM card slot, plug 4g sim card ,you will enjoy the WiFi with your friends and family.

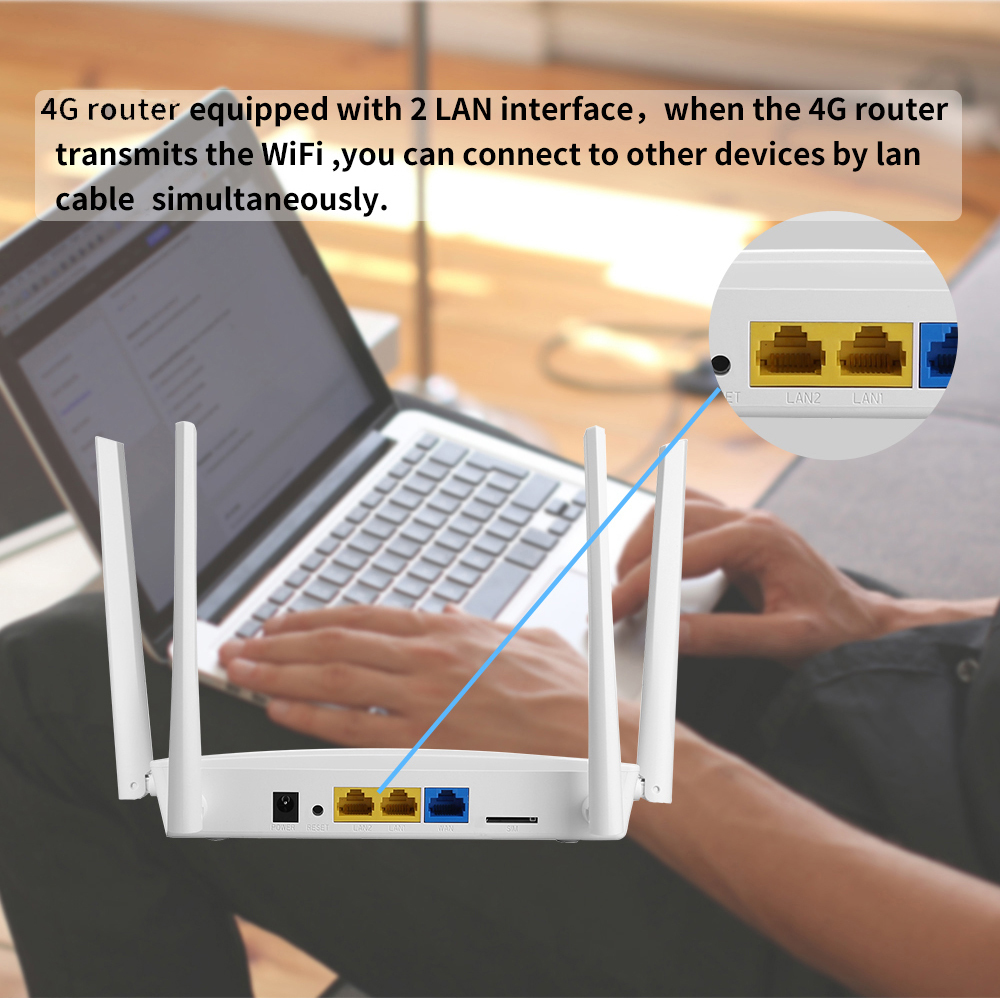

4G Router equipped with 2 LAN interface, when the 4G router transmits the WiFi ,you can connect to other devices by lan cable simultaneously.
32 users can be connected at the same time
Transmission range: 3- 15M,easily cover the whole family
Powerful chips bring extraordinary experience
