KuWFi 3000Mbps WiFi6 Repeteur Community Wifi 2.5G Port Waterproof IP65 Outdoor Access Point for Village

Name: KuWFi 3000Mbps WiFi6 Repeteur Community Wifi 2.5G Port Waterproof IP65 Outdoor Access Point for Village
Brand: KuWFi Smart Wireless network
SKU: APH5-AX830
Availability: InStock
Rating: 5 (1 reviews)

No.APH5-AX830

About KuWFi APH5-AX830

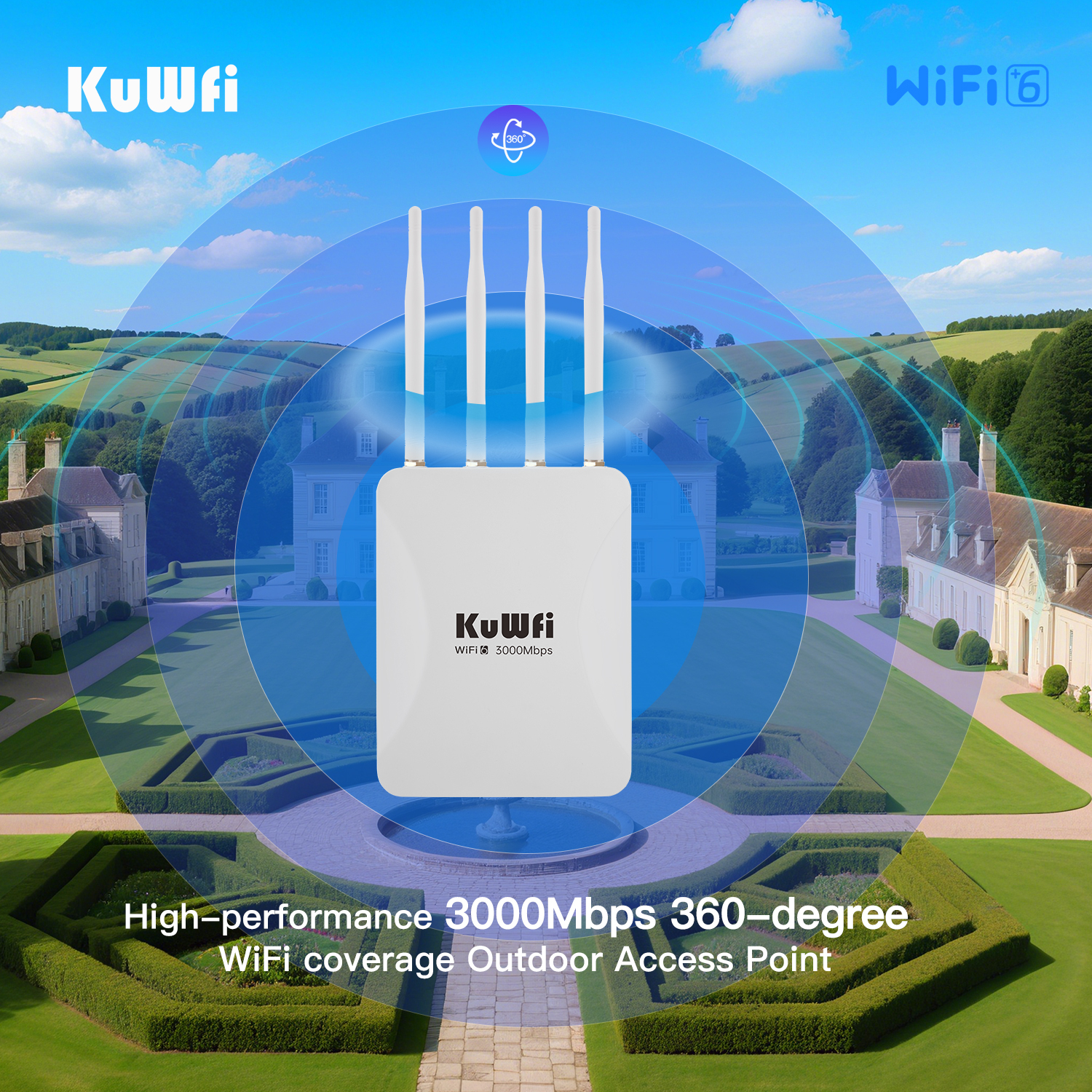

A high-performance outdoor WiFi 6 AP for industrial use, offering dual-band (2.4GHz/5GHz) 3000Mbps speeds. Features IP65 protection, wide-temperature resilience (-40°C to 70°C), and omnidirectional antennas for outdoor wifi coverage and wifi sell in harsh environments.

What Problem Does It Solve?
1. High-Density User Connectivity Needs：
Supports up to 256 concurrent users with the IPQ5018 chip, ideal for crowded areas like parks or transit hubs.
2. Achieve WiFi Coverage and WiFi Sharing
Omnidirectional antennas and high-power FEM ensure stable coverage up to 150-300 meters, reducing dead zones.

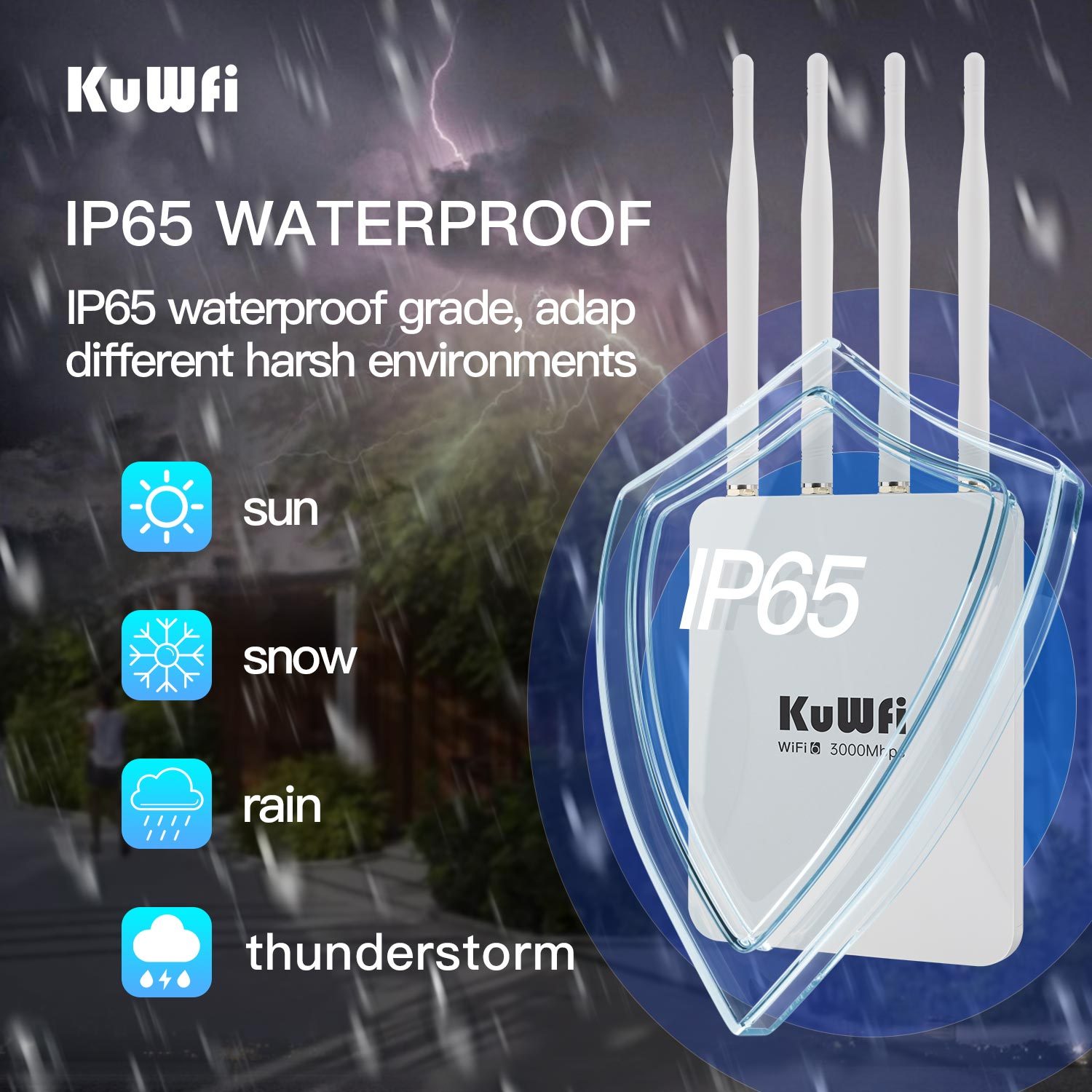

3. Harsh Environment Durability：
IP65 rating, cast aluminum shell, and lightning protection withstand extreme temperatures, moisture, and industrial conditions.
4. Achieve High-Speed Data Transmission：
WiFi 6 delivers 574Mbps (2.4GHz) and 2402Mbps (5GHz), suitable for bandwidth-intensive applications.

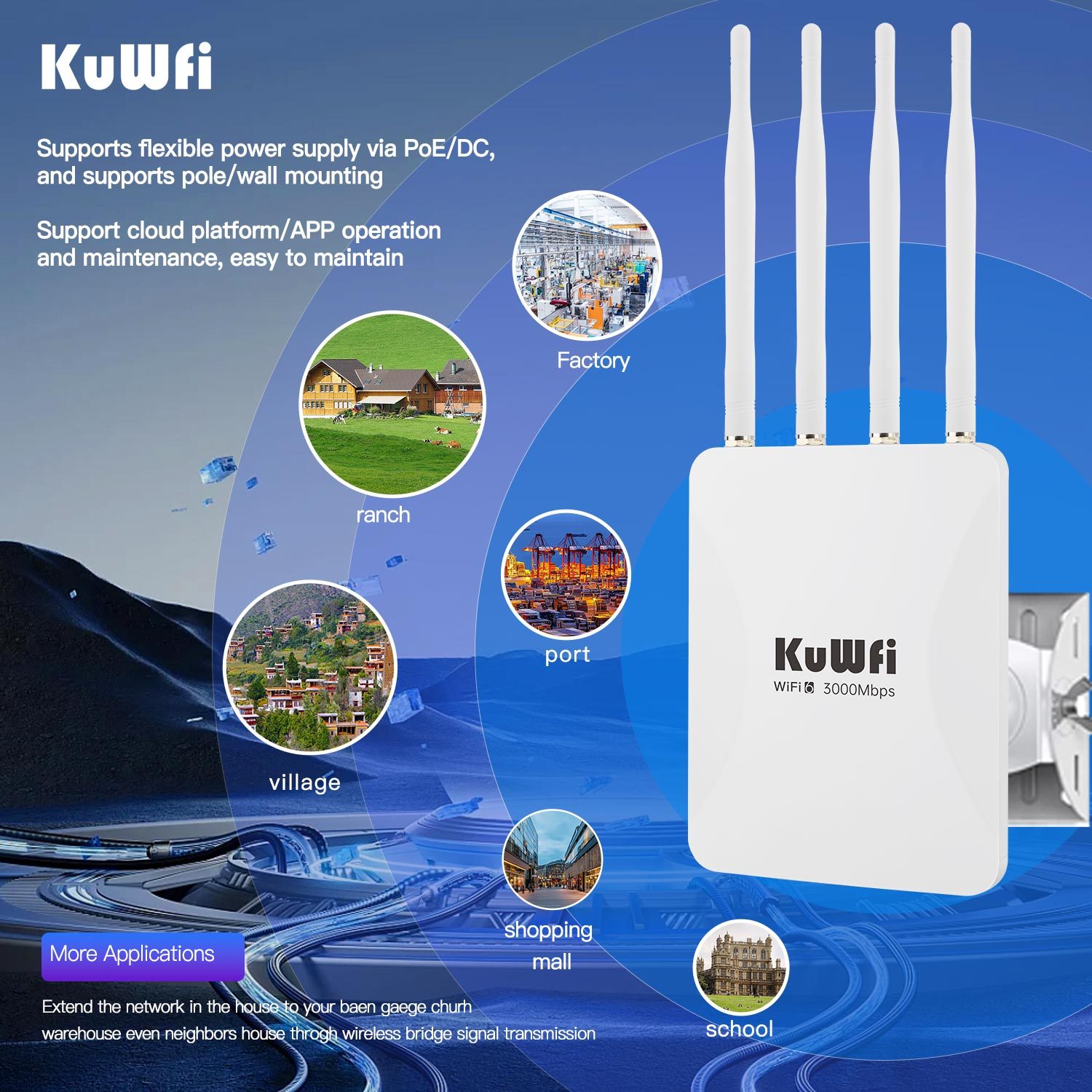

5. Easy Deployment and Management
Supports PoE/DC Power, and Solar power, pole mounting, and centralized cloud/AC management for flexible installation and maintenance.

Feature:

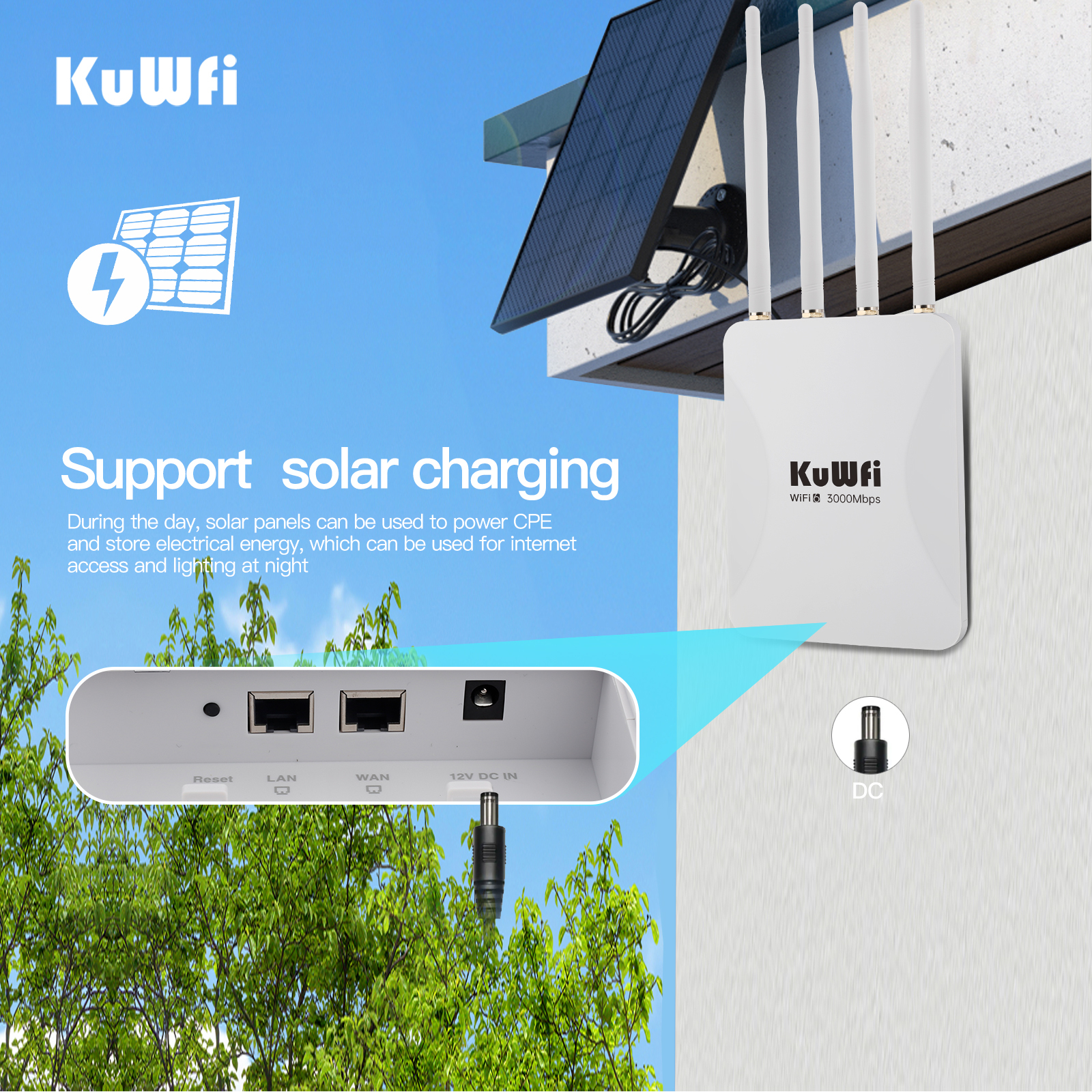

1. Solar Power Compatibility
The APH5-AX830 supports optional solar power for off-grid deployment, ensuring uninterrupted connectivity during power outages in remote areas.
2. Industrial Protection：
IP65, lightning protection, wide-temperature operation
3. High-Capacity Chipset：
IPQ5018 processor for 256+ user connections
4. Flexible Deployment：
Pole-mountable with PoE support

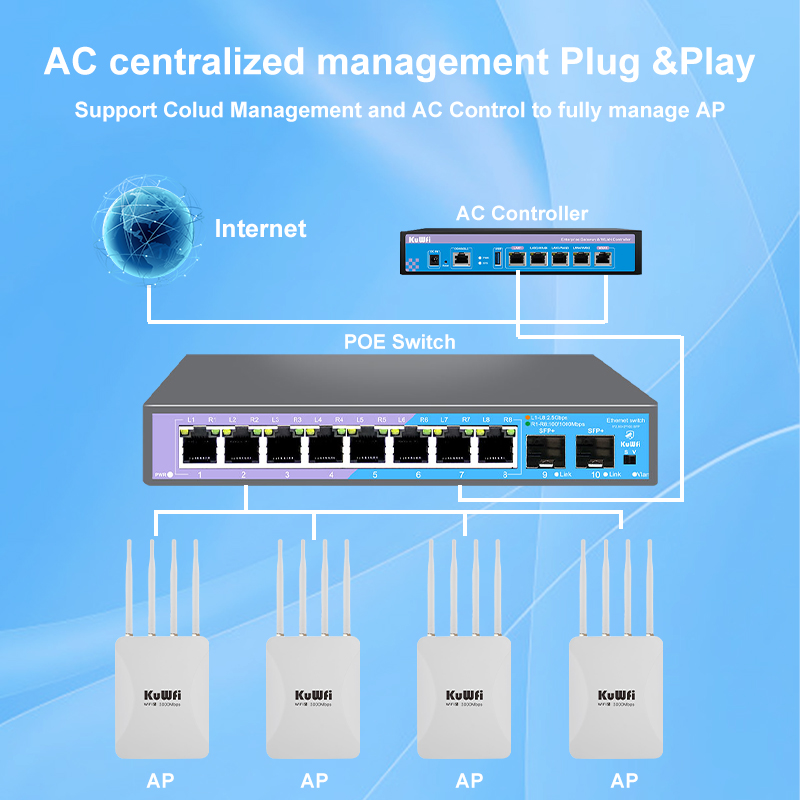

5. Advanced Management： FIT/FAT mode switching, cloud platform compatible

GET A QUOTE

Description

Product Name	2.4G&5.8G Dual Band 3000Mbps Outdoor AP for outdoor wifi coverage
Flash	SPI NOR 8MB SPI NAND 128MB
DDR3	512MB*1
2.4G TX Power	802.11b	11M	26±2dBm	1M	26±2dBm
	802.11g	54M	23±2dBm	6M	25±2dBm
	802.11n HT20	MCS7	22±2dBm	MCS0	24±2dBm
	802.11n HT40	MCS7	22±2dBm	MCS0	24±2dBm
	802.11ax HE20	MCS11	20±2dBm	MCS0	24±2dBm
	802.11ax HE40	MCS11	20±2dBm	MCS0	24±2dBm
5G TX Power	802.11a	54M	22±2dBm	6M	25±2dBm
	802.11n HT20	MCS7	21±2dBm	MCS0	23±2dBm
	802.11n HT40	MCS7	21±2dBm	MCS0	23±2dBm
	802.11ac VHT20	MCS9	21±2dBm	MCS0	23±2dBm
	802.11ac VHT40	MCS9	20±2dBm	MCS0	23±2dBm
	802.11ac VHT80	MCS9	20±2dBm	MCS0	23±2dBm
	802.11ax HE20	MCS11	20±2dBm	MCS0	22±2dBm
	802.11ax HE40	MCS11	20±2dBm	MCS0	22±2dBm
	802.11ax HE80	MCS11	20±2dBm	MCS0	22±2dBm
	802.11ax HE160	MCS11	20±2dBm	MCS0	22±2dBm
2.4G Receiving Sensitivity	802.11b	11M	-87dBm	1M	-94dBm
	802.11g	54M	-75dBm	6M	-88dBm
	802.11n HT20	MCS7	-72dBm	MCS0	-88dBm
	802.11n HT40	MCS7	-70dBm	MCS0	-88dBm
	802.11ax HE20	MCS11	-63dBm	MCS0	-88dBm
	802.11ax HE40	MCS11	-61dBm	MCS0	-88dBm
5G Receiving Sensitivity	802.11a	54M	-75dBm	6M	-90dBm
	802.11n HT20	MCS7	-73dBm	MCS0	-88dBm
	802.11n HT40	MCS7	-63dBm	MCS0	-88dBm
	802.11ac VHT20	MCS8	-67dBm	MCS0	-88dBm
	802.11ac VHT40	MCS9	-64dBm	MCS0	-88dBm
	802.11ac VHT80	MCS9	-60dBm	MCS0	-88dBm
	802.11ax HE20	MCS11	-61dBm	MCS0	-88dBm
	802.11ax HE40	MCS11	-58dBm	MCS0	-88dBm
	802.11ax HE80	MCS11	-55dBm	MCS0	-84dBm
	802.11ax HE160	MCS11	-51dBm	MCS0	-82dBm
2.4G EVM	802.11b:≤-10 dB ；802.11g: ≤-25 dB ；802.11n:≤-28 dB；802.11ax:≤-35 dB
5G EVM	802.11a:≤-25 dB ；802.11n: ≤-28 dB ；802.11ac:≤-32 dB；802.11ax:≤-35 dB
ppm	±20ppm
WAN	1*10/100/1000/2500M support 48V POE
LAN	1*10/100/1000M LAN Port
