Chipset
|
MT7981+SDX62
|
|
Network Type
|
5G NSA SA 4G:LTE-TDD/FDD
|
|

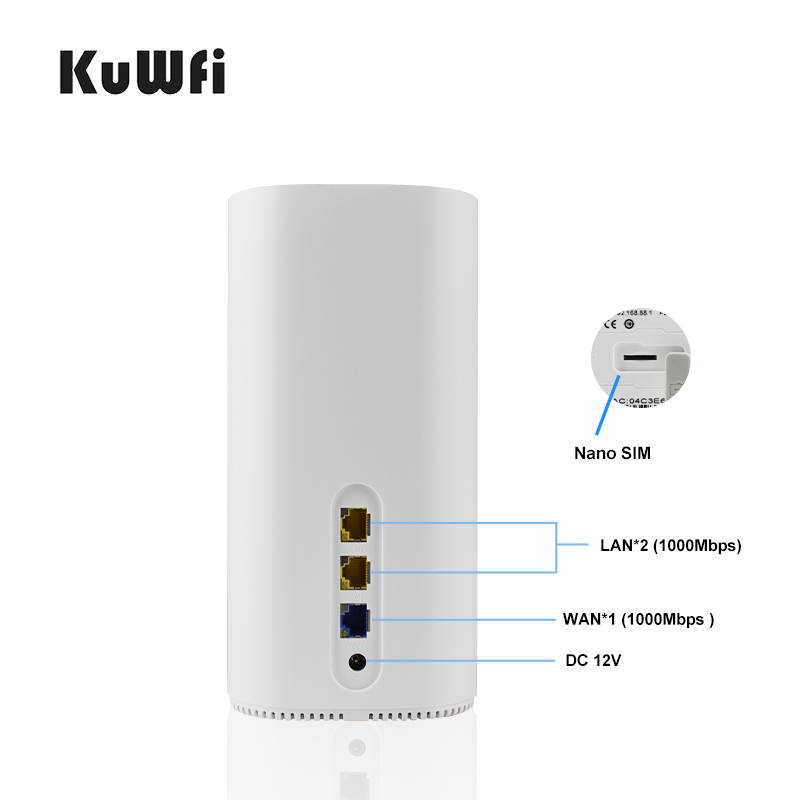

Port
|
2 * 10/100M/1000 LAN
1 * 10/100M/1000 WAN |
|
4G/5G transmission Rate
|
5G SA sub-6 ：DL 2.1Gbps; UL 900Mbps
5G NSA sub-6 ：DL 3.5Gbps; UL 650Mbps LTE DL 1.0Gbps; UL 200Mbps |
|
Standard
|
802.11b/g/n /ac/ax 2T2R MIMO
|
|
Frequency
|
2.4GHz+5GHz
|
|
Wireless data rate
|
2.4GHz :600Mbps 5GHz :2400Mbps
|
|
Interface
|
SIM Card Slot * 1
DC:12V 2A DC Supply USB3.0 * 1 Switch buttons * 1 |
|
PoE Power
|
Not Support
|
|
Basic Feature
|
1.VPN Passthrough and
VPN Client (L2TP PPTP) 2. Max 128 Users 3. TR069/Traffic_monitoring/ Wi-Fi Exterder/DHCP/DNS/ DDNS/Port Forwarding 4. gigabit WAN/LAN ports 5. 5G to LAN 6. PPPoE work mode |
|
LTE Module/5G Band
|
5G EU Bands（SA and NSA):
N1/N3/N5/N7/N8/N20/N28/N40/N41/ N77/N78 LTE: B1/B3/B5/B7/B8/B20/B28/B40/B41 5G US Bands （SA and NSA): n2/5/7/12/13/14/25/26/ 29/30/38/41/48/66/70/71/77/78 LTE B2/4/5/7/12/ 13/14/17/25/ 26/29/30/38/41/42/43/48/66/71 |
|
Basic functions |
Wireless on/off
SSID Broadcast Enable/Off Channel selection: 1 ~ 13 (2.4G). 36 ~ 165 (5GHz) 2.4G bandwidth: 20MHz, 40MHz 5G bandwidth: 20MHz, 40MHz, 80MHz, 160MHz |
|
Wireless transmission speed |
2.4G 2T2R up to 574Mbps 5G 2T2R up to 2402Mbps
|
|
power |
2.4G Actual Power: 802.11b 22±1.5dBm
802.11g 21±1.5dBm 802.11n20 19±1.5dBm 802.11n40 19±1.5dBm 802.11ac40 17.5±1.5dBm 802.11ax40 17.5±1.5dBm 5G Actual Power: 802.11a 19±1.5dBm 802.11n20 18.5±1.5dBm 802.11n40 18.5±1.5dBm 802.11ac80 17.5±1.5dBm 802.11ax80 16.5±1.5dBm |
