Product Name
|

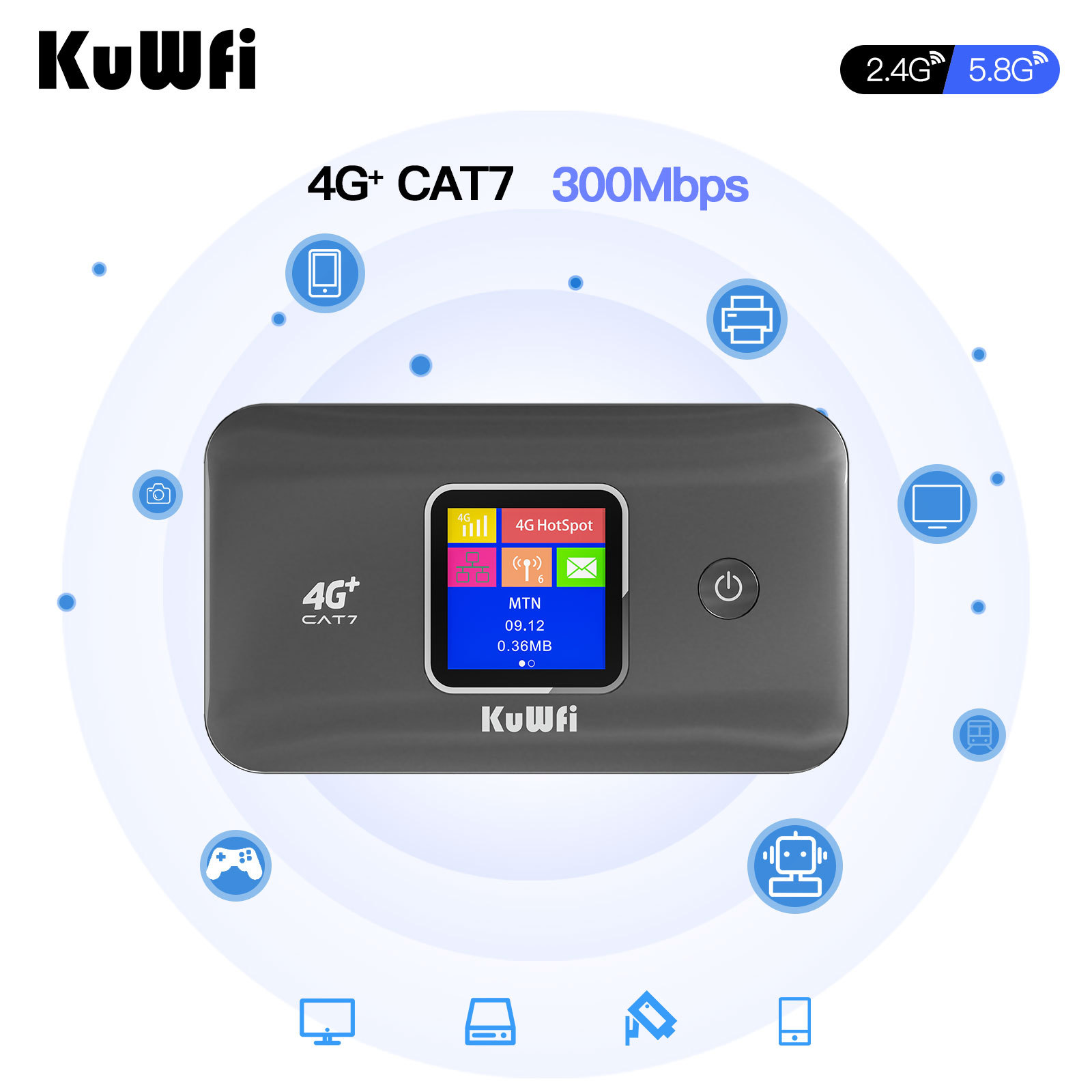

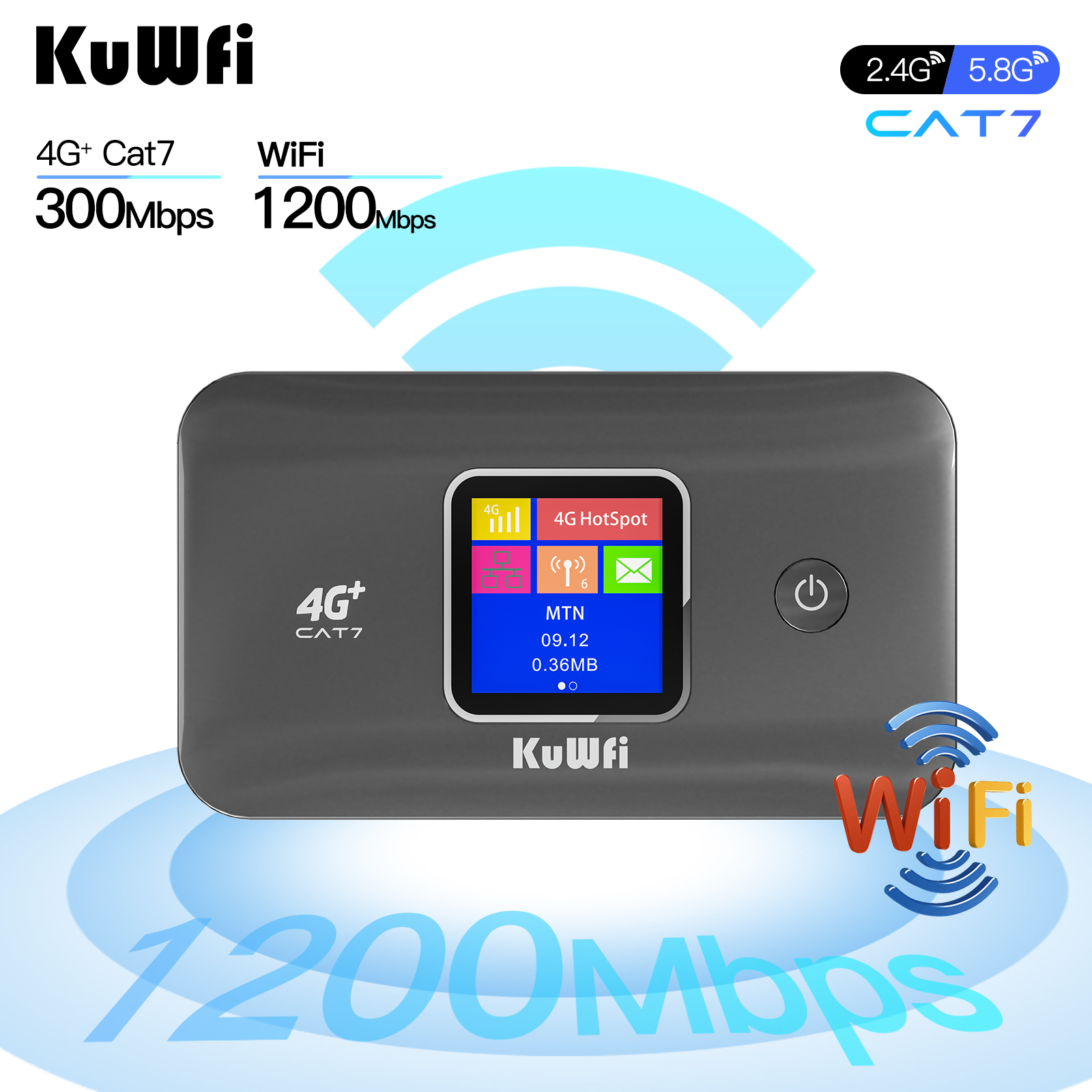

Cat7 Speed 4G+ Mobile Router With SIM Card Slot
|
|||
|
Memory
|
8GByte EMMC+512MByte DDR3
|
|||
|
Band
(optional) |
FDD: B1/B25(B2)/B3/B66(B4)/B26(B5/B18/B19)/B7/B8/B12(B17)/B13/B20/B28/B71
TDD: B34/B38/B39/B40/B41 WCDMA:B1/B2/B4/B5/B8 EDGE:850/900/1800/1900 |
|||
|
CA(optional）
|
B1+B3/B26(B5/B18/B19)/B7/B8/B20/B28
B2+BB2/B5/B12(B17)/B13/B28/B71 B3+B3/B5/B7/B8/B19/B20/B28 B4+B4/B5/B12(B17)/B13/B28/B71 B5+B5/B7/B40/B66 B7+B7/B8/B20/B28 B8+B38/B40/B41 B12+B66 B13+B66 B25+B25/B26 B26+B41 B40+B40 B41+B41 B66+B66/B71 |
|||
|
Wi-Fi Chipset
|
MT6631
|
|||
|
Encryption
|
Wi-Fi Protected Access™ (WPA/WPA2)2
|
|||
|
GPS
|
Optional support for GPS (note: high-end chips can support Beidou positioning)
|
|||
|
Wi-Fi
|
Wi-Fi AP， Up to 10 users
|
|||
|
LCD
|
1.44 inchs, 128x128 resolution, to show signal strength, network mode, operator logo, battery level, charging status, unread
messages, SSID, WiFi password, the statistics. |
|||
|

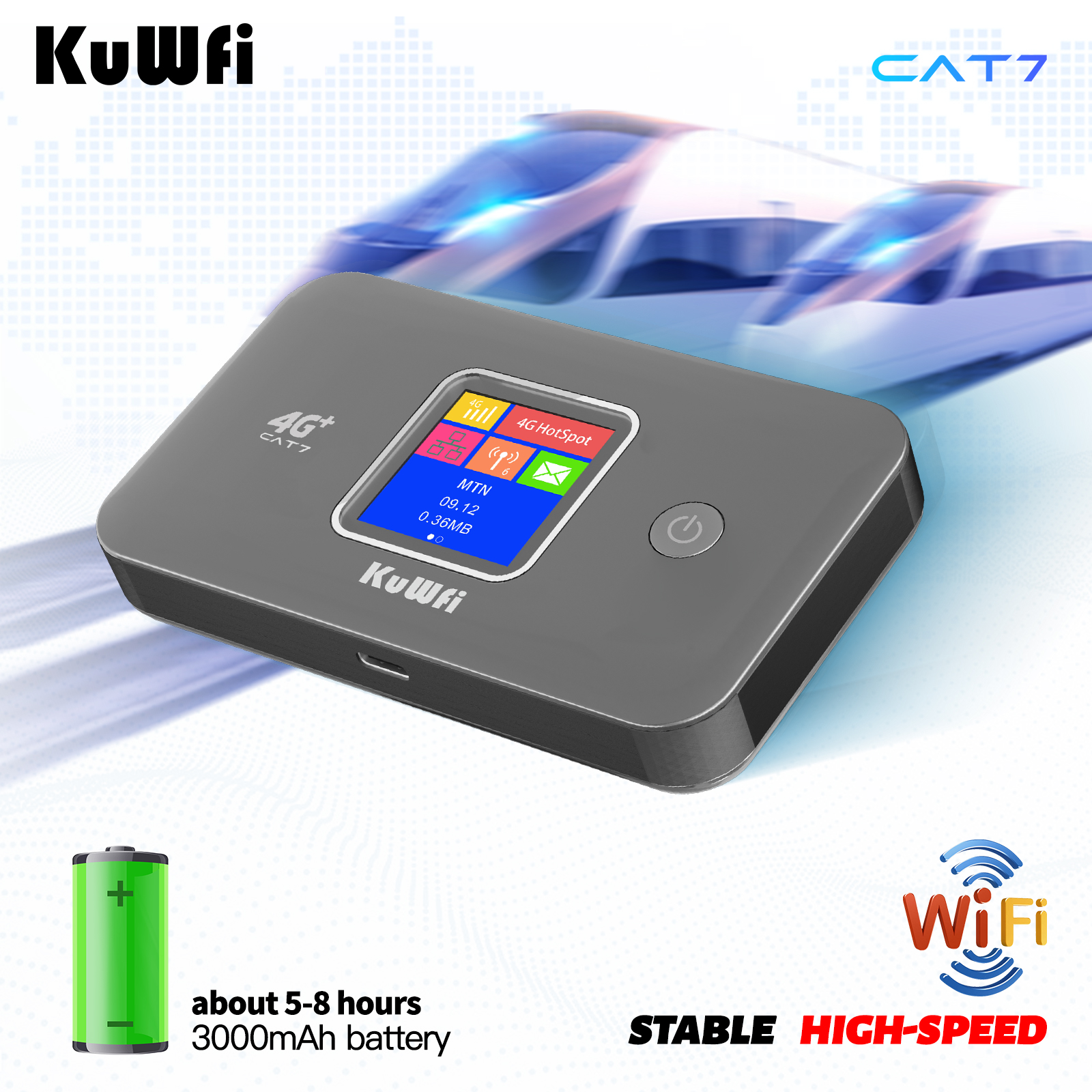

Lithium ion
|
3000mAH, Usually 3.7V, Max charging voltage 4.2V
|
|||
|
Maximum power consumption
|
4W
|
|||
|
Maximum working time
|
About 30 hours( depends on the network environment)
|
|||
|

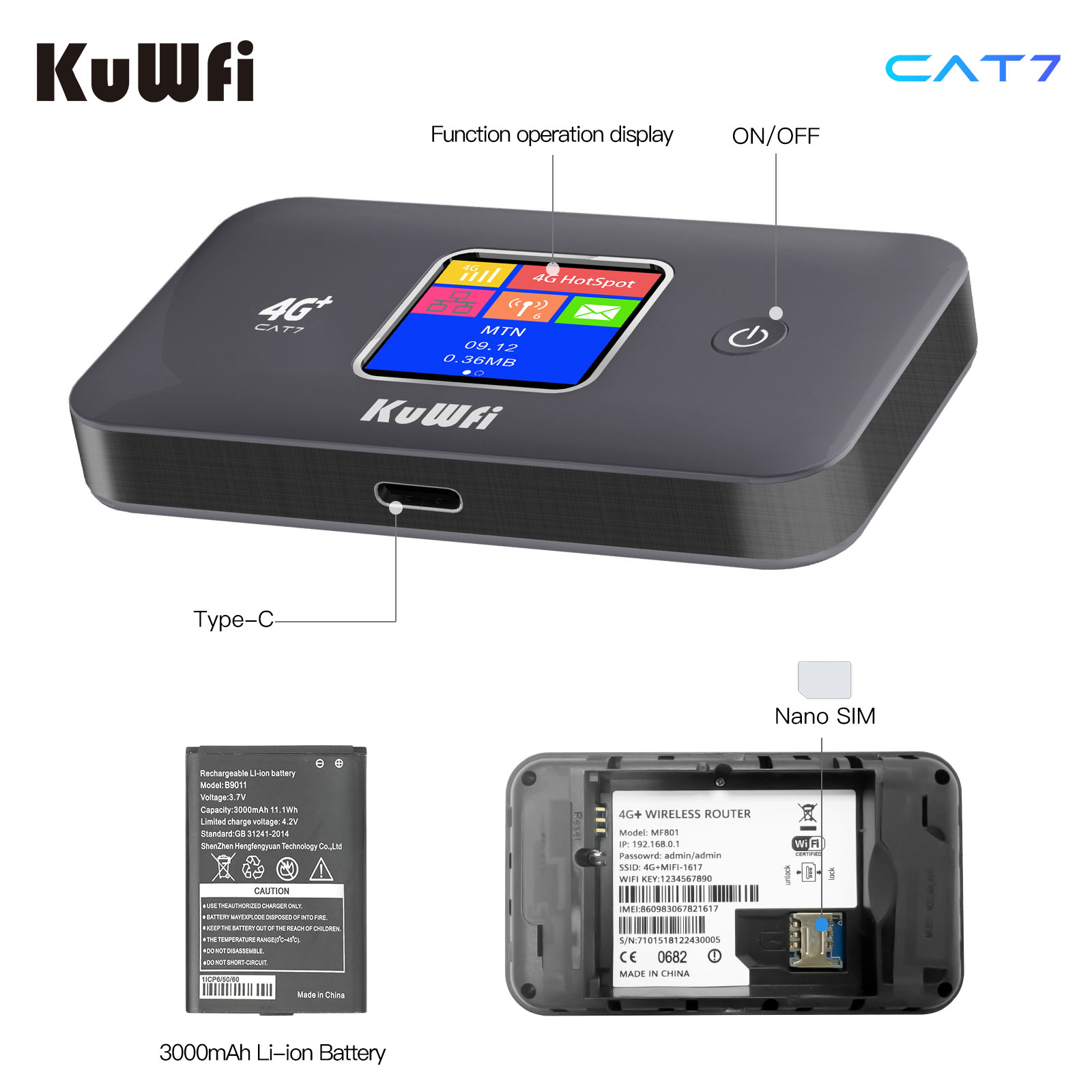

Type C usb
|
1.5A Charge IN
|
|||
|
SIM
|
1 MICRO SIM,1 SIM(Support hot-swap）
|
|||
|
KEY
|
1 Power button(long press 3s to turn on, 4s-5s the initialization complete ready for accessing internet), 1 Reset button
|
|||
|
Working temperature
|
0° - 35°C (32°F - 95°F)
|
|||
|
Non-working temperature
|
‑20° - 45°C (‑4° - 113°F)
|
|||
|
Relative humidity
|
Non-condensation status 5% - 95%
|
|||
|
Working height
|
Current tested max height 3000m (10,000 inch)
|
|||
|
Operation system
|
PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8
|
MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later
|
IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later
|
Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later
|
|
Operation Browser
|
Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari or above
|
|||
|
System
|
Android 8.0
|
|||
|
Status
|
Connection; APN;IP; Signal Strength; Battery Capacity; Conneting time; Users
|
|||
