KuWFi 20KM CPE Wifi Bridge 29dbi 11ac Wave2 900mbps Long Range Point To Point Wifi Extender

No.PTP 5acL20

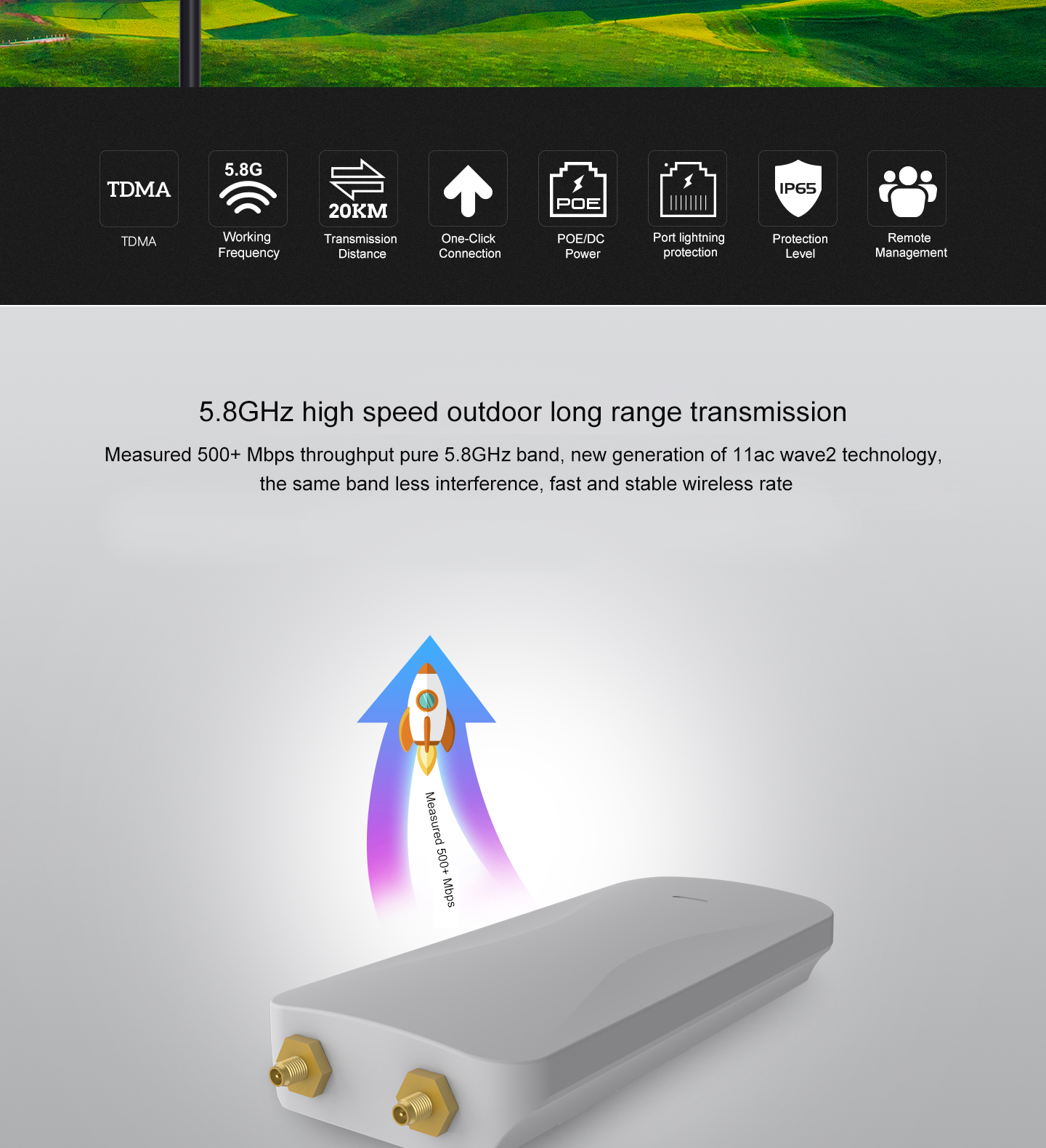

PTP 5acL20 is an 11ac 900Mbps long range outdoor PTP; 500+ Mbps throughput in 10KM distance- a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (TDMA).
  • KuWFi 20KM CPE Wifi Bridge 29dbi 11ac Wave2 900mbps Long Range Point To Point Wifi Extender
  • KuWFi 20KM CPE Wifi Bridge 29dbi 11ac Wave2 900mbps Long Range Point To Point Wifi Extender
  • KuWFi 20KM CPE Wifi Bridge 29dbi 11ac Wave2 900mbps Long Range Point To Point Wifi Extender
  • KuWFi 20KM CPE Wifi Bridge 29dbi 11ac Wave2 900mbps Long Range Point To Point Wifi Extender

Description

Products Description:

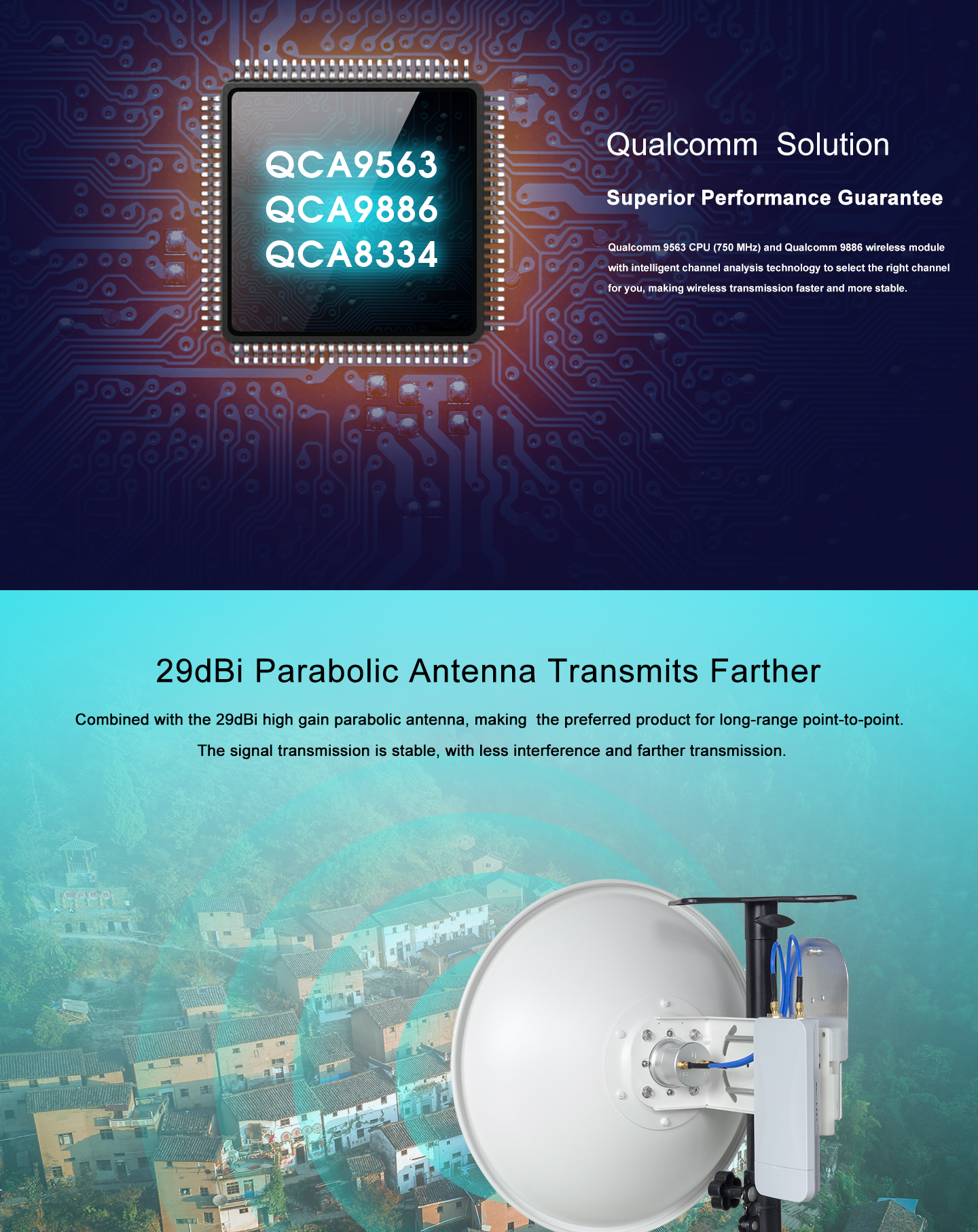

PTP 5acL20 is an 11ac 900Mbps long range outdoor PTP; 500+ Mbps throughput in 10KM distance- a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (TDMA). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9886 radio and 128 MBytes of RAM and 16 MBytes of flash memory,with 29dBi high gain dish antenna, the PTP 5acL20 becomes the preferred product for long-distance point-to-point.

  1. Used special TVS lightning protection device improves the ability of the product in bad environment
  2. With 29dBi high gain dish antenna, , up to 20 km
  3. Supports 48V standard Poe and 12V DC power supply
  4. Support  TDMA
  5. Support  ATPC
  6. 500+Mbps
  7. Support one click pairing
  8. 80,000PPS
  9. Support IPv6
Hardware
Chips QCA9563+QCA9886+QCA8334
Flash SPI NOR 16MB
DDR DDR2-128MB
WAN 1×10/100/1000 Base-T, RJ45,48V PoE power supply
LAN 1×10/100/1000 Base-T, RJ45
Led Power,Wan,Lan,Wireless,RSSI×4
ESD ±6KV
Surge test Line to line ±2KV
Power supply 12V 1.5A DC or 48V 0.5A PoE (48V PoE adapter is included in the package)
Power consumption (max) <15W
Slide Switch One key setting master or slave
Reset key Press the key for 2 ~ 5 seconds to pair automatically,  press and hold for 10 seconds to restore the factory default configuration
Dimensions 186 mm (Length)× 86mm (width )× 33mm (height )
Weight TBD
Mounting Combination wall / pole mount included
protective class IP65
Operating temperature Normal - 30 ° C to + 55 ° C, limit - 40 ° C to + 70 ° C
Humidity  5 ~ 95 % (non-condensing)
