KuWFi Wireless bridge

Description

Description:

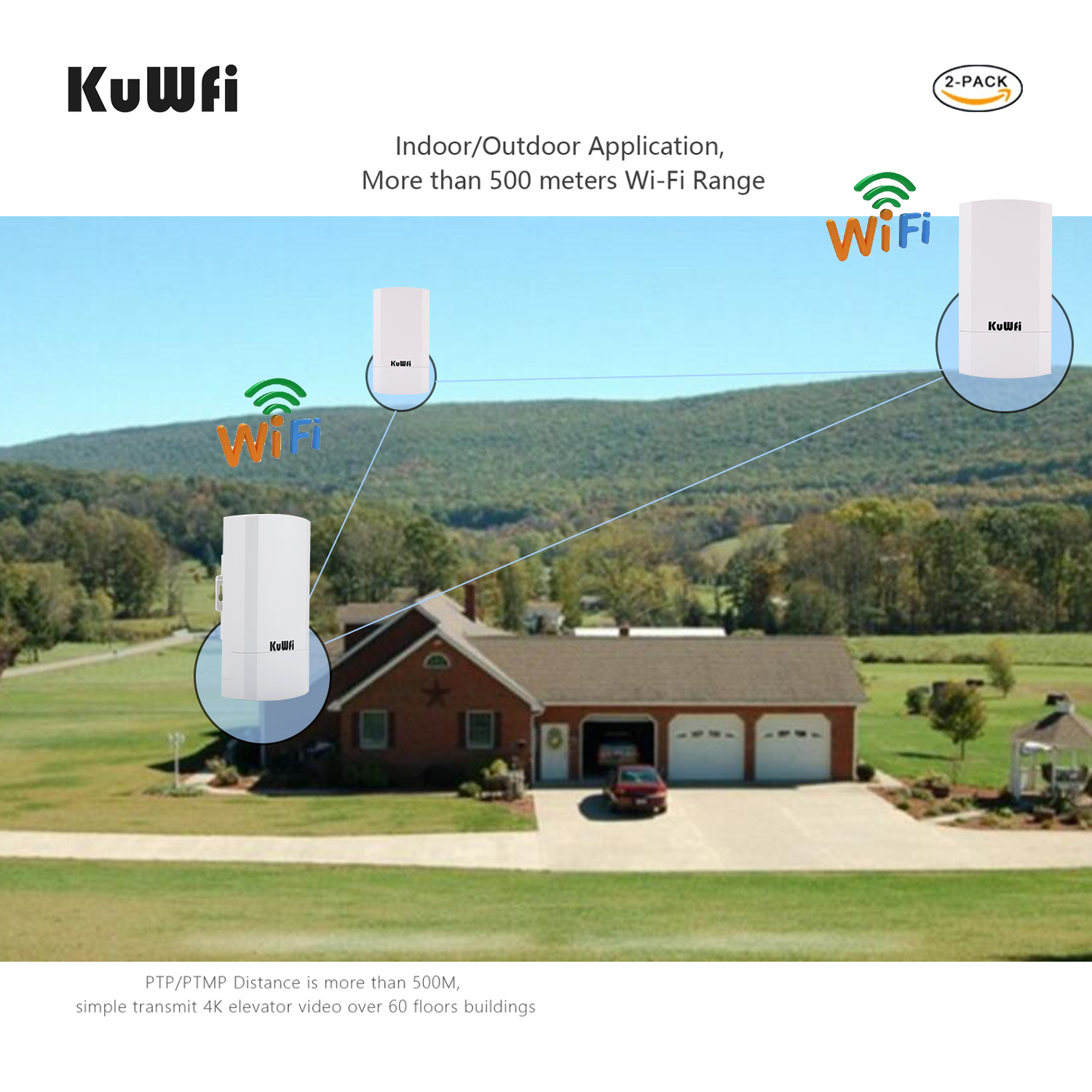

CPE70R is an economic 300Mbps outdoor CPE with LED display to configure the WDS PT/PTMP connection. It comply with IEEE 802.11b/g/n standard, with 11dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 1000 meters.

It support Wireless AP, Wireless Bridge operation mode for PTP/PTMP connections, with LED display, easy to setup CPE120M’s operation mode, IP address, Channel by Function/Selection switch together with LED display, no need to access into GUI, avoid the complex setup program, and simple to view the connection status and signal strength by LED display, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.

CPE70R with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it support 24V passive PoE and 4KV lightning protection, ideal for outdoor use;

Most Important, CPE70R support watchdog self-detection function, reboot and recover device automatically if some network attack. Besides that, it support cloud remote management, administrator can monitor the working status, upgrade firmware, reboot, timed reboot device through cloud server, recover and maintain device at any time and any location, operator level outdoor PTP/PTMP connection equipment.

Specification:
Hardware:
Chipset	Media Tek: MT7628DAN
Wireless	802.11N, 2T2R 300M MIMO Technology
Memory	64MB RAM
Flash	8MB
Interface	1 * 10/100Mbps RJ45 WAN Port
	1 * 10/100Mbps RJ45 LAN Port
	1 * LED display, show operation mode, channel, signal strength
	1 * F(Function) switch button for LED display
	1 * S(Select) button for LED display

	1 * Reset button, press 15 seconds to revert to default setting, press 1 second to finish LED display configuration
Antenna	8dBi Panel Antenna, V: 60^o L: 33^o
LED Light	PWR(Power), WAN, LAN, Wi-Fi
Size	168mm88mm57.6mm

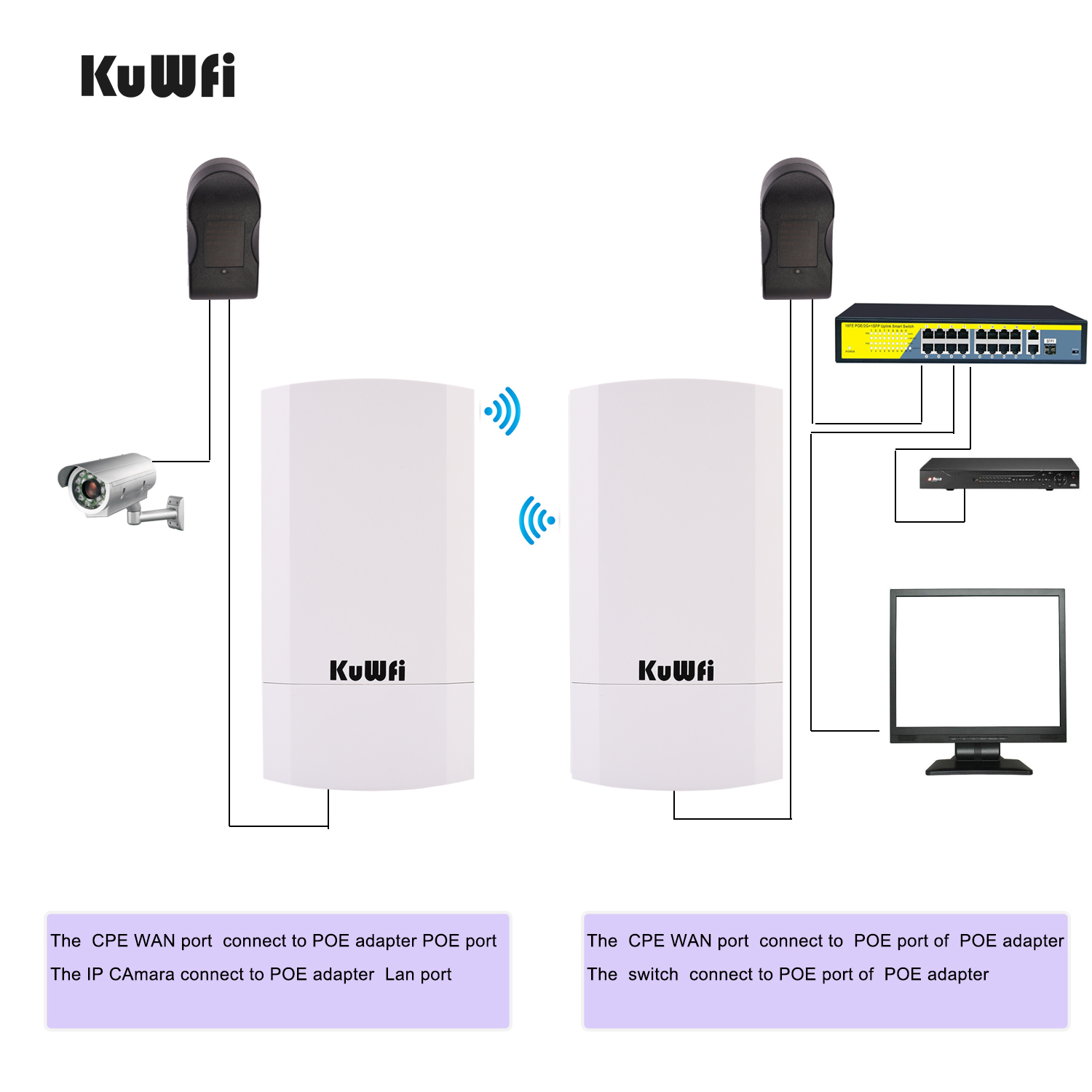

Power	POE 24V/0.5A
Waterproof Level	IP65
RF Data
RF Data	802.11b/g/n:
	2.4GHz to 2.484GHz
	Korea, Japan, ETSI, FCC, Debug
Modulation	OFDM = BPSK,QPSK, 16-QAM, 64-QAM
	DSSS = DBPSK, DQPSK, CCK
Data Rate	300Mbps
RF Power	802.11b	11M	18±2dBm	1M	21±2dBm
	802.11g	54M	17±2dBm	6M	20±2dBm
	802.11n HT20	MCS7	16±2dBm	MCS0	19±2dBm
	802.11n HT40	MCS7	15±2dBm	MCS0	18±2dBm
Receive Sensitivity	802.11b	11M	-85dBm	1M	-94dBm
	802.11g	54M	-72dBm	6M	-88dBm
	802.11n HT20	MCS7	-68dBm	MCS0	-86dBm
	802.11n HT40	MCS7	-66dBm	MCS0	-85dBm
EVM	11n: ≤-28 DB 11g: ≤-25 DB 11b: ≤-10 DB
PPM	±20ppm

Firmware
Operation Mode	Wireless AP, Wireless Bridge
Protocol/Standard	IEEE 802.3(Ethernet)
	IEEE 802.3u(Fast Ethernet)
	IEEE 802.11b/g/n(2.4G WLAN)
Other Features	With Wi-Fi Channel Analysis Tool
	Support Watchdog Technology
	Support LED display configuration
	Central Managed by WLAN Controller in AP Mode Remote Managed by Cloud Server in AP and Repeater Mode

System Setting	Web-based configuration (HTTP/Telnet)
Firmware upgrade	Upgrade firmware via web browser or TFTP
Administration	Admin Password can be configured
Log	Supports local logs, logs host, logs file export
Reset	Reset or factory defaults
Backup	Restore settings & configuration of the device to local file
Physical Property
Temperature	Working: -30°C ~ 55°C
	Storage: -40°C ~ 70°C
Humidity	5%~95% (typical)

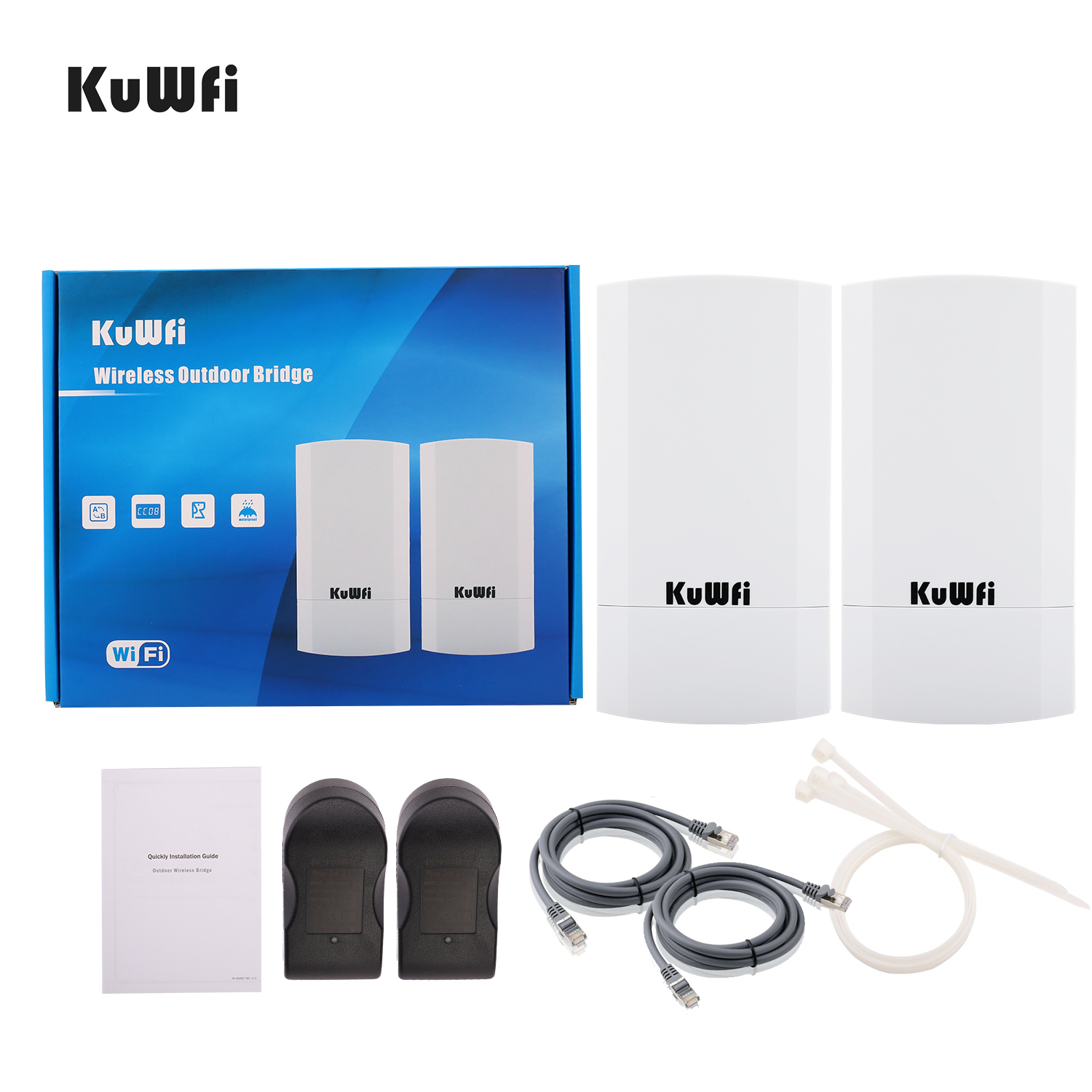

Package:
CPE70R 2 unit
PoE Adapter
User Manual
LAN Cable

KuWFi 2-Pack 300Mbps Wireless Outdoor CPE Kit Point-to-Point wireless Bridge
