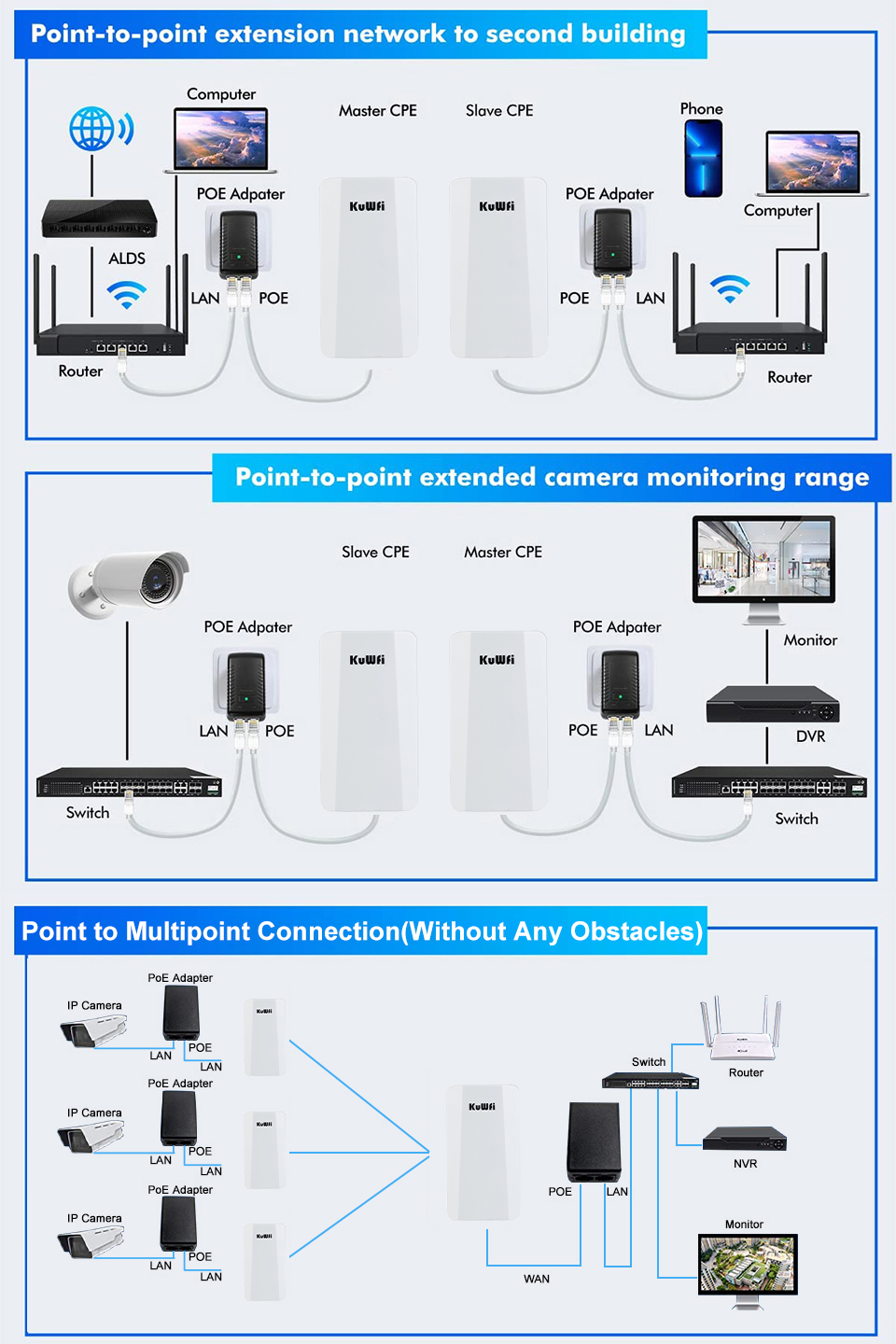

B401 is a 802.11b/g/n 300Mbps outdoor CPE that support 2.4G full band（1、2、3、4、5、6、7、8、9、10、11、12、13 band. The special band can be opened if need.）. With LED digital display, it’s easy to complete point to (multiple)point matching without computer. Support 24V POE (up to 80m according to cable material) & 12V 1A DC power supply. It’s designed for video & data transmission in short and medium distance.
Beamforming Technology achieves superior Wi-Fi bandwidth utilization and increases Wi-Fi range by creating efficient, highly targeted Wi-Fi connections.
|
Hardware: |
|||||
|
Product Name |
2.4G 300Mbps Outdoor CPE For wifi transmission |
||||
|
Wireless |
300M 802.11b/g/n 2T2R |
||||
|
Memory |
64MB RAM |
||||
|
Flash |
8MB |
||||
|

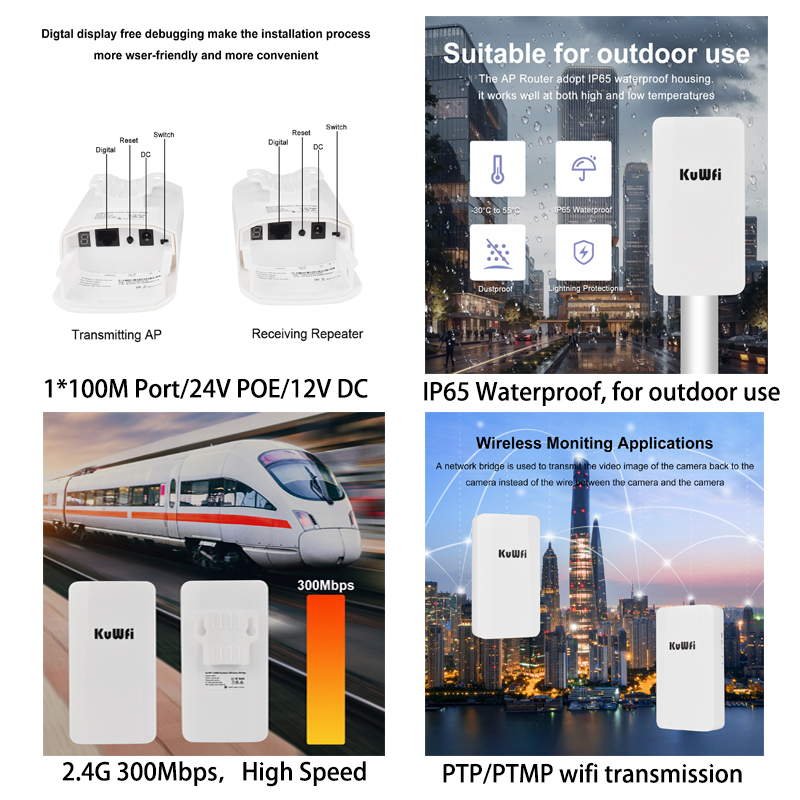

Interface |
1*Digital Switch, Short Press to Change the Displayed Number |
||||
|
1 * DC Interface |
|||||
|
1*Reset，Long Press 5s to Reset |
|||||
|

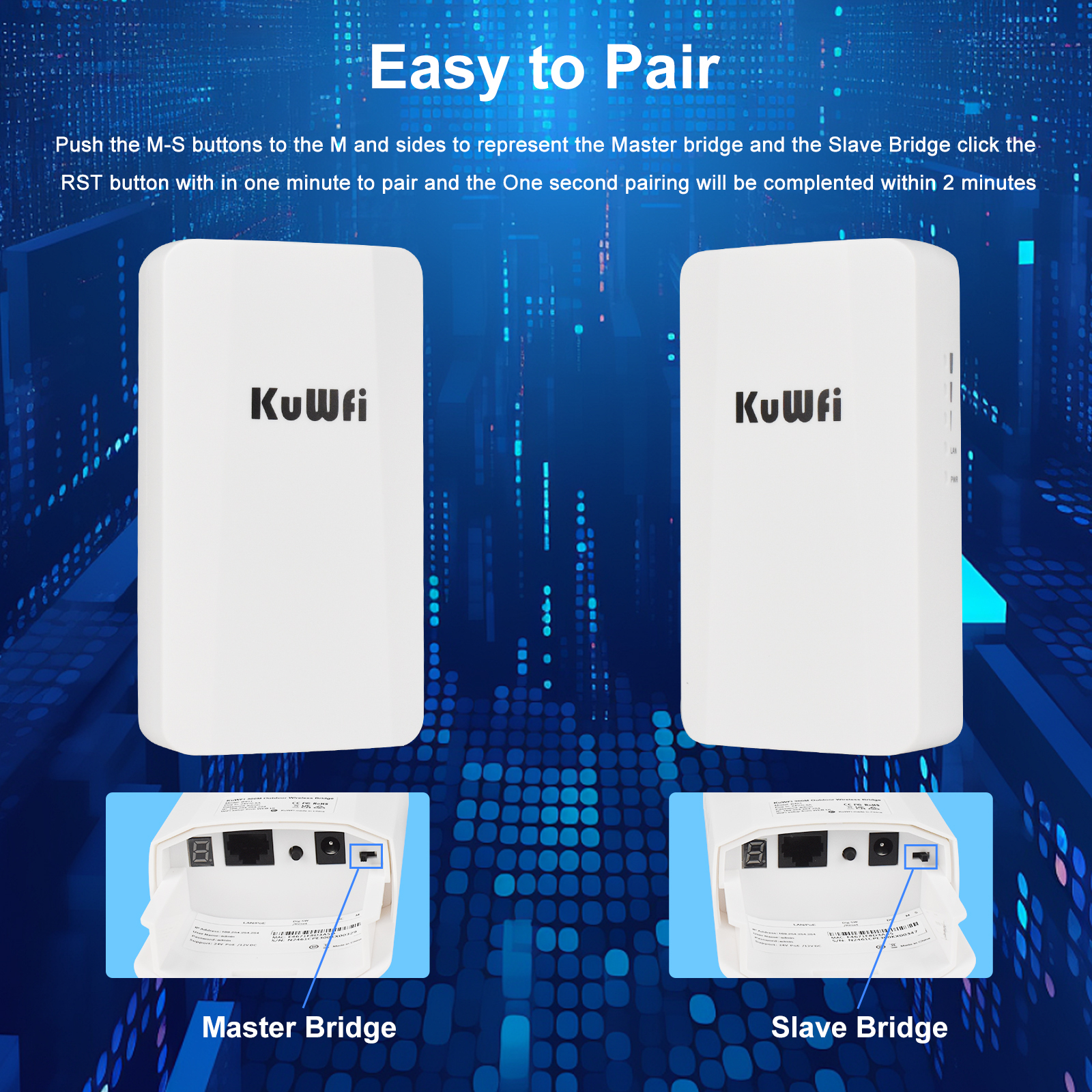

1*Toggle Switch, Dial to Convert Host/Subordinative |
|||||
|
1*10/100Mbps RJ45 |
|||||
|
/ |
|||||
|
Antenna |
Inbuilt 13dBi Dual Polarization HG Directional Panel Antenna |
||||
|
LED Light |
LAN1 GigE Indicator, Wireless Indicator, Power Indicator, Signal Indicator LED |
||||
|
Size |
140*75*34mm |
||||
|
Power |
DC 12V 1A / POE 24V 0.5A |
||||
|
Waterproof Level |
IP65 |
||||
|
RF Data |
|||||
|
RF Data |
802.11b/g/n |
||||
|
2.400GHz~2.4835GHz |
|||||
|
Data Rate |
300Mbps |
||||
|
2.4G TX Power |
802.11b |
11M |
18±2dBm |
1M |
1M |
|
802.11g |
54M |
17±2dBm |
6M |
6M |
|
|
802.11n HT20 |
MCS7 |
16±2dBm |
MCS0 |
MCS0 |
|
|
802.11n HT40 |
MCS7 |
15±2dBm |
MCS0 |
MCS0 |
|
|
Receive Sensitivity |
802.11b |
11M |
-85dBm |
1M |
-94dBm |
|
802.11g |
54M |
-72dBm |
6M |
-88dBm |
|
|
802.11n HT20 |
MCS7 |
-68dBm |
MCS0 |
-86dBm |
|
|
802.11n HT40 |
MCS7 |
-66dBm |
MCS0 |
-85dBm |
|
|
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
||||
|
PPM |
±20ppm |
||||
|
Firmware |
|
|
Operation Mode |
Wireless AP, Wireless repeater |
|
Protocol/Standard |
IEEE 802.3 |
|
IEEE 802.3u |
|
|
IEEE802.11a/n |
|
|
Other Features |
2.4G full band |
|
Wireless Encryption: WPA/WPA2;WPA-PSK/WPA2-PSK |
|
|
13dBi high gain antenna design |
|
|
Flickers When Bridge is Running Normally with Power |
|
|
IP65 durable weatherproof enclosure |
|
|
switch fast between full speed & low consume mode,which save 30% power cost. |
|
|
System Setting |
Web-based configuration (HTTP/Telnet) |
|
Firmware upgrade |
Upgrade firmware via web browser or TFTP |
|
Administration |
Admin Password can be configured |
|
Log |
Supports local logs, logs host, logs file export |
|
Reset |
Reset or factory defaults |
|
Backup |
Restore settings & configuration of the device to local file |
|
Physical Property |
|
|
Temperature |
Working: -20°C ~ 55°C |
|
Storage: -40°C ~ 70°C |
|
|
Humidity |
5%~95% (typical) |
