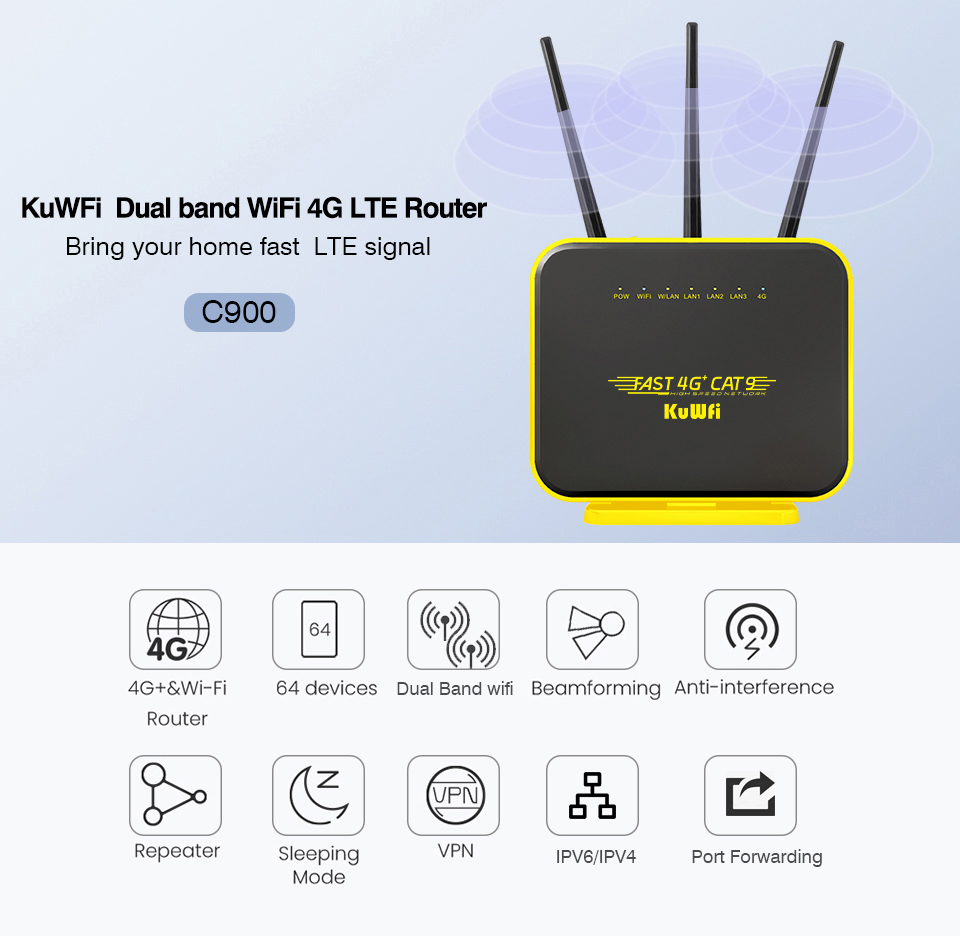

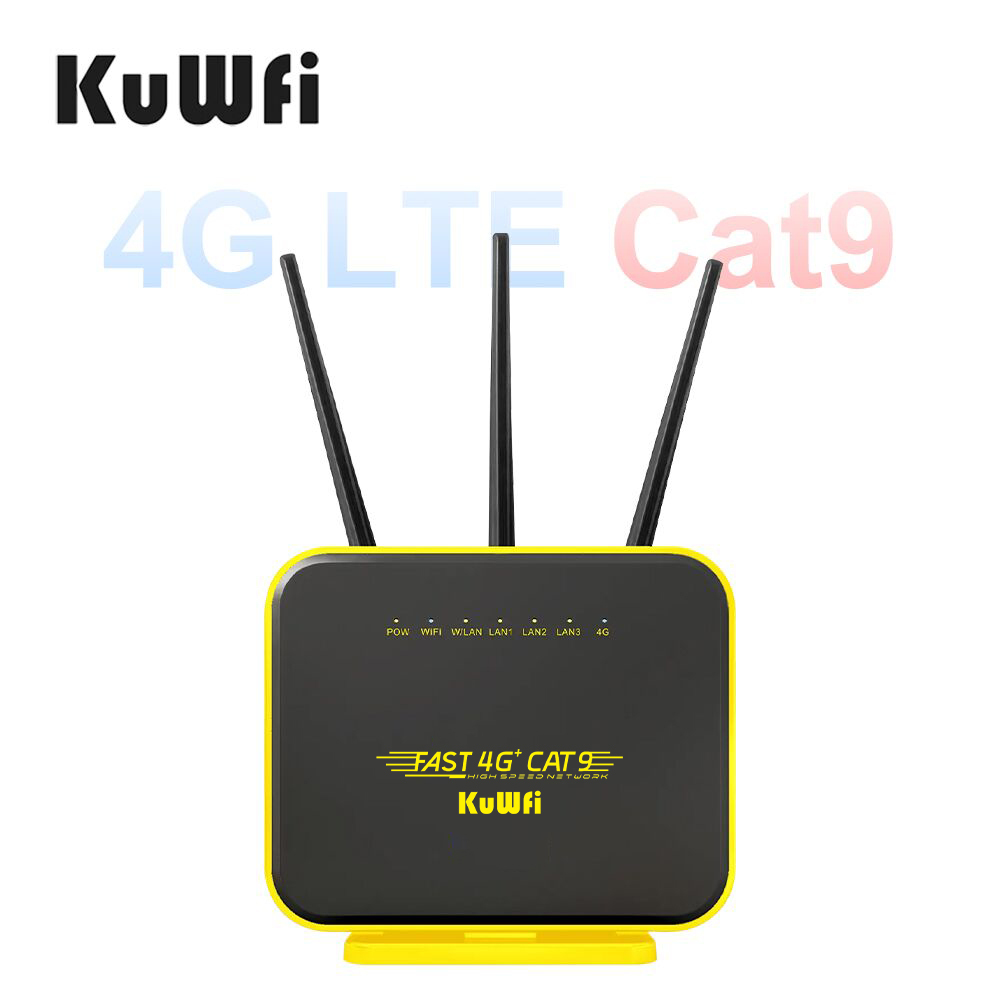

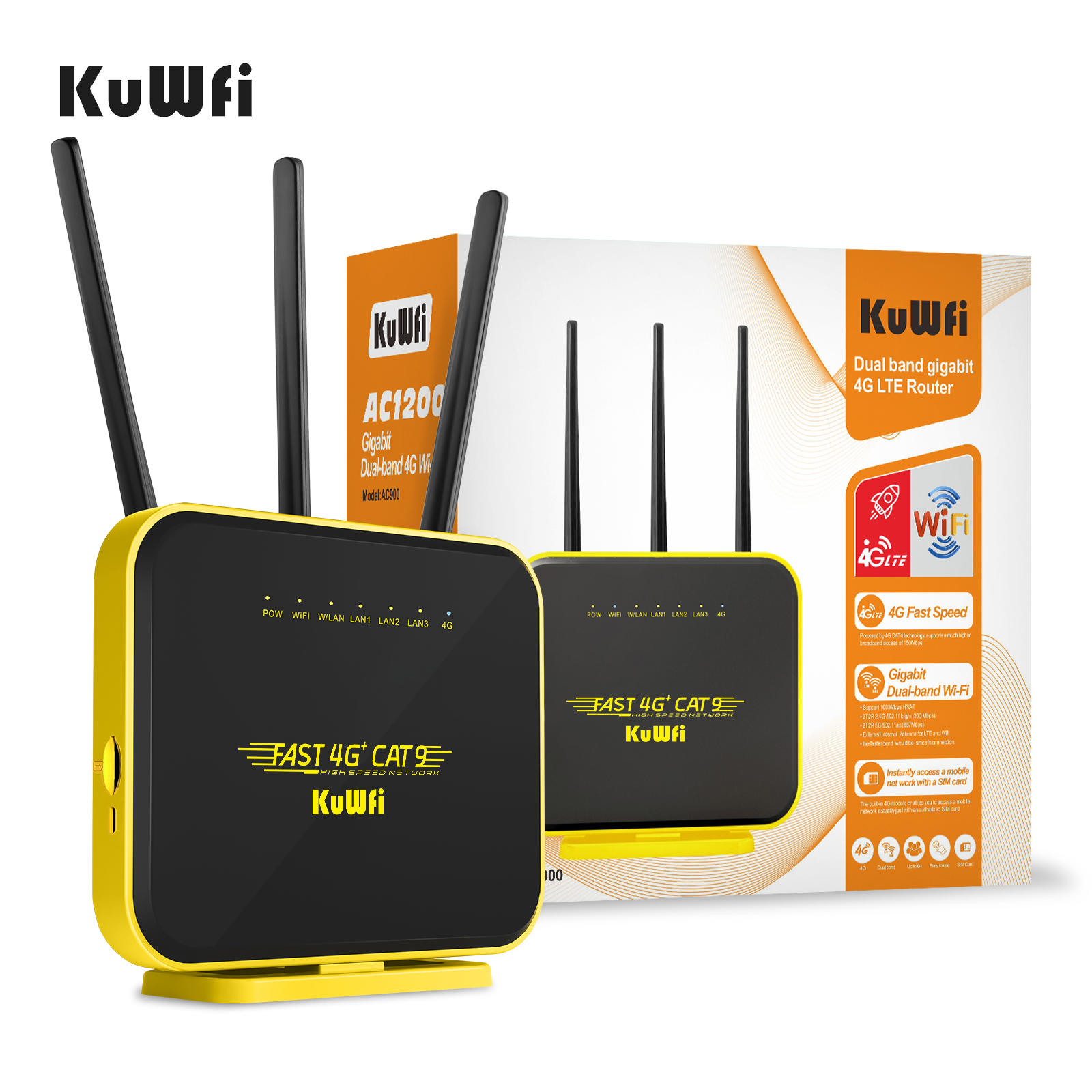

C900GL is a 2 in 1 intdoor Cat9 4G LTE CPE with sim card + WAN port (auto-switch).
It adopts MT7621 chipset, comply with IEEE 802.11b/g/n standard, the Wi-Fi data rate is up to 1200Mbps.
With built-in 4G modem and SIM slot. It supports FDD-LTE TDD-LTE worldwide full frequencies up to 450 Mbps 4G LTE downlink speed.

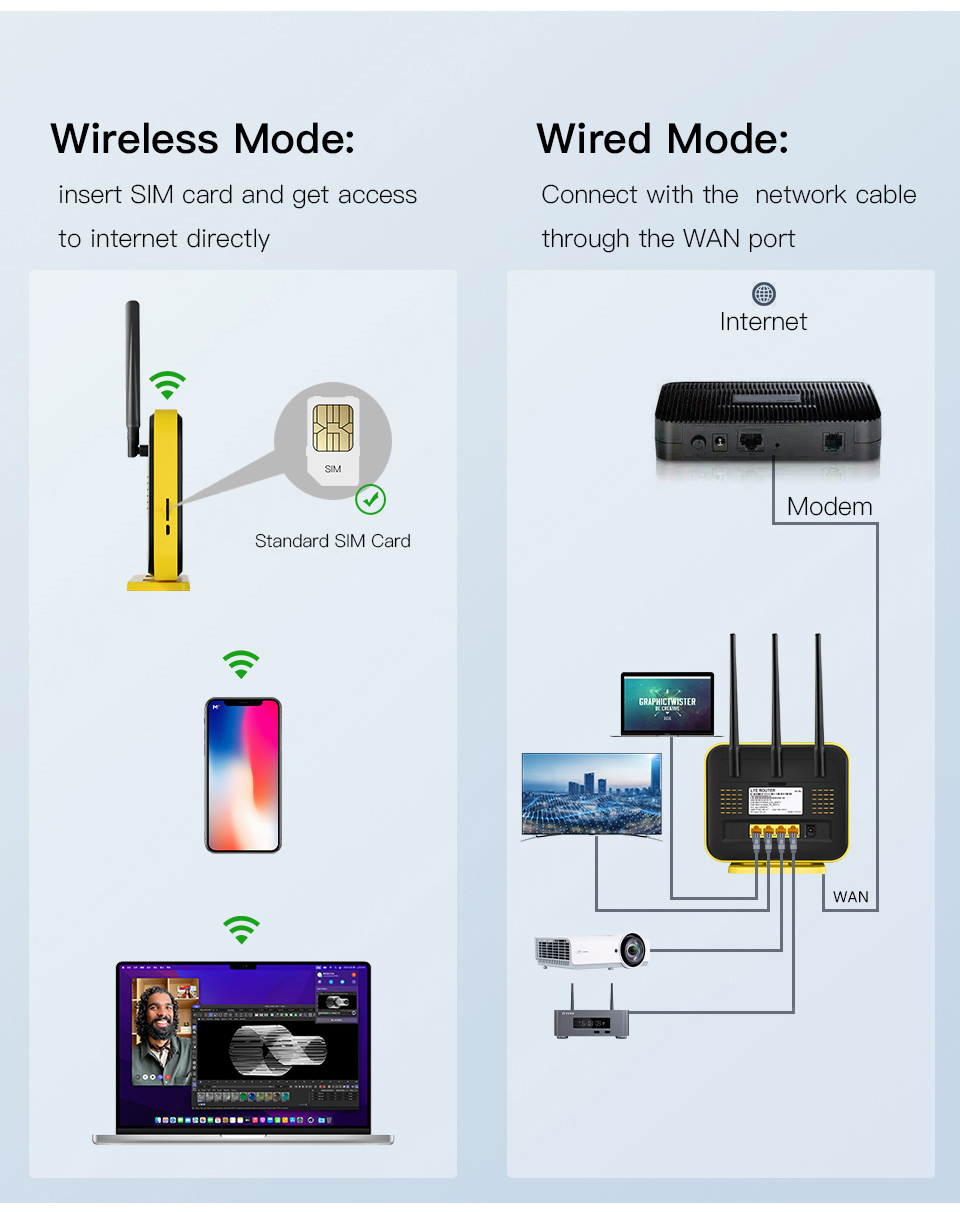

Besides it has WAN port, automatically switch to WAN Ethernet connection once the 3G/4G network loses connection.
Simply plug in the operators’ SIM card and it can search and connect to achieve high-speed 3G/4G frequency band access automatically.
Features:
|
CPU |
CPU:MT7621+MT7603E+MT7612E |
|
Memories |
FLASH 16M, DDR 128M |
|
Protocols Comply |
IEEE802.11b/g/n, IEEE802.3u, IEEE 802.3x |
|
Wi-Fi |

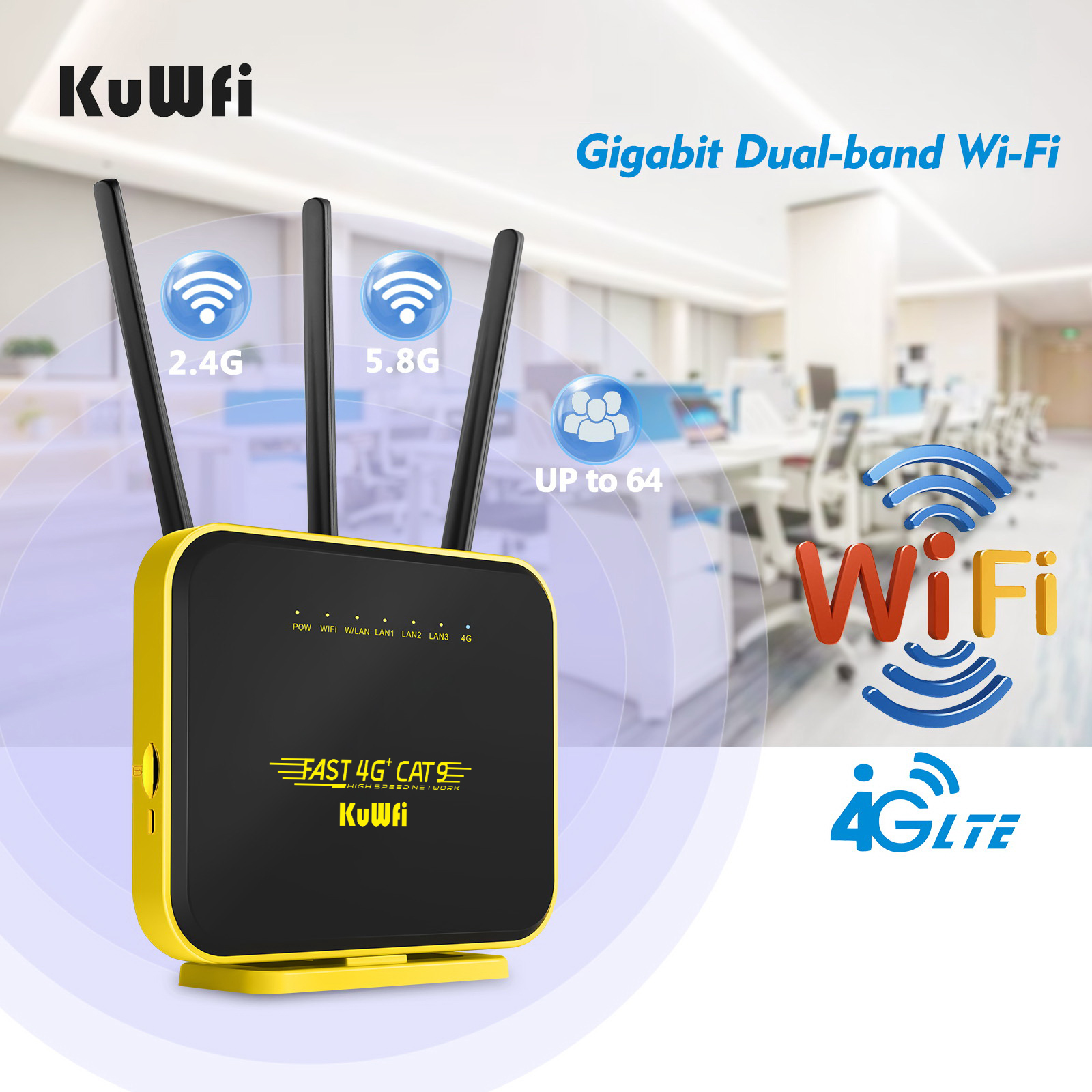

Support 1000Mbps HNAT 2T2R 2.4G 802.11 b/g/n (300 Mbps) 2T2R 5G 802.11ac (867Mbps) |
|
TX Power |
2.4GHz: 100mW |
|

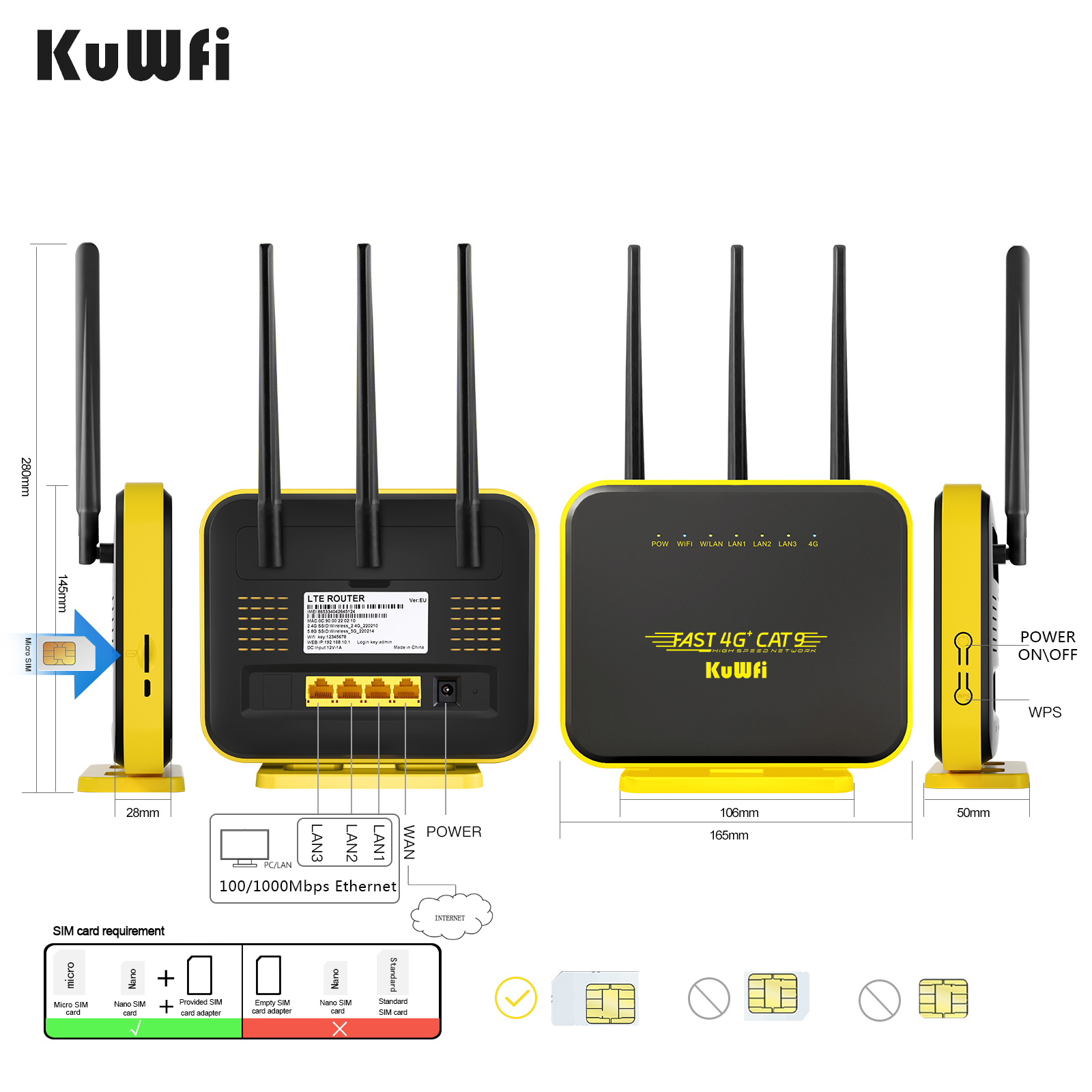

Ethernet Ports |
3x 10/1000M LAN 1*1000M WAN |
|
4G Modem |

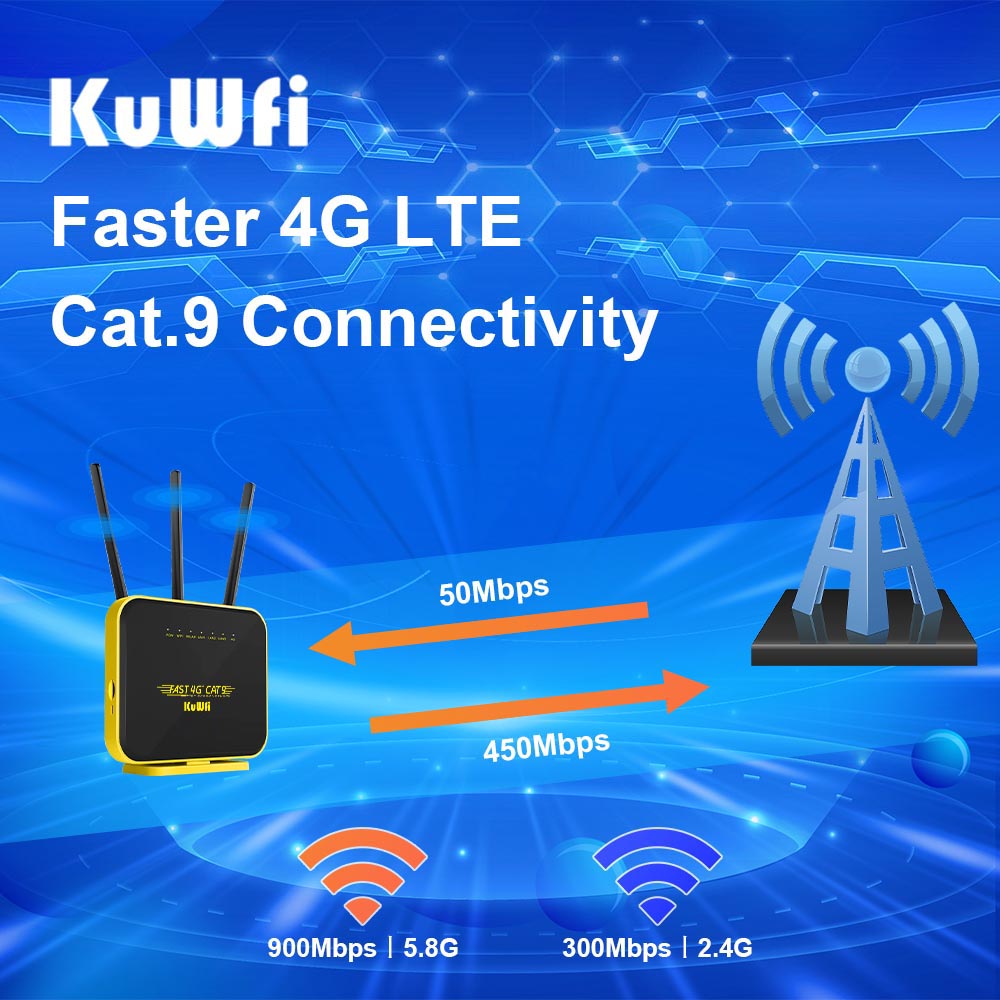

LTE CAT9 MIMO 2*2, Maximum Downlink 450Mbps and uplink 50Mbps |
|
Support LTE
|
C900_GL: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17 /B18/B19/B20/B21/B25/B26/B28/B29/B30/B66 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B3/B4/B5/B8 |
|
Feature keys |
2T2R 2.4G 802.11 b/g/n (300Mbps) 2T2R 5G 802.11ac (867Mbps) CAT9 450Mbps External / internal Antenna for LTE and WIFI Max 5200 mAh battery (optional) |
|
Power Supply |
1, Standard 25*15mm |
|
SIM Slot |
1x Reset button, Restore factory default settings |
|
Reset Button |
4G internal 5dBi x1PCS, wifi antenna 5dBi x 2PCS |
|
Antenna |
PWR, LAN1-LAN3 WLAN WIFI 4G, SYS, 4G, |
|
LED Indicator |
0°C~+50°C |
|
Working Temperature |
-20°C~+85°C |
|
Storage Temperature |
10%~95% RH（non-condensation） |
|
Working Humidity |
10%~95% RH（non-condensation） |
