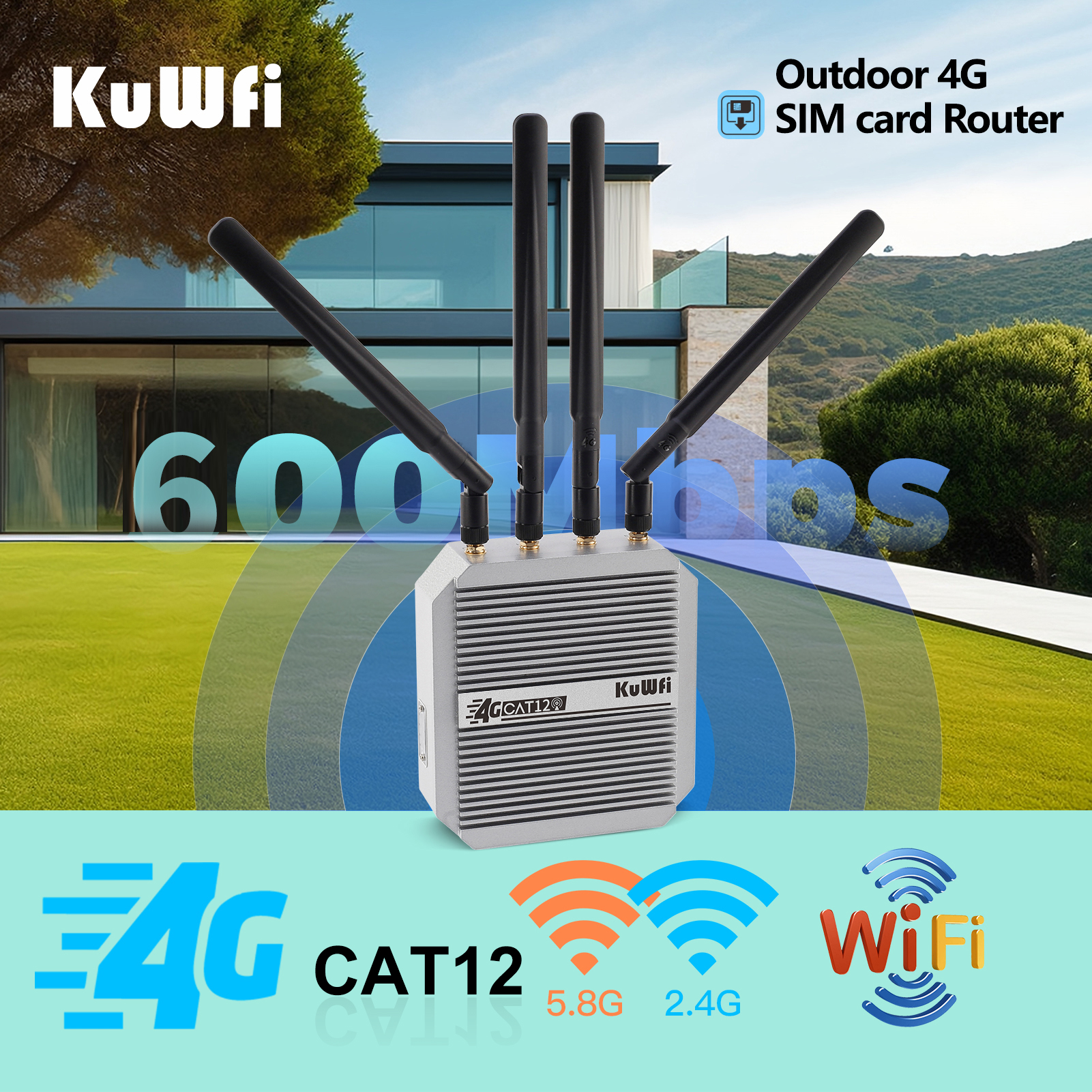

The CPF915CAT12 Outdoor 4G LTE Wireless Data Terminal is a all-in-one networking device that combines a 4G modem, router, and Wi-Fi access point.

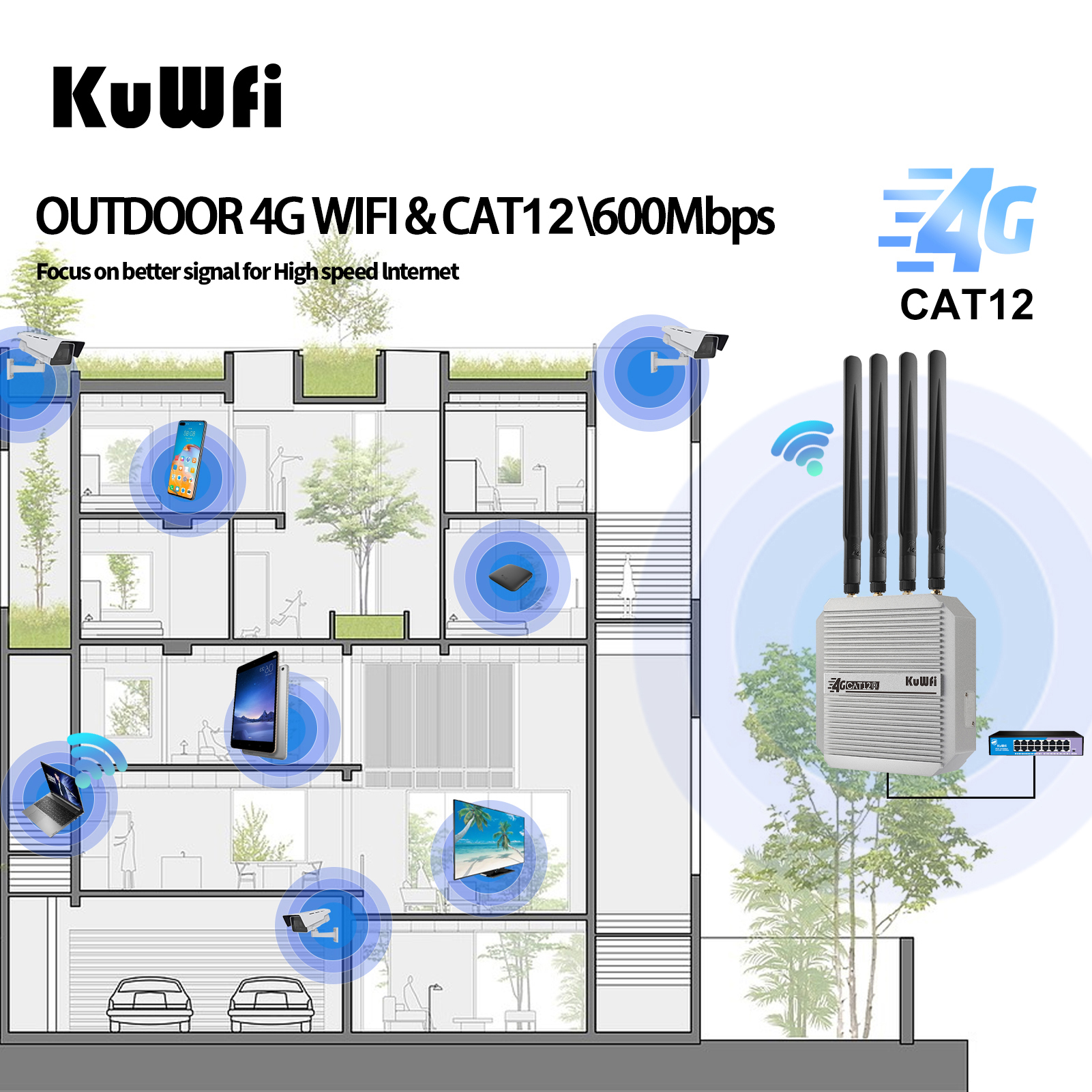

It converts 4G LTE signals into high-speed Ethernet and Wi-Fi, enabling internet access for multiple wired and wireless devices, ideal for areas without traditional broadband.idea for remote locations, mobile operations, business backup, network expansion, and emergency deployment scenarios.
|
Product Name
|
1800Mbps CAT12 WiFi6 Dual Band 4G+ Router
|
|
WiFi Frequency
|
2.4G&5G
|
|
WiFi Standard
|
2.4G:802.11b/g/n/ax 2T2R MIMO, 5.8GHz：802.11a/n/ac/ax 2T2R MIMO
|
|
WiFi
|
2.4GHz :600Mbps ,5GHz :1200Mbps
|
|
4G&3G Frequency Bands
|
DL：600 Mbps ；UL：50 Mbps
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29①/B30/B32①/B66/B71 LTE-TDD B34/B38/B39/B40/B41/B42/B43/B46① (LAA)/B48 (CBRS) WCDMA:B1/B2/B3/B4/B5/B6/B8/B19 |
|
Interface
|

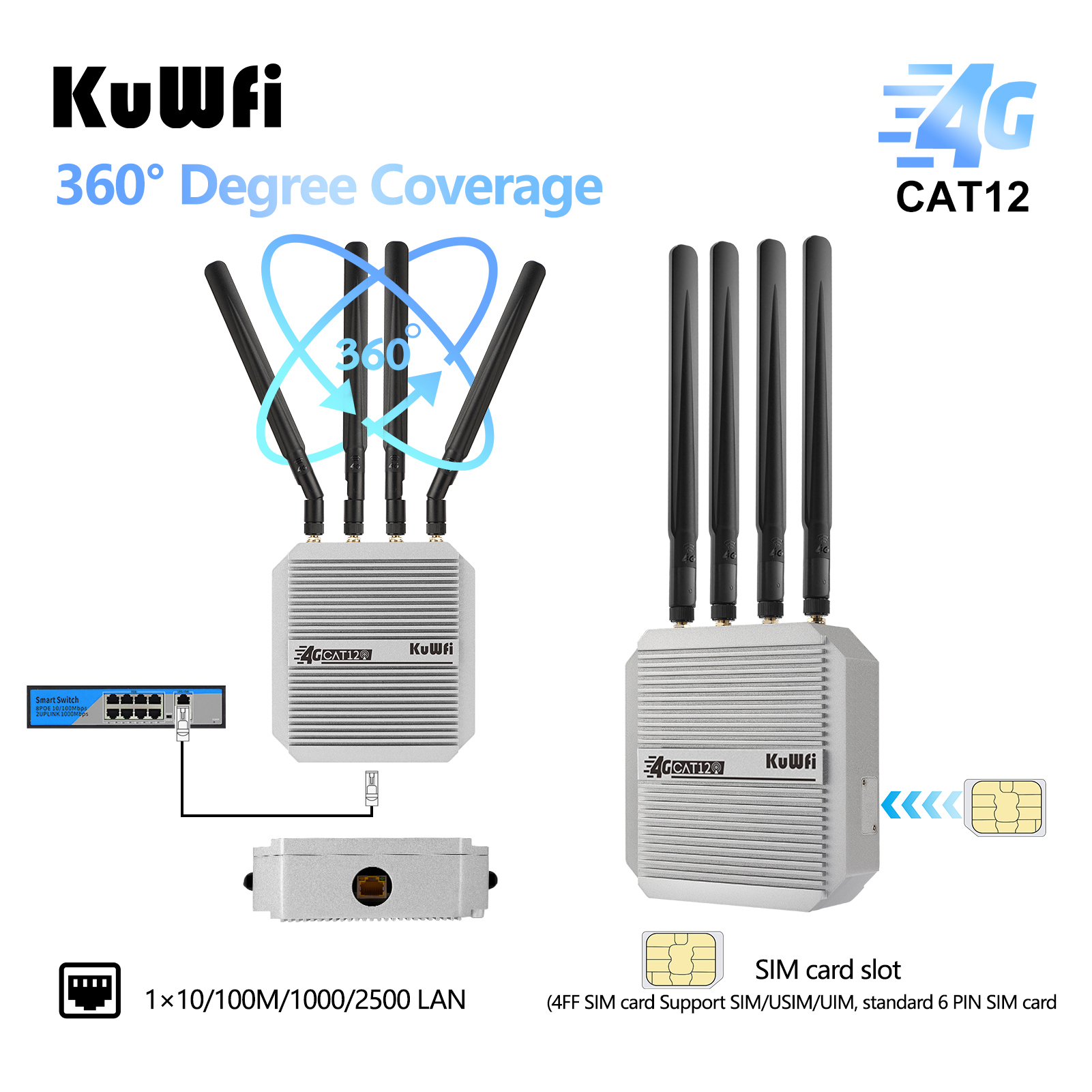

1*10/100M/1000 LAN

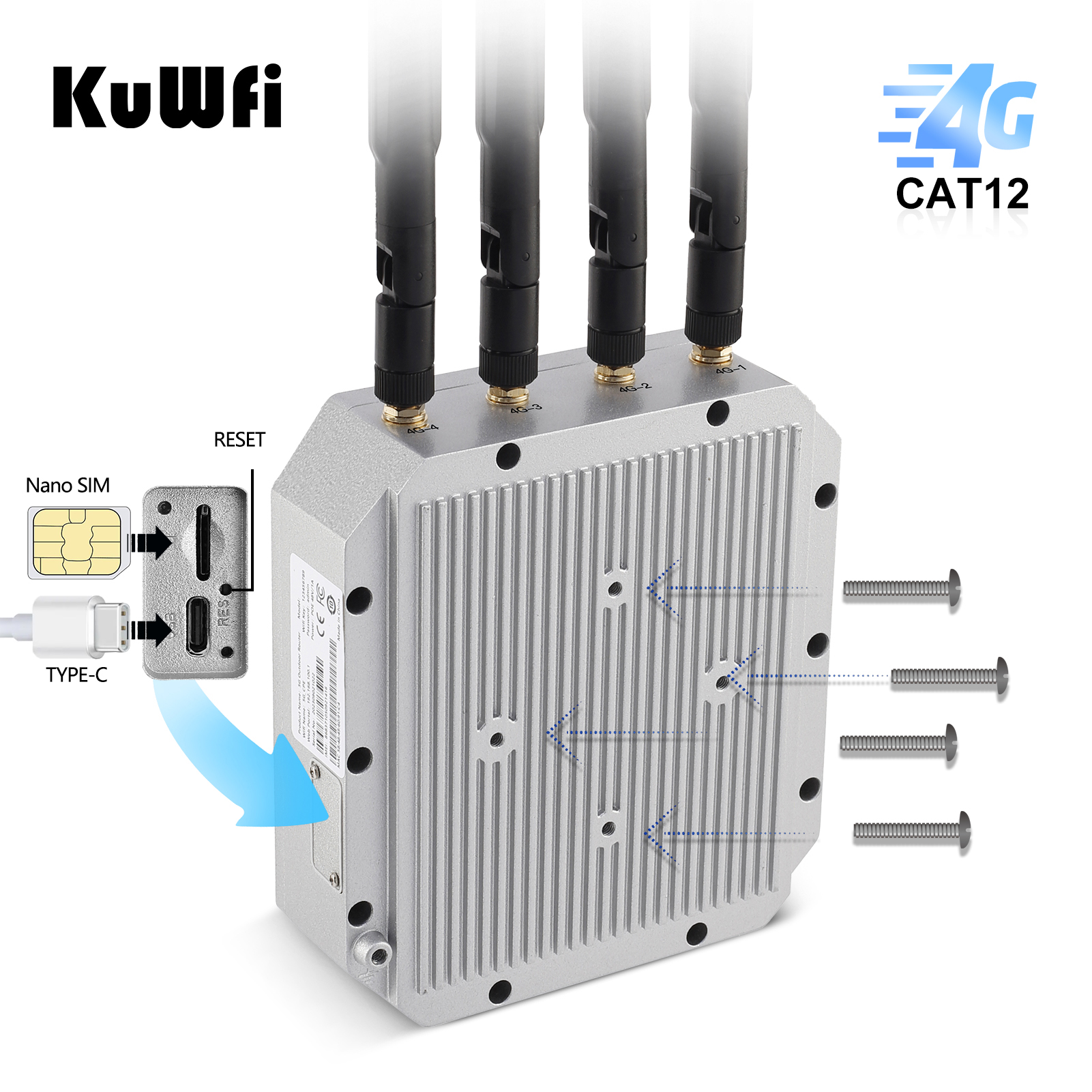

1 Reset Button 1*SIM card slot(4FF SIM card Support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card: internal) |
|
Network Extension
|
MESH
|
|
MESH
|
Networking: short press (blue networking light flashes)
|
|
LED
|
Indicator battery power,RF Signal, SIM Signal,SYS Signal
|
|
Power Consumption
|

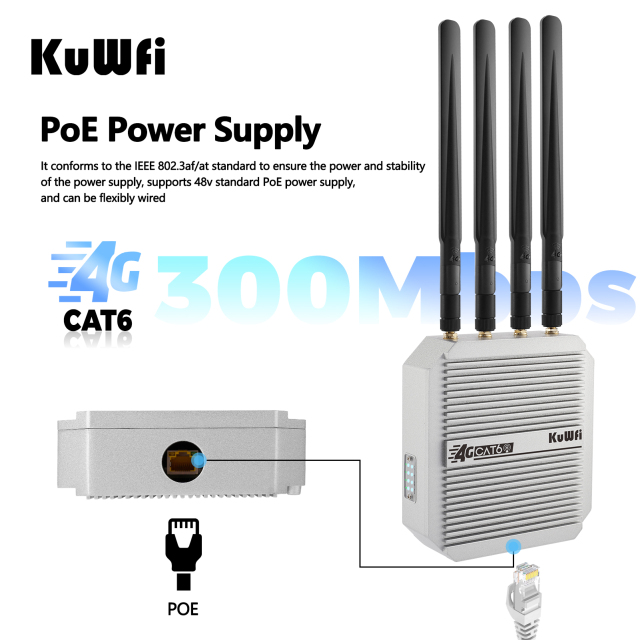

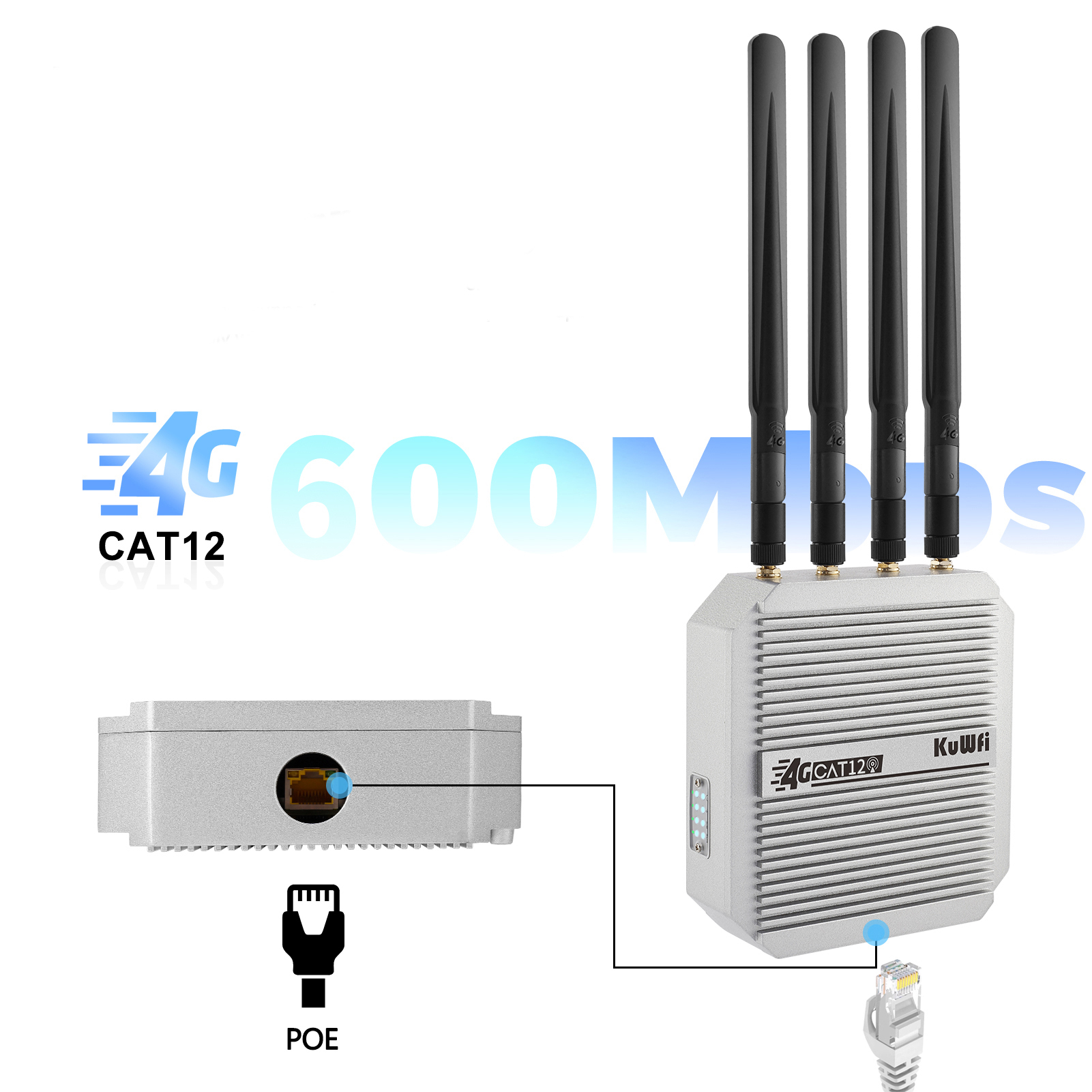

＜18W POE48V/0.5A
|
|
Environment
|
Operating Temperature：-20℃～+50℃
Storage Temperature:-40℃～+70℃ Humidity：5％～95％（Non condensation） |
