Product Description
1. Wifi 6 router is mainly aimed at the office, home, IoT shopping mall and restaurant. It provides high-speed, reliable routing and data transmission capabilities to meet their different application scenarios 2.High performance hardware configuration Adopts MTK7621 + MTK7905 + mMTK7975 high performance SOC suite, with 16MB flash and 256MB memory, industrial circuit design. It also supports the IEEE802.11a/b/g/n/ac/ax protocol, also can provide 2.4G 573Mbps + 5.8G 1201Mbps wireless access speed and 1000Mbps Ethernet switching processing speed. 3.Green environmental protection, high efficiency and energy saving A large number of energy-saving technologies are applied to this WiFi 6 Router, including single antenna standby technology, dynamic MIMO power saving technology,enhanced automatic power saving transmission technology and packet by packet power control technology; and based on IEEE802.3 az standard hardware design, when the network is not in use, it will automatically enter the low-power and power-saving mode; but as long as someone uses the network, it will immediately convert to normal pattern. 4.A variety of security strategies to ensure network data security at all times - Support WPS, WPA, WPA2, WPA3 wireless security access, support SSID concealment, visitor network, black and white list, LAN port isolation, ALG , MAC filtering, IP filtering, NAT setting, DDOS to effectively protect network security and ensure the user’s network data security at all time Tips for Button 5.Reset: Restore factory settings button, press and hold for 6 seconds to restore factory settings and restart automatically WPS: WPS function button, short press to start PBC function Notes: Please make sure your smart device used support WiFi 6 function !!!
Product Description

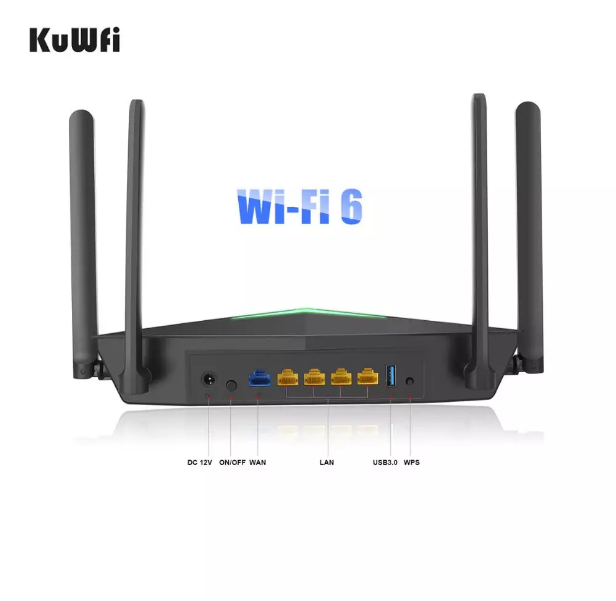

CPU: MT7621A+MT7905+MT7975 Memory: 256MB DDR3 RAM//Flash: 16 MB Support 4*10/100/1000Mbps RJ45 Power supply: DC 12V 1A Button: Reset,WPS, Power Antennas: 2.4G+5.8G: 2T2R 5dBi gain 1*10/100/1000Mbps RJ45 WAN 3*10/100/1000Mbps RJ45 LAN Support Multiple Internet Connect: PPPOE,STATIC IP, DHCP, DNS Radio rate up to 1800Mbps,2.4G Up to 573Mbps + 5.8G Up to 1201Mbps Support wireless security functions: WPA-PSK/WPA2-PSK/WPA3 Support PPTP,L2TP VPN Support Firewall: IP,MAC,Port Filtering and DMZ Support TR069 and upgrade online Support IPV4,IPV6 Protocol Working Mode: Routing mode and bridge mode Carrying capacity: 128 users Dimensions: 262*177*180mm Operating Environment Operating Temperature: Normal: -40℃ to +55℃ Storage Temperature: -40℃ to +70℃ Operating Humidity: 5%~ 90% Storage Humidity: 5%~ 95%
