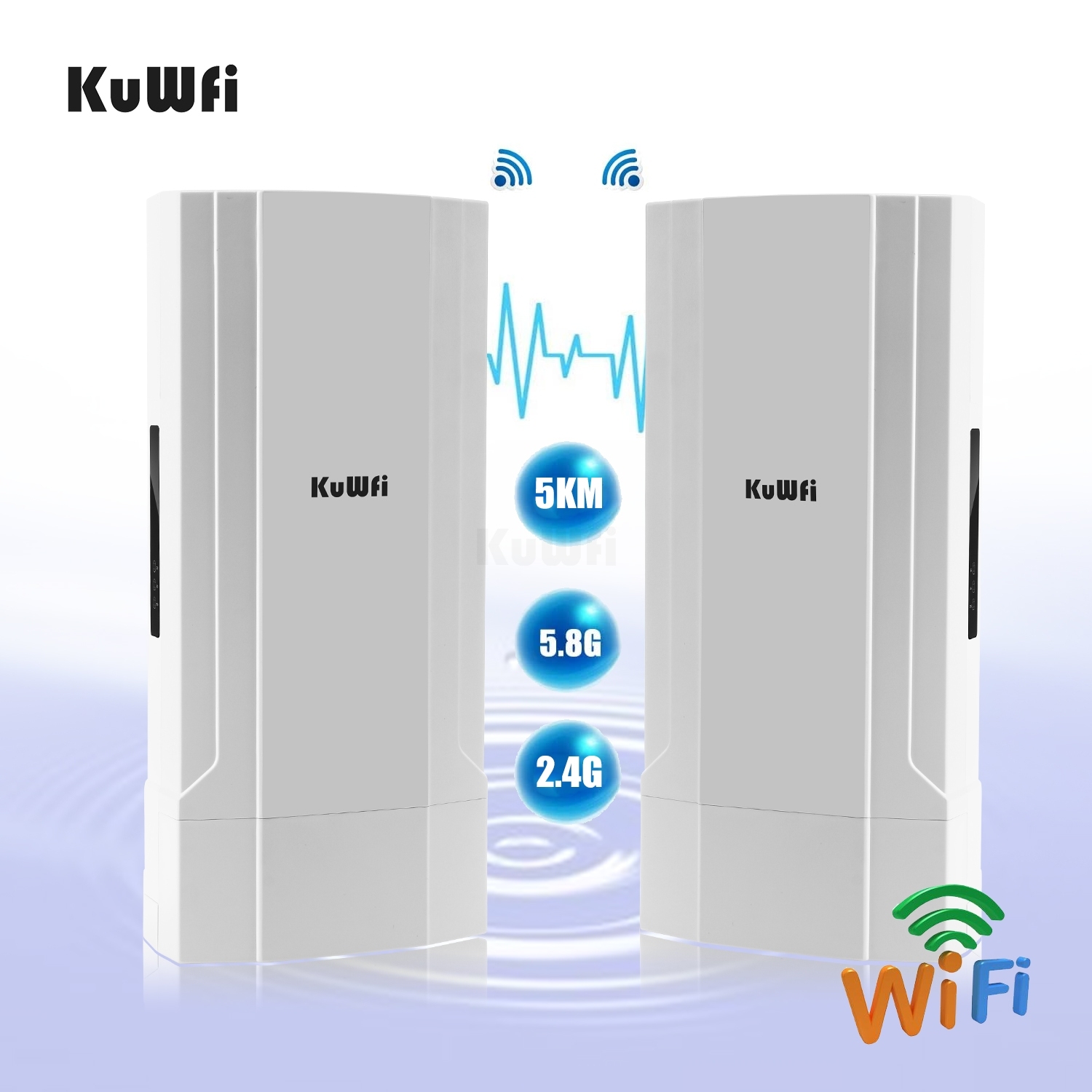

KuWFi 2-Pack Outdoor 5KM Point to Point Wireless Bridge 11AC 1200Mbps 2.4&5.8G Extender for IP Camera

Item No.: CPE2200

KuWFi outdoor wireless AP

KuWFi 11ac 1200Mbps High Power Outdoor WiFi Bridge

  • ABS weather-proof case - High Power Outdoor WiFi Bridge CPE2200 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, rainy weather. Meantime, it adaptive to various environment, the working temperature can be at -40℃ to 55℃. Suit for any country

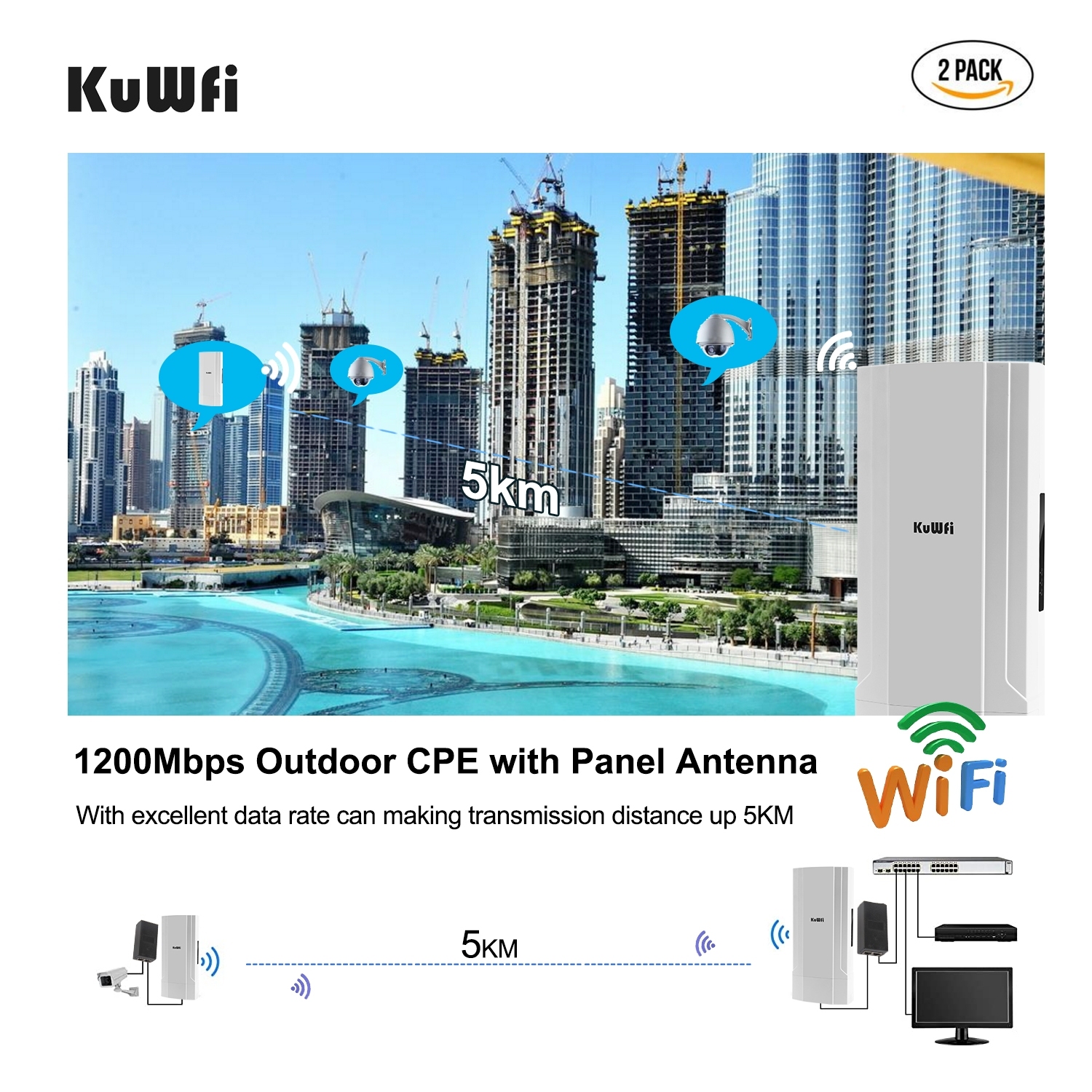

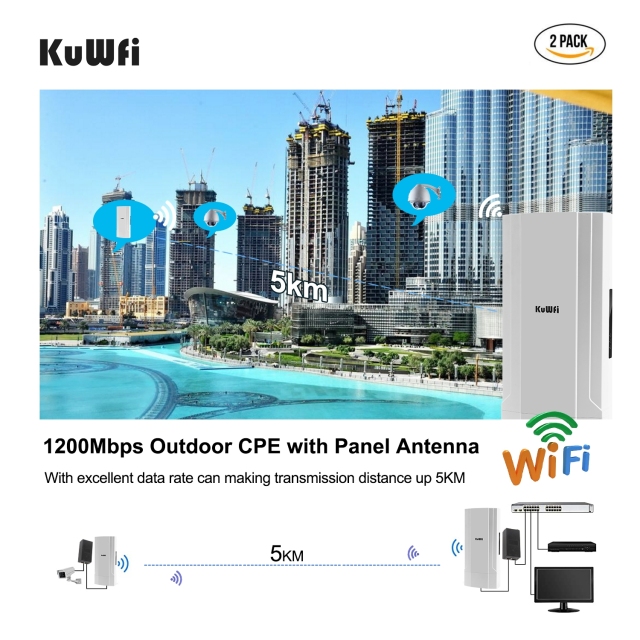

  • High Power, High Gain Antenna, more WiFi Range - Designed in two line Power Amplifier on PCB board, the power can be 500mW high power, build in dual band panel WiFi antenna, the PTP/PTMP WiFi range more than 5KM
  • Power over Ethernet - Outdoor AP CPE2200 has integrated active Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure. Pls note, the default is 48V IEEE 802.3at PoE, 24V Passive PoE is possible by change PCB board

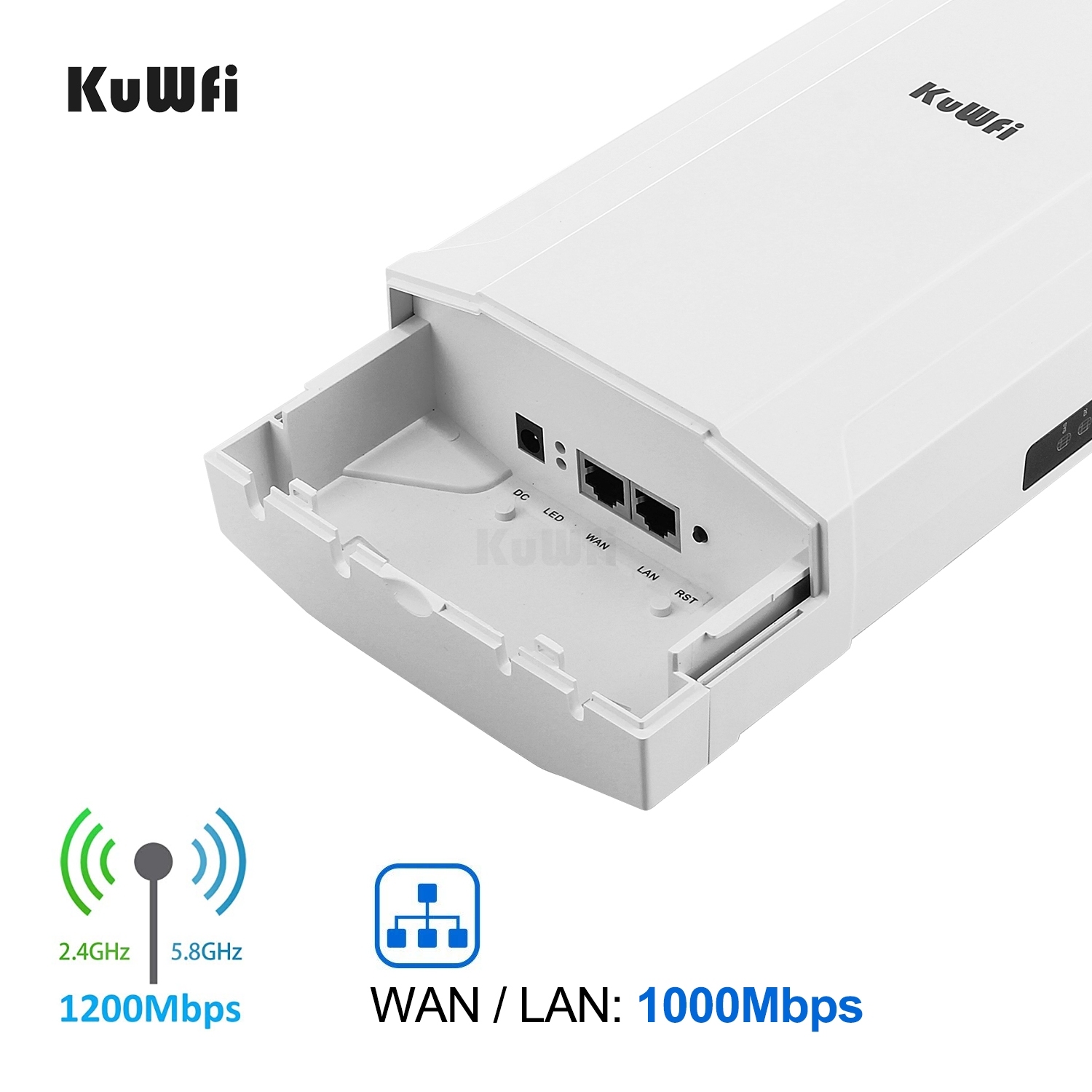

  • Interface


1 * 10/100/1000Mbps RJ45 WAN Port, WAN port support IEEE 802.3at standard PoE

1 * 10/100/1000Mbps RJ45 LAN Port

1 * WDS switch button, press it to do WDS PTE/PTMP connection

1 * Reset button, press 15 seconds to revert to default setting


  • Main Features


- Chipset: Qualcomm QCA9563 + QCA9882 +QCA8334

- Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate

- 500mW high power, Qualcomm Chipset, 16M Flash, 128M DDR2 RAM, more user, more stable

- Antenna: Build in Panel antenna, 12dBi in 2.4GHz, 14dBi in 5.8GHz

- Support 48V active PoE, work with IEEE 802.3at standard PoE switch or 48V PoE adapter

- Power consumption: 48V PoE<30W

- Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz), support tag VLAN based on SSID to protect the whole data safety

- Support Wireless AP, Repeater, operation mode

- With function of firewall, IP filter, URL filter and MAC filter

- Comply with IEEE 802.3az standard,RF power adjustment and frequency analyzer for better application in different environment

- Support DDNS, VPN pass through, Port forwarding and DMZ host

- Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security

- Size: 315mm * 145 mm * 80 mm

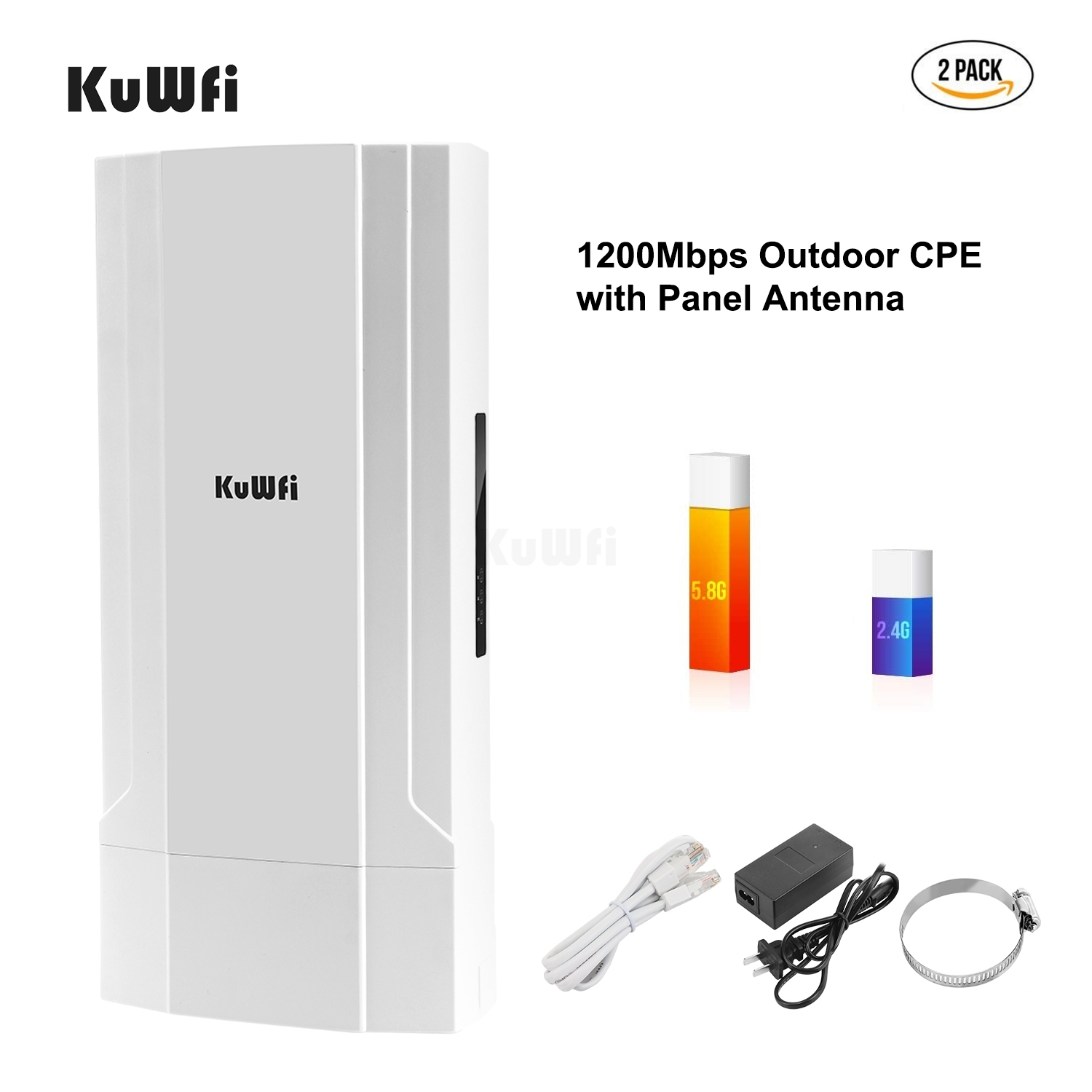

  • Package List


1 * KuWFi CPE2200 PTP Bridge (2-Pack)

2 * Stainless ties

2 * Cable

2 * 48V PoE Power (US Plug)

Outdoor Wireless Bridge

2.4GH&5GHz Outdoor Long Range WirelessTransmission and Coverage


  • Comply with new and latest 11ac Technology
  • Pure 2.4GHz&5GHz band , 1200mbps Data Rate
  • Faster wireless speed with less Wi-Fi interference, signal more stable

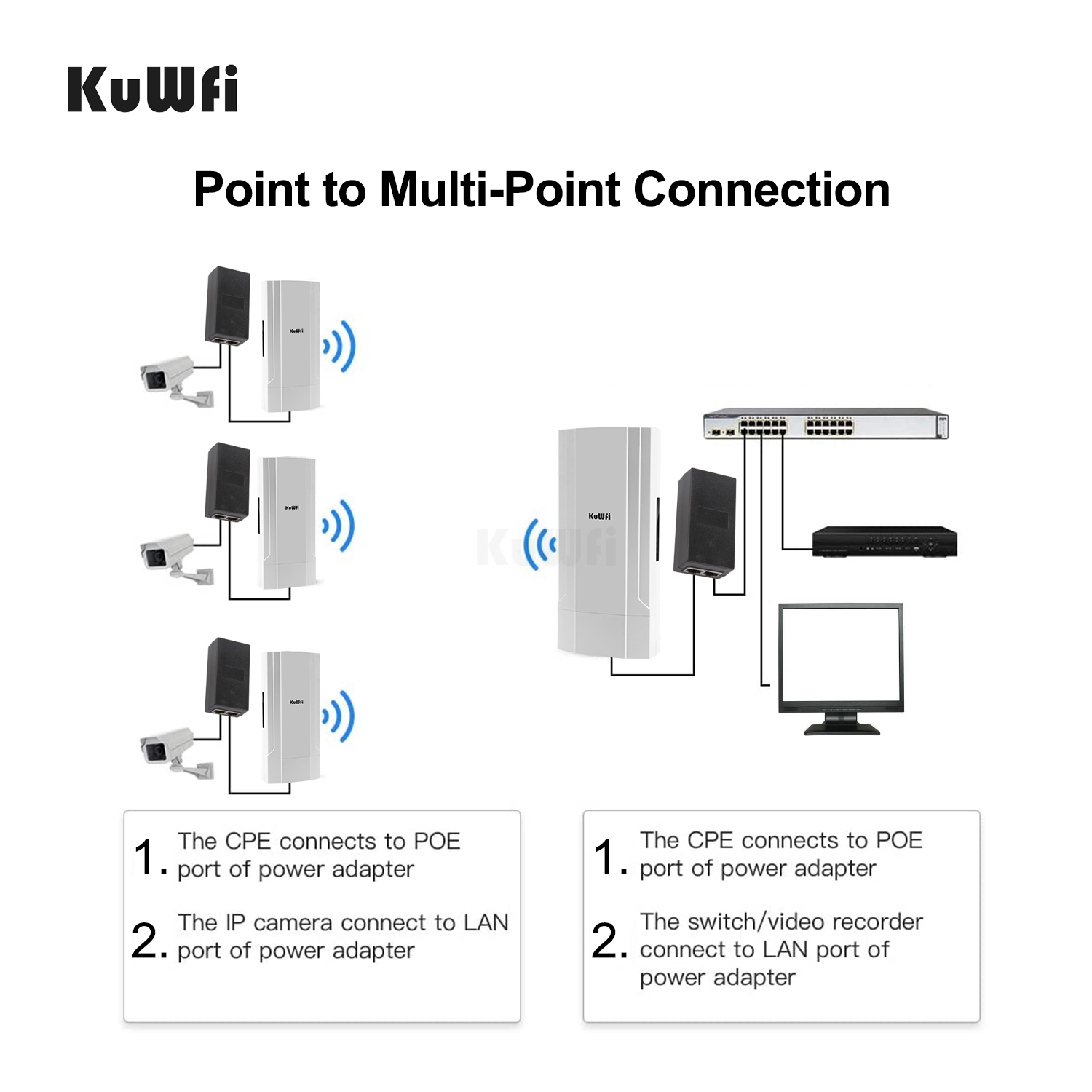

  • Widely be used in wireless security or long range PTP/PTMP connections


Outdoor Wireless Bridge

Professional Outdoor Shell +Internal Lightning ProtectionDesign, Suit for multiple Harsh Environment


  • Adopt outdoor ABS plastic shell and Professional lightning protection components
  • Provide IP65 water-proof, dust-proof, suit for multiple harsh environment
  • Even in extreme hot and cold environment (-40℃-70°C), also can work stable


Outdoor Wireless Bridge

Wireless Transmission in Buildings

With Operation mode of AP, Client, WDS, Easy to achieve PIP/PIMP wireless connection, meet with long range wireless transmission in buildings, factories, rural areas, squares.

Outdoor Wireless Bridge

Adjustable RF Power


  • The transmission RF power is adjustable based on environment
  • Cut down RF power in place with high density of people or wireless AP
  • Or increase RF power in long range place to improve the performance


RF Data


  • Frequency:


- 2.4G:802.11b/g/n; 5GHz: 802.11a/n/ac

- 2.4GHz: 2.312GHz to 2.4835GHz

- 5GHz: 5.020 - 6.1000 GHz


  • Modulation:





  • Data Rate: 1200Mbps (2.4G 300Mbps, 5.8G 900Mbps)
