4G network band:
4G FDD-LTE:Band 1/3/5/7/8/20
4G TDD-LTE:Band 38/40
WCDMA/HSDPA/HSUPA:Band1/B8
GSM/GPRS/EDGE:Band3/B8

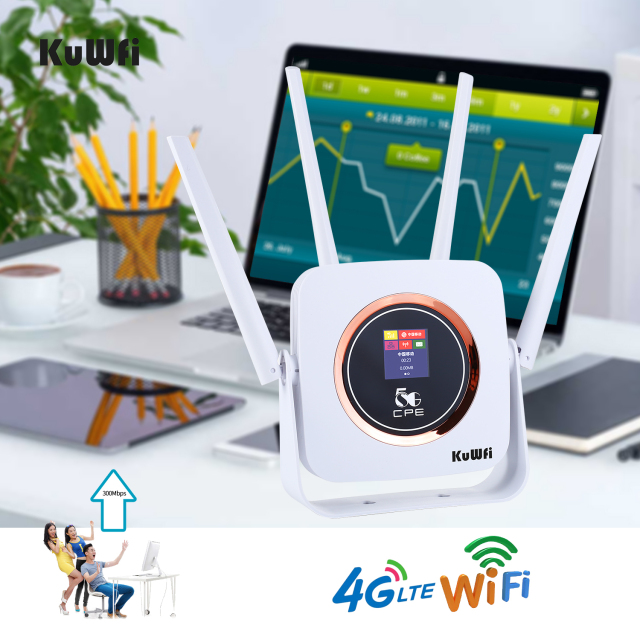

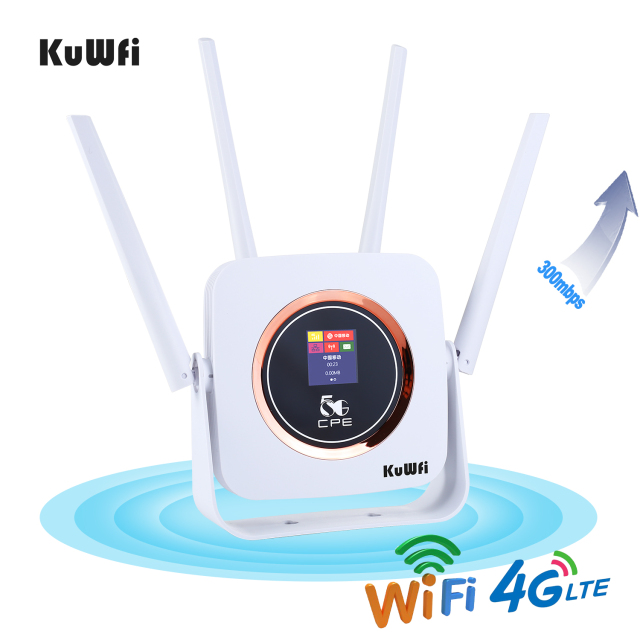

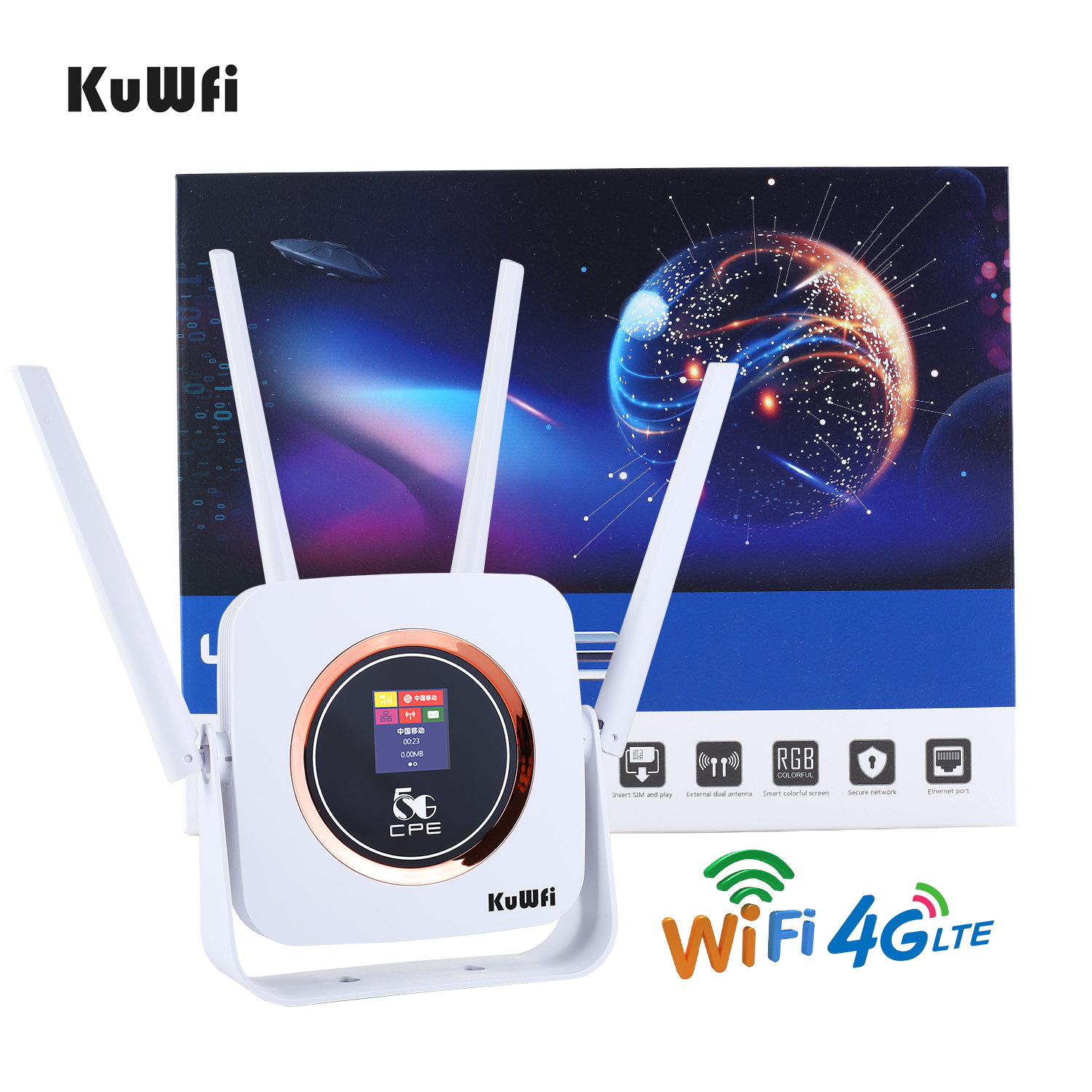

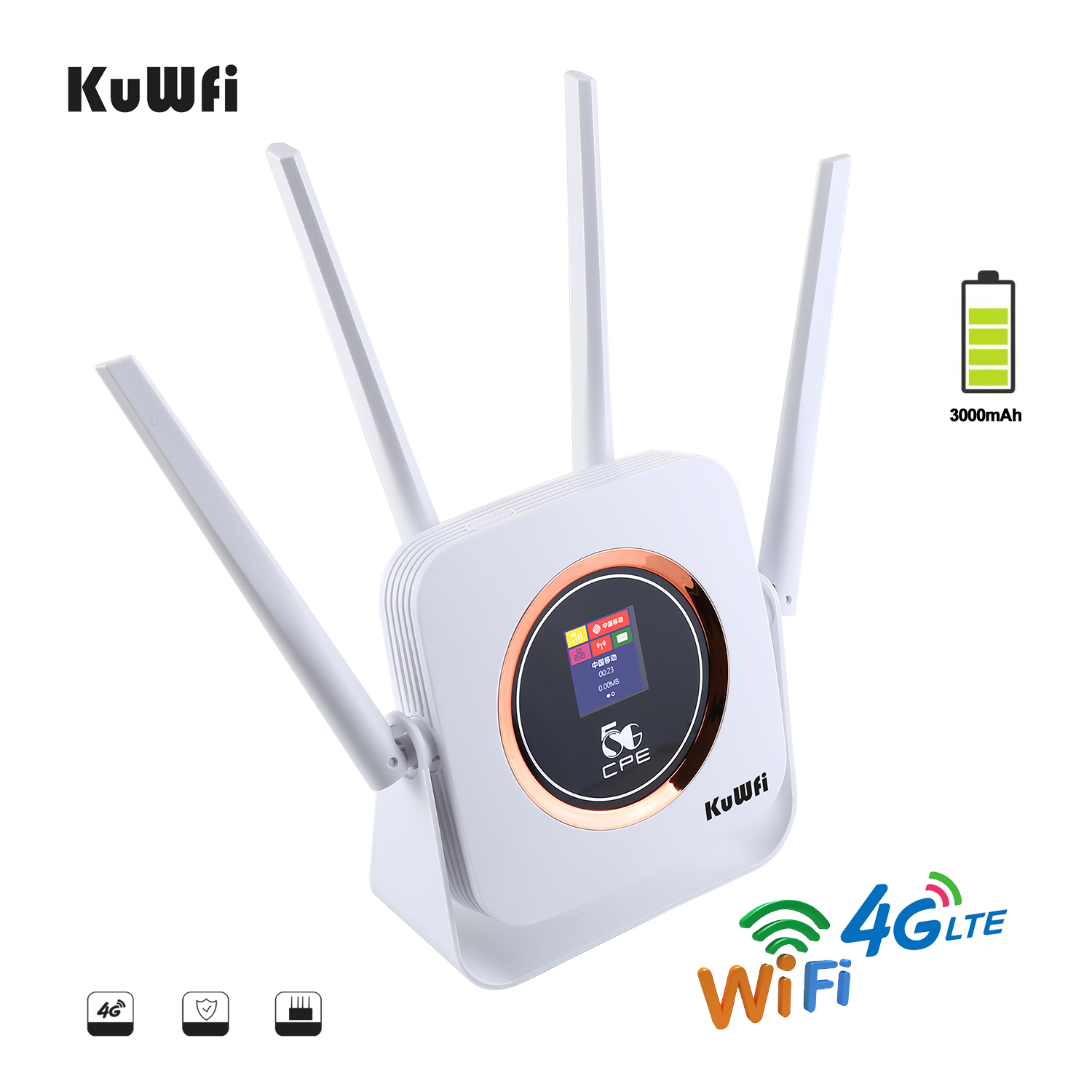

【about PCF903-B】
It can be connected to tablets, laptops, mobile phones and different types of WI-FI devices outside and inside .The coverage of the signal is 300-500M, which mainly depends on the strength of the signal.
【 Main feature Performance 】
Its download speed is up to 300mbps, upload speed is up to 50mbps, and wireless transmission speed is 300mbps. Playing games outdoors, watching live or high-definition video, etc., is faster speed and smoother than the CAT4 router.
Working Mode:
【A】4G wireless mode(Default):
Choose 3G/4G Wireless modem mode as default, pulg in to standard SIM Card, KuWFi CPE will identify 3G/4G automatically.for some SIM Card should be update APN
【B】 4G To LAN:
Insert 3G/4G SIM card to the Router , connect the LAN cable the router to PC/Desktop
Port:
1 * Micro USB
1 * Standard SIM
1 * RJ45 (WAN/LAN)
1 * DC(12V-1A)
specification
FLASH + RAM: 1Gb NAND+1Gb SDRAM;
Working Temperature :- 10℃ to 55℃
Anrenna:4pcs high-performance non-removable antennas
Working Humidity:10% to 90%
Storage Temperature : -10 to 70℃
Storage Humidity: 5% to 95%
Os: Windows XP 64bit\32bit(SP3),Vista 64bit\32bit(SP2),7,8,10
